Product Recognition | |
|---|---|
Certification Number | ZC10-19056509 |

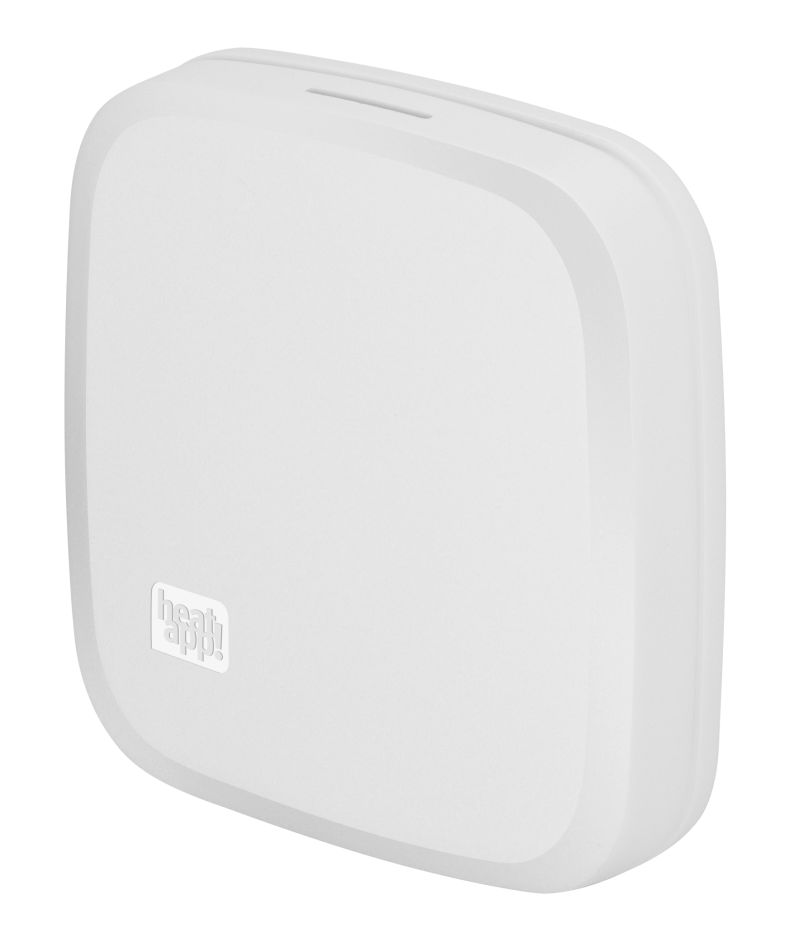

Name | heatapp! repeater S2 |
Short Description | heatapp! repeaterS2 is a USB powered Z-Wave repeater and part of the heatapp! system. It is used to enhance the network range of the Z-Wave system by repeating the data from other devices in the network wirelessly to the destination device. |
Long Description | heatapp! repeaterS2 is a USB powered Z-Wave repeater and part of the heatapp! system. It is used to enhance the network range of the Z-Wave system by repeating the data from other devices in the network wirelessly to the destination device. Wireless transmission takes place via the Z-wave protocol.
The device is wall-mounted. A detailed description of the heatapp! system is available in the operating instructions at www.heatapp.de
This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. |
Brand | heatapp! |
Product Identifier | 9601921000 |
OEM Version | HW: 0 FW: 1.05 |
Hardware Platform | ZM5202 |
Z-Wave Version | 6.81.04 |
Library Type | SLAVE_ENHANCED_232 |
Device Type | Repeater |
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
Manufacturer ID | 0x017c |
Product Type ID | 0x0001 |
Product ID | 0x000a |
User Icon | 0x1b00 |
Installer Icon | 0x1b00 |
Frequency Plans | EU: 869.85MHz, 868.40MHz |
Categories | Network Devices |
Countries / Regions | European Union |
Supported Command Classes | |
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
Documents | |
Features | |
Association Groups | |
Texts | |
Supported Notification Types | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
Supports SmartStart | Yes |
Radio Range Z-Wave (m) | 40 |
