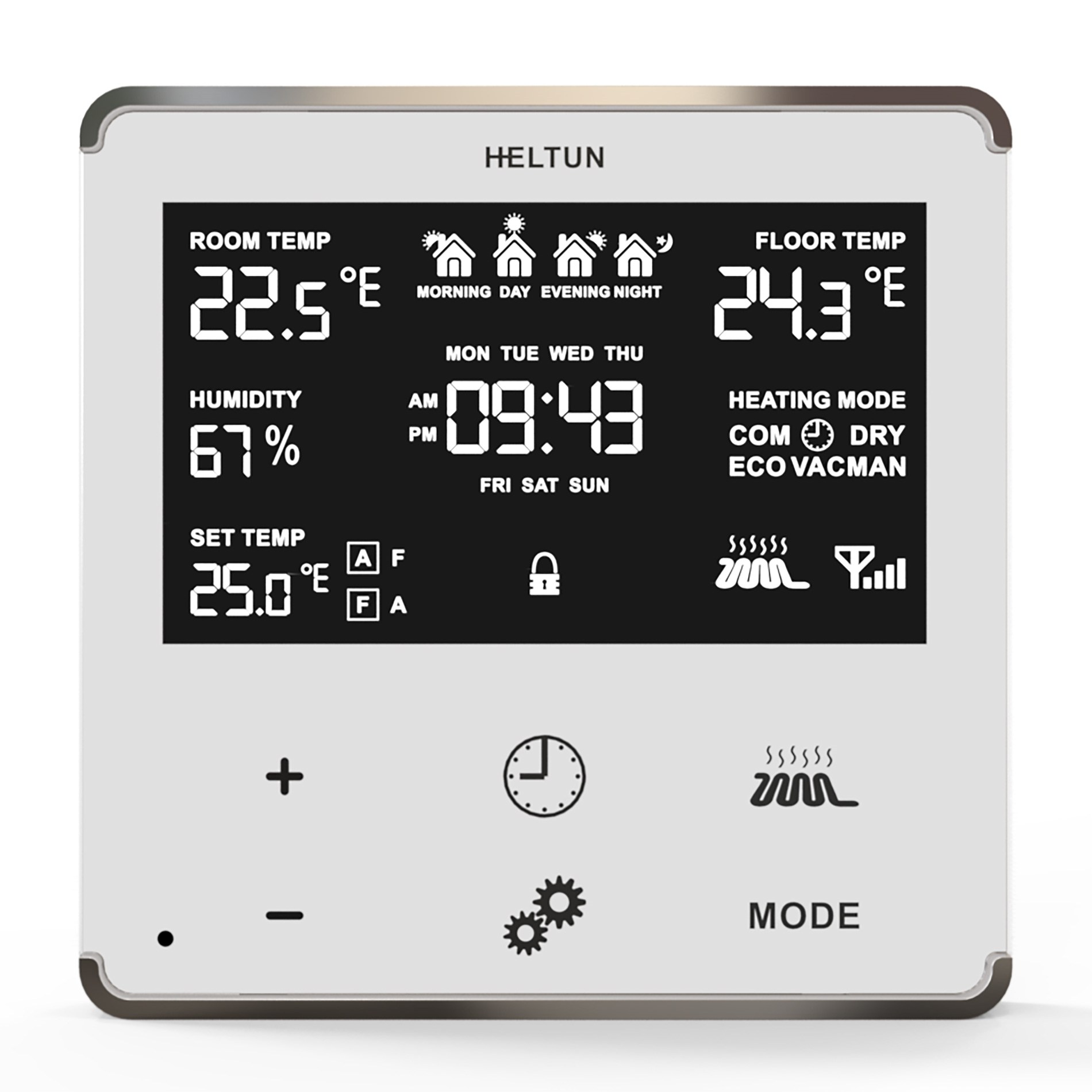

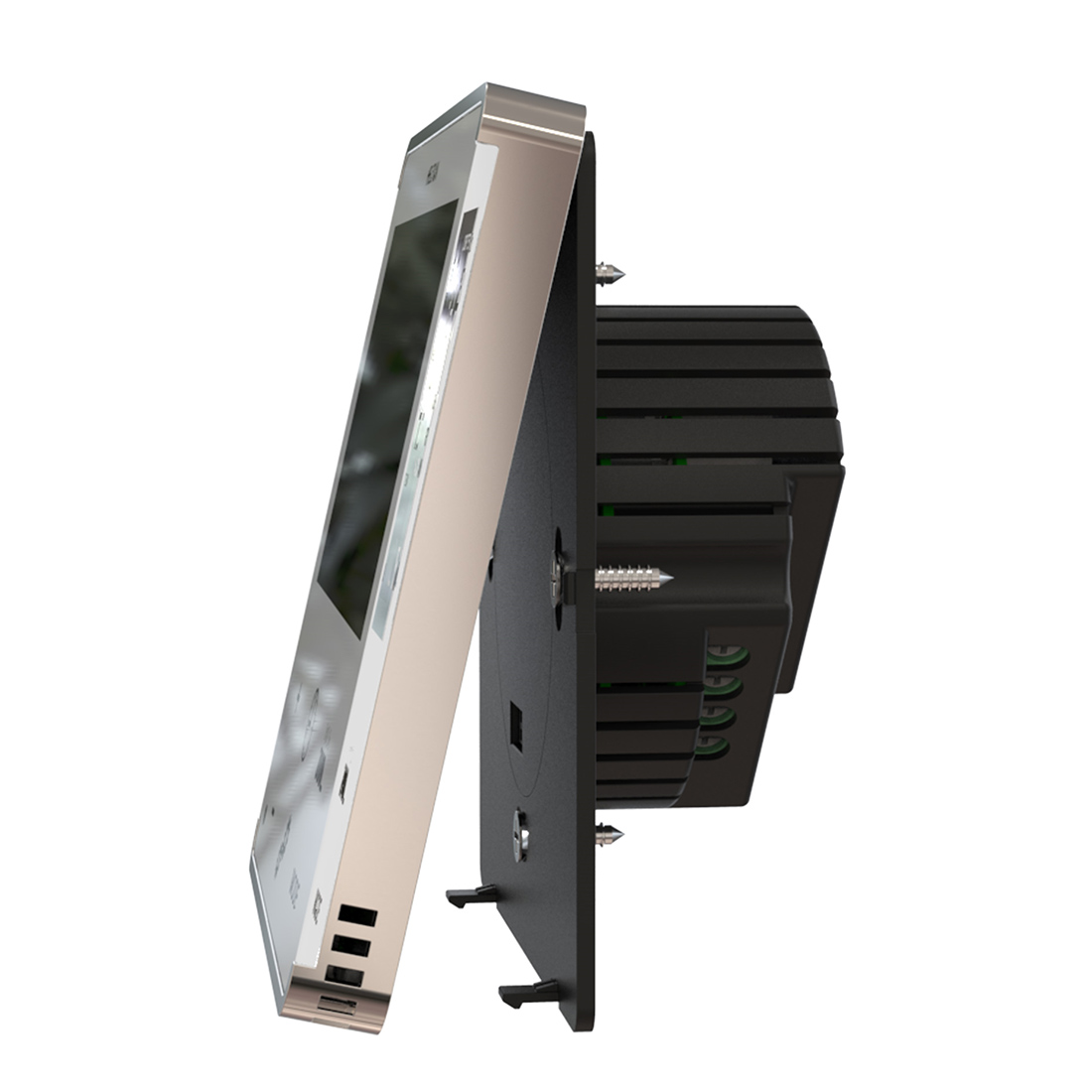

1 | NTC RESISTANCE | Floor Sensor Resistance (kΩ) | 2 | 1 | 1 | 100 | 10 | From | To | Description |
|---|
1 | 100 | Floor Sensor Resistance in kiloOhms (kΩ) |
|
2 | S1 INPUT MODE | S1 input mode | 3 | 1 | 0 | 2 | 0 | From | To | Description |
|---|
0 | 0 | No action will be taken (the input state is ignored by the Thermostat logic). | 1 | 0 | Thermostat will be switched to the operating mode selected in Parameter 3 if the output was short-circuited. The Heating Thermostat will go back to previous mode as soon as the input is open. | 2 | 0 | Thermostat will be switched to the operating mode selected in Parameter 3 if the output was short-circuited, but it will not undertake any action if the input is open again. |
|
3 | S1 INPUT ACTION | Mode number for S1 input action | 3 | 1 | 1 | 7 | 6 | From | To | Description |
|---|
1 | 0 | COM mode | 2 | 0 | TIME mode | 3 | 0 | DRY mode | 4 | 0 | ECO mode | 5 | 0 | VAC mode | 6 | 0 | MAN mode with IDLE (Off) state | 7 | 0 | MAN mode with HEATING (On) state |
|
4 | SOURCE TYPE | Source Sensor: 1=A, 2=AF, 3=F, 4=FA, 5=P, 6=PA, 7=PF | 3 | 1 | 1 | 7 | 6 | From | To | Description |
|---|
1 | 0 | A – Air sensor. Regulation (heating control) is based on the SET POINT applied to the internal room air temperature sensor. | 2 | 0 | AF – Air sensor + Floor sensor. Regulation is based on SET POINT applied to the internal room temperature sensor but also controlled by the floor temperature sensor ensuring that the floor temperature remains within the set limits. The lower floor temperature limit is specified in Parameter 16 (FtL) and the high temperature limit in parameter 17 (FtH). | 3 | 0 | F – Floor sensor. Regulation is based on the SET POINT applied to the external floor temperature sensor. | 4 | 0 | FA – Floor sensor + Air sensor. Regulation is based on SET POINT applied to the external floor sensor but is also controlled by the internal air temperature sensor ensuring that the room temperature remains within the set limits. The lower air temperature limit is specified in Parameter 14 (AtL) and the higher temperature limit in Parameter 15 (AtH). | 5 | 0 | P – Power regulator. Regulation is based on the time settings for heating which will be ON during the time in Parameter 05 (POn) and then OFF during the time in Parameter 06 (POf). This cycle will be repeated constantly. | 6 | 0 | PA – Power regulator + Air sensor. Regulation is based on the time set by Parameters 05 and 06 but also controlled by the internal air temperature sensor ensuring that the room temperature remains within the set limits. The air temperature limits are specified in Parameters 14 and 15. | 7 | 0 | PF – Power regulator + Floor sensor. Regulation is based on the time set by Parameters 05 and 06 but also controlled by the floor temperature sensor ensuring that the floor temperature remains within set limits. The floor temperature limits are specified in Parameters 16 and 17. |
|
8 | DRY SWITCH MODE | Mode to switch after Dry mode operation completion | 3 | 1 | 1 | 6 | 1 | From | To | Description |
|---|
1 | 0 | COM mode | 2 | 0 | TIME mode | 4 | 0 | ECO mode | 5 | 0 | VAC mode | 6 | 0 | MAN mode mode with IDLE state |
|
9 | TIME CORRECTION | Time correction by controller | 3 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
0 | 0 | Switch off auto-correction | 1 | 0 | If thermostat is connected to a Z-Wave gateway, the time and day will be periodically polled and corrected from the gateway |
|
10 | TIME FORMAT | Time format | 3 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
0 | 0 | 24 hour format | 1 | 0 | 12 hour (AM/PM) format |
|
11 | WEEKDAY | Week day. This parameter allows manually adjustment of the day of the week in case if the thermostat is not connected to any Z-Wave gateway or Parameter 09 (auto-correction) is selected as 0. | 3 | 1 | 1 | 7 | 1 | From | To | Description |
|---|
1 | 0 | Monday | 2 | 0 | Tuesday | 3 | 0 | Wednesday | 4 | 0 | Thursday | 5 | 0 | Friday | 6 | 0 | Saturday | 7 | 0 | Sunday |
|
17 | FLOOR TEMP MAX | Floor Temperature Maximum in °C, x10 The FLOOR TEMP MAX value cannot be lower than FLOOR TEMP MIN value +10 | 2 | 2 | 50 | 370 | 320 | From | To | Description |
|---|
50 | 370 | This Parameter is the floor temperature high limit – reading the external NTC temperature sensor. It only comes into effect if AF or PF are selected as the source sensor. The factory default value is 32°C (89°F). Note: The FtH value cannot be lower than FtL value +1°C. |
|
25 | RESERVED | Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality. | 3 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality. | 1 | 0 | Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality. |
|
31 | RESERVED | Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality. | 3 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality. | 1 | 0 | Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality. |
|
41 | SENSORS REPORT TIME | Sensors consecutive reporting interval, minutes. When the device is connected to the Z-Wave gateway (controller), it periodically sends to the gateway reports from its room & floor temperature, humidity and light sensors even if there are not changes in the values. This Parameter defines the interval between consecutive reports. The value can be adjusted from 1 min to 120 min. Note: If the sensor readings change, the device will send the report to the gateway regardless of this parameter value. In order not to increase traffic on your network, it is not recommended to reduce the value of this parameter. We recommend to reduce the value of this parameter only in case of poor connection, when reports from the device does not always reach the gateway. | 2 | 1 | 1 | 120 | 10 | From | To | Description |
|---|
1 | 120 | The value can be adjusted from 1 to 120 minutes |
|
42 | CONSUMPTION REPORT TIME | Consumption meter consecutive reporting interval, minutes. This Parameter defines the interval between consecutive reports of real time and cumulative energy consumption data to the gateway. The value can be adjusted from 1 min to 120 min. The factory default value is 10 min. Note: If the sensor readings change, the device will send the report to the gateway regardless of this parameter value. In order not to increase traffic on your network, it is not recommended to reduce the value of this parameter. | 2 | 1 | 1 | 120 | 10 | From | To | Description |
|---|
1 | 120 | The value can be adjusted from 1 to 120 minutes. |
|
43 | TEMPERATURE THRESHOLD | Temperature difference to send to controller, value x10. This parameter determines the change in temperature level (in °C) resulting in temperature sensors report being sent to the gateway. The value of this parameter should be x10, e.g. for 0.4°C use value 40. From 0.5°C to 10°C can be selected. Use the value 0 if there is a need to stop sending the reports. The factory default value is 0.5°C (5). | 2 | 1 | 0 | 100 | 5 | From | To | Description |
|---|
0 | 0 | Stop sending the reports | 5 | 100 | Temperature level (in °C) |
|
44 | HUMIDITY THRESHOLD | Humidity difference to send to controller, %. This parameter determines the change in humidity level in % resulting in humidity sensors report being sent to the gateway. From 2% to 25% can be selected. Use the value 0 if there is a need to stop sending the reports. The factory default value is 2. | 2 | 1 | 0 | 25 | 2 | From | To | Description |
|---|
0 | 0 | Stop sending the reports | 2 | 25 | Humidity level in % |
|
45 | LIGHT THRESHOLD | Light sensor values difference to send to controller, %. This parameter determines the change in temperature level resulting in temperature sensors report being sent to the gateway. From 10% to 99% can be selected. Use the value 0 if there is a need to stop sending the reports. The factory default value is 50. | 2 | 1 | 0 | 99 | 50 | From | To | Description |
|---|
0 | 0 | Stop sending the reports | 10 | 99 | Temperature level change in % |
|
46 | MORNING START TIME | Morning start time. Format: HHMM. e.g.08:00 should be sent as 0800 | 2 | 2 | 0 | 2359 | 600 | From | To | Description |
|---|
0 | 2359 | Morning start time. Format: HHMM (from 00:00 to 23:59) |
|
47 | DAY START TIME | Day start time. Format: HHMM. | 2 | 2 | 0 | 2359 | 900 | From | To | Description |
|---|
0 | 2359 | Day start time. Format: HHMM (from 00:00 to 23:59) |
|
48 | EVENING START TIME | Evening start time. Format: HHMM. | 2 | 2 | 0 | 2359 | 1800 | From | To | Description |
|---|
0 | 2359 | Evening start time. Format: HHMM (from 00:00 to 23:59) |
|
49 | NIGHT START TIME | Night start time. Format: HHMM. | 2 | 2 | 0 | 2359 | 2300 | From | To | Description |
|---|
0 | 2359 | Night start time. Format: HHMM (from 00:00 to 23:59) |
|
