Product Recognition | |
|---|
Certification Number | ZC14-25010493 |
|---|

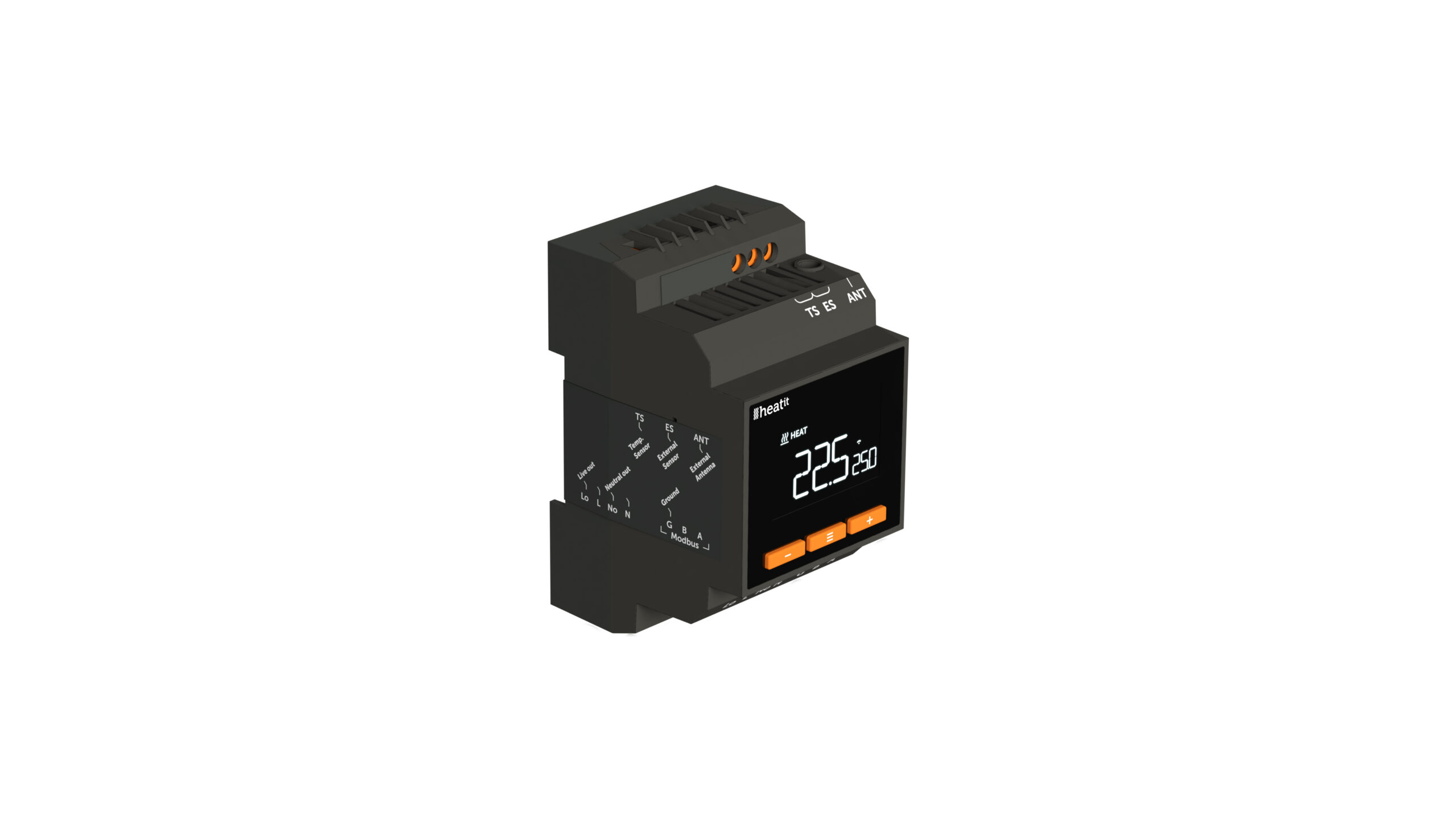

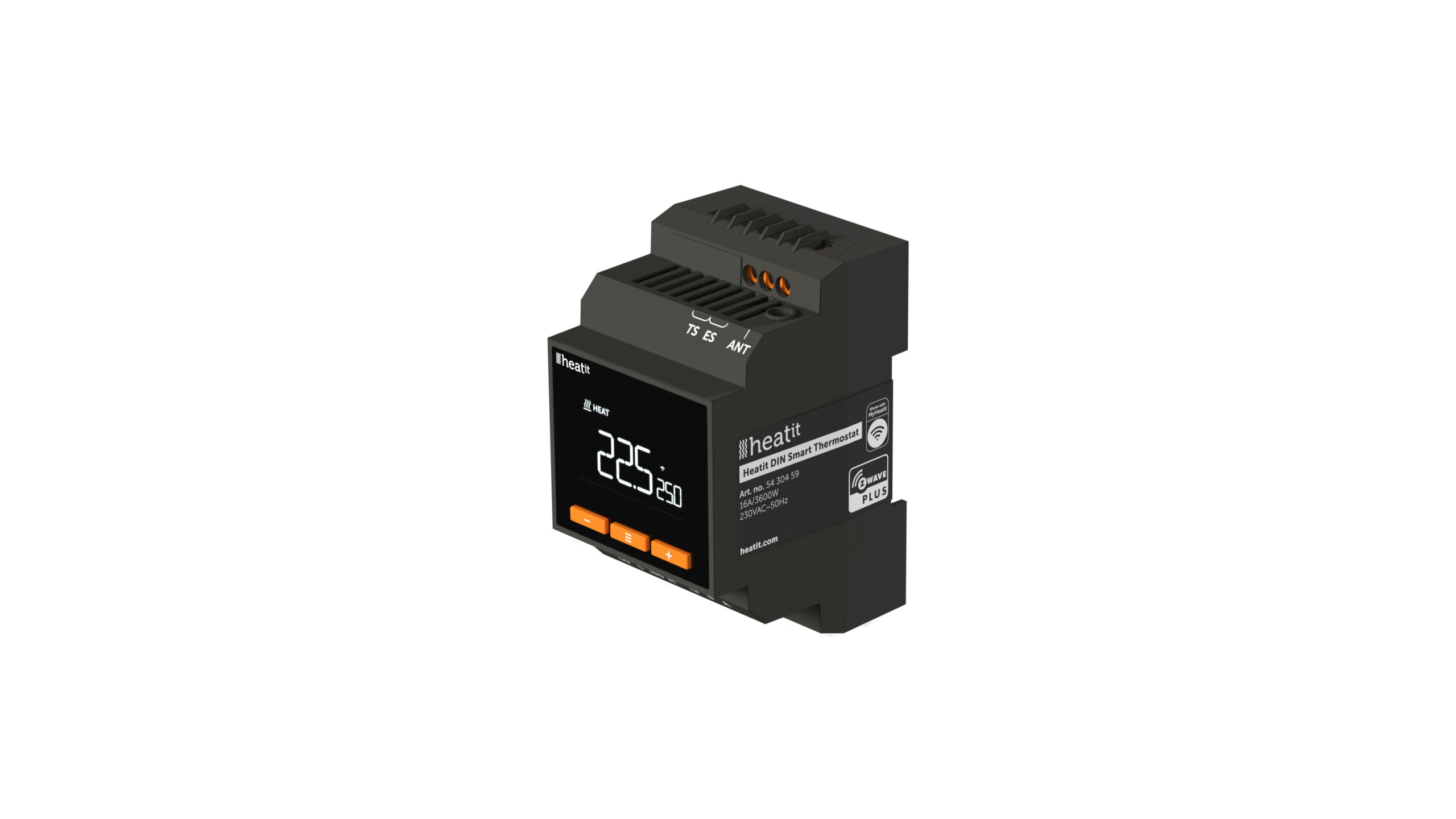

Name | Heatit DIN Smart Thermostat |
|---|
Short Description | Heatit DIN Smart Thermostat is an electronic thermostat designed for electrical heating and cooling. The thermostat can be controlled via Z-Wave® via a Z-Wave gateway. It can also be controlled by Wi-Fi using the MyHeatit app, or via Modbus 485 and the buttons on the front of the thermostat. The thermostat has a user friendly interface. |
|---|
Long Description | Heatit DIN Smart Thermostat is an electronic thermostat designed for electrical heating and cooling. The thermostat can be controlled via Z-Wave® via a Z-Wave gateway. It can also be controlled by Wi-Fi using the MyHeatit app, or via Modbus 485 and the buttons on the front of the thermostat. The thermostat has a user friendly interface.
The Heatit DIN Smart Thermostat is a versatile solution for both residential and industrial use. It functions as a standard floor heating thermostat, offering simple temperature control with three modes: Heat, Cool, and Eco. Additionally, it features a specially designed industrial function (INDU) that allows it to handle setpoints ranging from -30°C to 85°C, making it ideal for demanding industrial applications. It can also be used as a plus/minus snow melting thermostat (PLUS), adjusting temperatures for efficient snow and ice melting on outdoor areas, driveways, or stairs. With the Heatit DIN Smart Thermostat, you get precise temperature control for a wide range of purposes.

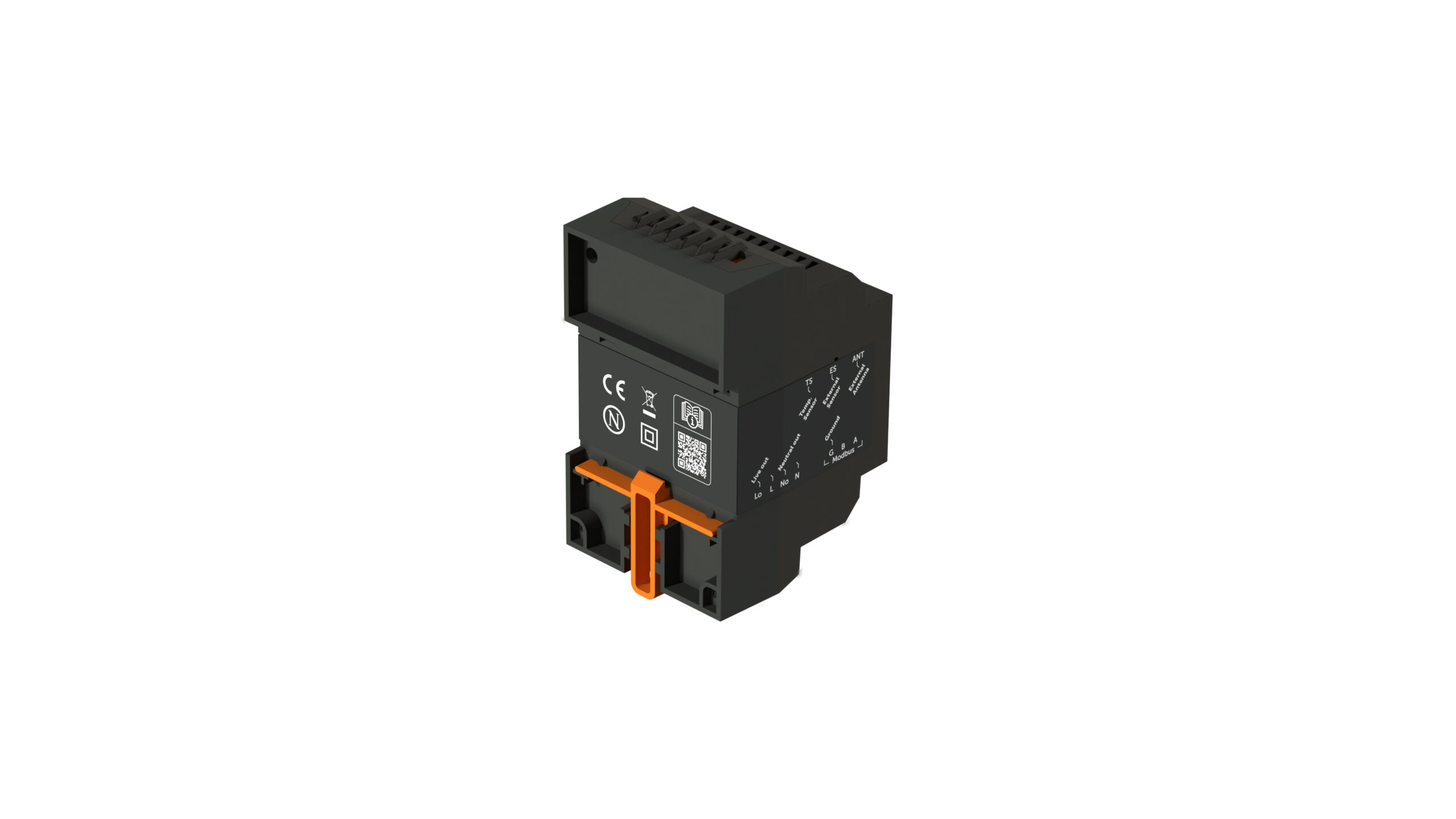

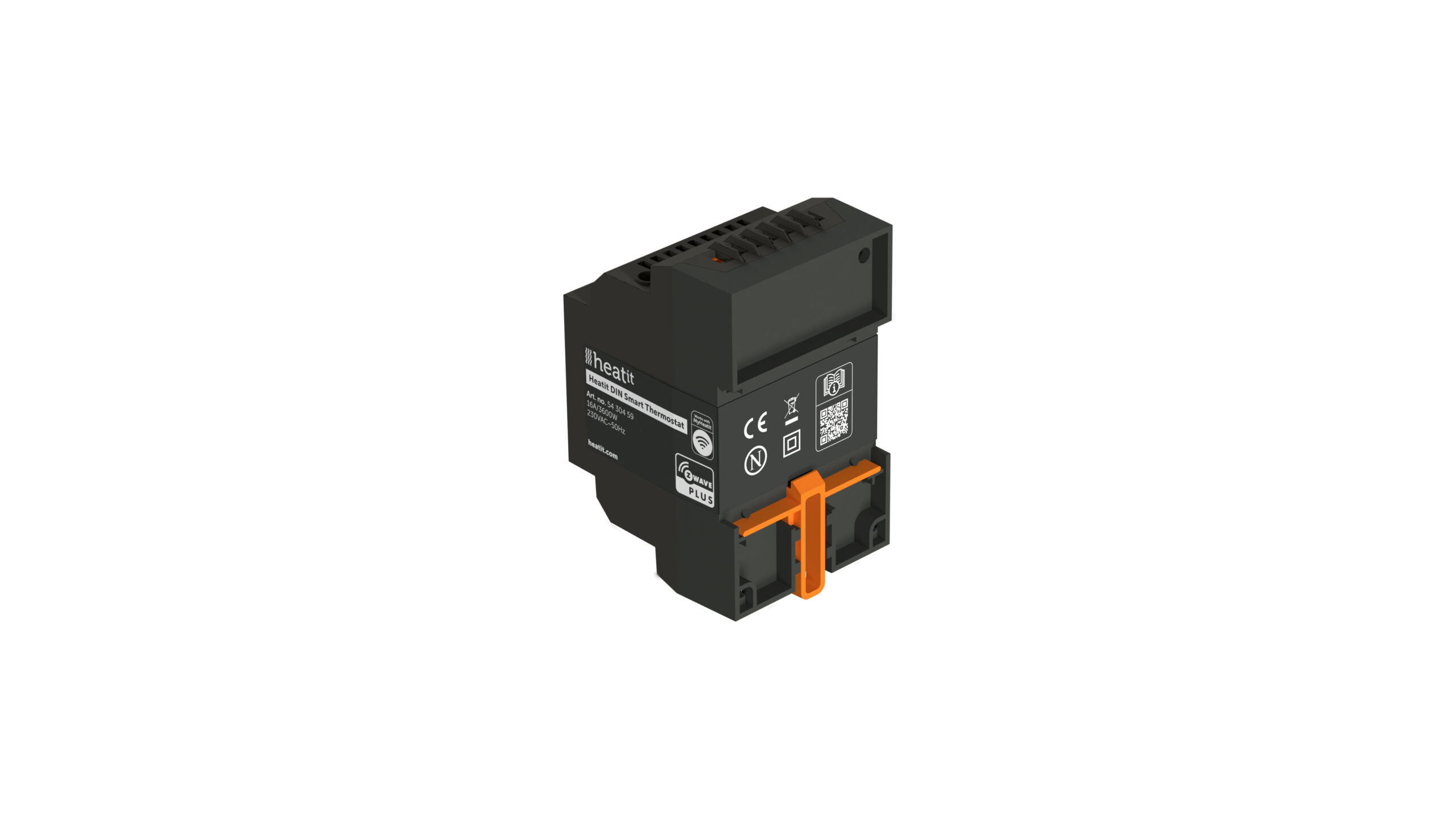

The thermostat clicks easily on a standard DIN rail and can be installed in the main switchboard. The thermostat has connection for two external temperature sensors.
While used on Wi-Fi, the thermostat can communicate over a local API, where the user can make integration with a local gateway, server, controller that offers such a service, without needing connecting it to the cloud. The device also supports Amazon Alexa and Google Home (Amazon Alexa and Google Home are pending).
Heatit DIN Smart Thermostat has active power metering and it gives you real time information about your power consumption. It also allows you to set the power metering value manually in case of connection with a contactor.
The device has implemented ZeroX™ technology. This technology makes sure the relay switches at 0V when turning on and off. With this technology the thermostat will have a much longer lifetime. |
|---|
Brand | Heatit |
|---|
Product Identifier | DIN Smart Thermostat |
|---|
Product Line | Thermostat |
|---|
OEM Version | HW: 01 FW: 01.00:02.01 |
|---|
Hardware Platform | EFR32ZG23A |
|---|
Z-Wave Version | 7.18.8 |
|---|
Library Type | END_NODE_ENHANCED_232 |
|---|
Device Type | Thermostat DT |
|---|
Role Type | ROLE_TYPE_END_NODE_ALWAYS_ON |
|---|
Manufacturer ID | 0x019B |
|---|
Product Type ID | 0x0030 |
|---|
Product ID | 0x3003 |
|---|
User Icon | 0x1201 |
|---|
Installer Icon | 0x1200 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Thermostats |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_SENSOR_MULTILEVEL_V11 | Multilevel Sensor V11 | 0x31 | 11 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_PROTECTION | Protection | 0x75 | 1 | COMMAND_CLASS_THERMOSTAT_MODE_V3 | Thermostat Mode V3 | 0x40 | 3 | COMMAND_CLASS_THERMOSTAT_OPERATING_STATE | Thermostat Operating State | 0x42 | 1 | COMMAND_CLASS_THERMOSTAT_SETPOINT_V3 | Thermostat Setpoint V3 | 0x43 | 3 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information (AGI) V3 | 0x59 | 3 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta Data V5 | 0x7A | 5 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_SECURITY | Security 0 | 0x98 | 1 | COMMAND_CLASS_SECURITY_2 | Security 2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi Channel V4 | 0x60 | 4 | COMMAND_CLASS_METER_V5 | Meter V5 | 0x32 | 5 |
|
|---|
S2 Classes | S2_AUTHENTICATED, S2_UNAUTHENTICATED |
|---|
Documents | Category | File | Description |
|---|
Image_Product_Supplemental_3 | | | Image_Product_Supplemental_4 | | | Image_Product_Supplemental_5 | | | Manual_English | | Updated Manual |
|
|---|
Features | Feature | Values |
|---|
Color | | Communications Connections | Value |
|---|
RS-485 (Serial) | Ethernet (Wireless/WiFi) | Bluetooth |
| Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| IP (Ingress Protection) Rated | | Neutral Wire Required | | Switch Load Capacity Watts | | Switch Type | | Thermostat HVAC Systems Supported | | Thermostat Modes | Value |
|---|
Heat | Cool | Energy Save Heat |
| Thermostat Power Source | Value |
|---|
Mains powered (120V/240V) |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile |
|---|
1 | 1 | 0 | Lifeline | 0x0001 | 2 | 10 | 1 | Binary Switch Set | 0x2001 | 3 | 10 | 1 | Thermostat Setpoint Set | 0x2002 | 4 | 10 | 1 | Thermostat Mode Set | 0x2003 | 1 | 0 | 2 | Lifeline | 0x0001 | 1 | 0 | 3 | Lifeline | 0x0001 | 1 | 0 | 1 | Lifeline | 0x0001 | 2 | 10 | 0 | Binary Switch Set | 0x2001 | 3 | 10 | 0 | Thermostat Setpoint Set | 0x2002 | 4 | 10 | 0 | Thermostat Mode Set | 0x2003 |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value |
|---|
1 | Disable buttons | Disable or enable local control | 2 | 1 | 0 | 0 | 0x00 | 2 | Sensor mode (OPER) | Choose the operating mode of the device | 2 | 1 | 0 | 0 | 0x00 | 3 | Sensor value (SEN) | Select resistance of the connected NTC | 2 | 1 | 0 | 0 | 0x00 | 4 | Floor sensor min temp limit | Set minimum setpoint for Floor sensor | 1 | 2 | 0 | 0 | 0x0014 | 5 | External sensor min temp limit | Set minimum setpoint for External sensor | 1 | 2 | 0 | 0 | 0x0014 | 6 | Floor sensor max temp limit | Set maximum setpoint for Floor sensor | 1 | 2 | 0 | 0 | 0x010E | 7 | External sensor max temp limit | Set maximum setpoint for External sensor | 1 | 2 | 0 | 0 | 0x0190 | 8 | Floor sensor calibration (CAF) | Manually calibrate the Floor sensor | 0 | 1 | 0 | 0 | 0x00 | 9 | External sensor calibration (CAE) | Manually calibrate the External sensor | 0 | 1 | 0 | 0 | 0x00 | 10 | Regulation mode (REG) | Select regulation mode | 2 | 1 | 0 | 0 | 0x00 | 11 | Temperature control hysteresis (HYST) | Select degrees for regulation hysteresis | 1 | 1 | 0 | 0 | 0x05 | 17 | Meter report interval | Set meter report interval | 1 | 2 | 0 | 0 | 0x034D | 23 | Thermostat state update interval | Set thermostat state update interval | 1 | 2 | 0 | 0 | 0x0E10 | 24 | Operating mode (MODE) | Changes operating mode | 2 | 1 | 0 | 0 | 0x01 | 25 | Open window detection | Enable or disable OWD | 2 | 1 | 0 | 0 | 0x00 |
|
|---|
Texts | ID | Description | Value |
|---|
5 | Factory Reset Procedure | Enter the menu by holding the Center button for about 5 seconds. Navigate in the menu with the Right button until you see “FACT.” Press the Center button once, and when “-- --” starts blinking in the display, hold it for about 5 seconds to perform a reset. You may also initiate a reset by holding the Right and Center buttons together for 60 seconds.
When either of these procedures has been performed, the thermostat will perform a complete factory reset. The device will display “RES” for 5 seconds while performing a factory reset. When “RES” is no longer displayed, the thermostat has been reset.

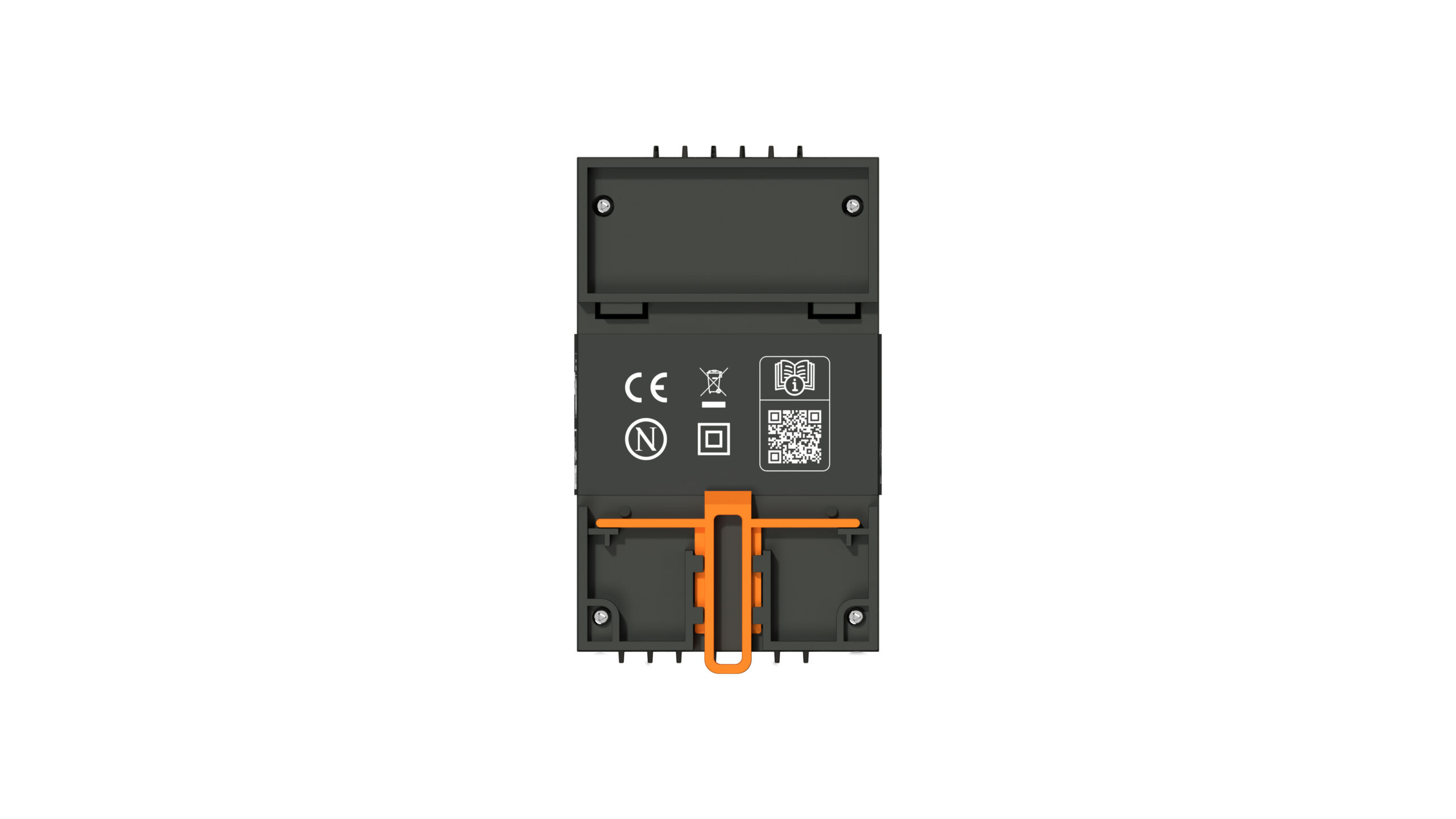

Please use this procedure only when the primary controller/gateway is missing or otherwise inoperable. | 8 | Where to find S2 DSK on product | The QR-Code is needed when including a device using S2 security or SmartStart. The DSK can be found in the QR-Code and is located;
• On the product.
• In the Quick Guide.
• On the packaging box/gift box. | 1 | Classic Inclusion | The primary controller/gateway has a mode for adding devices. Please refer to your primary controller/ gateway manual on how to set the primary controller/gateway in add mode. The device may only be added from the network if the primary controller/gateway is in add mode. When the device is removed from the network, it will NOT revert to factory settings.
An always listening node must be powered continuously and reside in a fixed position in the installation to secure the routing table. Adding the device within a 2 meter range from the gateway can minimize faults during the Interview process.
Method 1: Standard (Manual)
Add mode is indicated on the device by rotating LED segments on the display. It indicates this for 90 seconds until a timeout occurs, or until the device has been added to the network. Configuration mode can also be cancelled by performing the same procedure used for starting Configuration mode.
1. Hold the Center button for 5 seconds. The display will show “OFF”.
2. Press the ”Right” button once to see “CON” in the display.
3. Start the add device process in your primary controller/gateway
4. Start the configuration mode on the thermostat by holding the Center button for approximately 2 seconds.
The device is now ready for use with default settings.
NB! When the device is removed from the gateway, the parameters are not reset. To reset the parameters, see Chapter ”Factory reset”. If inclusion fails, please perform a ”remove device” process and try again. If inclusion fails again, please see “Factory reset”. | 2 | Classic Exclusion | The primary controller/gateway has a mode for removing devices. Please refer to your primary controller/gateway manual on how to set the primary controller/gateway in remove mode. The device may only be removed from the network if the primary controller/gateway is in remove mode. When the device is removed from the network, it will NOT revert to factory settings.
An always listening node must be powered continuously and reside in a fixed position in the installation to secure the routing table. Remowing the device within a 2 meter range from the gateway can minimize faults during the Interview process.
Method 1: Standard (Manual)
Rremove mode is indicated on the device by rotating LED segments on the display. It indicates this for 90 seconds until a timeout occurs, or until the device has been removed from the network. Configuration mode can also be cancelled by performing the same procedure used for starting Configuration mode.
1. Hold the Center button for 5 seconds. The display will show “OFF”.
2. Press the ”Right” button once to see “CON” in the display.
3. Start the remove device process in your primary controller/gateway
4. Start the configuration mode on the thermostat by holding the Center button for approximately 2 seconds.
The device is now ready for use with default settings.
NB! When the device is removed from the gateway, the parameters are not reset. To reset the parameters, see Chapter ”Factory reset”. If inclusion fails, please perform a ”remove device” process and try again. If inclusion fails again, please see “Factory reset”. |
|
|---|
Supported / Controlled Meter Types | Meter Type | Rate Type |
|---|
Electric meter | Import (consumed) |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Heat Alarm | (Refer to parameters): State idle | Heat Alarm | Heat sensor status: Overheat detected | Power Management | (Refer to parameters): State idle | Power Management | Over-load status: Over-load detected |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
