Product Recognition | |
|---|
Certification Number | ZC10-19106778 |
|---|

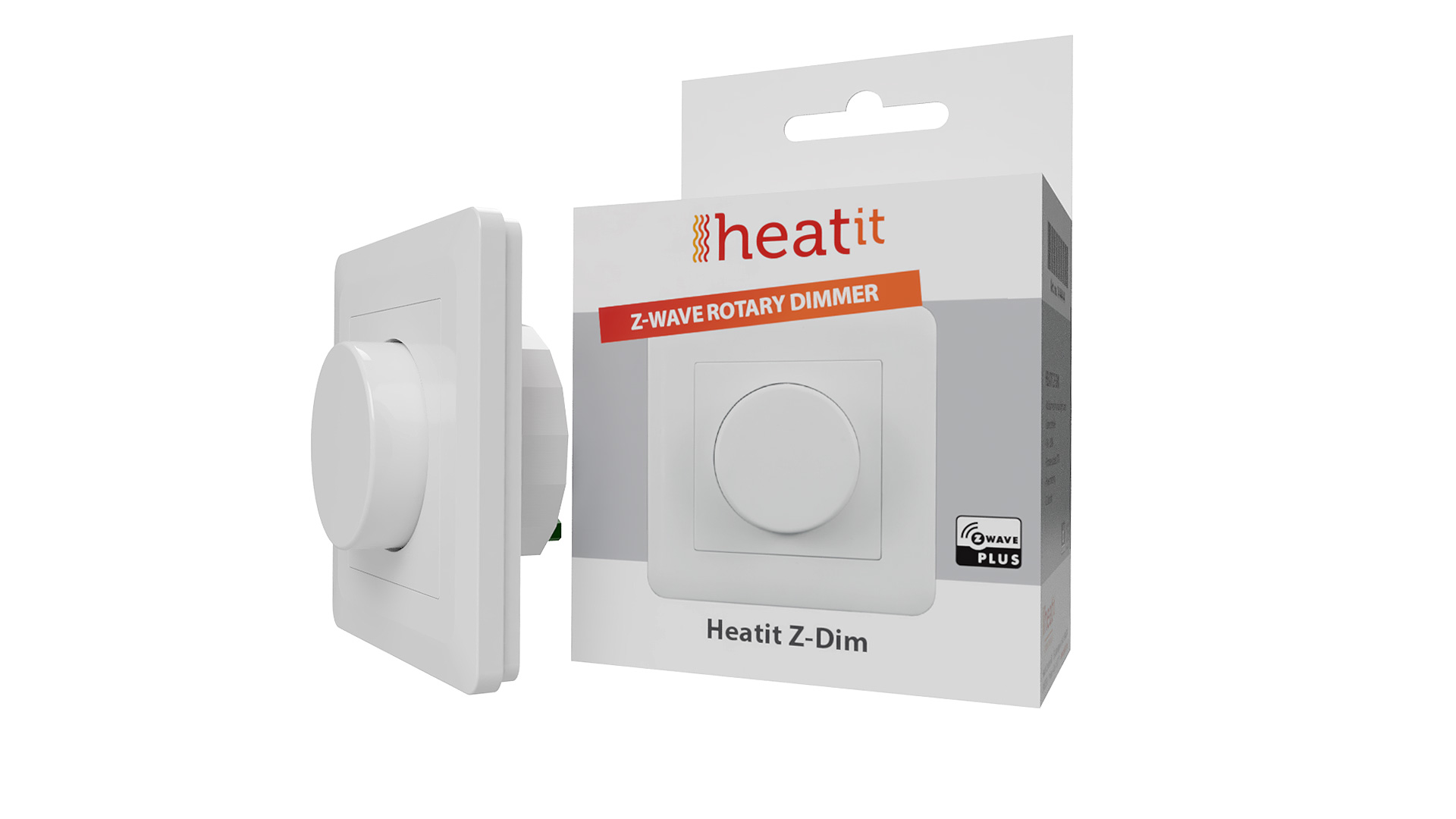

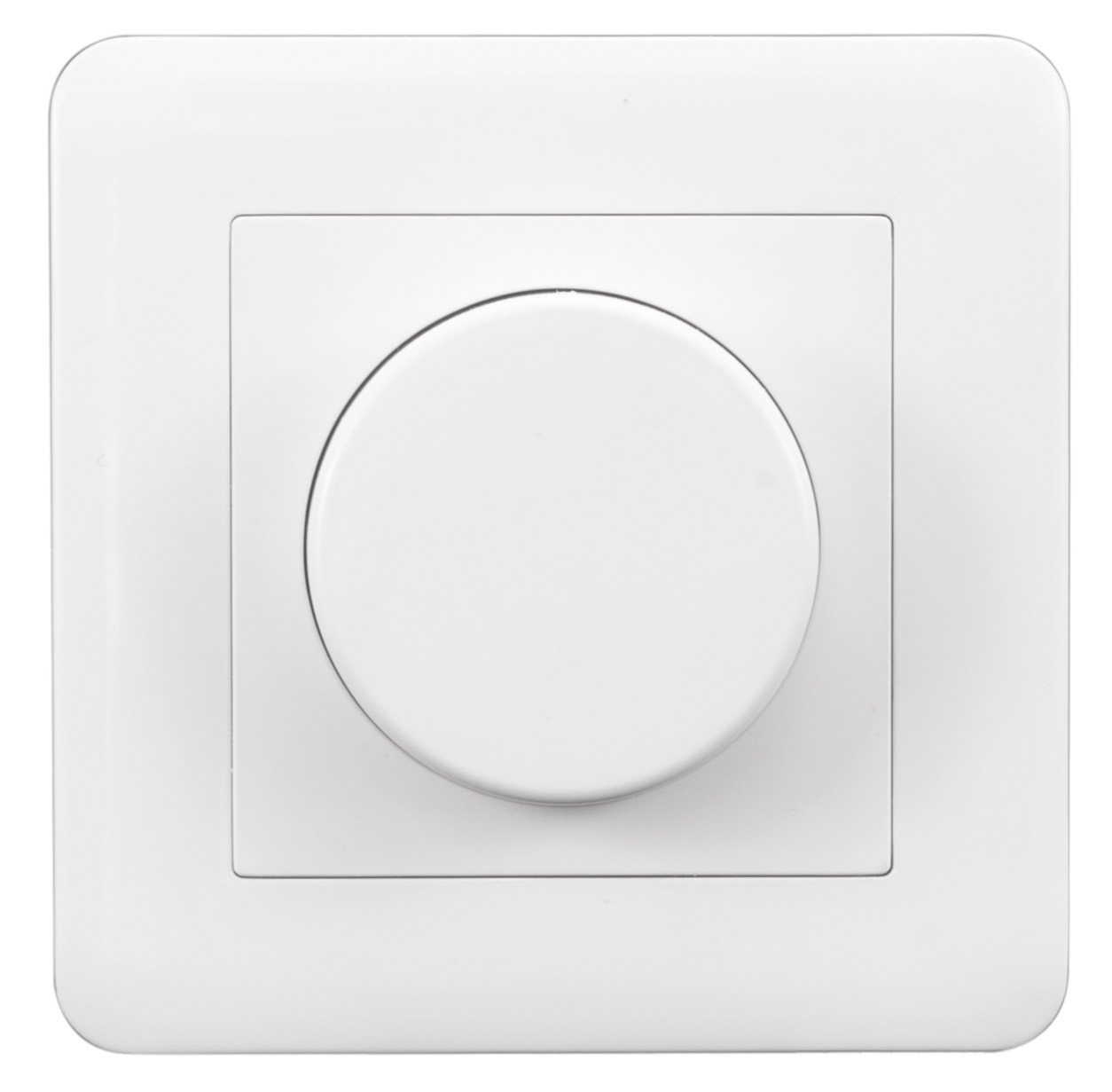

Name | Heatit Z-Dim |
|---|
Short Description | Heatit Z-Dim is a Z-Wave rotary dimmer for many different types of light sources.
Heatit Z-Dim can dim to a lower level than traditional dimmers, only 1VA. This dimmer makes you able to set the mood
in any room of your choosing. It also functions as a scene controller, which enables you to use the dimmer for a large number of tasks. |
|---|
Long Description | Heatit Z-Dim is a Z-Wave rotary dimmer for many different types of light sources.
The Heatit Z-Dim works on low loads without causing the lights to flicker. It dims LED-bulbs from 1-200VA, 230V halogen and incandescent bulbs, dimable LED-drivers and electronic transformers. The dimmer is not affected by startup inrush currents. L+N leads must be connected.
The dimmer is equipped with a multiway switching option. This allows you to light and dim a light source from one dimmer, and later turn it off with another one. Very practical for stairwells, long hallways etc.
The dimmer fits into standard Gira System 55 frame systems. |
|---|
Brand | Heatit controls |
|---|
Product Identifier | Z-Dim |
|---|
OEM Version | HW: 1 FW: 1.00 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.71.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Light Dimmer Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x019B |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x2200 |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0600 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_METER_V3 | Meter V3 | 0x32 | 3 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SWITCH_MULTILEVEL_V4 | Switch Multilevel V4 | 0x26 | 4 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_CONFIGURATION_V3 | Configuration V3 | 0x70 | 3 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_METER_V3 | Meter V3 | 0x32 | 3 | COMMAND_CLASS_SWITCH_MULTILEVEL_V4 | Switch Multilevel V4 | 0x26 | 4 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|

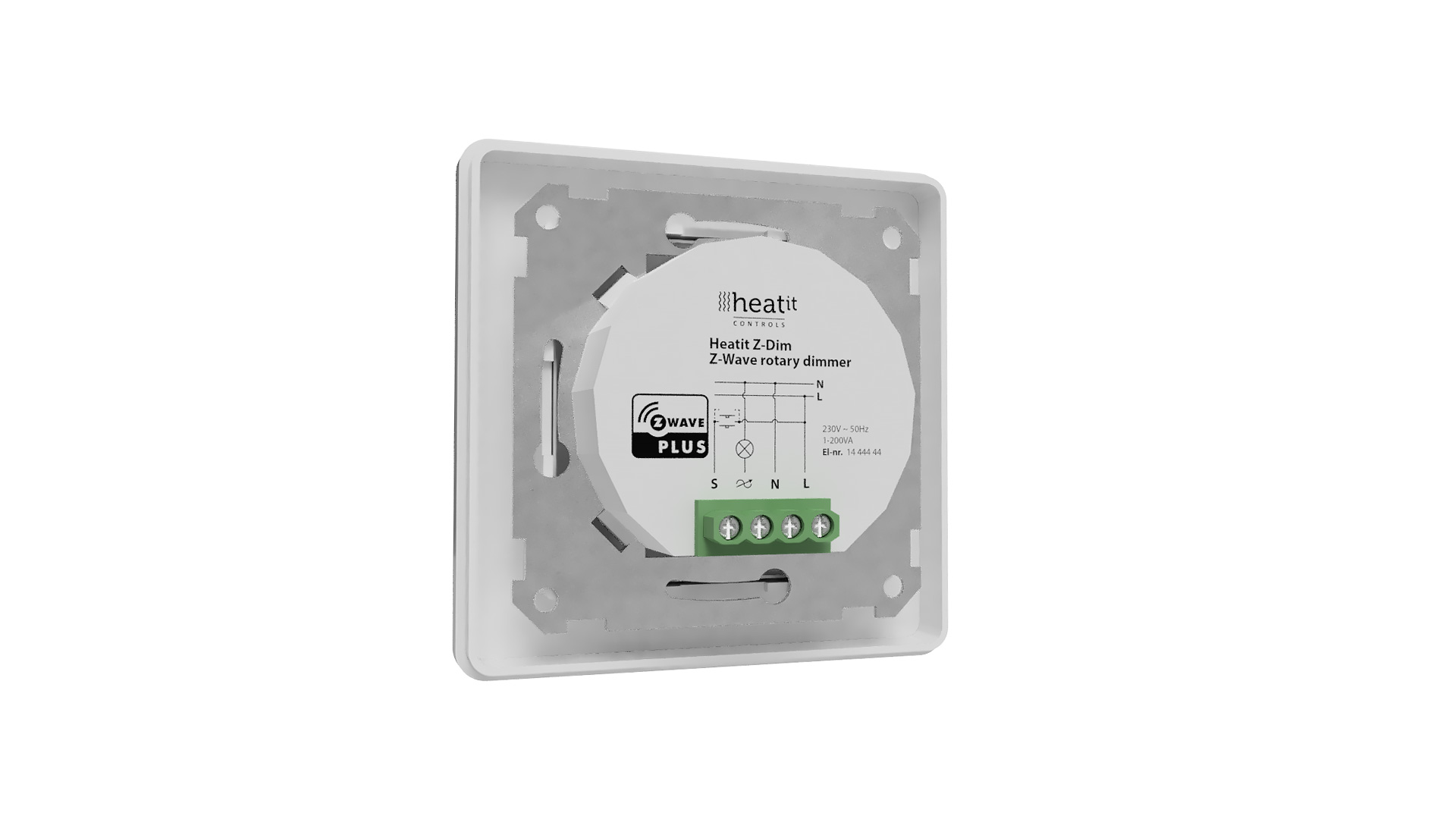

Image_Product_Supplemental_3 | Heatit Z-Dim mounting | | Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Electric Load Type | Value |
|---|
Incandescent | Dimmable LED | Dimmable ELV (Magnetic) |
| Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Neutral Wire Required | | Switch Type | | Z-Wave Scene Type | | Supported Meter Type | | Switch Load Capacity Volt-Ampere | | Switch Load Capacity Current | | Switch Load Capacity Watts | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile | Description |
|---|
1 | 8 | 0 | Lifeline | 0x0001 | Z-Wave Plus Lifeline Supports the following command classes:
• Meter Report: triggered according to Configuration
• Switch Multilevel
• Central Scene
• Device Reset Locally: triggered upon request
| 2 | 8 | 0 | Dimming Level | 0x2001 | Basic Set: triggered at change of output and reflecting its state. | 3 | 8 | 0 | State of Device (ON/OFF) | 0x2001 | Binary Switch Set: triggered at change of output and reflecting its ON/OFF state. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Connected Load. | The parameter defines the value of connected load. Refer to Paragraph 8 ”Power Metering”. | 1 | 1 | 0 | 200 | 0 | From | To | Description |
|---|
0 | 0 | Not configured (Default) | 1 | 200 | 1-200 Watts connected load |
| 6 | Scene controller. | The parameter enables scene controller. | 1 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
1 | 1 | Active (Default) | 0 | 0 | Disabled |
| 7 | Switch ON level. | The parameter defines the dimming level when restored from the OFF state by push button. | 1 | 1 | 0 | 99 | 0 | From | To | Description |
|---|
1 | 99 | 1% - 99% | 0 | 0 | Restores last dim level (Default) |
| 10 | Power restore level. | The parameter defines initial dimming level after power loss. | 1 | 1 | 1 | 99 | 50 | From | To | Description |
|---|
1 | 99 | 1% - 99% Default is 50 (50%) |
| 3 | Maximum Dim level. | The parameter defines the highest dimming level of the dimmer. The value must be higher than parameter 2 ”Minimum Dim Level”. | 1 | 1 | 2 | 99 | 85 | From | To | Description |
|---|
2 | 99 | 2% - 99% Default is 85 (85%) |
| 5 | Double press function. | The parameter defines the double press functionality. | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
1 | 1 | Dim to highest level | 0 | 0 | Central Scene notification (Default) |
| 8 | Dimming Duration. | The parameter defines how long it takes to dim to the desired level. Note! Only Multilevel Switch Command Class is affected by this parameter. | 1 | 1 | 0 | 255 | 1 | From | To | Description |
|---|
0 | 0 | Disabled | 1 | 127 | Duration in seconds (1 - 127 seconds. Default is 1) | 128 | 255 | Duration in minutes (1 - 127 minutes) |
|
|
|---|
Texts | ID | Description | Value |
|---|
5 | Factory Reset Procedure | By pressing and holding the main button for 20 seconds, the dimmer will perform a complete factory reset. The connected light source will blink once and go in the ”OFF” state if successfully reset.
NB! Please use this procedure only when the primary controller/gateway is missing or otherwise inoperable. | 8 | Where to find S2 DSK on product | The Z-Wave DSK can be found in the QR-Code and is located in 3 locations;
1. Box of the product.
2. On physical product, placed on the metal frame.
3. On the PCB. | 2 | Classic Exclusion | Remove
Please refer to your primary controller manual on how to enter remove mode. The device can only be removed from the network if the primary controller is in remove mode.
When the primary controller is set to remove modus press the main button on the dimmer 6 times in a rapid sequence.
When the device is removed from the network, the device will revert to factory default settings. | 23 | Controller Classic Inclusion | Add
Please refer to your primary controller manual on how to enter add mode. The device can only be added to the network if the primary controller is in add mode.
When the primary controller is set to add modus press the main button on the dimmer 6 times in a rapid sequence.
If the device already belongs to a network, follow the removing process before adding it in your network. Otherwise, the adding of this device will fail. | 6 | Other Special Features | Paragraph 8 "Power Metering" configuration guide. | 24 | Controller Classic Exclusion | Remove
Please refer to your primary controller manual on how to enter remove mode. The device can only be removed from the network if the primary controller is in remove mode.
When the primary controller is set to remove modus press the main button on the dimmer 6 times in a rapid sequence.
When the device is removed from the network, the device will revert to factory default settings. | 1 | Classic Inclusion | Add
Please refer to your primary controller manual on how to enter add mode. The device can only be added to the network if the primary controller is in add mode.
When the primary controller is set to add modus press the main button on the dimmer 6 times in a rapid sequence.
If the device already belongs to a network, follow the removing process before adding it in your network. Otherwise, the adding of this device will fail. |
|
|---|
Supported / Controlled Meter Types | Meter Type | Rate Type | Description |
|---|
Electric meter | Import | Electric Meter Consumption |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
