Product Recognition | |
|---|
Certification Number | ZC14-22060111 |
|---|

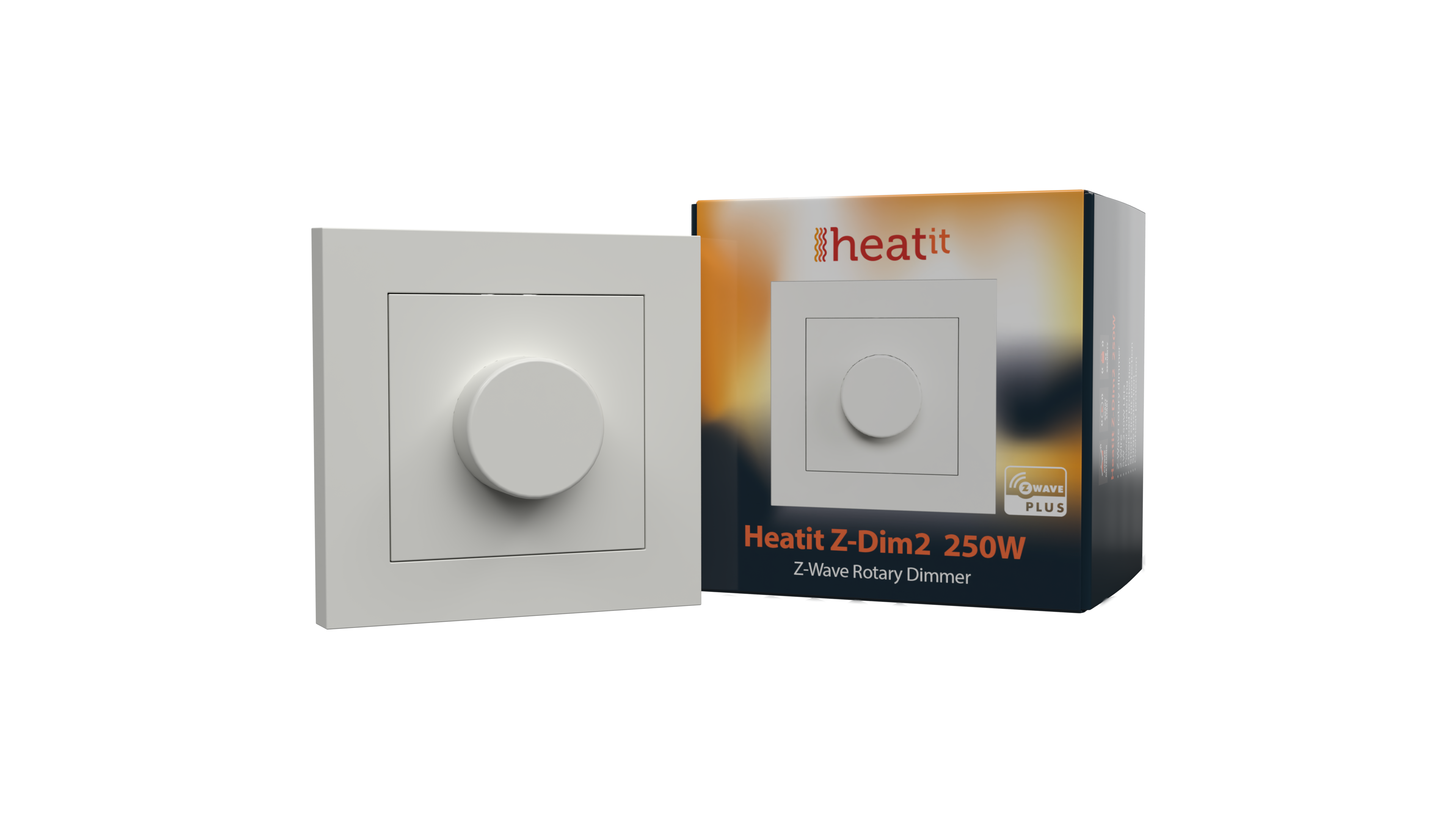

Name | Heatit Z-Dim2 |
|---|
Short Description | Heatit Z-Dim2 is a Z-Wave™ rotary dimmer for many different types of light fixtures. The Heatit Z-Dim2 works on most low loads without causing flickering.
The dimmer is equipped with an external switch option. This allows you to dim and turn on/off the load from an external switch. |
|---|
Long Description | Heatit Z-Dim2 is a Z-Wave™ rotary dimmer for many different types of light fixtures. The Heatit Z-Dim2 works on most low loads without causing flickering.
The dimmer is equipped with an external switch option. This allows you to dim and turn on/off the load from an external switch.
Heatit Z-Dim2 is very well suited for LED, and fits into System 55 frames. When connecting low loads it is recommended to use a bypass.
NB! dimming
Dimming may be challenging, and we recommend checking the compatibility of different light sources before installation. We are happy to answer any questions.
NB! DIMMING
Dimming may be challenging, and we recommend checking the compatibility of different light sources before installation.
We are happy to answer any questions. |
|---|
Brand | Heatit |
|---|
Product Identifier | Z-Dim2 |
|---|
Product Line | Dimmer |
|---|
OEM Version | HW: 01 FW: 01.20:00.01 |
|---|
Hardware Platform | ZGM130S037HGN2 / ZGM130S037HGN1 |
|---|
Z-Wave Version | 7.16.3 |
|---|
Library Type | END_NODE_ENHANCED_232 |
|---|
Device Type | Multilevel Switch DT |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x019B |
|---|
Product Type ID | 0x0004 |
|---|
Product ID | 0x2201 |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0600 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Dimming Lighting Devices |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information (AGI) V3 | 0x59 | 3 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta Data V5 | 0x7A | 5 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_SECURITY_2 | Security 2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_MULTILEVEL_V4 | Multilevel Switch V4 | 0x26 | 4 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_SECURITY | Security 0 | 0x98 | 1 | COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_METER_V3 | Meter V3 | 0x32 | 3 |
|
|---|
S2 Classes | S2_AUTHENTICATED, S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|

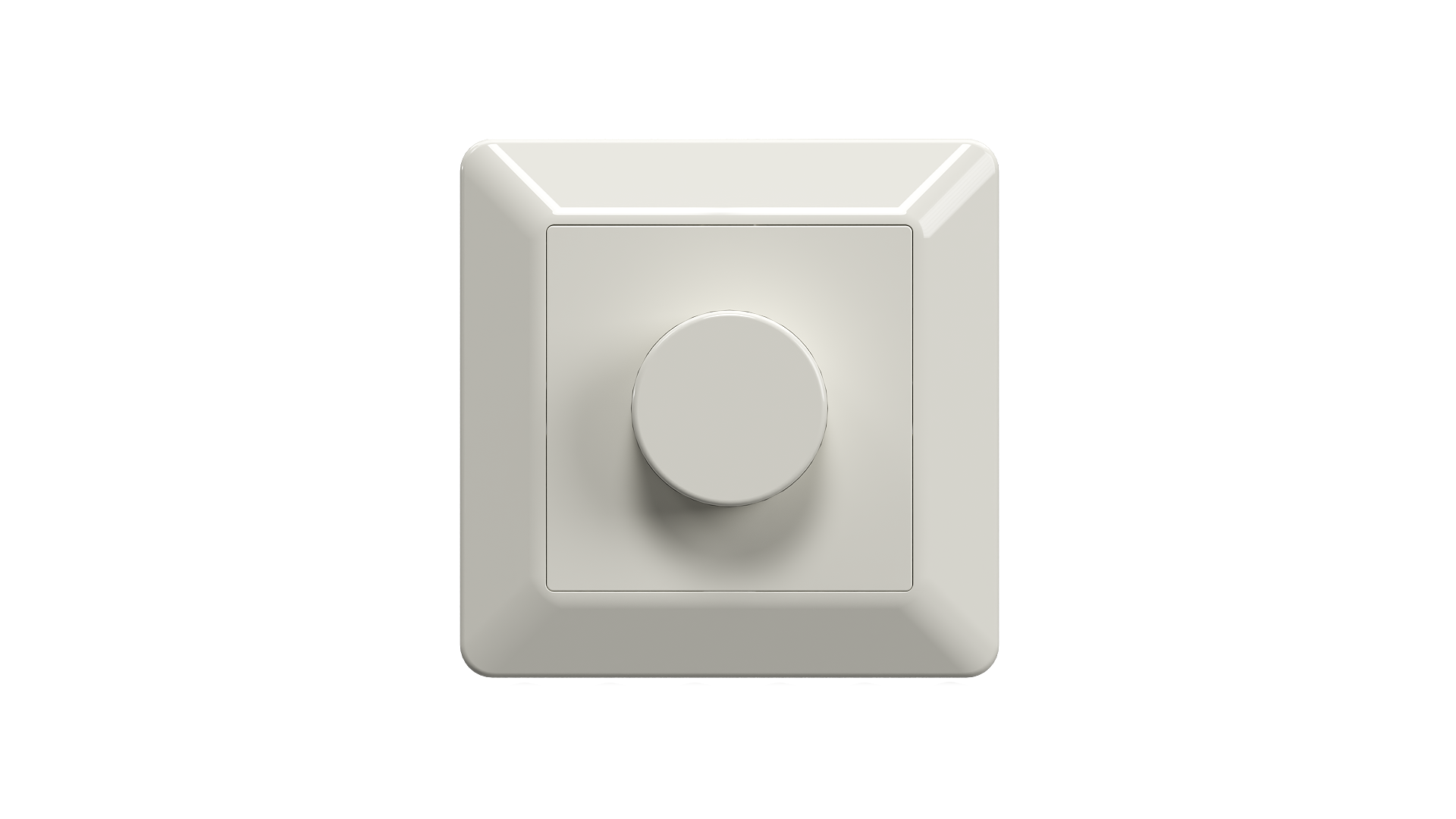

Image_Product_Supplemental_3 | Heatit Z-Dim2_ Plastic kit_White RAL 9003 | | Image_Product_Supplemental_4 | Heatit Z-Dim2_ Plastic kit_White RAL 9010 | | Manual_English | | |
|
|---|
Features | Feature | Values |
|---|
Electric Load Type | Value |
|---|
Incandescent | Dimmable LED |
| Switch Load Capacity Watts | | Switch Type | | Z-Wave Scene Type | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| IP (Ingress Protection) Rated | | Neutral Wire Required | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile |
|---|
1 | 5 | 0 | Lifeline | 0x0001 | 2 | 5 | 0 | Basic Set | 0x2001 | 3 | 5 | 0 | Switch Multilevel | 0x2002 |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value |
|---|
1 | Power restore level | Power restore level | 1 | 1 | 0 | 0 | 0x64 | 2 | Switch ON level | Switch ON level | 1 | 1 | 0 | 0 | 0x00 | 3 | Automatic turn OFF | Automatic turn OFF | 1 | 4 | 0 | 0 | 0x00000000 | 4 | Automatic turn On | Automatic turn On | 1 | 4 | 0 | 0 | 0x00000000 | 5 | Turn off delay time | Turn off delay time | 1 | 1 | 0 | 0 | 0x00 | 6 | Rotary wheel press functionality | Rotary wheel press functionality | 1 | 1 | 0 | 0 | 0x00 | 7 | External switch functionality | External switch functionality | 1 | 1 | 0 | 0 | 0x00 | 8 | Dimming duration | Dimming duration | 1 | 1 | 0 | 0 | 0x32 | 9 | Choose the dimmer curve | Choose the dimmer curve | 1 | 1 | 0 | 0 | 0x00 | 10 | Load dimming mode | Load dimming mode | 1 | 1 | 0 | 0 | 0x00 | 11 | Maximum dim level | Maximum dim level | 1 | 1 | 0 | 0 | 0x5A |
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | The QR-Code is needed when including a device using S2 security or SmartStart. The DSK can be found in the QR-Code and is located;
• On the product.
• On the Quick Guide.
• On the gift box. | 1 | Classic Inclusion | The primary controller/gateway has a mode for adding devices. Please refer to your primary controller manual on how to set the primary controller in add mode. The device may only be added to the network if the primary controller is in add mode.
Method 1: Standard (Manual)
Add mode is indicated on the device by a blinking green LED. It indicates this for 90 seconds until a timeout occurs, or until the module has been added to the network. To start the configuration process press the Reset button, or the external switch connected to P, 3 times in rapid succession. The LED will blink green for 3 seconds if adding is successful. The device is now ready for use with default settings. | 2 | Classic Exclusion | The primary controller/gateway has a mode for removing devices. Please refer to your primary controller manual on how to set the primary controller in remove mode. The device may only be removed from the network if the primary controller is in remove mode. When the device is removed from the network, it will NOT revert to factory settings.
Remove mode is indicated on the device by a blinking green LED. It indicates this for 90 seconds until a timeout occurs, or until the module has been removed from the network. To start the configuration process press the Reset button, or the external switch connected to P, 3 times in rapid succession. The LED will blink green for 3 seconds if removing is successful. The device is now ready for use with default settings. | 5 | Factory Reset Procedure | Press and hold the reset button. After 3 seconds the LED will start to blink in green. After 20 seconds the LED will shine solid green for 3 seconds. You may now release the button.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. | 6 | Other Special Features | • 2-wire
• Firmware update (OTA)
• Overload protection
• Short circuit protection
• Surge protection
• Overheat protection
• External switch
• Min. dim level
• Max. dim level auto-calibration |
|
|---|
Supported / Controlled Meter Types | Meter Type | Rate Type |
|---|
Electric meter | Import (consumed) |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
