Product Recognition | |
|---|
Certification Number | ZC14-24070458 |
|---|

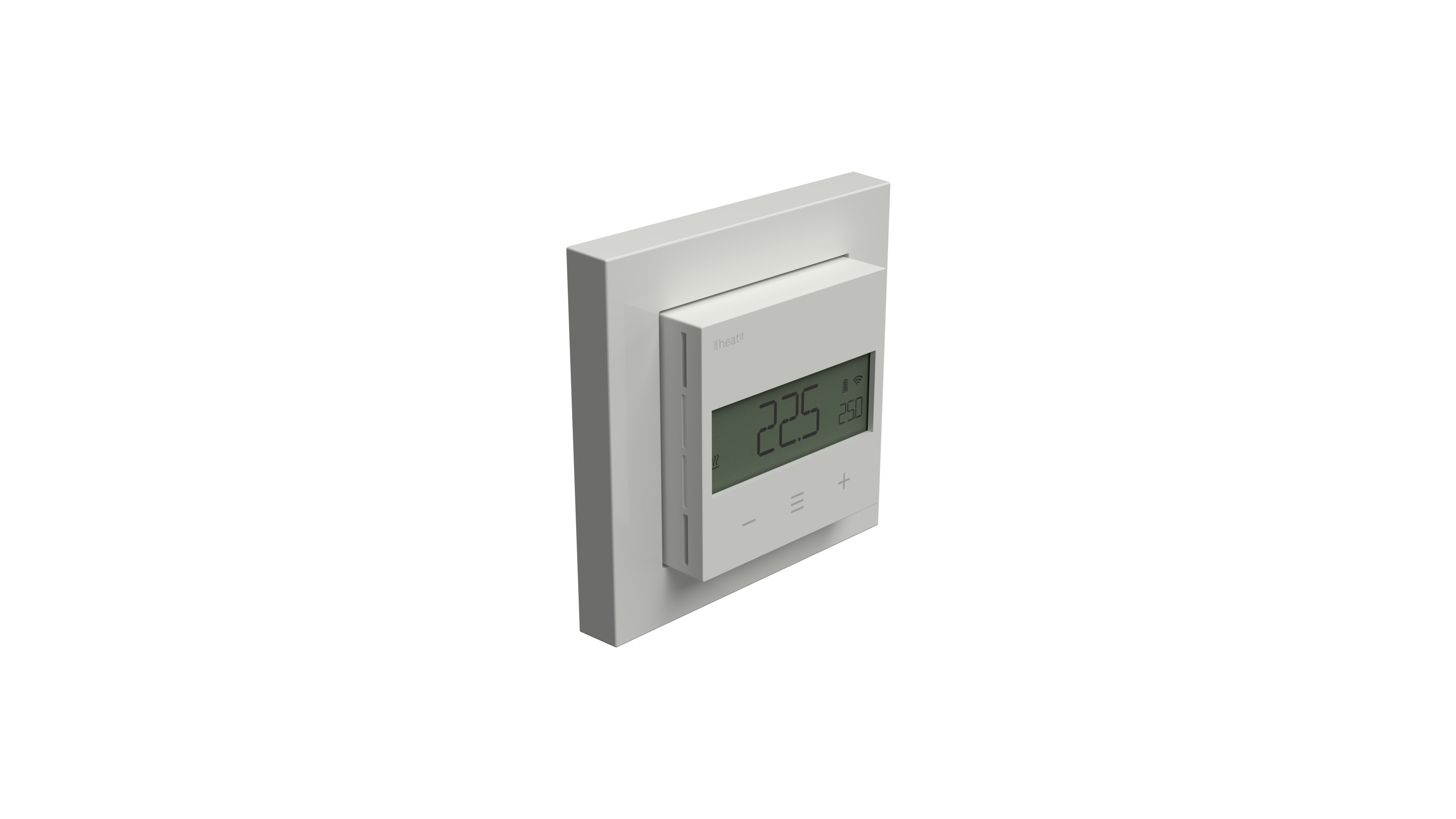

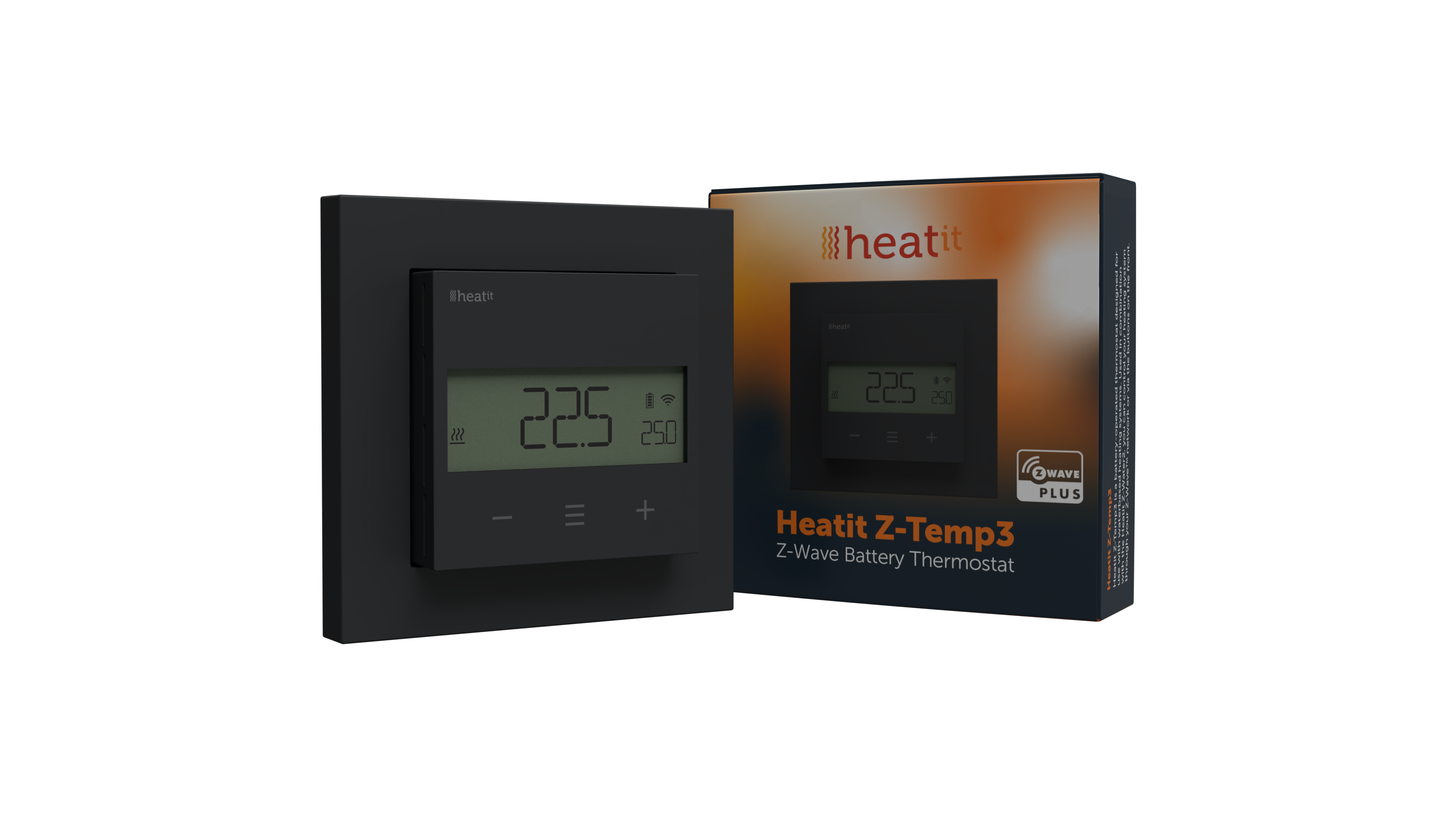

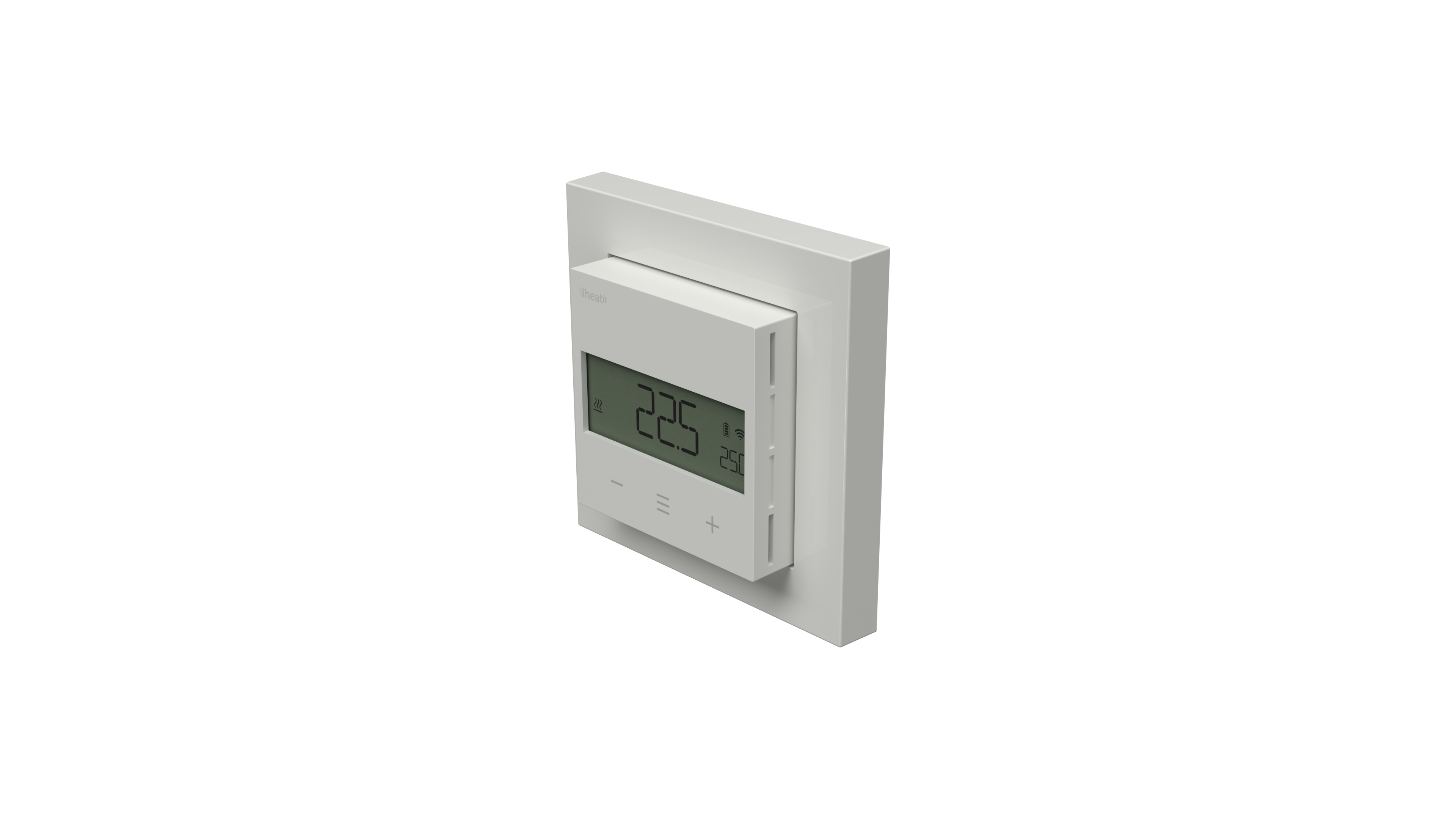

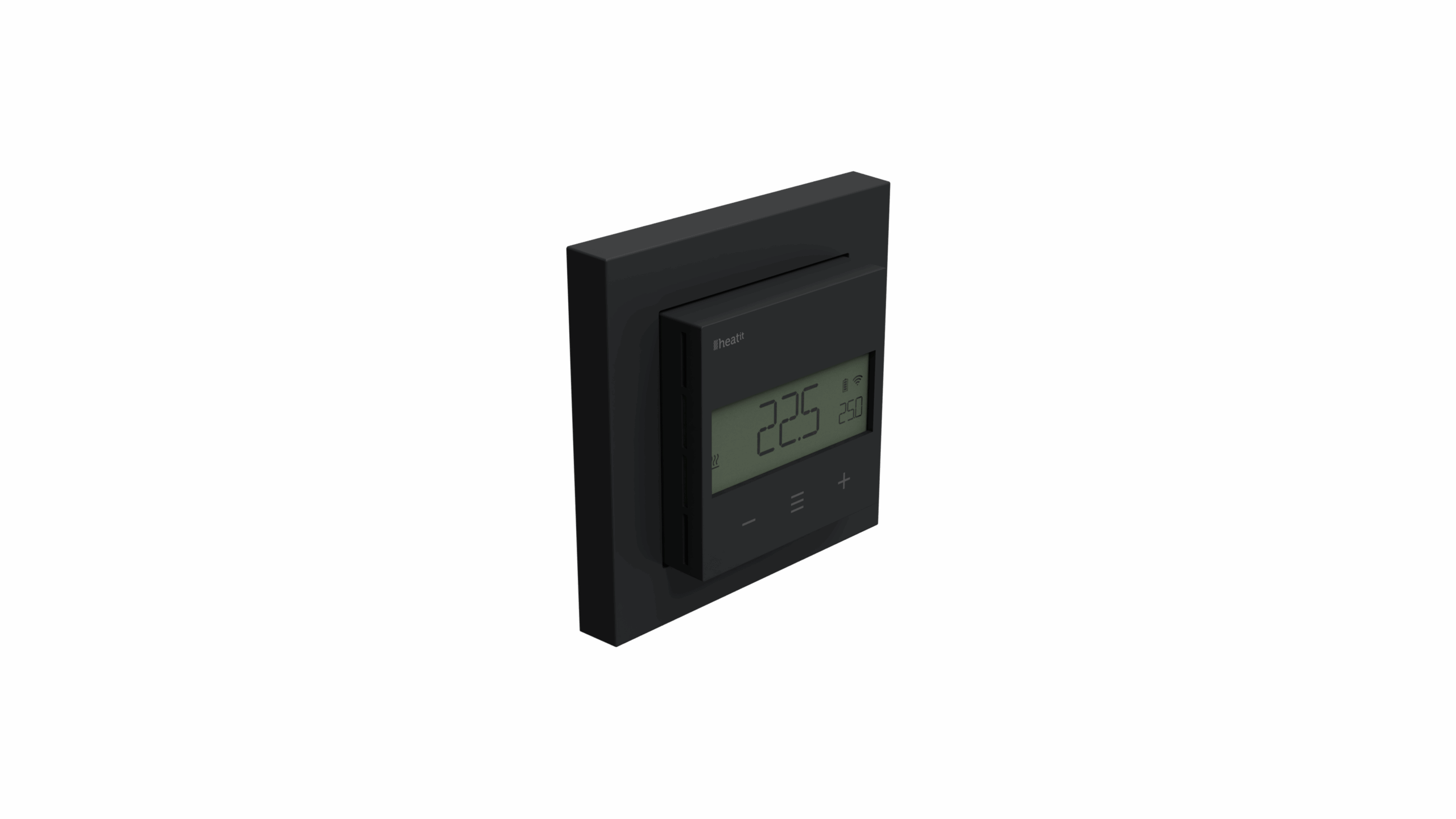

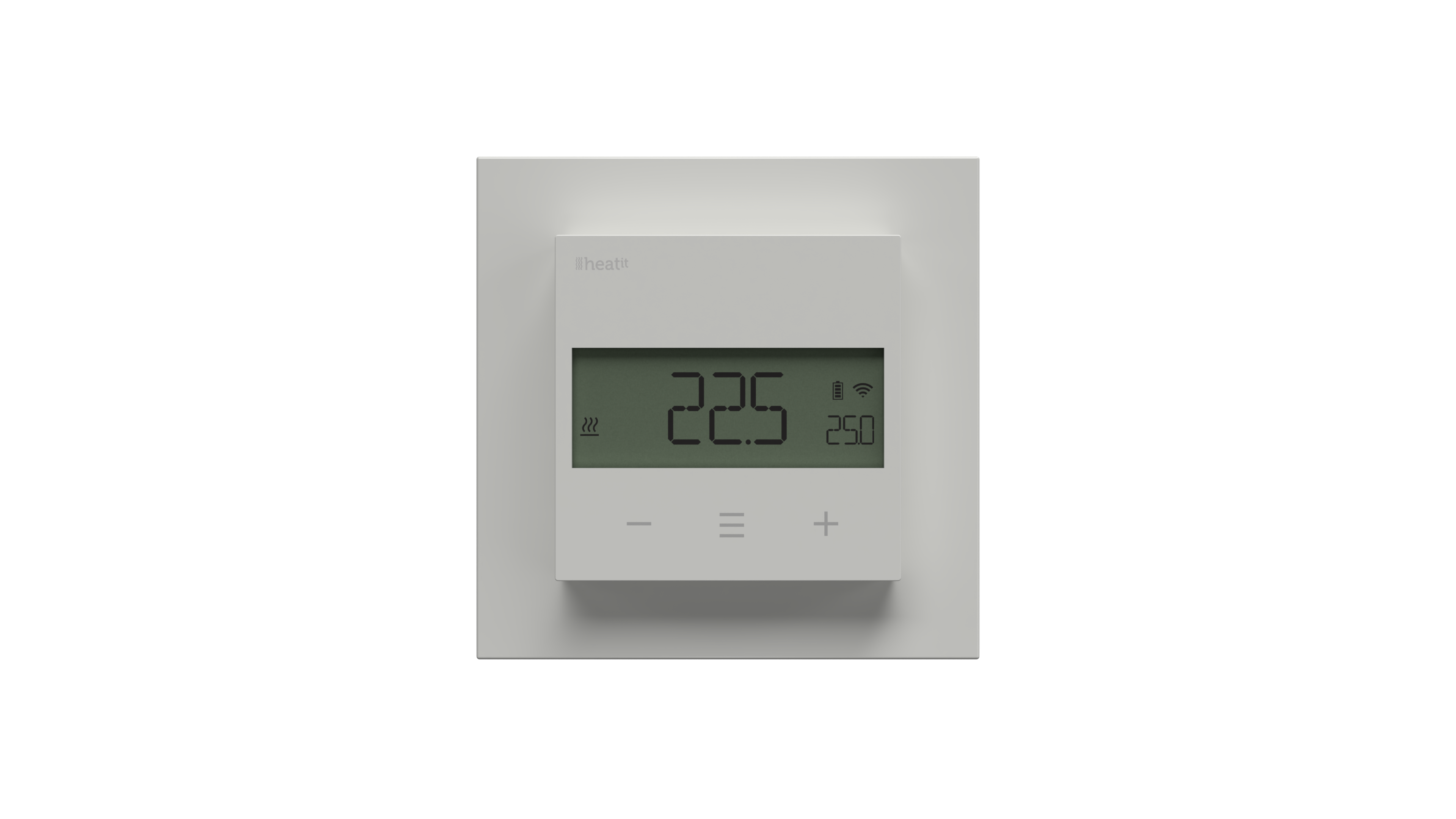

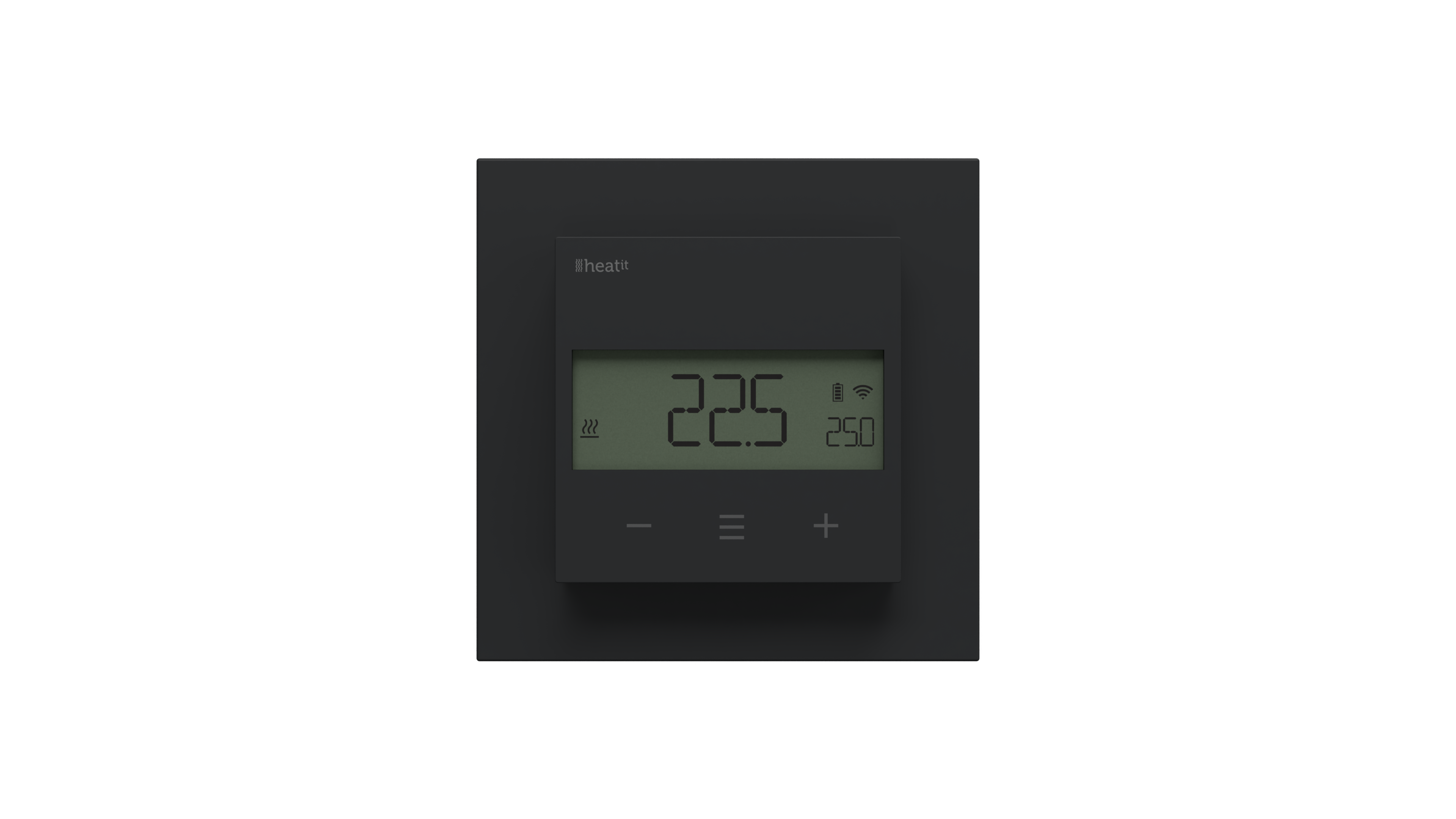

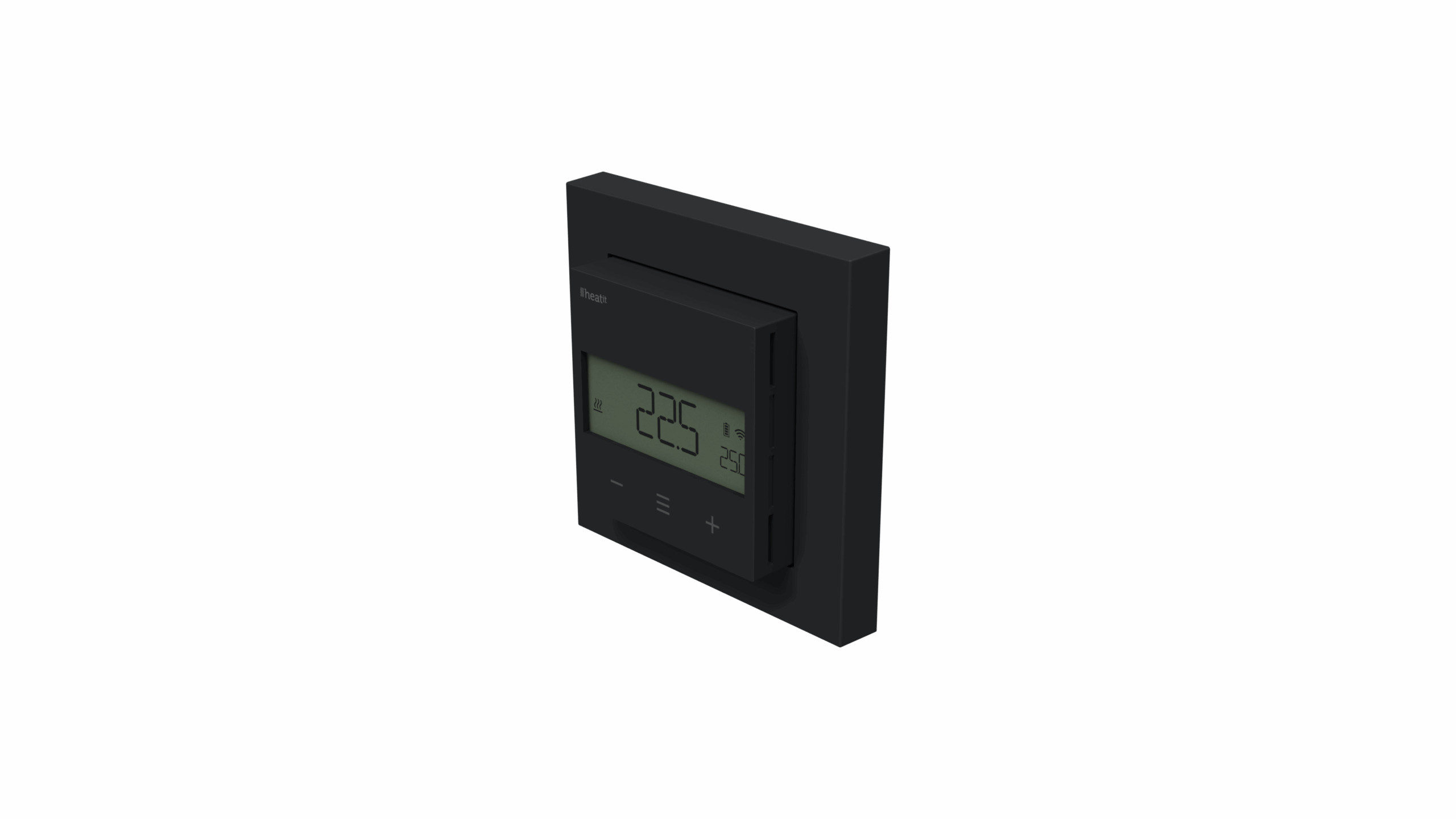

Name | Heatit Z-Temp3 |
|---|
Short Description | Heatit Z-Temp3 is a battery-operated thermostat designed for controlling waterbased heating systems. Used in combination with the Heatit Z-Water2, you can control your heating system through the Z-Wave® network or via the buttons on the front panel. The thermostat has a user-friendly interface.
Heatit Z-Temp3 has 3 modes: Heat, Cool, and Eco.
The thermostat fits into System 55 frames, and may be mounted alongside other equipment such as e.g dimmers or light switches. Heatit Z-Temp3 can also be mounted directly on the wall or placed freely, e.g. on a shelf. |
|---|
Long Description | Heatit Z-Temp3 is a battery-operated thermostat designed for controlling waterbased heating systems. Used in combination with the Heatit Z-Water2, you can control your heating system through the Z-Wave® network or via the buttons on the front panel. The thermostat has a user-friendly interface.
Heatit Z-Temp3 has 3 modes: Heat, Cool, and Eco.
The thermostat fits into System 55 frames, and may be mounted alongside other equipment such as e.g dimmers or light switches. Heatit Z-Temp3 can also be mounted directly on the wall or placed freely, e.g. on a shelf.
Heatit Z-Temp3 can be set as a master thermostat. This means that you can set the setpoint and mode on one unit, and it will
automatically send the setpoint and mode to other connected units.
All communication between Heatit Z-Temp3 and the controlled device is 100% wireless.
Heatit Z-Temp3 uses 2x AAA batteries, but you can also connect the device to an external power source. The Heatit Transformer 230VAC (45 126 48) is recommended for this purpose.
Heatit Z-Temp3 can be associated with Heatit ZM Single Relay, other Z-Wave relays, Heatit ZM Thermostat, Heatit Z-TRM6 Thermostat and other Z-Wave devices to control other types of heating solutions.
Heatit Z-Temp3 is a great choice for the restoration or renovation of existing buildings, as it is easy to install without the need for wiring. We recommend using multiple 230VAC devices to create a mesh network. |
|---|
Brand | Heatit |
|---|
Product Identifier | Z-Temp3 |
|---|
Product Line | Thermostat |
|---|
OEM Version | HW: 01 FW: 01.00:00.00 |
|---|
Hardware Platform | EFR32ZG23A |
|---|
Z-Wave Version | 7.18.8 |
|---|
Library Type | END_NODE_ENHANCED_232 |
|---|
Device Type | Thermostat DT |
|---|
Role Type | ROLE_TYPE_END_NODE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x019B |
|---|
Product Type ID | 0x0031 |
|---|
Product ID | 0x3101 |
|---|
User Icon | 0x1200 |
|---|
Installer Icon | 0x1200 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Thermostats |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information (AGI) V3 | 0x59 | 3 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta Data V5 | 0x7A | 5 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_SECURITY_2 | Security 2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SENSOR_MULTILEVEL_V5 | Multilevel Sensor V5 | 0x31 | 5 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_THERMOSTAT_MODE_V3 | Thermostat Mode V3 | 0x40 | 3 | COMMAND_CLASS_THERMOSTAT_OPERATING_STATE | Thermostat Operating State | 0x42 | 1 | COMMAND_CLASS_THERMOSTAT_SETPOINT_V3 | Thermostat Setpoint V3 | 0x43 | 3 | COMMAND_CLASS_SECURITY | Security 0 | 0x98 | 1 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_PROTECTION | Protection | 0x75 | 1 |
|
|---|
S2 Classes | S2_AUTHENTICATED, S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_English | Added Note on page 2, regarding learn mode. fixed command classes list. | | Image_Product_Supplemental_3 | | | Image_Product_Supplemental_4 | | | Image_Product_Supplemental_5 | | | Image_Product_Supplemental_6 | | | Image_Product_Supplemental_7 | | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Battery Type | | IP (Ingress Protection) Rated | | Thermostat HVAC Systems Supported | Value |
|---|
Universal | Simple Relay |
| Thermostat Modes | | Thermostat Power Source | Value |
|---|
Battery | External Transformer |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile |
|---|
1 | 1 | 0 | Lifeline | 0x0001 | 2 | 10 | 0 | Binary Switch Set | 0x2001 | 3 | 10 | 0 | Thermostat Setpoint Set | 0x2002 | 4 | 10 | 0 | Thermostat Mode Set | 0x2003 |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value |
|---|
1 | Disable buttons | Disable or enable local control | 2 | 1 | 0 | 0 | 0x00 | 2 | Minimum temperature limit (ALO) | Set minimum temperature limit | 1 | 2 | 0 | 0 | 0x0032 | 3 | Maximum temperature limit (AHI) | Set maximum temperature limit | 1 | 2 | 0 | 0 | 0x0190 | 4 | Calibration (CAR) | Manually calibrate the sensor | 0 | 1 | 0 | 0 | 0x00 | 5 | Regulation mode (REG) | Select regulation mode | 2 | 1 | 0 | 0 | 0x00 | 6 | Thermostat state update interval | Set thermostat state update interval | 1 | 2 | 0 | 0 | 0x0E10 | 7 | Temperature control hysteresis (HYST) | Select degrees for regulation hysteresis | 1 | 1 | 0 | 0 | 0x05 | 8 | Temperature display | Decide what is shown during standby | 2 | 1 | 0 | 0 | 0x00 | 9 | Active display brightness (BR1) | Set brightness during active state | 1 | 1 | 0 | 0 | 0x0A | 10 | Temperature report interval | Set temperature report interval | 1 | 2 | 0 | 0 | 0x03DE | 11 | Temperature report hysteresis | Set temperature report hysteresis in °C | 1 | 1 | 0 | 0 | 0x0A | 17 | Operating mode (OPER) | Changes operating mode | 2 | 1 | 0 | 0 | 0x01 |
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | The QR-Code is needed when including a device using S2 security or SmartStart. The DSK can be found in the QR-Code and is located;
• On the product.
• In the Quick Guide.
• On the packaging box/gift box. | 1 | Classic Inclusion | Add
The primary controller/gateway has a mode for adding devices. Please refer to your primary controller manual on how to set the primary controller in add mode. The device may only be added to the network if the primary controller is in add mode.
Adding the device within a 2 meter range from the gateway can minimize faults during the Interview process.
Note: The Heatit Z-Temp3 does not stay in Learn mode until it is included.
Standard (Manual)
Add mode is indicated on the device by rotating LCD segments on the display. It indicates this for 90 seconds until a timeout occurs, or until the device has been added to the network. Configuration mode can also be cancelled by performing the same procedure used for starting Configuration mode.
1. Hold the Center button for 5 seconds.
The display will show “OFF”.
2. Press the ”+” button once to see “CON” in the display.
3. Start the add device process in your primary controller.
4. Start the configuration mode on the thermostat by holding the Center button for approximately 2 seconds.
The device is now ready for use with default settings.
If inclusion fails, please perform a ”remove device” process and try again. If inclusion fails again, please see Chapter “Factory reset”. | 2 | Classic Exclusion | Remove
The primary controller/gateway has a mode for removing devices. Please refer to your primary controller manual on how to set the primary controller in remove mode. The device may only be removed from the network if the primary controller is in remove mode.
When the device is removed from the network, it will NOT revert to factory settings.
Standard (Manual)
Remove mode is indicated on the device by rotating LCD segments on the display. It indicates this for 90 seconds until a timeout occurs, or until the device has been removed from the network. Configuration mode can also be cancelled by performing the same procedure used for starting Configuration mode.
1. Hold the Center button for 5 seconds.
The display will show “OFF”.
2. Press the ”+” button once to see “CON” in the display.
3. Start the remove device process in your primary controller.
4. Start the configuration mode on the thermostat by holding the Center button for approximately 2 seconds.
NB! When the device is removed from the gateway, the parameters are not reset. To reset the parameters, see Chapter ”Factory reset”. | 5 | Factory Reset Procedure | Enter the menu by holding the Center button for about 5 seconds, navigate in the menu with the ”+” button til you see FACT. Press the Center button until you see “-- --” blinking in the display, then hold for about 5 seconds to perform a reset. You may also initiate a reset by holding the Right and Center buttons for 55 seconds.
When either of these procedures has been performed, the thermostat will perform a complete factory reset. The device will display “RES” for 5 seconds while performing a factory reset. When “RES” is no longer displayed, the thermostat has been reset.
Please use this procedure only when the primary controller is missing or otherwise inoperable. |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature | Humidity |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
