Product Recognition | |
|---|
Certification Number | ZC10-18116305 |
|---|
Name | Heatit Z-TRM2fx |
|---|

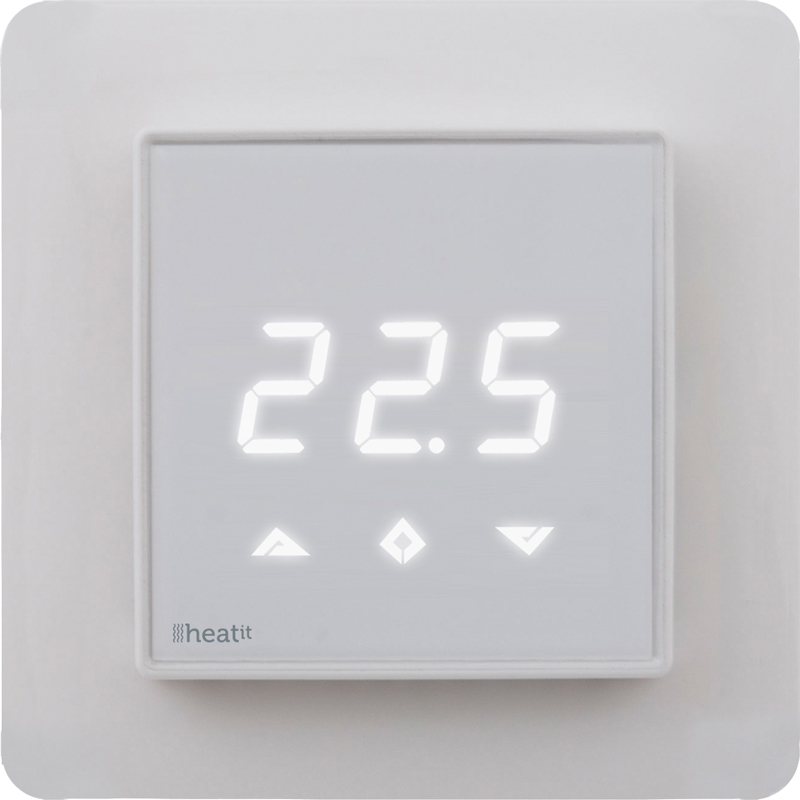

Short Description | Heatit Z-TRM2fx is an electronic thermostat for electrical floor heating. The thermostat has a built-in Z-Wave chip that can be connected with Home Automation systems like Fibaro, Futurehome, Smarthings, Homeseer, Zipato etc. |
|---|
Long Description | Heatit Z-TRM2fx is equipped with a single pole switch and it fits most System 55 frames (Elko RS16, Schneider Exxact, Gira, Jung etc.). The thermostat can withstand a load of max 13A /2900W at 230V. At higher loads the thermostat must control a contactor. The thermostat may be connected to two wired external sensors.
The thermostat has the capacity of up to 8 associations (relays, wall plugs etc.).
The thermostat is designed for electrical heating.
FEATURES
Floor sensor
External room sensor
Temperature limiter
Weekly program/setback via gateway or pilot wire
Multilevel sensor command class
Firmware updates (OTA)
Power metering
LED-diode
Can be used in connection with different NTC-sensors
Lock mode/child lock
Calibration
8 associations
Supports encryption mode: S0, S2 Authenticated Class, S2 Unauthenticated Class |
|---|
Brand | Heatit controls |
|---|
Product Identifier | Z-TRM2fx |
|---|
OEM Version | HW: 2 FW: 3.03:03.02 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.71.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Thermostat - HVAC |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x019B |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0202 |
|---|
User Icon | 0x1201 |
|---|
Installer Icon | 0x1200 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Thermostats |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_SENSOR_MULTILEVEL_V5 | Sensor Multilevel V5 | 0x31 | 5 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_THERMOSTAT_MODE_V3 | Thermostat Mode V3 | 0x40 | 3 | COMMAND_CLASS_THERMOSTAT_SETPOINT_V3 | Thermostat Setpoint V3 | 0x43 | 3 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_METER_V3 | Meter V3 | 0x32 | 3 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi-Channel V4 | 0x60 | 4 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_CONFIGURATION_V3 | Configuration V3 | 0x70 | 3 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SENSOR_MULTILEVEL_V5 | Sensor Multilevel V5 | 0x31 | 5 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_THERMOSTAT_MODE_V3 | Thermostat Mode V3 | 0x40 | 3 | COMMAND_CLASS_THERMOSTAT_SETPOINT_V3 | Thermostat Setpoint V3 | 0x43 | 3 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| IP (Ingress Protection) Rated | | Switch Load Capacity Current | | Switch Load Capacity Watts | | Neutral Wire Required | | Sensors | Value |
|---|
Heat | Voltage | Water Temperature | Target Temperature |
| Thermostat HVAC Systems Supported | Value |
|---|
Simple Relay | Heat Only | Cool Only |
| Thermostat Modes | Value |
|---|
Heat | Cool | Auto | Energy Save Heat | Away |
| Thermostat Power Source | Value |
|---|
Mains powered (120V/240V) |
| Supported Meter Type | | Supported Notification Types | | Color | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 8 | 0 | Association Groups (Multi Channel support):
THERMOSTAT DEVICE 1
THE MAIN THERMOSTAT DEVICE
Group 1
Lifeline. (Normally used by the Z-Wave
Controller) Sends:
- Device Reset Notifications.
- Thermostat Setpoint Reports
- Thermostat Mode Reports
- Basic Reports
- Meter Reports
Max. nodes in group: 8
| 2 | 8 | 0 | Association Groups (Multi Channel support):
MULTILEVEL SENSOR DEVICE 2
DEVICE FOR EXTERNAL ROOM TEMPERATURE SENSOR
Group 1
Lifeline
Max. nodes in group: 8
Group 2
Send Multilevel Sensor Reports.
Max. nodes in group: 8
| 4 | 8 | 0 | Association Groups (Multi Channel support):
BINARY SWITCH DEVICE 4
DEVICE FOR THE INTERNAL RELAY
Group 1
Lifeline
Max. nodes in group: 8
Group 2
Send Binary Switch Set commands representing
the status of the internal relay.
Max. nodes in group: 8
| 3 | 8 | 0 | Association Groups (Multi Channel support):
MULTILEVEL SENSOR DEVICE 3
DEVICE FOR FLOOR SENSOR
Group 1
Lifeline
Max. nodes in group: 8
Group 2
Send Multilevel Sensor Reports.
Max. nodes in group: 8
| 1 | 8 | 0 | Association Groups (when no Multi Channel support):
THERMOSTAT DEVICE
THE MAIN THERMOSTAT DEVICE
Group 1
Lifeline. (Normally used by the Z-Wave
Controller) Sends:
- Device Reset Notifications.
- Thermostat Setpoint Reports
- Thermostat Mode Reports
- Basic Reports
- Meter Reports
Max. nodes in group: 8
Group 2
Send Multilevel Sensor Reports for external
temperature sensor.
Max. nodes in group: 8
Group 3
Send Multilevel Sensor Reports for floor
temperature sensor.
Max. nodes in group: 8
Group 4
Send Binary Switch Set commands representing
the status of the internal relay.
Max. nodes in group: 8
|
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Operation Mode | 0 Off. (Default) 1 Heating mode 2 Cooling mode (not implemented) 11 Energy saving heating mode | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Off. (Default) | 2 | 0 | Cooling mode (not implemented) | 1 | 0 | Heating mode | 11 | 0 | Energy saving heating mode |
| 8 | Air (A2) maximum temperature limit (AHi) | 50 - 400 5.0°C – 40.0°C. Default is 400 (40.0°C) | 0 | 2 | 0 | 0 | 400 | From | To | Description |
|---|
50 | 400 | 5.0C – 40.0C. Default is 400 (40.0C) |
| 5 | Floor minimum temperature limit (FLo) | 50 - 400 5.0°C – 40.0°C. Default is 50 (5.0°C) | 0 | 2 | 0 | 0 | 50 | From | To | Description |
|---|
50 | 400 | 5.0C – 40.0C. Default is 50 (5.0C) |
| 7 | Air (A2) minimum temperature limit (ALo) | 50 - 400 5.0°C – 40.0°C. Default is 50 (5.0°C) | 0 | 2 | 0 | 0 | 50 | From | To | Description |
|---|
50 | 400 | 5.0C – 40.0C. Default is 50 (5.0C) |
| 10 | Energy saving mode setpoint (ECO) | 50 - 400 5.0°C – 40.0°C. Default is 180 (18.0°C) | 0 | 2 | 0 | 0 | 180 | From | To | Description |
|---|
50 | 400 | 5.0C – 40.0C. Default is 180 (18.0C) |
| 2 | Sensor mode | 0 F-mode, floor sensor mode. (Default) 3 A2-mode, external room sensor mode | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | F-mode, floor sensor mode. (Default) | 3 | 0 | A2-mode, external room sensor mode |
| 11 | Cooling setpoint (COOL) | 50 - 400 5.0°C – 40.0°C. Default is 210 (21.0°C) | 0 | 2 | 0 | 0 | 210 | From | To | Description |
|---|
50 | 400 | 5.0C – 40.0C. Default is 210 (21.0C) |
| 17 | Display brightness – dimmed state | Configure the brightness of the display, in dimmed state. 0 - 100 0 – 100% (Default 50%) | 0 | 1 | 0 | 0 | 50 | From | To | Description |
|---|
0 | 100 | 0 – 100% (Default 50%) |
| 3 | Floor sensor type | 0 10K NTC. (Default) 1 12K NTC 2 15K NTC 3 22K NTC 4 33K NTC 5 47K NTC | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
3 | 0 | 22K NTC | 2 | 0 | 15K NTC | 4 | 0 | 33K NTC | 0 | 0 | 10K NTC. (Default) | 1 | 0 | 12K NTC | 5 | 0 | 47K NTC |
| 6 | Floor maximum temperature limit (FHi) | 50 - 400 5.0°C – 40.0°C. Default is 400 (40.0°C) | 0 | 2 | 0 | 0 | 400 | From | To | Description |
|---|
50 | 400 | 5.0C – 40.0C. Default is 400 (40.0C) |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Exclusion | Removing the device:
To remove the thermostat to your home automation gateway, press Center (confirm) for 10 seconds. The display will show OFF. Press Right (down) 4 times till you see Con in the display. Now start remove device in your home automation software. Start removing mode by pressing Center (confirm) button for approximately 2 seconds. The icon will appear in the display. Removing Mode is indicated in the display by some “circling” LED segments in the display until the timeout occurs after 20 seconds or the module has been removed in the network. Confirmation will show Inc/EcL in the display. If removing fails, Err (error) will appear. | 1 | Inclusion | Adding the device:
To add the thermostat to your home automation gateway, press Center (confirm) for 10 seconds. The display will show OFF. Press Right (down) 4 times till you see Con in the display. Now start add device in your home automation software. Start adding mode by pressing Center (confirm) button for approximately 2 seconds. The icon will appear in the display. Adding Mode is indicated in the display by some “circling” LED segments in the display until the timeout occurs after 20 seconds or the module has been added in the network. Confirmation will show Inc/EcL in the display. If adding fails, Err (error) will appear. | 5 | Factory Reset | By pressing buttons Right and Center (down and confirm) for 20 seconds, the thermostat will perform a complete factory reset.
NB! Please use this procedure only when the primary controller/ gateway is missing or otherwise inoperable. |
|
|---|
Supported / Controlled Meter Types | Meter Type | Rate Type | Description |
|---|
Electric meter | Import | Electric Meter Consumption |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Heat Alarm | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature | Voltage | Water temperature | Target temperature |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
