Product Recognition | |
|---|
Certification Number | ZC10-19036400 |
|---|

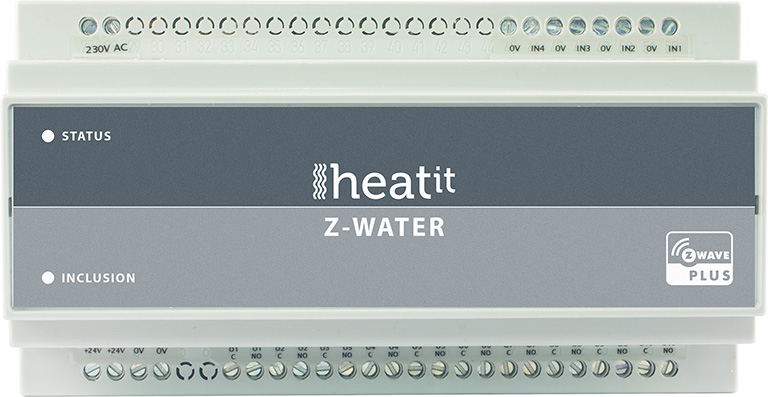

Name | Heatit Z-Water |
|---|
Short Description | Heatit Z-Water is a DIN-rail regulator for controlling hydronic heating. Heatit Z-Water is a module that clips right onto a DIN rail to add a variety of functions to your wireless Z-Wave network. |
|---|
Long Description | Heatit Z-Water is equipped with 10 relay outputs and 4 analog inputs, and a Z-Wave radio for interfacing to the wireless
Z-Wave network.
The regulator can be power supplied from a 230V AC mains connection, and is able to deliver an output supply of 24V DC.
Heatit Z-Water relay outputs are able to be freely controlled from the Z-Wave network, and can be used for several
purposes, e.g. on/off control of light, control of valve actuators for an underfloor heating system, or control of other home
automation systems.
Heatit Z-Water inputs are analog inputs for interfacing simple temperature sensors; NTC, PT1000, etc.
It is possible to configure the level and the indication of the status indicator LED in the front of the Heatit Z-Water
regulator. |
|---|
Brand | Heatit controls |
|---|
Product Identifier | Z-Water |
|---|
OEM Version | HW: 2 FW: 2.01 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.71.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Valve |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x019B |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x020A |
|---|
User Icon | 0x1500 |
|---|
Installer Icon | 0x1500 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Thermostats, All Lighting Devices, On/Off Switches/Devices, HVAC |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_SENSOR_MULTILEVEL_V5 | Sensor Multilevel V5 | 0x31 | 5 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi-Channel V4 | 0x60 | 4 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_CONFIGURATION_V3 | Configuration V3 | 0x70 | 3 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Switch Load Capacity Watts | | Switch Load Capacity Current | | Switch Load Capacity Volt-Ampere | | Loads Controlled | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Supported Notification Types | | Electric Load Type | Value |
|---|
Incandescent | Fluorescent | MLV (Magnetic) | ELV (Electronic) | LED | Dimmable LED | Inductive (e.g. Motor) | Dimmable Fluorescent | Dimmable MLV (Magnetic) | Dimmable ELV (Magnetic) |
| Sensors | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Lifeline.
- Reset notification
- Basic Report On / Off
- Multilevel Sensor Report
| 2 | 5 | 0 | Sends Multilevel Sensor Reports for input 1.
| 3 | 5 | 0 | Sends Multilevel Sensor Reports for input 2.
| 4 | 5 | 0 | Sends Multilevel Sensor Reports for input 3.
| 5 | 5 | 0 | Sends Multilevel Sensor Reports for input 4. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
2 | Status LED brightness level | Configure the percentage of light in the status LED, when the LED is turned on. | 0 | 1 | 0 | 100 | 50 | From | To | Description |
|---|
0 | 100 | Specifies the brightness level of the LED when it is on. Default is 50. |
| 5 | Thermistor type connected to input 3. | This parameter decides which kind of thermistor that is connected to the input. | 0 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
1 | 1 | 10K NTC. (PART NUMBER: TT02-10KC3-93D-3000R-TPH). (Default) | 0 | 0 | No thermistor, input is disabled. |
| 3 | Thermistor type connected to input 1 | This parameter decides which kind of thermistor that is connected to the input. | 0 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
1 | 1 | 10K NTC. (PART NUMBER: TT02-10KC3-93D-3000R-TPH). (Default) | 0 | 0 | No thermistor, input is disabled. |
| 6 | Thermistor type connected to input 4 | This parameter decides which kind of thermistor that is connected to the input. | 0 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
0 | 0 | 10K NTC. (PART NUMBER: TT02-10KC3-93D-3000R-TPH). (Default) | 1 | 1 | 10K NTC. (PART NUMBER: TT02-10KC3-93D-3000R-TPH). (Default) |
| 4 | Thermistor type connected to input 2 | This parameter decides which kind of thermistor that is connected to the input. | 0 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
1 | 1 | 10K NTC. (PART NUMBER: TT02-10KC3-93D-3000R-TPH). (Default) | 0 | 0 | No thermistor, input is disabled. |
| 1 | Status LED | Configuration of the status LED. | 0 | 1 | 0 | 3 | 1 | From | To | Description |
|---|
2 | 2 | LED flashing at 1 second intervals (0.5 Hz). | 3 | 3 | LED flashing at 0.5 second interval (1 Hz). | 0 | 0 | LED turned off | 1 | 1 | LED turned on. (Default) |
| 11 | Input 1 report interval | Time interval between consecutive temperature reports. Temperature reports can be also sent as a result of polling. | 0 | 2 | 0 | 8640 | 6 | From | To | Description |
|---|
0 | 0 | Reporting of temperatures disabled. | 1 | 8640 | Multiply with 10 seconds, 10 seconds – 24 hours. Default is 6 (60 seconds). |
|
|
|---|
Texts | ID | Description | Value |
|---|
5 | Factory Reset | Heatit Z-Water can be factory reset by pressing the small button through the little hole, marked with the text “INCLUSION”,
in front of the Heatit Z-Water regulator for at least 10 seconds.
NOTE: Only use this procedure when the primary network controller is missing or is otherwise inoperable. | 1 | Inclusion | Add
Please refer to your primary controller manual on how to enter
add mode. The device can only be added from the network if the primary controller is in add mode.
When the primary controller is set to add modus press
the ”INCLUSION” button once on the device. | 2 | Exclusion | Remove
Please refer to your primary controller manual on how to enter
remove mode. The device can only be removed from the network if the primary controller is in remove mode.
When the primary controller is set to remove modus press
the ”INCLUSION” button once on the device. |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
