Product Recognition | |
|---|
Certification Number | ZC12-21100317 |
|---|

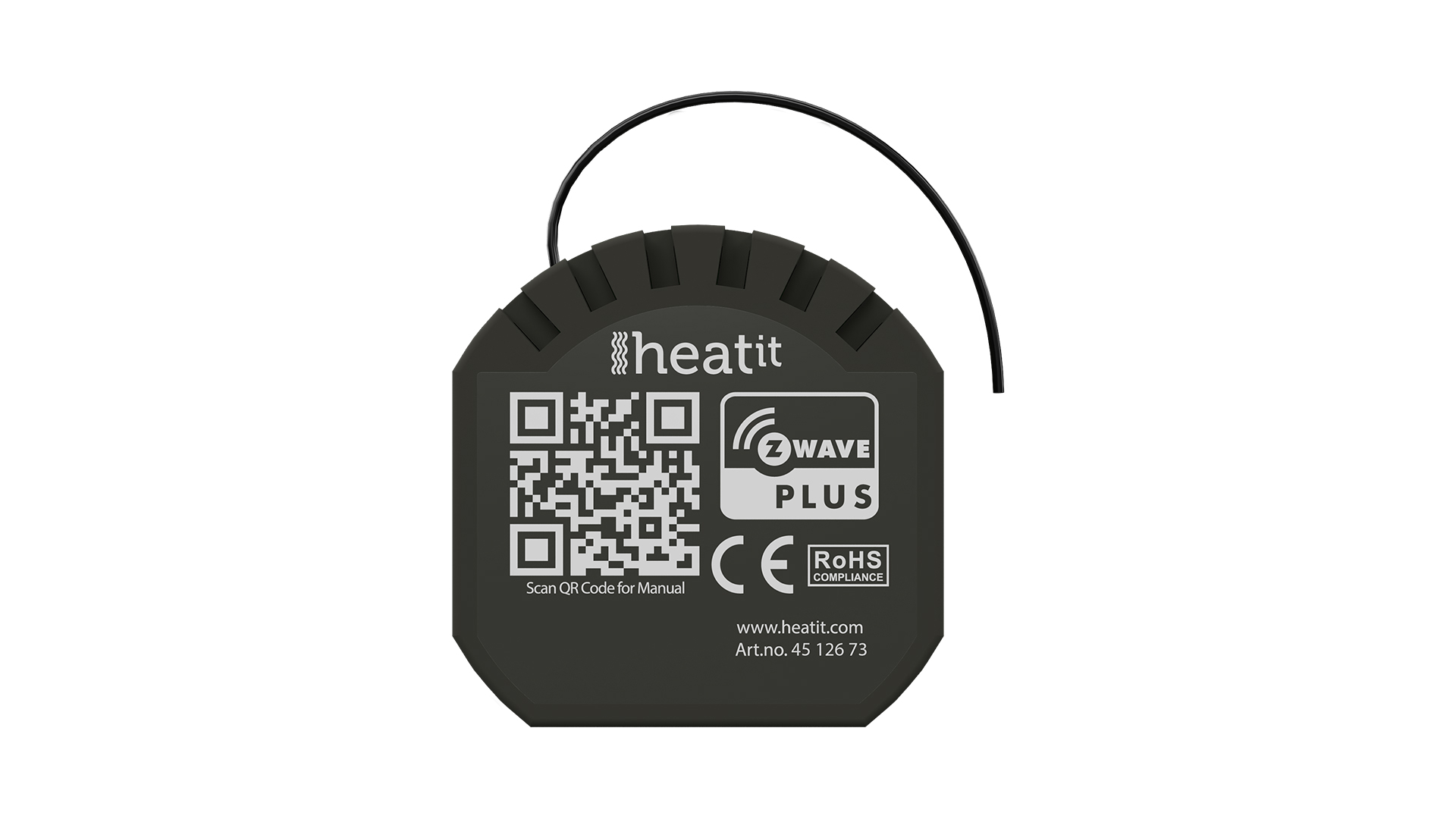

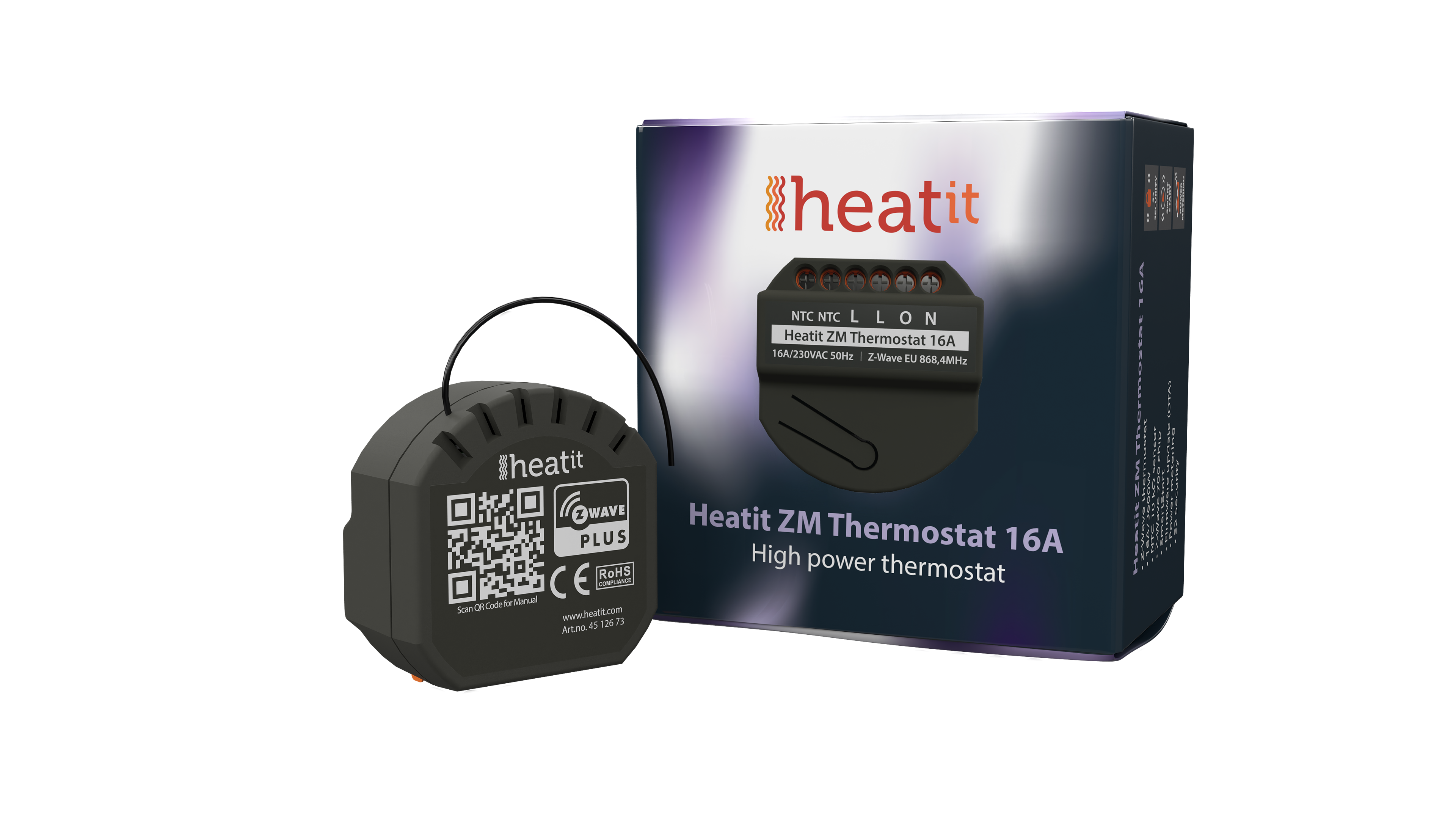

Name | Heatit ZM Thermostat 16A |
|---|
Short Description | Heatit ZM Thermostat is an electronic thermostat for electrical floor heating designed for in-wall installations. |
|---|
Long Description | Heatit ZM Thermostat is an electronic thermostat for electrical floor heating designed for in-wall installations.
The thermostat allows you to control your electrical heating through your Z-Wave™ network. The module is equipped with a 16A single pole relay. The thermostat requires you to connect an external sensor which is included with the device.
The device can withstand a max load of 16A at 230VAC. |
|---|
Brand | Heatit controls |
|---|
Product Identifier | ZM Thermostat 16A |
|---|
Product Line | Thermostat |
|---|
OEM Version | HW: 1 FW: 1.00 |
|---|
Hardware Platform | ZGM130 |
|---|
Z-Wave Version | 7.15.4 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Thermostat - HVAC |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x019B |
|---|
Product Type ID | 0x0004 |
|---|
Product ID | 0x3502 |
|---|
User Icon | 0x1201 |
|---|
Installer Icon | 0x1200 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Thermostats |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_SENSOR_MULTILEVEL_V5 | Sensor Multilevel V5 | 0x31 | 5 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_THERMOSTAT_OPERATING_STATE | Thermostat Operating State | 0x42 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_THERMOSTAT_MODE_V3 | Thermostat Mode V3 | 0x40 | 3 | COMMAND_CLASS_THERMOSTAT_SETPOINT_V3 | Thermostat Setpoint V3 | 0x43 | 3 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_METER_V3 | Meter V3 | 0x32 | 3 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta-Data V5 | 0x7A | 5 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| IP (Ingress Protection) Rated | | Neutral Wire Required | | Outdoor Use | | Switch Load Capacity Watts | | Thermostat HVAC Systems Supported | | Thermostat Modes | | Thermostat Power Source | Value |
|---|
Mains powered (120V/240V) |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 5 | 0 | Lifeline | Lifeline. (Normally used by the Z-Wave Controller) Sends | 2 | 5 | 1 | External control | Send Binary Switch set commands representing the status of the internal relay. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Operating mode | Set the thermostat mode | 2 | 1 | 0 | 2 | 1 | From | To | Description |
|---|
2 | 2 | Cooling, Thermostat mode is in cooling mode | 1 | 1 | Heating, Thermostat mode is in heating mode | 0 | 0 | Off, Thermostat will not operate |
| 3 | Minimum setpoint temperature | Decide the lowest setpoint temperature allowed by the thermostat | 2 | 2 | 50 | 400 | 50 | From | To | Description |
|---|
50 | 400 | 5,0°C to 40,0°C, Set the minimum setpoint temperature for the thermostat |
| 5 | Setpoint | Decide the thermostat setpoint | 2 | 2 | 50 | 400 | 210 | From | To | Description |
|---|
50 | 400 | 5,0°C to 40,0°C, Set the setpoint temperature for the thermostat |
| 4 | Maximum setpoint temperature | Decide the highest setpoint temperature allowed by the thermostat | 2 | 2 | 50 | 400 | 400 | From | To | Description |
|---|
50 | 400 | 5,0°C to 40,0°C, Set the maximum setpoint temperature for the thermostat |
| 6 | Sensor calibration | Manually calibrate the sensor ±6°C | 1 | 1 | -60 | 60 | 0 | From | To | Description |
|---|
-60 | 60 | -6,0°C to 6,0°C Calibrate the sensor ±6°C NB! To set a negative value, use 256 and subtract the desired value |
| 8 | Temperature report hysteresis | Temperature reports based on change in temperature from last report | 2 | 1 | 0 | 100 | 10 | From | To | Description |
|---|
0 | 0 | Temperature report based on delta value is disabled. | 1 | 100 | 0,1°C to 10°C |
| 10 | Inverted output | Decides if the relay output should be inverted | 2 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Standard output | 1 | 1 | Inverted output |
|
|
|---|
Texts | ID | Description | Value |
|---|
5 | Factory Reset Procedure | Press and hold the configuration button. After 3 seconds the LED will start to blink in green. After 20 seconds the LED will start to blink green rapidly for 5 seconds. You may now release the button | 2 | Classic Exclusion | The primary controller/gateway has a mode for removing devices. Please refer to your primary controller manual on how to set the primary controller in remove mode. The device may only be removed from the network if the primary controller is in remove mode.
Remove mode is indicated on the device by a blinking green LED. It indicated this for 90 seconds until a timeout occurs, or until the module has been removed from the network. To start the configuration process, press the configuration button 3 times in rapid succession. The LED will light up green for 3 seconds if removing is successful. | 6 | Other Special Features | Paragraph 11.1 Overload.
Paragraph 11.2 Overheating. | 8 | Where to find S2 DSK on product | The QR-Code is needed when including a device using S2 security or SmartStart. The DSK can be found in the QR-Code and is located;
1. On the product.
2. On the Quick Guide manual.
3. On the F-Pack (gift box). | 1 | Classic Inclusion | The primary controller/gateway has a mode for adding devices. Please refer to your primary controller manual on how to set the primary controller in add mode. The device may only be added to the network if the primary controller is in add mode.
There are two ways to add the device to a Z-Wave network.
Method 1: Standard (Manual)
Add mode is indicated on the device by a blinking green LED. It indicated this for 90 seconds until a timeout occurs, or until the module has been added to the network. To start the configuration process, press the configuration button 3 times in rapid succession. The LED will light up green for 3 seconds if adding is successful.
The device is now ready for use with default settings.
Method 2: SmartStart (Automatic)
SmartStart enabled products may be added to a Z-Wave network by scanning the Z-Wave QR-Code on the product if your primary controller supports SmartStart inclusion. No further action is required and the SmartStart product will be added automatically after being powered on within range of the primary controller. |
|
|---|
Supported / Controlled Meter Types | Meter Type | Rate Type | Description |
|---|
Electric meter | Import | Electric Meter Consumption |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
