Product Recognition
Certification Number	ZC10-14090016

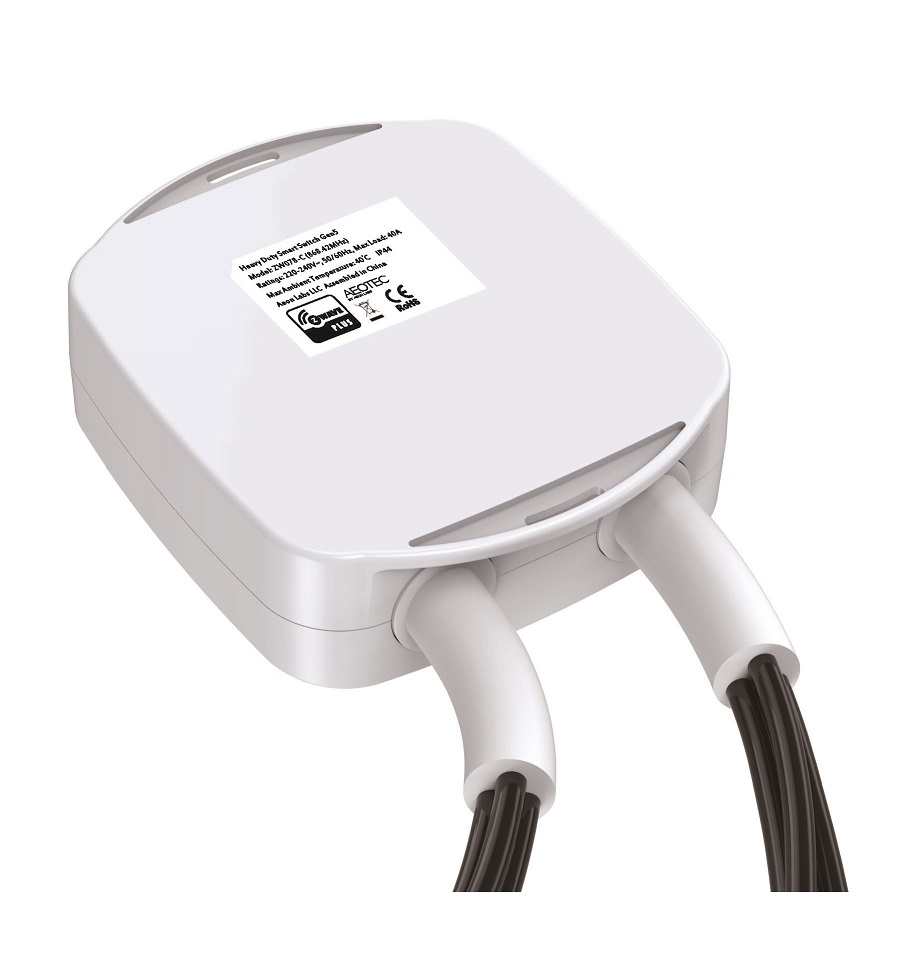

Name	Heavy Duty Smart Switch Gen5
Short Description	Heavy Duty Smart Switch Gen5 is an on/off switch module that also provides energy metering.
Long Description	Aeon Labs Heavy Duty Smart Switch is a Z-Wave device that can report the wattage energy usage and KWH usage to a Z-Wave Controller (especially a gateway), it can be controlled by other Z-Wave devices to turn on/off loads, it can bear up to 40A current of resister loads. It also acts as a repeater that forward Z-Wave command messages to destination nodes if the originating controller is out of range from the destination node. By taking advantage of the Z-Wave mesh network, commands can be routed to their destination via intermediary “listening” Z-Wave products. Products that are Z-Wave certified can be used and communicate with other Z-Wave certified devices.
Brand	Aeotec
Product Identifier	ZW078-C
OEM Version	HW: 78 FW: 3.26
Hardware Platform	ZM5202
Z-Wave Version	6.51.00
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0086
Product Type ID	0x0003
Product ID	0x004E
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Energy Meters, All Lighting Devices, On/Off Switches/Devices
Countries / Regions	European Union
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_HAIL Hail 0x82 1 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Heavy Duty Smart Switch Gen5 Manual.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 2 5 0 When the product receives a controlling Basic Set CC/Switch Binary Set CC/ Scene Activation Set CC, which if cause the product’s load state to be changed, which will lead to send the Basic Set CC/Switch Binary Set CC /Scene Activation Set CC to nodes in group 2. 1 5 0 Group 1 is assigned to the Lifeline association group and every device has 5 nodes to associate. When the switch is turned on or off using the action button, the switch will send a basic report of its status to the nodes in association group 1. To change what kind of signal is sent to the nodes in group 1, please see the detailed description of configuration parameter 80.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 91 Induce an automatic report This parameter is used to induce an automatic report when the change of the current power is more/less than the threshold in wattage. 0 2 0 0 50 From To Description 0 32767 The threshold can be set from 0 to 32767 watt. 92 Induce an automatic report This parameter is used to induce an automatic report when the change of the current power is more/less than the threshold in percentage. 0 1 0 0 10 From To Description 0 100 The threshold can be set from 0 to 100 percent. 103 To set which report need to be sent. This parameter is used to configure which reports need to be sent in Report Group 3. The values corresponding to the first four bits of the parameter value may be combined to create different combinations of reports that you wish to have sent. For example, instantaneous Current is the value 2 and instantaneous Watts is the value 4, so setting parameter 103 to a value of 6 will result in both instantaneous Current and instantaneous Watts to be reported. See the full description of the parameter values for other possible settings. 0 4 0 0 0 From To Description 8 8 Report Accumulated kWh 1 1 Report Instantaneous Voltage 2 2 Report Instantaneous Current (Amperes) 4 4 Report Instantaneous Watts 90 Enable/Disable the function of parameter 91 and 92. This parameter is used to Enable/Disable the function of parameter 91 and 92 (1=Enabled, 0=Disabled). 0 1 0 0 1 From To Description 0 0 Configuration Parameters 91 and 92 are Disabled 1 1 Configuration Parameters 91 and 92 are Enabled 3 Current Overload Protection This parameter is used for the overload protection, which means the load will be disconnected after 5 seconds when the current more than 39.5A. 0 1 0 0 0 From To Description 0 0 Overload Protection Disabled 1 1 Overload Protection is Enabled 111 Set the interval time of sending report. This parameter is used to set the interval time of sending report in Report Group 1. (The unit of time is second). 0 4 0 0 300 From To Description 0 268435456 Interval Seconds 112 Set the interval time of sending report. This parameter is used to set the interval time of sending report in Report Group 2. (The unit of time is second). 0 4 0 0 120 From To Description 0 268435456 Interval Seconds 113 Set the interval time of sending report. This parameter is used to set the interval time of sending report in Report Group 3. (The unit of time is second). 0 4 0 0 120 From To Description 0 268435456 Interval Seconds 200 Partner ID This parameter is used to configure the partner ID. (0== Aeon Labs Standard Product, 1~255== others). 0 1 0 0 0 From To Description 0 0 Aeon Labs Standard Product 1 255 Partner ID of Partner Product 252 Enable/Disable Lock Configuration This parameter is used to enable/disable Lock all configuration parameters. (0 =disable, 1 = enable) 0 1 0 0 0 From To Description 0 0 All configuration parameters are configurable. 1 1 All configuration parameters are not configurable (Locked). 102 To set which report need to be sent. This parameter is used to configure which reports need to be sent in Report Group 2. The values corresponding to the first four bits of the parameter value may be combined to create different combinations of reports that you wish to have sent. For example, instantaneous Current is the value 2 and instantaneous Watts is the value 4, so setting parameter 102 to a value of 6 will result in both instantaneous Current and instantaneous Watts to be reported. See the full description of the parameter values for other possible settings. 0 4 0 0 8 From To Description 2 2 Report Instantaneous Current (Amperes) 1 1 Report Instantaneous Voltage 4 4 Report Instantaneous Watts 8 8 Report Accumulated kWh 255 Reset to default factory setting This parameter is used to reset product to default factory setting. (There are just 2 values can be used). 0 4 0 0 0 From To Description 1431655765 1431655765 Reset the product to default factory setting and be excluded from the Z-wave network. 1 1 Resets all configuration parameters to default setting. 80 Enable/Disable to send notifications to associated devices to associated devices. This parameter is used to Enable/Disable to send notifications to associated devices (in Group 1) when the state of Smart Switch Gen5’s load is changed. (0=Send nothing, 1=Send hail CC, 2=Send basic report CC). 0 1 0 0 0 From To Description 2 2 Send BASIC Report Command 0 0 Send Nothing (Disabled) 1 1 Send HAIL Command 101 To set which report need to be sent. This parameter is used to configure which reports need to be sent in Report Group 1. The values corresponding to the first four bits of the parameter value may be combined to create different combinations of reports that you wish to have sent. For example, instantaneous Current is the value 2 and instantaneous Watts is the value 4, so setting parameter 101 to a value of 6 will result in both instantaneous Current and instantaneous Watts to be reported. See the full description of the parameter values for other possible settings. 0 4 0 0 4 From To Description 4 4 Report Instantaneous Watts 1 1 Report Instantaneous Voltage 8 8 Report Accumulated kWh 2 2 Report Instantaneous Current (Amperes)
Texts	ID Description Value 1 Inclusion Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Action button that you can find on the product's housing. 2 Exclusion Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Action button that you can find on the product's housing. 3 Learn Mode (adding another controller) N/A 5 Factory Reset Press and hold the Action button that you can find on the product's housing for 20 seconds and then release. This procedure should only be used when the primary controller is inoperable. 4 Device Wake-Up N/A 6 Additional Special Features Support ""Over the Air Firmware Updating"" and “Z-Wave Security”.
Supports NWI	Yes
Supports Explorer Frames	Yes
