Product Recognition
Certification Number	ZC10-19036399

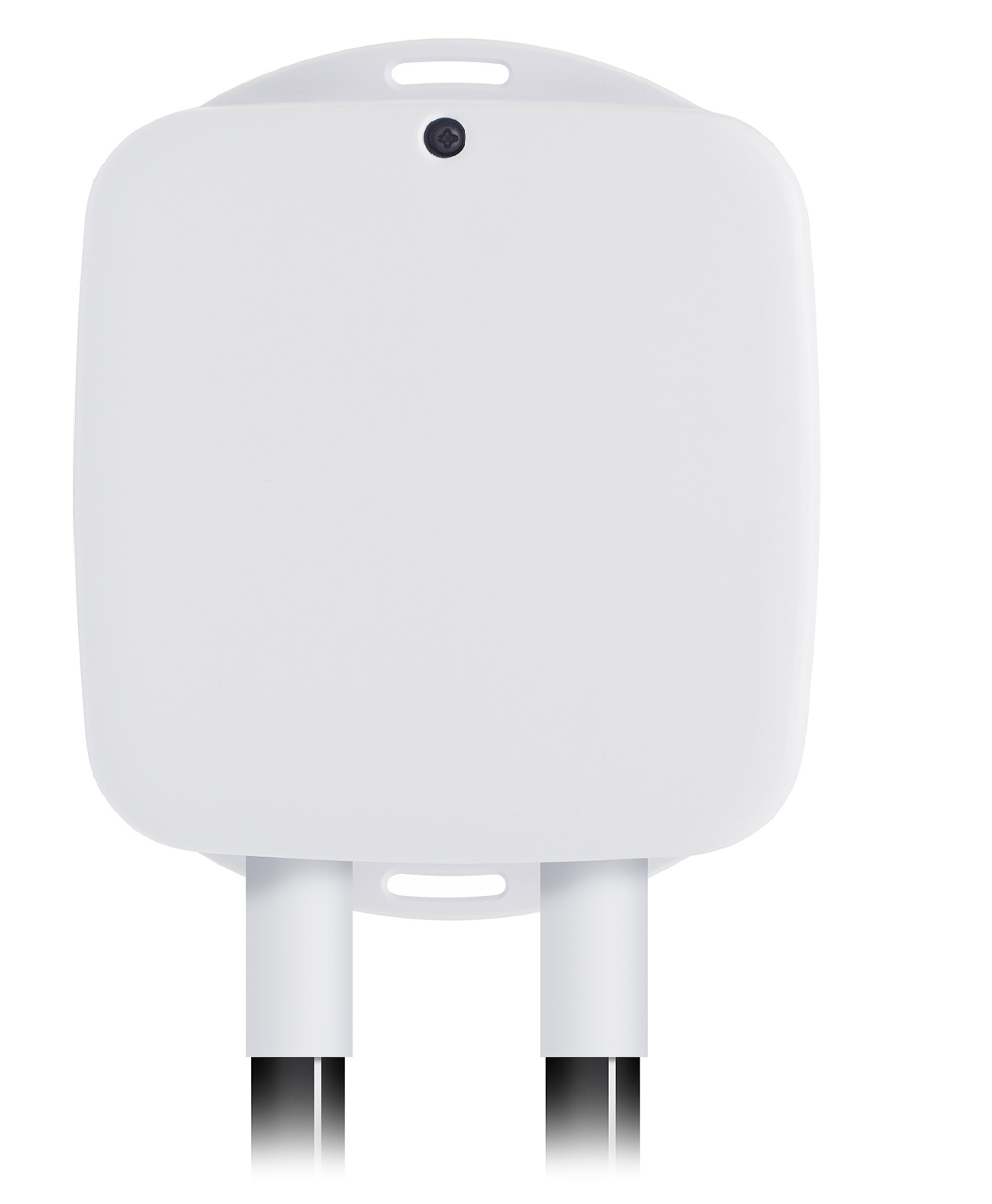

Name	Heavy Duty Smart Switch Gen5
Short Description	Aeotec Heavy Duty Smart Switch Gen5 is an on/off switch module that also provides energy metering.
Long Description	Aeotec Heavy Duty Smart Switch Gen5 is a Z-Wave switch controller that can also report the wattage energy usage and KWH usage of the device wired in to it. As part of its switching functionality, Heavy Duty Smart Switch Gen5 can be controlled by other Z-Wave devices to turn loads on or off. It can bear up to 40 amps current of resister loads. It also act as a repeater, forwarding Z-Wave command messages to destination nodes if the originating controller is out of range from the destination node. By taking advantage of the Z-Wave mesh network, commands can be routed to their destination via intermediary Z-Wave products. Products that are Z-Wave certified can be used and communicate with other Z-Wave certified device. The Switch is also a security Z-wave device and supports Over The Air (OTA) feature for the products firmware upgrade.
Brand	Aeotec
Product Identifier	ZW078-F
OEM Version	HW: 78 FW: 3.28
Hardware Platform	ZM5202
Z-Wave Version	6.51.10
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0086
Product Type ID	0x0903
Product ID	0x004E
User Icon	0x0700
Installer Icon	0x0700
Frequency Plans	IN: 865.20MHz
Categories	Energy Meters, All Lighting Devices, On/Off Switches/Devices
Countries / Regions	India
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_SCENE_ACTUATOR_CONF Scene Actuator Conf 0x2C 1 COMMAND_CLASS_SENSOR_MULTILEVEL_V5 Sensor Multilevel V5 0x31 5 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_METER_V3 Meter V3 0x32 3 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_HAIL Hail 0x82 1 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Instructions-Heavy Duty Smart Switch Gen5-.pdf
Features	Feature Values Sensors Value Air Temperature Firmware Updatable Value Updatable by Consumer by RF Supported Meter Type Value Electric Energy
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline. The Hial CC and Basic Report CC (configured by parameter 80) can be sent to the associatd nodes in this group. 2 5 0 Forward the Basic Set, Switch Binary Set or Scene Activation Set to associated nodes in Group 2 when the Smart Switch receives the Basic Set, Switch Binary Set, Scene Activation Set commands from main controller
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 110 Reset the parameters 111-113 Reset the parameters 111-113 to default values. 0 1 0 0 0 From To Description 0 0 Reset the parameters 111-113 to default values. 111 Set the time interval of sending Report Set the time interval of sending Report 0 4 0 0 5 From To Description 1 2147483647 Interval Seconds 112 Set the time interval of sending Report Set the time interval of sending Report 0 4 0 0 120 From To Description 1 2147483647 Interval Seconds 113 Set the time interval of sending Report Set the time interval of sending Report 0 4 0 0 120 From To Description 1 2147483647 Interval Seconds 200 Partner ID Partner ID 0 1 0 0 0 From To Description 1 127 Others 0 0 Aeon Labs Standard Product 252 Enable/disable Configuration Locked Enable/disable Configuration Locked 0 1 0 0 0 From To Description 0 0 Disable 1 1 Enable 255 Reset the Smart Switch 6 Reset the Smart Switch 6 to factory default. 0 1 0 0 0 From To Description 1431655765 1431655765 Reset the Smart Switch to factory default 1 1 Reset all configuration parameters to default. 3 Current Overload Protection. Current Overload Protection. Output load will be closed after 2 minutes if the current overruns (US: 16.5A, AU: 10.5A, EU: 14A). 0 1 0 0 0 From To Description 1 1 Enabled 0 0 Disabled 80 To set which notification would be sent to the associated nodes in association group 1 To set which notification would be sent to the associated nodes in association group 1 when the state of output load is changed. 0 1 0 0 0 From To Description 0 0 Nothing 1 1 Hail CC 2 2 Basic Report CC 90 Enable/disable the parameter 91 and 92 Enable/disable the parameter 91 and 92. 0 1 0 0 1 From To Description 1 1 Enable 0 0 Disable 91 Induce an automatic report The value here represents minimum change in wattage (in terms of wattage) to induce a Meter Report 0 2 0 0 50 From To Description 0 32767 The threshold can be set from 0 to 32767 watt. 92 Induce an automatic report The value here represents minimum change in wattage percent (in terms of percentage) to induce a Meter Report 0 1 0 0 10 From To Description 0 100 The threshold can be set from 0 to 100%. 100 Reset the parameters 101-103 Reset the parameters 101-103. 0 1 0 0 0 From To Description 0 0 Reset the parameters 101-103. 101 To set which report would be sent in Report group 1 To set which report would be sent in Report group 1 0 4 0 0 4 From To Description 1 1 Send Meter Report of Voltage 2 2 Send Meter Report of Current 4 4 Send Meter Report of Watt 8 8 Send Meter Report of kWh 102 To set which report would be sent in Report group 2 To set which report would be sent in Report group 2 0 4 0 0 8 From To Description 1 1 Send Meter Report of Voltage 2 2 Send Meter Report of Current 4 4 Send Meter Report of Watt 8 8 Send Meter Report of kWh 103 To set which report would be sent in Report group 3 To set which report would be sent in Report group 3 0 4 0 0 0 From To Description 2 2 Send Meter Report of Current 4 4 Send Meter Report of Watt 1 1 Send Meter Report of Voltage 8 8 Send Meter Report of kWh
Texts	ID Description Value 1 Inclusion Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Action button that you can find on the product's housing. 2 Exclusion Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Action button that you can find on the product's housing. 5 Factory Reset Press and hold the Action button that you can find on the product's housing for 20 seconds and then release. This procedure should only be used when the primary controller is inoperable. 6 Additional Special Features Support ""Over the Air Firmware Updating"" and “Z-Wave Security”.
Supported / Controlled Meter Types	Meter Type Rate Type Description Electric meter Import Electric Meter Consumption
Supported Multilevel Sensors	Multilevel Sensor Type Air temperature
Supports NWI	Yes
Supports Explorer Frames	Yes
