4 | TIME CORRECTION | Time correction by controller | 3 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
0 | 0 | Switch off auto-correction | 1 | 0 | If the device is connected to a Z-Wave gateway, the time and day will be periodically polled and corrected from the gateway |
|
5 | WEEKDAY | Week day. Allows manually adjustment of the day of the week in case the HE-HLS01 is not connected to any Z-Wave gateway or the Parameter 04 (auto-correction) is set to 0. | 3 | 1 | 1 | 7 | 1 | From | To | Description |
|---|
1 | 0 | Monday | 2 | 0 | Tuesday | 3 | 0 | Wednesday | 4 | 0 | Thursday | 5 | 0 | Friday | 6 | 0 | Saturday | 7 | 0 | Sunday |
|
6 | HOUR | Time hour. Allows manually adjustment of hours for internal clock in case the HE-HLS01 is not connected to any Z-Wave gateway or the Parameter 04 (auto-correction) is set to 0. | 2 | 1 | 0 | 23 | 0 | From | To | Description |
|---|
0 | 23 | This Parameter allows manual adjustment of Time in hours (24 hours). |
|
17 | OVERHEAT PROTECTION LEVEL | Overheat Protection & Notification. You can define the maximum limit of temperature, reaching which the device will automatically switch Off the load and send “Overheat Detected” notification to the gateway. The factory default value is 60 in °C scale and 140 in °F scale. | 2 | 2 | 0 | 248 | 60 | From | To | Description |
|---|
0 | 0 | Disable the functionality | 1 | 248 | The value of this parameter can be set from 1 to 120 in °C scale mode or from 32 to 248 in °F scale mode. |
|
3 | OUTPUT MODE | Output NO/NC Mode. The device can operate in Normal Open (NO) mode and in Normal Close (NC) mode. | 3 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
1 | 0 | The output will be powered in OFF state and will be no voltage on output when the device is in ON state. | 0 | 0 | The device switch operates in NO mode and there is no voltage on output when the device is in OFF state. The output will be powered when device goes to ON state. |
|
11 | TEMPERATURE REPORT INTERVAL | Temperature Sensor Consecutive Report Interval. This Parameter defines the interval between consecutive reports of temperature sensor reading to the gateway. Note: If the sensor readings change, the device will send the report to the gateway regardless of this parameter value. In order not to increase traffic on your network, it is not recommended to reduce the value of this parameter. We recommend reducing the value of this parameter only in case of poor connection, when reports from the device does not always reach the gateway. | 2 | 1 | 1 | 120 | 10 | From | To | Description |
|---|
1 | 120 | The value can be adjusted from 1 to 120 minutes |
|
131 | LOAD ON NOTIFICATION | The actual parameter number is 31 when the device is in the 'Binary Switch' mode. Load Switched On Notification. If this function is enabled the device will send “AC Mains Re-Connected” notification to the gateway each time when the relay output state changes to On. Note: This function can be useful for informing in case of automatic control of the load by schedule or scenario. | 3 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Disable sending the notification | 1 | 0 | Enable sending the notification |
|
132 | LOAD OFF NOTIFICATION | The actual parameter number is 32 when the device is in the 'Binary Switch' mode. Load Switched Off Notification. If this function is enabled the device will send “AC Mains Disconnected” notification to the gateway each time when the relay output state changes to Off. Note: This function can be useful for informing when the device automatically switches the output Off because of emergency case or in case of automatic control of the load by schedule or scenario. | 3 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
0 | 0 | Disable sending the notification | 1 | 0 | Enable sending the notification |
|
138 | S1 INPUT HOLD CONTROL MODE | The actual parameter number is 38 when the device is in the 'Binary Switch' mode. Load Switched On Notification. | 3 | 1 | 0 | 3 | 2 | From | To | Description |
|---|
2 | 0 | Momentary Switch: When the button on switch connected to external input is held, (key closed) the relay output state is ON, as soon as the button is released (key opened) the relay output state changes to OFF. | 3 | 0 | Reversed Momentary Switch: When the button on switch connected to external input is held, the relay output state is OFF, as soon as the button is released the relay output state changes to ON. | 0 | 0 | Hold function is disabled | 1 | 0 | Operate like click (the Parameter 39) |
|
31 | LOAD ERROR NOTIFICATION | Parameter only for 'Thermostat' device type: Load Error Notification. The device can send the “Load Error” notification to the gateway when the relay is On but there is no power consumption (meaning possible problems with the heating system). Note: The function works only if the device is AC powered. | 3 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Disable sending the notification | 1 | 0 | Disable sending the notification |
|
23 | RESERVED | Parameters from 23 to 30 are reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality. | 2 | 4 | 0 | 4294967295 | 0 | From | To | Description |
|---|
0 | 4294967295 | Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality. |
|
45 | MONDAY NIGHT TEMP | Parameter only for 'Thermostat' device type: Monday Night temperature, valueX10 | 2 | 2 | 10 | 1100 | 180 | From | To | Description |
|---|
10 | 1100 | Monday Night temperature value |
|
46 | TUESDAY MORNING TEMP | Parameter only for 'Thermostat' device type: Tuesday Morning temperature, valueX10 | 2 | 2 | 10 | 1100 | 240 | From | To | Description |
|---|
10 | 1100 | Tuesday Morning temperature value |
|
47 | TUESDAY DAYTIME TEMP | Parameter only for 'Thermostat' device type: Tuesday Day temperature, valueX10 | 2 | 2 | 10 | 1100 | 200 | From | To | Description |
|---|
10 | 1100 | Tuesday Day temperature value |
|
48 | TUESDAY EVENING TEMP | Parameter only for 'Thermostat' device type: Tuesday Evening temperature, valueX10 | 2 | 2 | 10 | 1100 | 230 | From | To | Description |
|---|
10 | 1100 | Tuesday Evening temperature value |
|
49 | TUESDAY NIGHT TEMP | Parameter only for 'Thermostat' device type: Tuesday Night temperature, valueX10 | 2 | 2 | 10 | 1100 | 180 | From | To | Description |
|---|
10 | 1100 | Tuesday Night temperature value |
|
54 | THURSDAY MORNING TEMP | Parameter only for 'Thermostat' device type: Thursday Morning temperature, valueX10 | 2 | 2 | 10 | 1100 | 240 | From | To | Description |
|---|
10 | 1100 | Thursday Morning temperature value |
|
50 | WEDNESDAY MORNING TEMP | Parameter only for 'Thermostat' device type: Wednesday Morning temperature, valueX10 | 2 | 2 | 10 | 1100 | 240 | From | To | Description |
|---|
10 | 1100 | Wednesday Morning temperature value |
|
55 | THURSDAY DAYTIME TEMP | Parameter only for 'Thermostat' device type: Thursday Day temperature, valueX10 | 2 | 2 | 10 | 1100 | 200 | From | To | Description |
|---|
10 | 1100 | Thursday Day temperature value |
|
51 | WEDNESDAY DAYTIME TEMP | Parameter only for 'Thermostat' device type: Wednesday Day temperature, valueX10 | 2 | 2 | 10 | 1100 | 200 | From | To | Description |
|---|
10 | 1100 | Wednesday Day temperature value |
|
52 | WEDNESDAY EVENING TEMP | Parameter only for 'Thermostat' device type: Wednesday Evening temperature, valueX10 | 2 | 2 | 10 | 1100 | 230 | From | To | Description |
|---|
10 | 1100 | Wednesday Evening temperature value |
|
53 | WEDNESDAY NIGHT TEMP | Parameter only for 'Thermostat' device type: Wednesday Night temperature, valueX10 | 2 | 2 | 10 | 1100 | 180 | From | To | Description |
|---|
10 | 1100 | Wednesday Night temperature value |
|
56 | THURSDAY EVENING TEMP | Parameter only for 'Thermostat' device type: Thursday Evening temperature, valueX10 | 2 | 2 | 10 | 1100 | 230 | From | To | Description |
|---|
10 | 1100 | Thursday Evening temperature value |
|
57 | THURSDAY NIGHT TEMP | Parameter only for 'Thermostat' device type: Thursday Night temperature, valueX10 | 2 | 2 | 10 | 1100 | 180 | From | To | Description |
|---|
10 | 1100 | Thursday Night temperature value |
|
58 | FRIDAY MORNING TEMP | Parameter only for 'Thermostat' device type: Friday Morning temperature, valueX10 | 2 | 2 | 10 | 1100 | 240 | From | To | Description |
|---|
10 | 1100 | Friday Morning temperature value |
|
59 | FRIDAY DAYTIME TEMP | Parameter only for 'Thermostat' device type: Friday Day temperature, valueX10 | 2 | 2 | 10 | 1100 | 200 | From | To | Description |
|---|
10 | 1100 | Friday Day temperature value |
|
60 | FRIDAY EVENING TEMP | Parameter only for 'Thermostat' device type: Friday Evening temperature, valueX10 | 2 | 2 | 10 | 1100 | 230 | From | To | Description |
|---|
10 | 1100 | Friday Evening temperature value |
|
61 | FRIDAY NIGHT TEMP | Parameter only for 'Thermostat' device type: Friday Night temperature, valueX10 | 2 | 2 | 10 | 1100 | 180 | From | To | Description |
|---|
10 | 1100 | Friday Night temperature value |
|
62 | SATURDAY MORNING TEMP | Parameter only for 'Thermostat' device type: Saturday Morning temperature, valueX10 | 2 | 2 | 10 | 1100 | 240 | From | To | Description |
|---|
10 | 1100 | Saturday Morning temperature value |
|
63 | SATURDAY DAYTIME TEMP | Parameter only for 'Thermostat' device type: Saturday Day temperature, valueX10 | 2 | 2 | 10 | 1100 | 200 | From | To | Description |
|---|
10 | 1100 | Saturday Day temperature value |
|
64 | SATURDAY EVENING TEMP | Parameter only for 'Thermostat' device type: Saturday Evening temperature, valueX10 | 2 | 2 | 10 | 1100 | 230 | From | To | Description |
|---|
10 | 1100 | Saturday Evening temperature value |
|
65 | SATURDAY NIGHT TEMP | Parameter only for 'Thermostat' device type: Saturday Night temperature, valueX10 | 2 | 2 | 10 | 1100 | 180 | From | To | Description |
|---|
10 | 1100 | Saturday Night temperature value |
|
66 | SUNDAY MORNING TEMP | Parameter only for 'Thermostat' device type: Sunday Morning temperature, valueX10 | 2 | 2 | 10 | 1100 | 240 | From | To | Description |
|---|
10 | 1100 | Sunday Morning temperature value |
|
67 | SUNDAY DAYTIME TEMP | Parameter only for 'Thermostat' device type: Sunday Day temperature, valueX10 | 2 | 2 | 10 | 1100 | 200 | From | To | Description |
|---|
10 | 1100 | Sunday Day temperature value |
|
68 | SUNDAY EVENING TEMP | Parameter only for 'Thermostat' device type: Sunday Evening temperature, valueX10 | 2 | 2 | 10 | 1100 | 230 | From | To | Description |
|---|
10 | 1100 | Sunday Evening temperature value |
|
69 | SUNDAY NIGHT TEMP | Parameter only for 'Thermostat' device type: Sunday Night temperature, valueX10 | 2 | 2 | 10 | 1100 | 180 | From | To | Description |
|---|
10 | 1100 | Sunday Night temperature value |
|
41 | NIGHT START TIME | Parameter only for 'Thermostat' device type: Night start time. Format: HHMM. | 2 | 2 | 0 | 2359 | 2300 | From | To | Description |
|---|
0 | 2359 | Night start time. Format: HHMM (from 00:00 to 23:59) |
|
42 | MONDAY MORNING TEMP | Parameter only for 'Thermostat' device type: Monday Morning temperature, valueX10 | 2 | 2 | 10 | 1100 | 240 | From | To | Description |
|---|
10 | 1100 | Monday Morning temperature value |
|
43 | MONDAY DAYTIME TEMP | Parameter only for 'Thermostat' device type: Monday Day temperature, valueX10 | 2 | 2 | 10 | 1100 | 200 | From | To | Description |
|---|
10 | 1100 | Monday Day temperature value |
|
44 | MONDAY EVENING TEMP | Parameter only for 'Thermostat' device type: Monday Evening temperature, valueX10 | 2 | 2 | 10 | 1100 | 230 | From | To | Description |
|---|
10 | 1100 | Monday Evening temperature value |
|
7 | MINUTE | Time minutes. Allows manually adjustment of minutes for internal clock in case the HE-HLS01 is not connected to any Z-Wave gateway or the Parameter 04 (auto-correction) is set to 0. | 2 | 1 | 0 | 59 | 0 | From | To | Description |
|---|
0 | 59 | This Parameter allows manual adjustment of the Time in minutes (60 minutes)) |
|

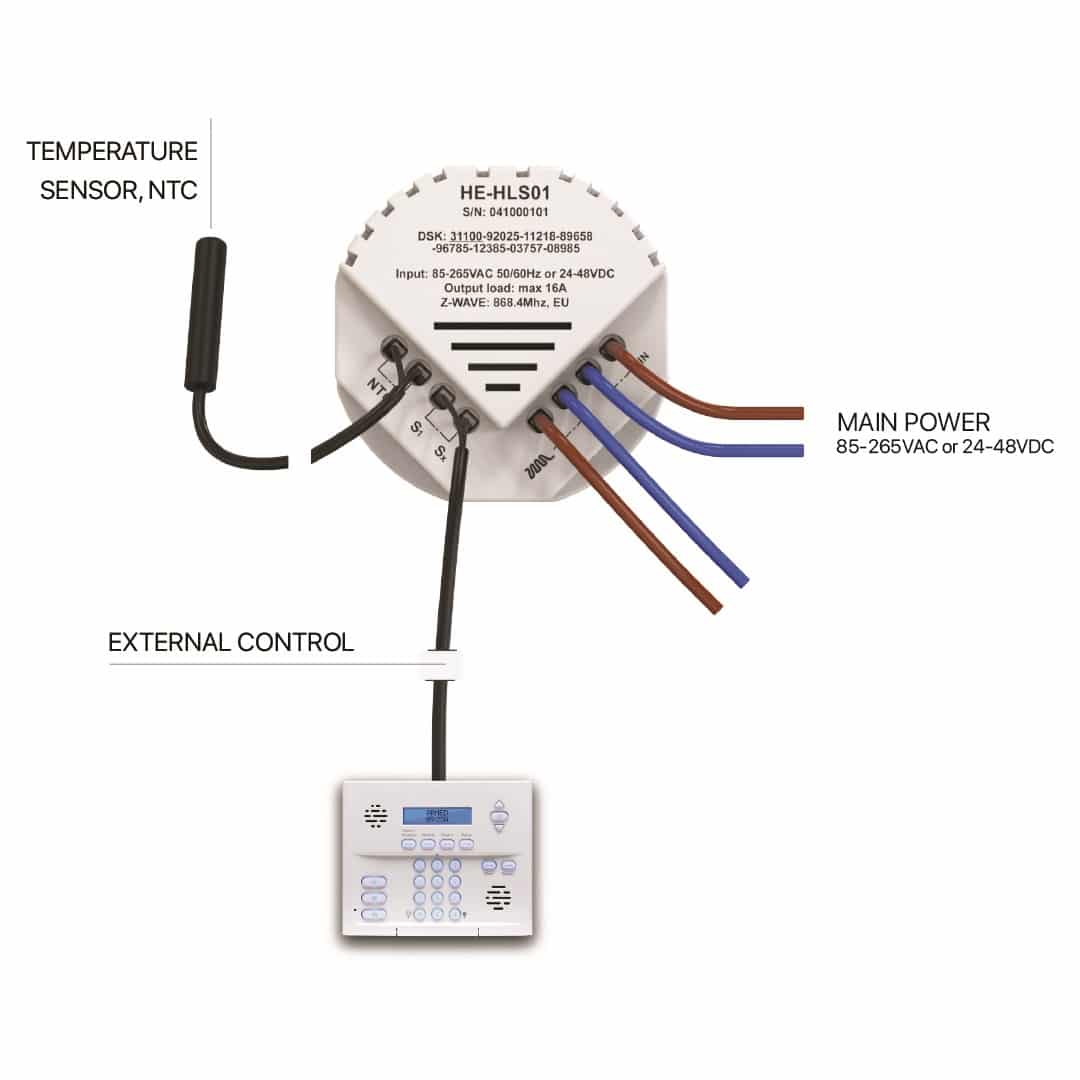

8 | NTC RESISTANCE | External NTC Temperature Sensor Resistance (kΩ) | 2 | 1 | 1 | 100 | 10 | From | To | Description |
|---|
1 | 100 | Floor Sensor Resistance in kiloOhms (kΩ) |
|
2 | FREQUENCY REGION | Frequency Region. The HLS01 has Z-Wave 700 platform chip inside which allows to use the device in different Z-Wave frequencies. If there is a need to use the device in the frequency different from the factory default change the value of this parameter according to the list is user manual. | 2 | 1 | 0 | 9 | 0 | From | To | Description |
|---|
0 | 9 | Select the corresponding region frequency |
|
9 | TEMPERATURE SENSOR OFFSET | Temperature Calibration in °C, x10. Temperature Sensor Calibration This Parameter defines the offset value for external NTC temperature sensor. If the temperature sensor is not calibrated properly, manual calibration can be made by adjusting the values up to ±10.0°C or ±18°F. | 1 | 1 | -100 | 100 | 0 | From | To | Description |
|---|
-100 | 100 | This value will be added or subtracted from the temperature sensor reading |
|

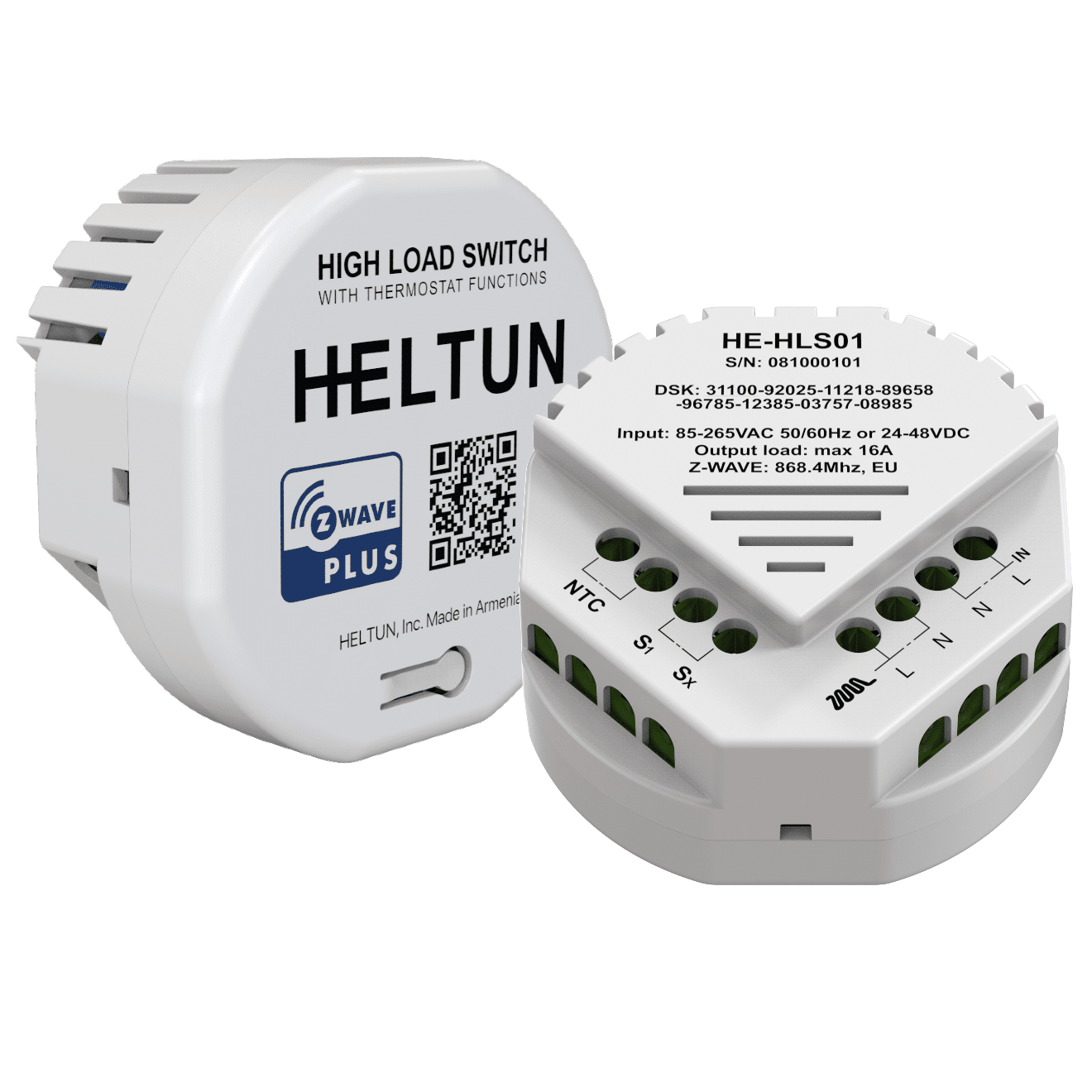

1 | DEVICE TYPE | Device Type. This parameter is read only and indicates in which mode the device is included. The device can be included either in the Binary Switch mode or in the Thermostat mode. Use inclusion in Binary Switch mode if there is a need to control on/off device and use inclusion in Thermostat mode if there is a need to control heating system. For the appropriate inclusion process see the section Z-Wave Network of manual. | 3 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Parameter is read only. | 1 | 0 | Parameter is read only. |
|
10 | TEMPERATURE SCALE MODE | Temperature Scale Mode. This parameter determines in which unit of measurement (degrees Celsius or Fahrenheit) the device will report the temperature, and also determines the scale that will be interpreted by the configuration parameters. Note: This configuration parameter has impact on configuration parameters 9,12,16,17 and 32, 42-69 in thermostat mode. If scale is set to degrees Fahrenheit, configuration values at mentioned parameters will be automatically converted from Celsius to Fahrenheit and any change in the values will be interpreted as Fahrenheits. | 3 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Celsius | 1 | 0 | Fahrenheit |
|
70 | RESERVED | For 'Thermostat' device type the parameters from 70 to 80 are reserved by the manufacturer. Setting this parameters will have no impact on DUT functionality. | 2 | 4 | 0 | 4294967295 | 0 | From | To | Description |
|---|
0 | 4294967295 | Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality. |
|
140 | RELAY TIMER DURATION | The actual parameter number is 40 when the device is in the 'Binary Switch' mode. Relay Timer Mode Duration These parameters specify the duration in seconds for the Timer mode (values 4 or 5 in the Parameter 39). Press the button on the switch connected to external input and the relay output goes to ON/OFF for the specified time then changes back to OFF/ON. Note: If the parameter value is set to “0” the relay output will operate as a short contact (duration is about 0.5 sec). | 2 | 2 | 0 | 43200 | 0 | From | To | Description |
|---|
0 | 43200 | The time value can be configured from 0 sec to 43200 sec (12 hours). |
|
135 | LOAD AUTO ON/OFF | The actual parameter number is 35 when the device is in the 'Binary Switch' mode. Load Switched On Notification. Auto On/Off If this function is enabled the device will switch Off the relay output when there is no consumption and switch On the output again when the load is reconnected. It is possible to set the delay for Auto Off function (in the Parameter 36) and for Auto On function (in the Parameter 37). Note: If the output is manually switched Off (from Gateway or External Input toggle) Auto ON function will be blocked until the output switches back to ON manually or the load disconnected. Note: The function works only if the device is AC powered. | 3 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Disable the functionality | 1 | 0 | Enable the functionality |
|
141 | RELAY CONTROL SCENARIO 1 | The actual parameter number is 41 when the device is in the 'Binary Switch' mode. Relay 1 Control by Scenario In these parameters, the relay state changes depending on day and time. For these configurations, parameter values are encoded as 7-digit numbers (ABCDEFG). A: State. 0 = Disabled, 1 = Enabled B: Day of week 0 = every day 1-7 = corresponding day (1 is Monday, 7 is Sunday) 8 = every weekday (Monday - Friday) 9 = every weekend (Saturday and Sunday) C: Change state to 0 = Switch OFF 1 = Switch ON DEFG: Time DE represents Hour (from 0 to 23), FG represents Minutes (from 0 to 59). | 2 | 4 | 0 | 1912359 | 0 | From | To | Description |
|---|
0 | 0 | Disable the functionality | 1000000 | 1912359 | Relay 1 Control Scenario |
|
134 | HIGH LOAD ON TIME LIMIT | The actual parameter number is 34 when the device is in the 'Binary Switch' mode. High Load Timeout Protection: Time Threshold If High Load Timeout Protection is activated (the Parameter 33 is set) use this parameter to set the threshold value in minutes. If the load is connected longer than this value, the device will automatically switch Off the socket. Note: If the value of this parameter is set 0, the protection will not be activated. Note: If the connected load power is less than value of the Parameter 33, the protection will not be activated. Note: The time counter is reset every time when the load consumption drops to zero. If the connected load may change its consumption, make sure that the time threshold will be reached before the load consumption drops. Note: We recommend activating the Load Switched Off notification (the Parameter 32) to be informed when the device automatically switch Off the socket. Note: The protection works only if the device is AC powered. | 2 | 2 | 0 | 1440 | 0 | From | To | Description |
|---|
0 | 0 | Disable the functionality | 1 | 1440 | If the load is connected longer than this value, the device will automatically switch Off the socket. |
|
133 | TIME LIMITITED LOAD | The actual parameter number is 33 when the device is in the 'Binary Switch' mode. High Load Timeout Protection: Power Threshold If the HLS01 is used to control an electric socket, you can configure the device so that it automatically switch Off the socket if the potentially dangerous high load is connected longer than allowable time (time to be set in the Parameter 34), for example, if you left the iron switched On for too long. Set in this parameter the threshold value in watts, reaching which the connected load will be considered high. Note: If the connected load power is less than value of this parameter, the protection will not be activated. Note: If the Parameter 34 (time threshold) value is set to 0, the protection will not be activated. Note: The time counter is reset every time when the load consumption drops to zero. Note: We recommend activating the Load Switched Off notification (the Parameter 32) to be informed when the device automatically switch Off the socket. Note: The protection works only if the device is AC powered. | 2 | 2 | 0 | 3500 | 0 | From | To | Description |
|---|
0 | 0 | Disable the functionality | 100 | 3500 | The load limit in watts to automatically switch Off the socket |
|
136 | AUTO OFF TIMEOUT | The actual parameter number is 36 when the device is in the 'Binary Switch' mode. Load Switched On Notification. Auto Off Timeout If Auto On/Off function (the Parameter 35) is enabled, it is possible to delay the Auto Off function. The output will be switched Off when there is no consumption for the interval defined in this parameter in minutes. Note: The function works only if the device is AC powered. | 2 | 1 | 0 | 120 | 5 | From | To | Description |
|---|
0 | 0 | Switch Off the output immediately when consumption drops to 0W | 1 | 120 | Minutes after which the output will be switched Off when there is no consumption |
|
137 | AUTO ON RECONNECT TIMEOUT | The actual parameter number is 37 when the device is in the 'Binary Switch' mode. Load Switched On Notification. Auto On Reconnect Timeout If Auto On/Off function (the Parameter 35) is enabled, it is possible to delay the Auto On function. When the load is reconnected the relay output will be switched On after the time defined in this parameter in minutes. Note: The function works only if the device is AC powered. | 2 | 1 | 0 | 120 | 0 | From | To | Description |
|---|
0 | 0 | Switch On the output immediately when the load is reconnected. | 1 | 120 | When the load is reconnected the relay output will be switched On after the time defined in this parameter in minutes. |
|
139 | S1 INPUT CLICK CONTROL MODE | The actual parameter number is 39 when the device is in the 'Binary Switch' mode. External Input: Click Control Mode. | 3 | 1 | 0 | 5 | 1 | From | To | Description |
|---|
4 | 0 | Timer: On>Off Mode: Relay output switches to ON state (contacts are closed) then after a specified time switches back to OFF state (contacts are open). The time is specified in the Parameter 40. | 5 | 0 | Timer: OFF>ON Mode: Relay output switches to OFF state (contacts are open) then after a specified time switches back to ON state (contacts are closed). The time is specified in Parameter 40. | 0 | 0 | Click function disabled | 1 | 0 | Toggle switch: relay inverts state (ON to OFF, OFF to ON). | 2 | 0 | Relay switches to ON state only | 3 | 0 | Relay switches to OFF state only |
|
147 | RELAY CONTROL SCENARIO 7 | The actual parameter number is 47 when the device is in the 'Binary Switch' mode. Relay 7 Control by Scenario In these parameters, the relay state changes depending on day and time. For these configurations, parameter values are encoded as 7-digit numbers (ABCDEFG). A: State. 0 = Disabled, 1 = Enabled B: Day of week 0 = every day 1-7 = corresponding day (1 is Monday, 7 is Sunday) 8 = every weekday (Monday - Friday) 9 = every weekend (Saturday and Sunday) C: Change state to 0 = Switch OFF 1 = Switch ON DEFG: Time DE represents Hour (from 0 to 23), FG represents Minutes (from 0 to 59). | 2 | 4 | 0 | 1912359 | 0 | From | To | Description |
|---|
0 | 0 | Disable the functionality | 1000000 | 1912359 | Relay 7 Control Scenario |
|
145 | RELAY CONTROL SCENARIO 5 | The actual parameter number is 45 when the device is in the 'Binary Switch' mode. Relay 5 Control by Scenario In these parameters, the relay state changes depending on day and time. For these configurations, parameter values are encoded as 7-digit numbers (ABCDEFG). A: State. 0 = Disabled, 1 = Enabled B: Day of week 0 = every day 1-7 = corresponding day (1 is Monday, 7 is Sunday) 8 = every weekday (Monday - Friday) 9 = every weekend (Saturday and Sunday) C: Change state to 0 = Switch OFF 1 = Switch ON DEFG: Time DE represents Hour (from 0 to 23), FG represents Minutes (from 0 to 59). | 2 | 4 | 0 | 1912359 | 0 | From | To | Description |
|---|
0 | 0 | Disable the functionality | 1000000 | 1912359 | Relay 5 Control Scenario |
|
142 | RELAY CONTROL SCENARIO 2 | The actual parameter number is 42 when the device is in the 'Binary Switch' mode. Relay 2 Control by Scenario In these parameters, the relay state changes depending on day and time. For these configurations, parameter values are encoded as 7-digit numbers (ABCDEFG). A: State. 0 = Disabled, 1 = Enabled B: Day of week 0 = every day 1-7 = corresponding day (1 is Monday, 7 is Sunday) 8 = every weekday (Monday - Friday) 9 = every weekend (Saturday and Sunday) C: Change state to 0 = Switch OFF 1 = Switch ON DEFG: Time DE represents Hour (from 0 to 23), FG represents Minutes (from 0 to 59). | 2 | 4 | 0 | 1912359 | 0 | From | To | Description |
|---|
0 | 0 | Disable the functionality | 1000000 | 1912359 | Relay 2 Control Scenario |
|
143 | RELAY CONTROL SCENARIO 3 | The actual parameter number is 43 when the device is in the 'Binary Switch' mode. Relay 3 Control by Scenario In these parameters, the relay state changes depending on day and time. For these configurations, parameter values are encoded as 7-digit numbers (ABCDEFG). A: State. 0 = Disabled, 1 = Enabled B: Day of week 0 = every day 1-7 = corresponding day (1 is Monday, 7 is Sunday) 8 = every weekday (Monday - Friday) 9 = every weekend (Saturday and Sunday) C: Change state to 0 = Switch OFF 1 = Switch ON DEFG: Time DE represents Hour (from 0 to 23), FG represents Minutes (from 0 to 59). | 2 | 4 | 0 | 1912359 | 0 | From | To | Description |
|---|
0 | 0 | Disable the functionality | 1000000 | 1912359 | Relay 3 Control Scenario |
|
144 | RELAY CONTROL SCENARIO 4 | The actual parameter number is 44 when the device is in the 'Binary Switch' mode. Relay 4 Control by Scenario In these parameters, the relay state changes depending on day and time. For these configurations, parameter values are encoded as 7-digit numbers (ABCDEFG). A: State. 0 = Disabled, 1 = Enabled B: Day of week 0 = every day 1-7 = corresponding day (1 is Monday, 7 is Sunday) 8 = every weekday (Monday - Friday) 9 = every weekend (Saturday and Sunday) C: Change state to 0 = Switch OFF 1 = Switch ON DEFG: Time DE represents Hour (from 0 to 23), FG represents Minutes (from 0 to 59). | 2 | 4 | 0 | 1912359 | 0 | From | To | Description |
|---|
0 | 0 | Disable the functionality | 1000000 | 1912359 | Relay 4 Control Scenario |
|
146 | RELAY CONTROL SCENARIO 6 | The actual parameter number is 46 when the device is in the 'Binary Switch' mode. Relay 6 Control by Scenario In these parameters, the relay state changes depending on day and time. For these configurations, parameter values are encoded as 7-digit numbers (ABCDEFG). A: State. 0 = Disabled, 1 = Enabled B: Day of week 0 = every day 1-7 = corresponding day (1 is Monday, 7 is Sunday) 8 = every weekday (Monday - Friday) 9 = every weekend (Saturday and Sunday) C: Change state to 0 = Switch OFF 1 = Switch ON DEFG: Time DE represents Hour (from 0 to 23), FG represents Minutes (from 0 to 59). | 2 | 4 | 0 | 1912359 | 0 | From | To | Description |
|---|
0 | 0 | Disable the functionality | 1000000 | 1912359 | Relay 6 Control Scenario |
|
149 | RELAY CONTROL SCENARIO 9 | The actual parameter number is 49 when the device is in the 'Binary Switch' mode. Relay 9 Control by Scenario In these parameters, the relay state changes depending on day and time. For these configurations, parameter values are encoded as 7-digit numbers (ABCDEFG). A: State. 0 = Disabled, 1 = Enabled B: Day of week 0 = every day 1-7 = corresponding day (1 is Monday, 7 is Sunday) 8 = every weekday (Monday - Friday) 9 = every weekend (Saturday and Sunday) C: Change state to 0 = Switch OFF 1 = Switch ON DEFG: Time DE represents Hour (from 0 to 23), FG represents Minutes (from 0 to 59). | 2 | 4 | 0 | 1912359 | 0 | From | To | Description |
|---|
0 | 0 | Disable the functionality | 1000000 | 1912359 | Relay 9 Control Scenario |
|
148 | RELAY CONTROL SCENARIO 8 | The actual parameter number is 48 when the device is in the 'Binary Switch' mode. Relay 8 Control by Scenario In these parameters, the relay state changes depending on day and time. For these configurations, parameter values are encoded as 7-digit numbers (ABCDEFG). A: State. 0 = Disabled, 1 = Enabled B: Day of week 0 = every day 1-7 = corresponding day (1 is Monday, 7 is Sunday) 8 = every weekday (Monday - Friday) 9 = every weekend (Saturday and Sunday) C: Change state to 0 = Switch OFF 1 = Switch ON DEFG: Time DE represents Hour (from 0 to 23), FG represents Minutes (from 0 to 59). | 2 | 4 | 0 | 1912359 | 0 | From | To | Description |
|---|
0 | 0 | Disable the functionality | 1000000 | 1912359 | Relay 8 Control Scenario |
|
150 | RELAY CONTROL SCENARIO 10 | The actual parameter number is 50 when the device is in the 'Binary Switch' mode. Relay 10 Control by Scenario In these parameters, the relay state changes depending on day and time. For these configurations, parameter values are encoded as 7-digit numbers (ABCDEFG). A: State. 0 = Disabled, 1 = Enabled B: Day of week 0 = every day 1-7 = corresponding day (1 is Monday, 7 is Sunday) 8 = every weekday (Monday - Friday) 9 = every weekend (Saturday and Sunday) C: Change state to 0 = Switch OFF 1 = Switch ON DEFG: Time DE represents Hour (from 0 to 23), FG represents Minutes (from 0 to 59). | 2 | 4 | 0 | 1912359 | 0 | From | To | Description |
|---|
0 | 0 | Disable the functionality | 1000000 | 1912359 | Relay 10 Control Scenario |
|
151 | RESERVED | The actual parameter number is 51 when the device is in the 'Binary Switch' mode. For 'Binary Switch' device type the parameters from 51 to 60 are reserved by the manufacturer. Setting this parameters will have no impact on DUT functionality. | 2 | 4 | 0 | 4294967295 | 0 | From | To | Description |
|---|
0 | 42 | Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality. |
|
