Product Recognition | |
|---|
Certification Number | ZC14-25090547 |
|---|

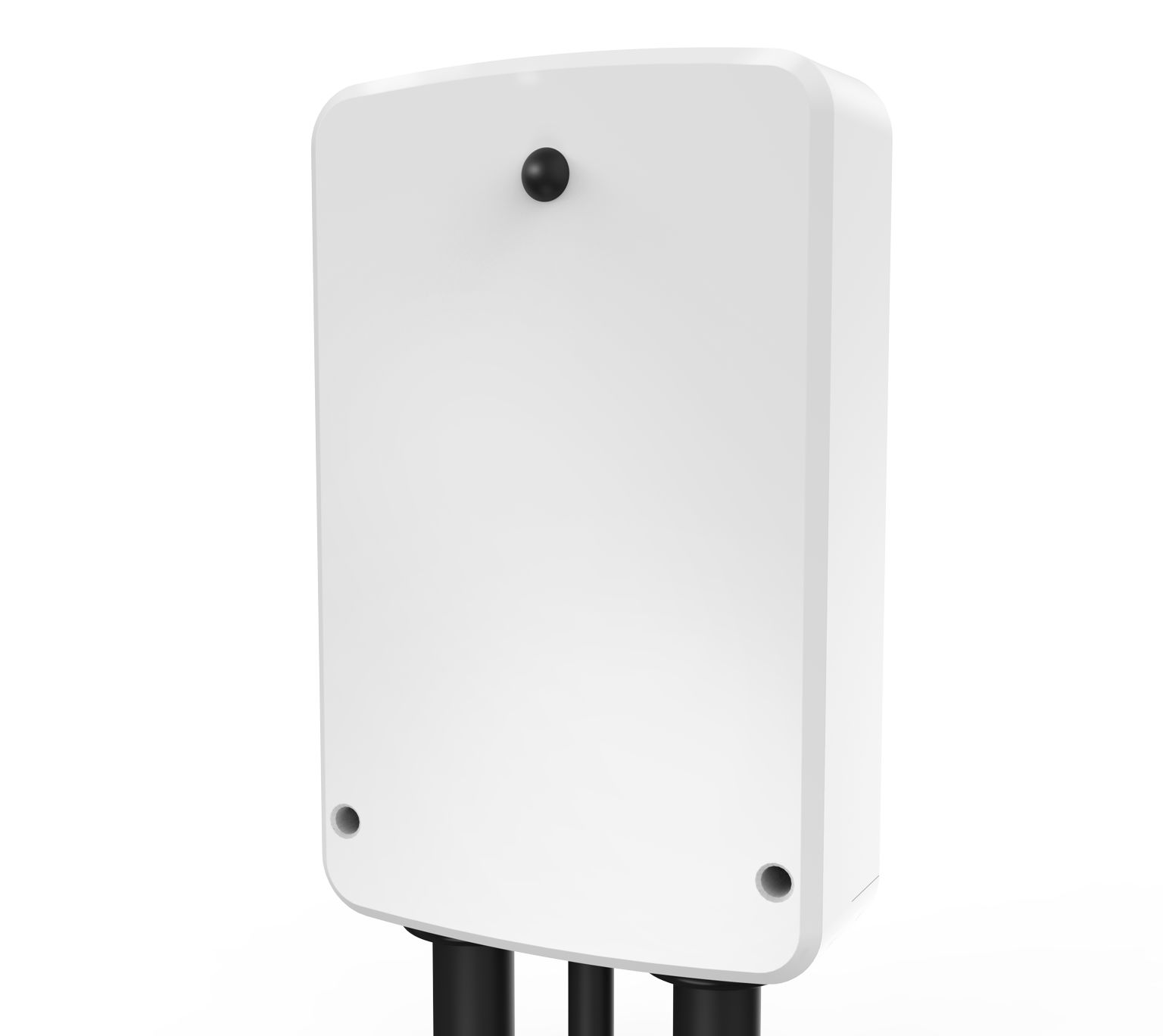

Name | High Power Relay |
|---|
Short Description | The High Power Relay is designed for use with large loads up to 40A like pool pumps or electric water heaters. |
|---|
Description | PRODUCT HIGHLIGHTS:
- Z-Wave® on/off control of large loads up to 40A
- Great for pool pumps, electric heaters, or boilers
- Energy monitoring live and over time
- LED indicator for easier troubleshooting
- Z-Wave® Long Range for ultra reliable no-mesh communication
- NEW 800 series chip for faster performance
- Built-in overload protection and SGS certification
SPECS:
- Model Number: ZEN78 800LR
- Z-Wave® Region: US/CA/MX
- Power: 120-240 VAC, 60 Hz
- Maximum Load: 40 A, 9600 W (resistant load)
- Standby power consumption: 1W
- Operating Temperature: 32° – 104° F
- Range: Up to 300 feet (or up to 1300 |
|---|
Brand | Zooz |
|---|
Brand Owner | Zooz |
|---|
Identifier | ZEN78 800LR |
|---|
Product Line | Smart Relays |
|---|
OEM Version | HW: 01 FW: 01.01 |
|---|
Hardware Platform | EFR32ZG23A |
|---|
Z-Wave Version | 7.23.2 |
|---|
Library Type | END_NODE_ENHANCED_232 |
|---|
Device Type | Binary Switch DT |
|---|
Role Type | ROLE_TYPE_END_NODE_ALWAYS_ON |
|---|
Manufacturer ID | 0x027A |
|---|
Product Type ID | 0x0103 |
|---|
Product ID | 0x004E |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0700 |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
Radio Range Z-Wave LR (m) | 400 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz, US_LR: 912.00MHz, 920.00MHz |
|---|
Categories | On/Off Switches/Devices |
|---|
Countries / Regions | Argentina, Bahamas, Barbados, Bermuda, Bolivia, British Virgin Islands, Canada, Cayman Islands, Colombia, Guatemala, Haiti, Honduras, Jamaica, Mexico, Panama, Saint Kitts and Nevis, Suriname, Trinidad and Tobago, Turks and Caicos Islands, United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information (AGI) V3 | 0x59 | 3 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta Data V5 | 0x7A | 5 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_SECURITY_2 | Security 2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_BINARY_V2 | Binary Switch V2 | 0x25 | 2 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_METER_V6 | Meter V6 | 0x32 | 6 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_SENSOR_MULTILEVEL_V11 | Multilevel Sensor V11 | 0x31 | 11 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_CRC_16_ENCAP | CRC-16 Encapsulation | 0x56 | 1 |
|
|---|
S2 Classes | S2_AUTHENTICATED |
|---|
Documents | Category | File |
|---|
Manual_English | |
|
|---|
Features | Feature | Values |
|---|
Color | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile |
|---|
1 | 5 | 0 | Lifeline | 0x0001 | 2 | 5 | 0 | Retransmit | 0x0000 | 3 | 5 | 0 | Overheat triggered set on | 0x7104 | 4 | 5 | 0 | Overheat triggered set off | 0x7104 | 5 | 5 | 0 | Overheat release set on | 0x7104 | 6 | 5 | 0 | Overheat release set off | 0x7104 | 7 | 5 | 0 | Under heat triggered set on | 0x7104 | 8 | 5 | 0 | Under heat triggered set off | 0x7104 | 9 | 5 | 0 | Under heat release set on | 0x7104 | 10 | 5 | 0 | Under heat release set off | 0x7104 | 11 | 5 | 0 | External switch action | 0x2001 |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value |
|---|
1 | Overload Protection Delay | Decide when overload protection kicks in. If power draw exceeds 40.5A for x amount of seconds, the relay will automatically turn off | 1 | 1 | 0 | 0 | 0x02 | 2 | On/Off Status After Power Failure | Choose the recovery state for your relay if power outage occurs | 2 | 1 | 0 | 0 | 0x00 | 3 | On/Off Status Reports | Choose what type of reports (basic or binary switch) you want the device to send to the hub | 2 | 1 | 0 | 0 | 0x01 | 4 | Watt Report Threshold | Choose when the relay will report Watts to your hub. Value 1 = 1 Watt change | 1 | 2 | 0 | 0 | 0x000A | 5 | Watt Report Frequency | Decide how often the relay will report Watt data to the hub (in second intervals) | 1 | 4 | 0 | 0 | 0x0000012C | 6 | kWh Report Frequency | Decide how often the relay will report kWh data to the hub (in second intervals) | 1 | 4 | 0 | 0 | 0x0000012C | 7 | Volt Report Threshold | Choose when the relay will report Volts to your hub. Value 1 = 1 V and value 10 = 10 V change | 1 | 1 | 0 | 0 | 0x0A | 8 | Volt Report Frequency | Decide how often the relay will report Volt data to the hub (in second intervals) | 1 | 4 | 0 | 0 | 0x0000012C | 9 | Amp Report Threshold | Choose when the relay will report Amps to your hub. Value 1 = 0.001A and value 1000 = 1A change | 1 | 2 | 0 | 0 | 0x03E8 | 10 | Amp Report Frequency | Decide how often the relay will report Amp data to the hub (in second intervals) | 1 | 4 | 0 | 0 | 0x0000012C | 11 | Disable Manual Control | Disable or enable manual control (turning the relay on and off using the physical button) | 2 | 1 | 0 | 0 | 0x01 | 17 | Auto Turn On After Overload | Disable or set the delay for the automatic turn on after the relay was turned off due to overload protection | 1 | 2 | 0 | 0 | 0x0000 | 23 | Heat Alert Level (Celsius) | Set the temperature level for a heat alert notification to be sent to your hub and associated devices (this setting is for Celsius units) | 1 | 1 | 0 | 0 | 0x55 | 24 | Freeze Alert Level (Celsius) | Set the temperature level for a freeze alert notification to be sent to your hub and associated devices (this setting is for Celsius units) | 0 | 1 | 0 | 0 | 0xF4 | 25 | Heat Alert Notification | Decide if and how the temperature sensor should report a heat alert. See manual for details | 2 | 1 | 0 | 0 | 0x02 | 31 | Input Report Type | Choose status change reports to be sent from the input (wall switch) to devices associated in Group 11. See manual for details | 2 | 1 | 0 | 0 | 0x00 |
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | The SmartStart QR code and security PIN are located on top of the relay’s cover | 1 | Classic Inclusion | Manual inclusion: initiate inclusion (pairing) in the app or hub UI. Make sure the device is powered and finalize the inclusion at the relay: tap the Z-Wave® button on the device 3 times quickly. | 2 | Classic Exclusion | 1. Bring the High Power Relay within direct range of your Z-Wave® gateway (hub).
2. Put the Z-Wave® hub into exclusion mode (not sure how to do that? ask@getzooz.com).
3. Click the Z-Wave® button 3 times quickly.
4. Your hub will confirm exclusion and the Relay will disappear from your controller's device list. | 5 | Factory Reset Procedure | When your network’s primary controller is missing or otherwise inoperable, you may need to reset the device to factory settings manually. In order to complete the process,
power the ZEN78 Relay, then click the Z-Wave® button once and immediately a |
|
|---|
Supported / Controlled Meter Types | Meter Type | Rate Type |
|---|
Electric meter | Import (consumed) |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Heat Alarm | (Refer to parameters): State idle | Heat Alarm | Heat sensor status: Overheat detected | Heat Alarm | Heat sensor status: Under heat detected | Power Management | (Refer to parameters): State idle | Power Management | Over-current status: Over-current detected | System | (Refer to parameters): State idle | System | HW status: System hardware failure |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
