Product Recognition
Certification Number	ZC10-17055594

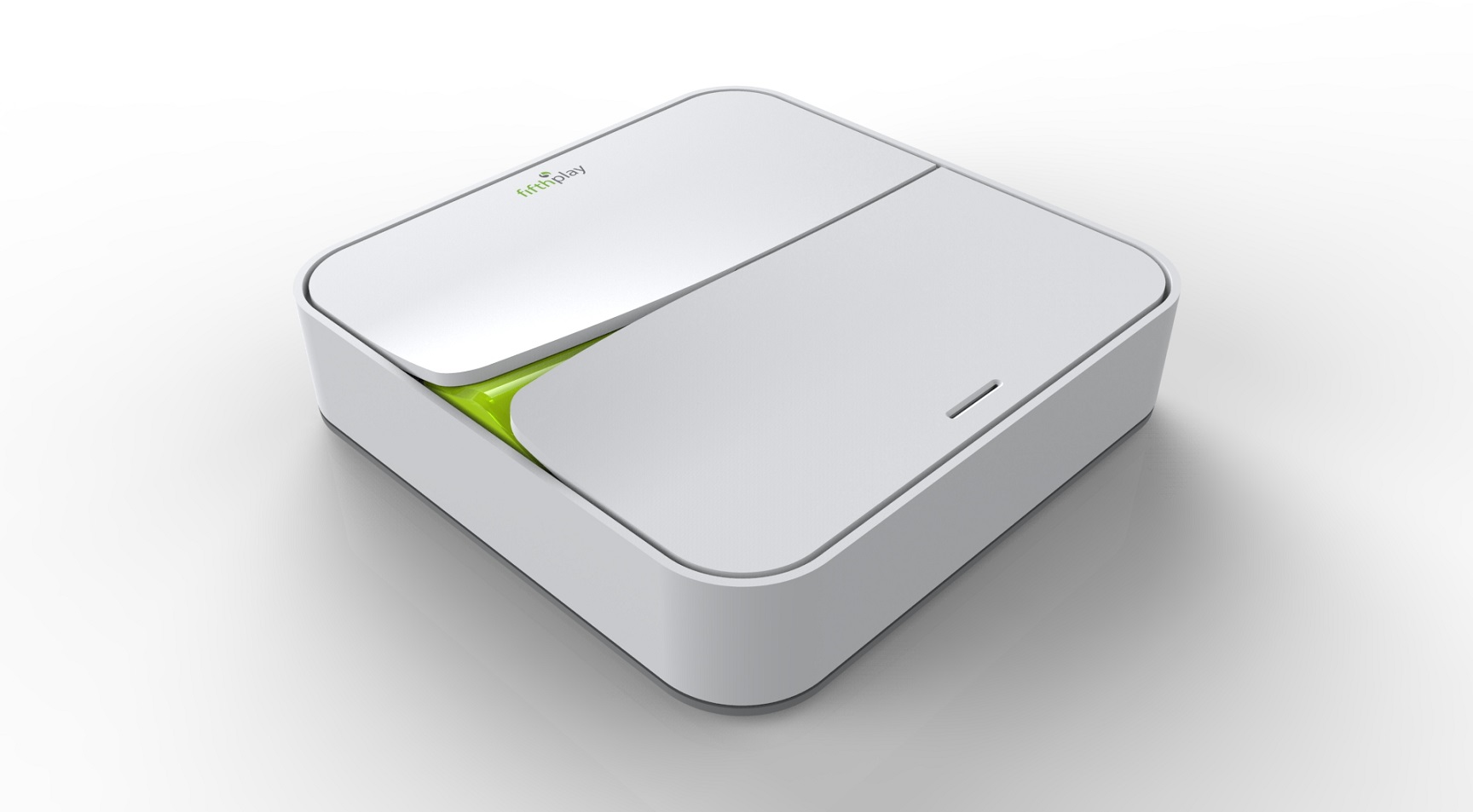

Name	Home Area Manager
Short Description	Fifthplay’s Home Area Manager (HAM) allows consumers to deploy new value-added services by connecting all kinds of devices in their digital home.
Long Description	Fifthplay’s Advanced Home Area Manager allows consumers to deploy new value-added services by connecting all kinds of devices and technologies in their digital home. • Modular hardware platform, customizable and extendible by means of bricks (hardware building blocks) and USB interfaces to support various protocols and devices. • Modular software platform, with remote software upgradeable and support functions. • Easy and intuitive installation and configuration. • Broadband internet connection. • Remote access for the customer via Web and Smartphone APP’s.
Brand	fifthplay nv
Product Identifier	98-002
OEM Version	HW: 1 FW: 0.00:01.01
Hardware Platform	ZM5304
Z-Wave Version	6.61.00
Library Type	CONTROLLER_BRIDGE
Device Type	Gateway
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x0295
Product Type ID	0x0500
Product ID	0x0501
User Icon	0x0500
Installer Icon	0x0500
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	All Controllers, Gateway Controller
Countries / Regions	European Union
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_NETWORK_MANAGEMENT_INCLUSION Network Management Inclusion 0x34 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_ZIP_PORTAL Z/IP Portal 0x61 1 COMMAND_CLASS_NETWORK_MANAGEMENT_INSTALLATION_MAINTENANCE Network Management Installation and Maintenance 0x67 1 COMMAND_CLASS_NETWORK_MANAGEMENT_PROXY Network Management Proxy 0x52 1 COMMAND_CLASS_APPLICATION_STATUS Application Status 0x22 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_TRANSPORT_SERVICE_V2 Transport Service V2 0x55 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_ZIP_V2 Z/IP V2 0x23 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_ZIP_NAMING Z/IP Naming and Location 0x68 1 COMMAND_CLASS_MAILBOX Mailbox 0x69 1 COMMAND_CLASS_ZIP_GATEWAY Z/IP Gateway 0x5F 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 Firmware Update Meta-Data V3 0x7A 3 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_MULTI_CMD Multi-Command 0x8F 1 COMMAND_CLASS_NETWORK_MANAGEMENT_BASIC Network Management Basic 0x4D 1 COMMAND_CLASS_NETWORK_MANAGEMENT_PRIMARY Network Management Primary 0x54 1
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_NOTIFICATION_V7 Notification V7 0x71 7 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_SENSOR_MULTILEVEL_V9 Sensor Multilevel V9 0x31 9 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_MULTI_CMD Multi-Command 0x8F 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual fifthplay-zwave-controller-manual-20170209.pdf
Features	Feature Values Firmware Updatable Value Updatable by Manufacturer Representative Gateway Has Preferred Partners Supported Notification Types Value Smoke Alarm CO Alarm Water Alarm Home Security Water Valve Communications Connections Value Ethernet (Wired) Ethernet (Wireless/WiFi) Communications Protocol Value Z-Wave Z/IP
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Texts	ID Description Value 23 Controller Inclusion The controller must be previously registered by the end customer through the website https://home.fifthplay.com. Once registered and logged in customer can include Z-Wave devices by going to the 'Configuration' page. Select 'Add Device' and follow the instructions. Preferred devices have a wizard who will guide user step by step through inclusion process. 24 Controller Exclusion The controller must be previously registered by the end customer through the website https://home.fifthplay.com. Once registered and logged in customer can exclude Z-Wave devices by going to the 'Configuration' page. The list of included devices are shown. The option is provided here to exclude devices. 5 Factory Reset The controller runs a local webserver which can be reached by browsing to the controller's MAC address preceded by 'http://FP'. Example: http://FP.local A Z-Wave settings page is shown which can be opened by providing a password which is the serial number of the controller (can be found on back of controller). Then the option to 'Learn Mode' will be visible. If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable. 3 Learn Mode (adding another controller) The controller runs a local webserver which can be reached by browsing to the controller's MAC address preceded by 'http://FP'. Example: http://FP.local A Z-Wave settings page is shown which can be opened by providing a password which is the serial number of the controller (can be found on back of controller). Then the option to 'Learn Mode' will be visible.
Supports NWI	Yes
Supports Explorer Frames	Yes
