Product Recognition

Certification Number

ZC12-21010173

Name

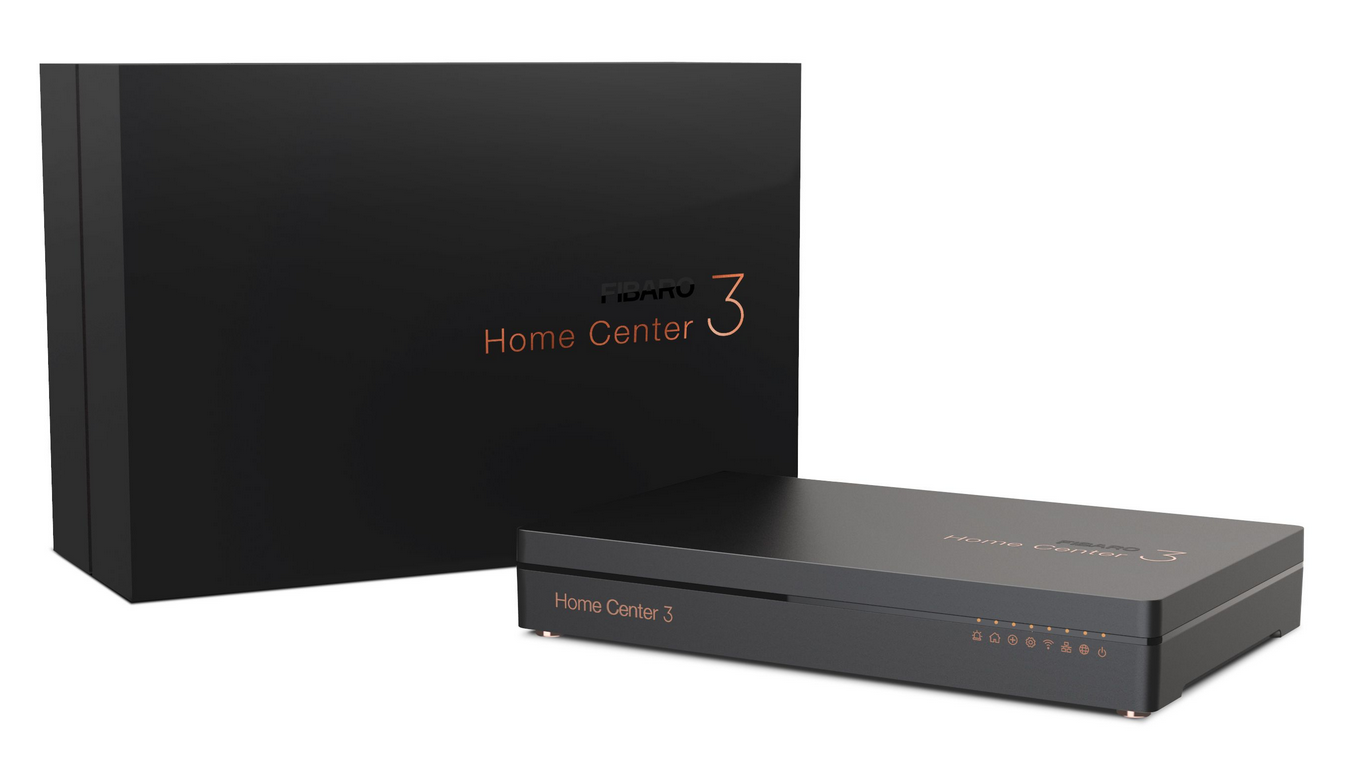

Home Center 3

Short Description

Home Center 3 is the most powerful wireless home automation controller that supports the Z-Wave Plus v2 and Nice 433MHz protocols. It enables the integration of smart home devices into a single system to provide convenient control and a powerful automation platform. Wi-Fi connection allow the controller to be placed anywhere around the house.

Long Description

FIBARO Home Center 3 is the core element of the FIBARO System. It enables the integration of smart home devices into a single system to provide convenient control and a powerful automation platform. The gateway is now even more secure, reliable, and versatile. Main features: - Provides a reliable foundation for FIBARO System. - Capable of controlling all FIBARO and other compatible devices using the following radio standards: - Z-Wave (500 series) - Wi-Fi – 2.4 GHz and 5 GHz (802.11 b/g/n/a/ac) - No Internet cable required, works also on Wi-Fi - Modern interface designed for ease of use - Enhanced and convenient scene editor - Support for more advanced apps and drivers - May be used with all devices certified with the Z-Wave Plus certificate and should be compatible with such devices produced by other manufacturers

Brand

FIBARO

Product Identifier

FGHC3-001

Product Line

Home Center

OEM Version

HW: 1 FW: 6.09

Hardware Platform

ZM5101

Z-Wave Version

6.82.00

Library Type

CONTROLLER_BRIDGE

Device Type

Gateway

Role Type

ROLE_TYPE_CONTROLLER_CENTRAL_STATIC

Manufacturer ID

0x010F

Product Type ID

0x0003

Product ID

0x1000

User Icon

0x0500

Installer Icon

0x0500

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

All Controllers, Computer Controller Interfaces

Countries / Regions

European Union

Supported Command Classes

Controlled Command Classes

Identifier	Name	Key	Version
COMMAND_CLASS_SOUND_SWITCH	Sound Switch	0x79	1
COMMAND_CLASS_CONFIGURATION_V4	Configuration V4	0x70	4
COMMAND_CLASS_MANUFACTURER_PROPRIETARY	Manufacturer Proprietary	0x91	1
COMMAND_CLASS_SENSOR_ALARM	Sensor Alarm	0x9C	1
COMMAND_CLASS_SWITCH_BINARY_V2	Switch Binary V2	0x25	2
COMMAND_CLASS_NO_OPERATION	No Operation	0x00	1
COMMAND_CLASS_THERMOSTAT_FAN_MODE_V4	Thermostat Fan Mode V4	0x44	4
COMMAND_CLASS_THERMOSTAT_OPERATING_STATE_V2	Thermostat Operating State V2	0x42	2
COMMAND_CLASS_USER_CODE	User Code	0x63	1
COMMAND_CLASS_SWITCH_COLOR_V3	Switch Color V3	0x33	3
COMMAND_CLASS_INCLUSION_CONTROLLER	Inclusion Controller	0x74	1
COMMAND_CLASS_METER_V6	COMMAND_CLASS_METER_V6		0
COMMAND_CLASS_THERMOSTAT_FAN_MODE_V5	COMMAND_CLASS_THERMOSTAT_FAN_MODE_V5		0
COMMAND_CLASS_DOOR_LOCK_V4	Door Lock V4		0
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3	Multi-Channel Association V3	0x8E	3
COMMAND_CLASS_INDICATOR_V3	Indicator V3	0x87	3
COMMAND_CLASS_CLOCK	Clock	0x81	1
COMMAND_CLASS_SECURITY	Security S0	0x98	1
COMMAND_CLASS_APPLICATION_STATUS	Application Status	0x22	1
COMMAND_CLASS_CRC_16_ENCAP	CRC16 Encapsulation	0x56	1
COMMAND_CLASS_BATTERY_V2	COMMAND_CLASS_BATTERY_V2		0
COMMAND_CLASS_PROTECTION_V2	Protection V2	0x75	2
COMMAND_CLASS_SENSOR_BINARY_V2	Sensor Binary V2	0x30	2
COMMAND_CLASS_THERMOSTAT_FAN_STATE_V2	Thermostat Fan State V2	0x45	2
COMMAND_CLASS_THERMOSTAT_MODE_V3	Thermostat Mode V3	0x40	3
COMMAND_CLASS_THERMOSTAT_SETPOINT_V3	Thermostat Setpoint V3	0x43	3
COMMAND_CLASS_TRANSPORT_SERVICE_V2	Transport Service V2	0x55	2
COMMAND_CLASS_WAKE_UP_V2	Wake Up V2	0x84	2
COMMAND_CLASS_DEVICE_RESET_LOCALLY	Device Reset Locally	0x5A	1
COMMAND_CLASS_ZWAVEPLUS_INFO_V2	Z-Wave Plus Info V2	0x5E	2
COMMAND_CLASS_ASSOCIATION_V2	Association V2	0x85	2
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5	Firmware Update Meta-Data V5	0x7A	5
COMMAND_CLASS_MULTI_CHANNEL_V4	Multi-Channel V4	0x60	4
COMMAND_CLASS_SWITCH_MULTILEVEL_V4	Switch Multilevel V4	0x26	4
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3	Association Group Information V3	0x59	3
COMMAND_CLASS_NOTIFICATION_V8	Notification V8	0x71	8
COMMAND_CLASS_BASIC_V2	Basic V2	0x20	2
COMMAND_CLASS_SENSOR_MULTILEVEL_V11	Sensor Multilevel V11	0x31	11
COMMAND_CLASS_VERSION_V3	Version V3	0x86	3
COMMAND_CLASS_SCHEDULE_V2	Schedule V2	0x53	2
COMMAND_CLASS_CENTRAL_SCENE_V3	Central Scene V3	0x5B	3
COMMAND_CLASS_SECURITY_2	Security S2	0x9F	1
COMMAND_CLASS_SCENE_ACTIVATION	Scene Activation	0x2B	1
COMMAND_CLASS_SCENE_CONTROLLER_CONF	Scene Controller Conf	0x2D	1
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2	Manufacturer Specific V2	0x72	2

S2 Classes

S2_UNAUTHENTICATED, S2_AUTHENTICATED, S2_ACCESS_CONTROL

Documents

Features

Association Groups

Texts

ID	Description	Value
8	Where to find S2 DSK on product	In case you need full DSK or PIN code of the gateway you will find it on the device or on the box: Full DSK Label under device
23	Controller Classic Inclusion	3.1: ADDING USING INCLUSION MODE To add the device to the Z-Wave network manually: 1. Open the Configuration Interface. 2. Go to [gearwheel image] > Devices. 3. Click ["+" image]. 4. Select Z-Wave Device. 5. There are few available settings: • NWI - Network-Wide Inclusion – enabling allows for adding devices outside the direct range of the gateway, • Add in S2 Security mode if device supports it, • Allow inclusion only in near proximity (less than 2 meters). 6. Click Start adding. 7. Follow adding procedure for the device you want to add (according to its manual). 8. If you are adding in Security S2 Authenticated and the device is not on the Provisioning List (see chapter 5 on page 10): Input the PIN code (the underlined part of the DSK) and click Send. 9. The device will be added within few minutes.
24	Controller Classic Exclusion	4.1: REMOVING DEVICES USING EXCLUSION MODE To remove the device from the this or other Z-Wave network: 1. Open the Configuration Interface. 2. Go to [gearwheel image] > Devices. 3. Click ["-" image]. 4. Select Z-Wave Device. 5. Follow removing procedure on the device (according to its manual).
11	Controller SmartStart Inclusion	3.2: ADDING USING SMARTSTART SmartStart enabled devices can be added into a Z-Wave network by entering the Z-Wave DSK Code present on the product. The devices will be automatically added to the Z-Wave network using secure connection encrypted with Z-Wave S2 security framework. To add the device to the Z-Wave network using SmartStart: 1. Open the Configuration Interface. 2. Go to [gearwheel image] > Z-Wave > Smart Start. 3. Click Add DSK. 4. Enter the full DSK string code you have received with your device. 5. For advanced users: In Choose Security levels select which Security keys will be granted to the joining node (available: S2 Unauthenticated, S2 Authenticated, S2 Access Control, S0). 6. Leave the Only S2 classic inclusion unchecked. 7. Power the device and it will be added automatically within 10 minutes.
3	Controller Learn Mode	9.1: ADDING/REMOVING TO/FROM EXISTING Z-WAVE NETWORK This gateway can be added to an existing Z-Wave network only if no Z-Wave devices are added to it. 1. Start adding/removing procedure on the primary controller (according to its manual). 2. Go to [gearwheel image] > Z-Wave. 3. Under Start Learn Mode click Start 4. If you are prompted for the PIN, you will find it on the bottom of the gateway and on the box.
10	Controller Replication	Copying information from this controller to the secondary controller 1. Start adding procedure according to chapter “Adding using Inclusion Mode” on page 7. 2. Start Learn Mode on the secondary controller (according to its manual). 3. After couple of minutes both controllers will have the same network information.
25	Controller Provisioning List	5: MANAGING PROVISIONING LIST The Provision List is used to add Z-Wave devices using SmartStart or bootstrap classic S2 inclusion. 5.1: ADDING DEVICES TO PROVISIONING LIST 1. Open the Configuration Interface. 2. Go to [gearwheel image] > Z-Wave > Smart Start. 3. Click Add DSK. 4. Enter the full DSK string code you have received with your device. 5. For advanced users: In Choose Security levels select which Security keys will be granted to the joining node (available: S2 Unauthenticated, S2 Authenticated, S2 Access Control, S0). 6. If the device should not be automatically included when powered, but only after the classic inclusion, check the Only S2 classic inclusion setting. 7. Click Add. 5.2: EDITING DEVICES IN PROVISIONING LIST 1. Open the Configuration Interface. 2. Go to [gearwheel image] > Z-Wave > Smart Start. 3. Click [pen image] next to the device you want to edit. 4. You can change the Security levels. 5. Save. 5.3: REMOVING DEVICES FROM PROVISIONING LIST 1. Open the Configuration Interface. 2. Go to [gearwheel image] > Z-Wave > Smart Start. 3. Click [trash can image] next to the device you want to remove. 4. Click Delete. 5. The device will be removed from the list, but if it was already added to the Z-Wave network, you must perform standard removing procedure or reset the device.
5	Factory Reset Procedure	10: RESETTING TO FACTORY DEFAULTS 10.1: RESETTING SYSTEM TO FACTORY DEFAULTS ! Caution! The whole configuration will be removed and lost if not backed up. This feature allows you to restore the whole system to factory settings. It means the factory software version will be restored and all data from the system A and B will be deleted (users, devices, scenes etc.). If the gateway is set as Z-Wave secondary controller use this procedure only when the primary controller is missing or otherwise inoperable. 1. Open the Configuration Interface. 2. In the top right corner click user name 3. Choose Recovery Mode from the menu. 4. Confirm. 5. Wait for the system to reboot, the LED indicator will be pulsing red. 6. When the LED indicator turns solid red, refresh the browser tab. 7. Click Factory Reset under Network Status section. 8. Check “Yes, I’m sure and I know what I’m doing” checkbox. 9. Confirm. 10.2: RESETTING Z-WAVE TO FACTORY DEFAULTS Resetting the Z-Wave network removes all the Z-Wave devices from the gateway’s memory, but the other data remains unchanged. Scenes that used Z-Wave devices will not work anymore. 1. Open the Configuration Interface. 2. Go to [gearwheel image] > Z-Wave. 3. Under Reset Z-Wave click Reset. 4. Confirm.
9	Capability Rediscovery	8: REDISCOVERING Z-WAVE DEVICES Rediscovery – the process of reading the device’s capabilities after altering them. 1. Open the Configuration Interface. 2. Go to [gearwheel image] > Devices. 3. Click the device to expand it. 4. Go to Device configuration tab. 5. Under Device reconfiguration click Reconfigure device. 6. If the device is battery powered, wake it up manually or wait for next automatic wake up.

Supported / Controlled Meter Types

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes

Radio Range Z-Wave (m)
