Product Recognition
Certification Number	ZC14-24060427

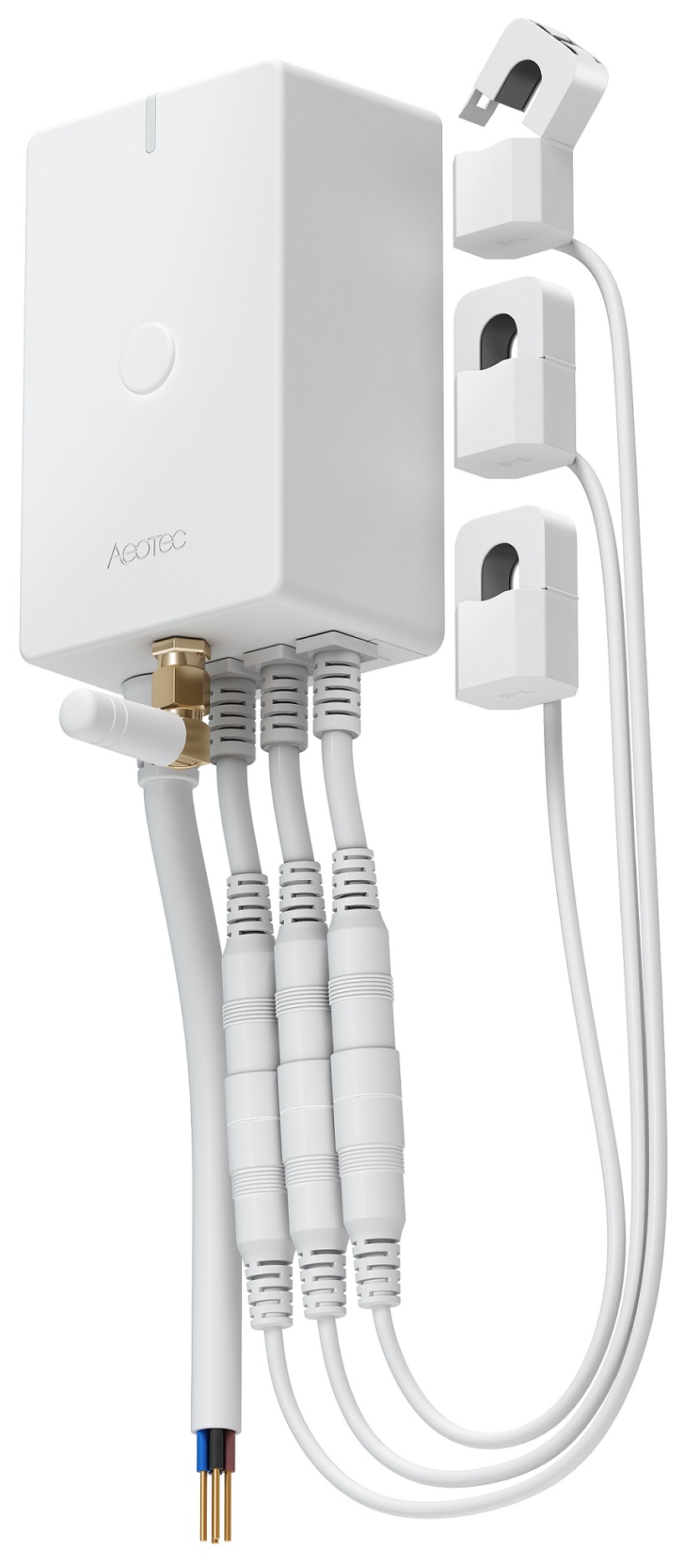

Name	Home Energy Meter 8
Short Description	Aeotec Home Energy Meter 8
Long Description	This Home Energy Meter 8 supports 3 metering channels and can be used on 3 phases 4 wire or Single-phase power system. It can monitor the total amount of electricity your home uses with accuracy and speed. Using a wireless Z-Wave® connection, it’ll then feed the data it records back to your smart home’s gateway. In near real-time you’ll have a full understanding of how much electricity you use and when you use it.
Brand	Aeotec
Product Identifier	ZWA046-C
Product Line	Z-Wave Product Line
OEM Version	HW: 46 FW: 01.06
Hardware Platform	EFR32ZG23A
Z-Wave Version	7.20.2
Library Type	END_NODE_ENHANCED_232
Device Type	Meter Sensor DT
Role Type	ROLE_TYPE_END_NODE_ALWAYS_ON
Manufacturer ID	0x0371
Product Type ID	0x0003
Product ID	0x002E
User Icon	0x1000
Installer Icon	0x1000
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Energy Meters
Countries / Regions	European Union
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 Association Group Information (AGI) V3 0x59 3 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 Firmware Update Meta Data V5 0x7A 5 COMMAND_CLASS_INDICATOR_V3 Indicator V3 0x87 3 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi Channel Association V3 0x8E 3 COMMAND_CLASS_VERSION_V3 Version V3 0x86 3 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_SECURITY_2 Security 2 0x9F 1 COMMAND_CLASS_SUPERVISION Supervision 0x6C 1 COMMAND_CLASS_TRANSPORT_SERVICE_V2 Transport Service V2 0x55 2 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_METER_V6 Meter V6 0x32 6 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi Channel V4 0x60 4 COMMAND_CLASS_CONFIGURATION_V4 Configuration V4 0x70 4 COMMAND_CLASS_APPLICATION_STATUS Application Status 0x22 1 COMMAND_CLASS_SECURITY Security 0 0x98 1
S2 Classes	S2_AUTHENTICATED, S2_UNAUTHENTICATED
Documents	Category File Manual_English SPEC-ZW046C_3P-HEM8v1.00-2.pdf
Features	Feature Values Firmware Updatable Value Updatable by Consumer by RF
Association Groups	Group Number Maximum Nodes Supported End Point ID Group Name Profile 1 5 0 Lifeline 0x0001 1 0 1 Phase A consumption via Lifeline 0x3201 1 0 2 Phase A production via Lifeline 0x3201 1 0 3 Phase B consumption via Lifeline 0x3201 1 0 4 Phase B production via Lifeline 0x3201 1 0 5 Phase C consumption via Lifeline 0x3201 1 0 6 Phase C production via Lifeline 0x3201 1 0 7 Total consumption via Lifeline 0x3201 1 0 8 Total production via Lifeline 0x3201
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value 3 Threshold Check Enable/Disable Enable/Disable threshold reporting 2 1 0 0 0x01 4 import watt threshold(Total) import watt threshold(Total) 1 2 0 0 0x0032 5 import watt threshold(Phase A) import watt threshold(Phase A) 1 2 0 0 0x0032 6 import watt threshold(Phase B) import watt threshold(Phase B) 1 2 0 0 0x0032 7 import watt threshold(Phase C) import watt threshold(Phase C) 1 2 0 0 0x0032 8 export watt threshold(Total) export watt threshold(Total) 1 2 0 0 0x0032 9 export watt threshold(Phase A) export watt threshold(Phase A) 1 2 0 0 0x0032 10 export watt threshold(Phase B) export watt threshold(Phase B) 1 2 0 0 0x0032 11 export watt threshold(Phase C) export watt threshold(Phase C) 1 2 0 0 0x0032 17 export watt percentage threshold(Phase A) export watt percentage threshold(Phase A) 1 1 0 0 0x14 100 Set 101-106 to default Set 101-106 to default 2 1 0 0 0x00 101 Automatic Report list 1 (Import) Checklist 1 for automatic timed report 2 4 0 0 0x03030303 102 Automatic Report list 2 (Import) Checklist 2 for automatic timed report 2 4 0 0 0x0C0C0C0C 103 Automatic Report list 3 (Import) Checklist 3 for automatic timed report 2 4 0 0 0xF0F0F0F0 104 Automatic Report list 1 (Export) Checklist 1 for automatic timed report 2 4 0 0 0x03030303 105 Automatic Report list 2 (Export) Checklist 2 for automatic timed report 2 4 0 0 0x0C0C0C0C 106 Automatic Report list 3 (Export) Checklist 3 for automatic timed report 2 4 0 0 0xF0F0F0F0 110 Set 111-116 to default Set 111-116 to default 2 1 0 0 0x00 111 Automatic list 1 Interval Time (Import) Timing detection time of Checklist 1 1 4 0 0 0x00000E10 112 Automatic list 2 Interval Time (Import) Timing detection time of Checklist 2 1 4 0 0 0x00001C20 113 Automatic list 3 Interval Time (Import) Timing detection time of Checklist 3 1 4 0 0 0x00001C20 114 Automatic list 1 Interval Time (Export) Timing detection time of Checklist 1 1 4 0 0 0x00000E10 115 Automatic list 2 Interval Time (Export) Timing detection time of Checklist 2 1 4 0 0 0x00001C20 116 Automatic list 3 Interval Time (Export) Timing detection time of Checklist 3 1 4 0 0 0x00001C20 252 Enable/disable configuration setting Enable/disable configuration setting 1 1 0 0 0x00
Texts	ID Description Value 8 Where to find S2 DSK on product Page 4 in the operation manual 1 Classic Inclusion 1. Turn your gateway/ main controller into adding mode. 2. Press once the Action Button on the product. 2 Classic Exclusion 1. Turn your gateway/ main controller into adding mode. 2. Press once the Action Button on the product. 5 Factory Reset Procedure Press and hold the Action Button on product for 10s. Note: Please use this procedure only when the network’s primary controller is missing or otherwise inoperable.
Supported / Controlled Meter Types	Meter Type Rate Type Electric meter Both Import and Export
Supports NWI	Yes
Supports Explorer Frames	Yes
Supports SmartStart	Yes
