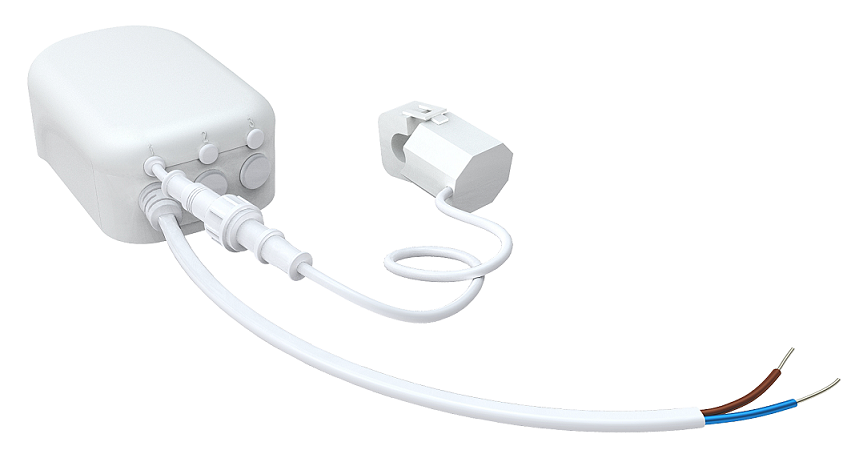

Home Energy Meter Gen5

Short Description

Aeon Labs Home Energy Meter Gen5 is a smart energy meter, which can monitor the total amount of electricity of your home.

Long Description

Aeon Labs Home Energy Meter Gen5 is a Z-Wave device that can monitor the total amount of electricity of your home. It can report the wattage energy usage and KWH usage to a Z-Wave Controller (especially a gateway). In near real-time you’ll have a full understanding of how much electricity you use and when you use it. Products that are Z-Wave certified can be used and communicate with other Z-Wave certified devices. Also a tool that can be programmed, scheduled, controlled and communicated with from anywhere in the world.

Brand

Aeotec

Product Identifier

ZW095-C

OEM Version

Hardware Platform

ZM5202

Z-Wave Version

6.51.06

Library Type

SLAVE_ENHANCED_232

Device Type

Sub Energy Meter

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x0086

Product Type ID

0x0002

Product ID

0x005F

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

Energy Meters

Countries / Regions

European Union

Documents

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

Set the energy detection mode for parameter 101 to 103.

Set the energy detection mode for the measure reports of parameter 101 to 103.

From	To	Description
3	3	Report positive/negative power and only report energy negative part (generating electricity).
0	0	Report absolute value for power and energy measurements.
1	1	Report positive/negative power and report the algebraic sum energy
2	2	Report positive/negative power and only report energy positive part (consuming electricity)

Enable/disable selective reporting only when power change reaches a certain threshold or percentage

Enable/disable selective reporting only when power change reaches a certain threshold or percentage set in parameter 4 to 11.

From	To	Description
1	1	Enable.
0	0	Disable

Threshold change in wattage to induce a automatic report

Threshold change in wattage to induce a automatic report for total power report.

From	To	Description
0	60000	The available range is 0 to 60000.

Threshold change in wattage to induce a automatic report

Threshold change in wattage to induce a automatic report for the power report of Clamp 1.

From	To	Description
0	60000	The available range is 0 to 60000.

Threshold change in wattage to induce a automatic report

Threshold change in wattage to induce a automatic report for the power report of Clamp 2.

From	To	Description
0	60000	The available range is 0 to 60000.

Percentage change in wattage to induce a automatic report

Percentage change in wattage to induce a automatic report for total power report.

From	To	Description
0	100	The available range is 0 to 100.

Percentage change in wattage to induce a automatic report

Percentage change in wattage to induce a automatic report for the power report of Clamp 1.

From	To	Description
0	100	The available range is 0 to 100.

Percentage change in wattage to induce a automatic report

Percentage change in wattage to induce a automatic report for the power report of Clamp 2.

From	To	Description
0	100	The available range is 0 to 100.

101

To set which report need to be sent.

To set which report need to be sent in Report group 1.

From	To	Description
4096	4096	Report Accumulated kWh of Channel 2.
65535	65535	Report Instantaneous Voltage of Channel 1.
196608	196608	Report Instantaneous Voltage of Channel 2.
524288	524288	Report Instantaneous Current (Amperes) of Channel 1.
1048576	1048576	Report Instantaneous Current (Amperes) of Channel 2.
1	1	Report Accumulated kWh of whole HEM
2048	2048	Report Accumulated kWh of Channel 1.
2	2	Report Instantaneous Watts of whole HEM.
4	4	Report Instantaneous Voltage of whole HEM.
8	8	Report Instantaneous Current (Amperes) of whole HEM.
256	256	Report Instantaneous Watts of Channel 1.
768	768	Report Instantaneous Watts of Channel 2.

102

To set which report need to be sent.

To set which report need to be sent in Report group 2.

From	To	Description
1	1	Report Accumulated kWh of whole HEM
2	2	Report Instantaneous Watts of whole HEM.
4	4	Report Instantaneous Voltage of whole HEM.
8	8	Report Instantaneous Current (Amperes) of whole HEM.
256	256	Report Instantaneous Watts of Channel 1.
768	768	Report Instantaneous Watts of Channel 2.
2048	2048	Report Accumulated kWh of Channel 1.
4096	4096	Report Accumulated kWh of Channel 2.
65535	65535	Report Instantaneous Voltage of Channel 1.
196608	196608	Report Instantaneous Voltage of Channel 2.
524288	524288	Report Instantaneous Current (Amperes) of Channel 1.
1048576	1048576	Report Instantaneous Current (Amperes) of Channel 2.

103

To set which report need to be sent.

To set which report need to be sent in Report group 3.

From	To	Description
1	1	Report Accumulated kWh of whole HEM
2	2	Report Instantaneous Watts of whole HEM.
4	4	Report Instantaneous Voltage of whole HEM.
8	8	Report Instantaneous Current (Amperes) of whole HEM.
256	256	Report Instantaneous Watts of Channel 1.
768	768	Report Instantaneous Watts of Channel 2.
2048	2048	Report Accumulated kWh of Channel 1.
4096	4096	Report Accumulated kWh of Channel 2.
65535	65535	Report Instantaneous Voltage of Channel 1.
196608	196608	Report Instantaneous Voltage of Channel 2.
524288	524288	Report Instantaneous Current (Amperes) of Channel 1.
1048576	1048576	Report Instantaneous Current (Amperes) of Channel 2.

111

Set the interval time of sending report.

Set the interval time of sending report in Report group 1.

From	To	Description
0	268435456	Interval Seconds

112

Set the interval time of sending report.

Set the interval time of sending report in Report group 2.

120

From	To	Description
0	268435456	Interval Seconds

113

Set the interval time of sending report.

Set the interval time of sending report in Report group 3.

120

From	To	Description
0	268435456	Interval Seconds

200

Partner ID

Partner ID.

From	To	Description
0	0	Aeon Labs Standard Product
1	127	Partner ID of Partner Product

252

Enable/Disable Lock Configuration

Enable/Disable Lock Configuration.

From	To	Description
0	0	All configuration parameters are configurable.
1	1	All configuration parameters are not configurable (Locked)

255

Reset to default factory setting

Reset to default factory setting.

From	To	Description
1	1	Resets all configuration parameters to default setting.
1431655765	1431655765	Reset the product to default factory setting and be excluded from the Z-wave network
