Certification Number	ZC10-16105288
Name	Home Energy Meter Gen5

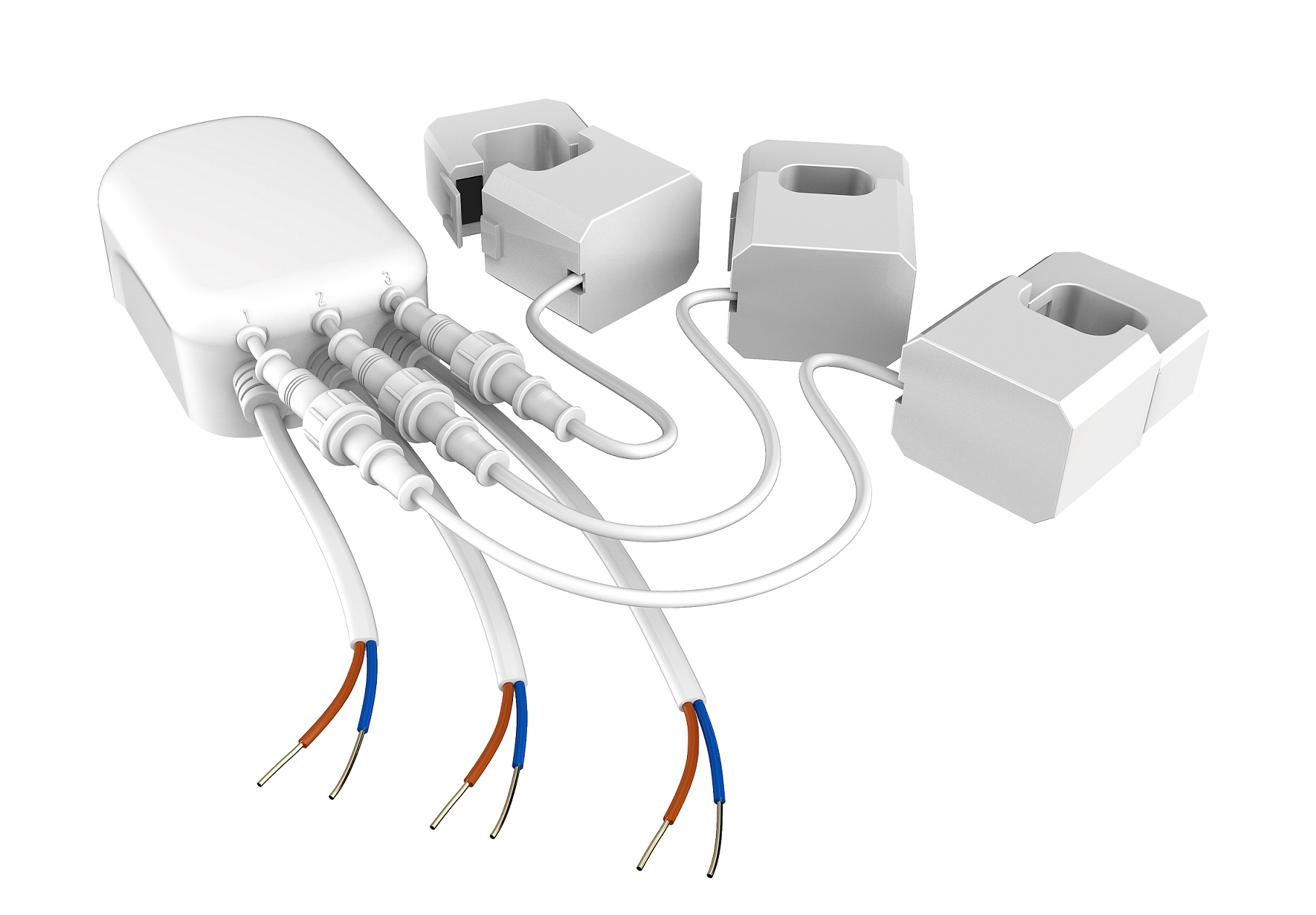

Short Description	Aeon Labs Home Energy Meter Gen5 is a smart energy meter, which can monitor the total amount of electricity of your home. This HEM G5 has 3 metering channels and supports the installation on 3 phases 4 wire or 3 phases 3 wire power system.
Long Description	Aeon Labs Home Energy Meter Gen5 is a Z-Wave device that can monitor the total amount of electricity of your home. It can report the wattage energy usage and KWH usage to a Z-Wave Controller (especially a gateway). In near real-time you’ll have a full understanding of how much electricity you use and when you use it. Products that are Z-Wave certified can be used and communicate with other Z-Wave certified devices. Also a tool that can be programmed, scheduled, controlled and communicated with from anywhere in the world.
Brand	Aeotec
Product Identifier	ZW095-C
OEM Version	HW: 95 FW: 1.00
Hardware Platform	ZM5202
Z-Wave Version	6.51.09
Library Type	SLAVE_ENHANCED_232
Device Type	Sub Energy Meter
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0086
Product Type ID	0x0002
Product ID	0x005F
User Icon	0x1000
Installer Icon	0x1000
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Sensors, Energy Meters
Countries / Regions	European Union
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_METER_V4 Meter V4 0x32 4
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Home Energy Meter Gen5 manual.pdf
Features	Feature Values Supported Meter Type Value Electric Energy Color Value White Firmware Updatable Value Updatable by Consumer by RF
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline. The automatic reports (configured by parameter 101/102/103) can be sent to the associated nodes in association group 1.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 11 Percentage change in wattage to induce a automatic report Percentage change in wattage to induce a automatic report for the power report of Clamp 3. 0 1 0 0 10 From To Description 0 100 The available range is 0 to 100. 3 Enable/disable selective reporting only when power change reaches a certain threshold or percentage Enable/disable selective reporting only when power change reaches a certain threshold or percentage set in parameter 4 to 11. 0 1 0 0 1 From To Description 1 1 Enable. 0 0 Disable 4 Threshold change in wattage to induce a automatic report Threshold change in wattage to induce a automatic report for total power report. 0 2 0 0 50 From To Description 0 60000 The available range is 0 to 60000. 5 Threshold change in wattage to induce a automatic report Threshold change in wattage to induce a automatic report for the power report of Clamp 1. 0 2 0 0 50 From To Description 0 60000 The available range is 0 to 60000. 6 Threshold change in wattage to induce a automatic report Threshold change in wattage to induce a automatic report for the power report of Clamp 2. 0 2 0 0 50 From To Description 0 60000 The available range is 0 to 60000. 8 Percentage change in wattage to induce a automatic report Percentage change in wattage to induce a automatic report for total power report. 0 1 0 0 10 From To Description 0 100 The available range is 0 to 100. 9 Percentage change in wattage to induce a automatic report Percentage change in wattage to induce a automatic report for the power report of Clamp 1. 0 1 0 0 10 From To Description 0 100 The available range is 0 to 100. 10 Percentage change in wattage to induce a automatic report Percentage change in wattage to induce a automatic report for the power report of Clamp 2. 0 1 0 0 10 From To Description 0 100 The available range is 0 to 100. 101 To set which report need to be sent. To set which report need to be sent in Report group 1. 0 4 0 0 2 From To Description 4096 4096 Report Accumulated kWh of Channel 2. 65535 65535 Report Instantaneous Voltage of Channel 1. 196608 196608 Report Instantaneous Voltage of Channel 2. 524288 524288 Report Instantaneous Current (Amperes) of Channel 1. 1048576 1048576 Report Instantaneous Current (Amperes) of Channel 2. 1 1 Report Accumulated kWh of whole HEM 2048 2048 Report Accumulated kWh of Channel 1. 2 2 Report Instantaneous Watts of whole HEM. 4 4 Report Instantaneous Voltage of whole HEM. 1024 1024 Report Instantaneous Watts of Channel 3. 512 512 Report Instantaneous Watts of Channel 2. 8 8 Report Instantaneous Current (Amperes) of whole HEM. 256 256 Report Instantaneous Watts of Channel 1. 8192 8192 Report Accumulated kWh of Channel 3. 262144 262144 Report Instantaneous Voltage of Channel 3. 2097152 2097152 Report Instantaneous Current (Amperes) of Channel 3. 102 To set which report need to be sent. To set which report need to be sent in Report group 2. 0 4 0 0 1 From To Description 2 2 Report Instantaneous Watts of whole HEM. 4 4 Report Instantaneous Voltage of whole HEM. 8 8 Report Instantaneous Current (Amperes) of whole HEM. 256 256 Report Instantaneous Watts of Channel 1. 512 512 Report Instantaneous Watts of Channel 2. 2048 2048 Report Accumulated kWh of Channel 1. 4096 4096 Report Accumulated kWh of Channel 2. 65535 65535 Report Instantaneous Voltage of Channel 1. 196608 196608 Report Instantaneous Voltage of Channel 2. 524288 524288 Report Instantaneous Current (Amperes) of Channel 1. 1048576 1048576 Report Instantaneous Current (Amperes) of Channel 2. 8192 8192 Report Accumulated kWh of Channel 3. 1 1 Report Accumulated kWh of whole HEM 262144 262144 Report Instantaneous Voltage of Channel 3. 2097152 2097152 Report Instantaneous Current (Amperes) of Channel 3. 1024 1024 Report Instantaneous Watts of Channel 3. 103 To set which report need to be sent. To set which report need to be sent in Report group 3. 0 4 0 0 0 From To Description 2 2 Report Instantaneous Watts of whole HEM. 4 4 Report Instantaneous Voltage of whole HEM. 8 8 Report Instantaneous Current (Amperes) of whole HEM. 256 256 Report Instantaneous Watts of Channel 1. 512 512 Report Instantaneous Watts of Channel 2. 2048 2048 Report Accumulated kWh of Channel 1. 4096 4096 Report Accumulated kWh of Channel 2. 65535 65535 Report Instantaneous Voltage of Channel 1. 196608 196608 Report Instantaneous Voltage of Channel 2. 524288 524288 Report Instantaneous Current (Amperes) of Channel 1. 1048576 1048576 Report Instantaneous Current (Amperes) of Channel 2. 1024 1024 Report Instantaneous Watts of Channel 3. 1 1 Report Accumulated kWh of whole HEM 2097152 2097152 Report Instantaneous Current (Amperes) of Channel 3. 262144 262144 Report Instantaneous Voltage of Channel 3. 8192 8192 Report Accumulated kWh of Channel 3. 111 Set the interval time of sending report. Set the interval time of sending report in Report group 1. 0 4 0 0 5 From To Description 0 268435456 Interval Seconds 112 Set the interval time of sending report. Set the interval time of sending report in Report group 2. 0 4 0 0 120 From To Description 0 268435456 Interval Seconds 113 Set the interval time of sending report. Set the interval time of sending report in Report group 3. 0 4 0 0 120 From To Description 0 268435456 Interval Seconds 200 Partner ID Partner ID. 0 1 0 0 0 From To Description 1 127 Partner ID of Partner Product 0 0 Aeon Labs Standard Product 252 Enable/Disable Lock Configuration Enable/Disable Lock Configuration. 0 1 0 0 0 From To Description 0 0 All configuration parameters are configurable. 1 1 All configuration parameters are not configurable (Locked) 255 Reset to default factory setting Reset to default factory setting. 0 4 0 0 0 From To Description 1 1 Resets all configuration parameters to default setting. 1431655765 1431655765 Reset the product to default factory setting and be excluded from the Z-wave network 2 Set the energy detection mode for parameter 101 to 103. Set the energy detection mode for the measure reports of parameter 101 to 103. 0 1 0 0 0 From To Description 1 1 Report positive/negative power and report the algebraic sum energy 2 2 Report positive/negative power and only report energy positive part (consuming electricity) 0 0 Report absolute value for power and energy measurements. 3 3 Report positive/negative power and only report energy negative part (generating electricity). 7 Threshold change in wattage to induce a automatic report Threshold change in wattage to induce a automatic report for the power report of Clamp 3. 0 2 0 0 50 From To Description 0 60000 The available range is 0 to 60000.
Texts	ID Description Value 5 Factory Reset Press and hold the Action button that you can find on the product's housing for 10 seconds and then release. This procedure should only be used when the primary controller is inoperable. 6 Additional Special Features Support ""Over the Air Firmware Updating"" and “Z-Wave Security”. 1 Inclusion Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Action button that you can find on the product's housing. 2 Exclusion Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Action button that you can find on the product's housing.
Supported / Controlled Meter Types	Meter Type Rate Type Description Electric meter Import Electric Meter Consumption
Supports NWI	Yes
Supports Explorer Frames	Yes
