Product Recognition

Certification Number

ZC10-18036061

Name

Home IoT

Short Description

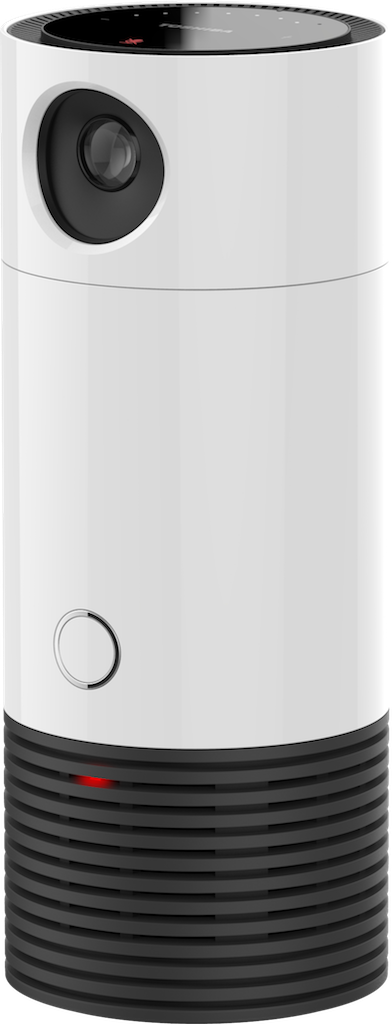

Home IoT Terminal TH-GW10

Long Description

This home gateway (HGW) works as a hub for IoT devices including sensors. Design: as the HGW will be used in a living room, it has a minimal cylindrical design conveying a sense of quality Wide-angle camera Voice control Bluetooth speaker

Brand

TOSHIBA

Product Identifier

TH-GW10

OEM Version

HW: 1 FW: 5.10:02.25:01.00

Hardware Platform

ZM5304

Z-Wave Version

6.61.00

Library Type

CONTROLLER_BRIDGE

Device Type

Gateway

Role Type

ROLE_TYPE_CONTROLLER_CENTRAL_STATIC

Manufacturer ID

0x0333

Product Type ID

0x0001

Product ID

0x0001

User Icon

0x0500

Installer Icon

0x0500

Frequency Plans

JP: 922.50MHz, 923.90MHz, 926.30MHz

Categories

All Controllers, Gateway Controller

Countries / Regions

Japan

Supported Command Classes

Controlled Command Classes

Documents

Features

Association Groups

Texts

ID	Description	Value
23	Controller Inclusion	Described in Product manual “Items on Home Screen” Adding a sensor Follow the steps below to add a sensor. 1. Tap Add Sensor. 2. Tap Add Sensor on the displayed screen. (The app starts searching a sensor and the screen below appears.) 3. Operate the sensor you are adding so that the app can find it. Refer to the instruction manual supplied for the sensor for details. When the app finds a sensor, the screen below appears. 4. Tap Done. The sensor has been added to the app.
24	Controller Exclusion	Described in Product manual “Items on Home Screen” Removing a sensor Follow the steps below to remove a sensor. 1. Tap a sensor icon you want to remove on the Home screen. 2. Tap Remove Sensor on the displayed screen. The screen below appears and the app starts removing the sensor. 3. Tap OK on the displayed screen. The sensor has been removed.
3	Learn Mode (adding another controller)	To enter Learn Mode, the operation is available only via Web UI. Please reboot the device; hold down the network button (backside) and Volume Down until you see the Top LED board blinking, then you can release the buttons. Next step, you can check the IP Address of the device from the APP. Open a web browser and enter the web URL, https://, with the username and password, toshiba/homeiot. After you logged in, you can select Network Manager at the left side and click the button, ""Initiate."". Please note, if the device is already set as a controller, you need to click the Reset button first.
5	Factory Reset	Described in Product manual “Parts Name” >Reset button Press and hold the button using a pen tip or like for 5 seconds or more. Pressing and holding the button makes the all Volume indicators and Microphone mute indicators starts blinking. After blinking stops, release button. After that, the settings have been reverted back to the default. If this controller is the primary controller of Z-Wave for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller of Z-Wave in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable.

Supports NWI

Yes

Supports Explorer Frames

Yes

Radio Range Z-Wave (m)
