Product Recognition
Certification Number	ZC10-15090006

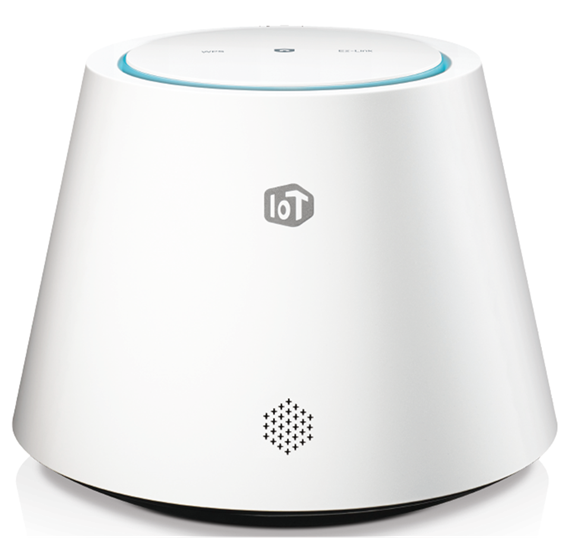

Name	Home IoT Hub
Short Description	Home IoT Hub is a universal Z-Wave controller, it can offer Home IoT Service by LG U plus
Long Description	Home IoT Hub is a universal Z-Wave controller. This can full support Open Sensor, Smart Switch, Gas Lock, Smart Plug, Door Lock products made for LG U plus by smart phone application, Other Products made as general Z-Wave Plus standards can be controlled with limited functions.
Brand	LG Uplus
Product Identifier	IHU50
OEM Version	00
Hardware Platform	ZM5101
Z-Wave Version	6.51.06
Library Type	CONTROLLER_STATIC
Device Type	Central Controller
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x015B
Product Type ID	0x0001
Product ID	0x0001
Frequency Plans	KR: 920.90MHz, 921.70MHz, 923.10MHz
Categories	All Controllers, Gateway Controller
Countries / Regions	Republic of Korea
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SENSOR_BINARY Sensor Binary 0x30 1 COMMAND_CLASS_ASSOCIATION Association 0x85 1 COMMAND_CLASS_SWITCH_MULTILEVEL Switch Multilevel 0x26 1 COMMAND_CLASS_ASSOCIATION_GROUP_INFORMATION Association Group Information V1 0x59 0 COMMAND_CLASS_SENSOR_ALARM Sensor Alarm 0x9C 1 COMMAND_CLASS_DOOR_LOCK Door Lock 0x62 1 COMMAND_CLASS_MULTI_COMMAND Multi-Command V1 0x8F 0 COMMAND_CLASS_NO_OPERATION No Operation 0x00 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_USER_CODE User Code 0x63 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION Multi-Channel Association V1 0x8E 0 COMMAND_CLASS_MULTI_CHANNEL Multi-Channel V1 0x60 0 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_WAKE_UP Wake Up 0x84 1 COMMAND_CLASS_TIME Time 0x8A 1 COMMAND_CLASS_TIME_PARAMETERS Time Parameters 0x8B 1 COMMAND_CLASS_THERMOSTAT_MODE Thermostat Mode 0x40 1 COMMAND_CLASS_SENSOR_MULTILEVEL Sensor Multilevel 0x31 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_ZWAVEPLUS_INFO Z-Wave Plus Info 0x5E 1 COMMAND_CLASS_NOTIFICATION Notification V1 0x71 0 COMMAND_CLASS_THERMOSTAT_SETPOINT Thermostat Setpoint 0x43 1 COMMAND_CLASS_METER Meter 0x32 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD Firmware Update Meta-Data 0x7A 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_VERSION Version 0x86 1 COMMAND_CLASS_SCHEDULE_ENTRY_LOCK Schedule Entry Lock 0x4E 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual APP Manual.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline
Texts	ID Description Value 23 Controller Inclusion Select ‘Controller’ in [Node List] Select ‘Add’ in [Command List] Click Send(Default) button. Option 1) Classic Change parameters in [Value]: ADD_NODE_OPTION_NETWORK_WIDE:”0” Option 2) Network Wide Change parameters in [Value]: ADD_NODE_OPTION_NETWORK_WIDE:”1” Option 2) Low Power Change parameters in [Value]: ADD_NODE_OPTION_HIGH_POWER : “0” 24 Controller Exclusion Select ‘Remove’ in [Command List] Click Send(Default) button. 3 Learn Mode (adding another controller) Select ‘setLearnMode’ in [Command List] Click Send(Default) button. 5 Factory Reset Select ‘setDefault’ in [Command List] Click Send(Default) button.
Supports NWI	Yes
Supports Explorer Frames	Yes
