| Product Recognition | |
|---|
| Certification Number | ZC10-15070010 |
|---|

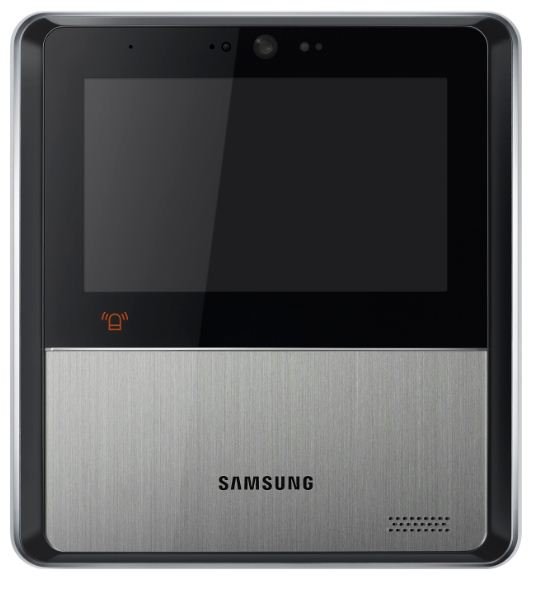

| Name | Home Security Pad |
|---|
| Short Description | Home Security Pad |
|---|
| Long Description | Home Security Pad make your home secure at anytime and from anywhere.
A total security system which services intrusion detection, access management, monitoring and gas valve control, makes your life and home secured ever than before. |
|---|
| Brand | SAMSUNG SDS |
|---|
| Product Identifier | SHP-HA502M |
|---|
| OEM Version | 01 |
|---|
| Hardware Platform | ZM5101 |
|---|
| Z-Wave Version | 6.51.06 |
|---|
| Library Type | CONTROLLER_STATIC |
|---|
| Device Type | Central Controller |
|---|
| Role Type | ROLE_TYPE_CONTROLLER_CENTRAL_STATIC |
|---|
| Manufacturer ID | 0x022E |
|---|
| Product Type ID | 0x0007 |
|---|
| Product ID | 0x0008 |
|---|
| Frequency Plans | KR: 920.90MHz, 921.70MHz, 923.10MHz |
|---|
| Categories | All Controllers, Gateway Controller |
|---|
| Countries / Regions | Republic of Korea |
|---|
| Controlled Command Classes | | Identifier | Name | Key | Version |
|---|
| COMMAND_CLASS_ASSOCIATION | Association | 0x85 | 1 | | COMMAND_CLASS_DOOR_LOCK | Door Lock | 0x62 | 1 | | COMMAND_CLASS_USER_CODE | User Code | 0x63 | 1 | | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION | Multi-Channel Association V1 | 0x8E | 0 | | COMMAND_CLASS_MULTI_CHANNEL | Multi-Channel V1 | 0x60 | 0 | | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | | COMMAND_CLASS_WAKE_UP | Wake Up | 0x84 | 1 | | COMMAND_CLASS_TIME_PARAMETERS | Time Parameters | 0x8B | 1 | | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | | COMMAND_CLASS_CRC_16_ENCAP | CRC16 Encapsulation | 0x56 | 1 | | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | | COMMAND_CLASS_ZWAVEPLUS_INFO | Z-Wave Plus Info | 0x5E | 1 | | COMMAND_CLASS_NOTIFICATION | Notification V1 | 0x71 | 0 | | COMMAND_CLASS_FIRMWARE_UPDATE_MD | Firmware Update Meta-Data | 0x7A | 1 | | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | | COMMAND_CLASS_VERSION | Version | 0x86 | 1 | | COMMAND_CLASS_SCHEDULE_ENTRY_LOCK | Schedule Entry Lock | 0x4E | 1 |
|
|---|
| Documents | |
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 1 | 0 | - Lifeline between controller and SHP-HA502M
- Supported command classes
Device Reset Locally notification
- Maximum supported nodes are 1
|
|
|---|
| Texts | | ID | Description | Value |
|---|
| 3 | Learn Mode (adding another controller) | 1. Set secondary controller to learn mode, and press shift for controller shift. | | 5 | Factory Reset | Use this procedure only when the network primary controller is missing or otherwise inoperable.
1. Press setting from main menu.(Refer to 1.Main Menu)
2. Press password menu
3. Enter password(#*00) and press Done.
4. Press OK and then Hidden menu shows up.
5. Press factory default menu | | 24 | Controller Exclusion | 1. Press Exclusion(Remove), then It unfolds sub-menu.
2. Press exclusion of one device.
3. HSP enters into Exclusion Mode for 60 seconds and It trys to exclude a device. If a device is excluded, It will also be removed on the list. | | 23 | Controller Inclusion | 1. Press Device Management
2. Press Inclusion(Add)
3. HSP enters into Inclusion Mode for 60 seconds and It trys to include a device.
4. When a device is included to HSP, it displays that. If you want to include more, press include more.
5. If a device is included successfully, It is displayed on the list. |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
