Product Recognition
Certification Number	ZC10-15050008

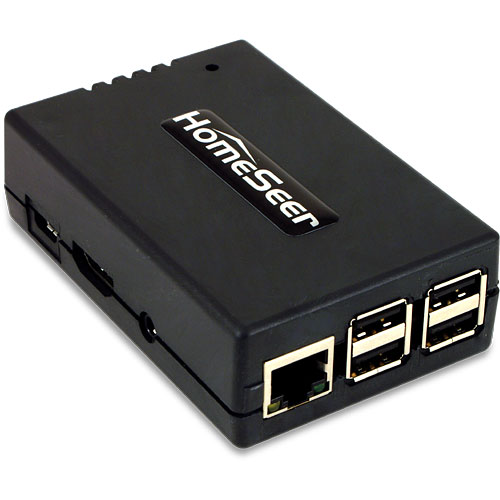

Name	HomeSeer A2Z-Link ASCII/JSON to Z-Wave Bridge
Short Description	A2Z-Link is a web-managed ASCII (or JSON) to Z-Wave Controller. It is designed to provide Z-Wave product support for other systems that are not Z-Wave compatible. The unit accepts ASCII or JSON commands and converts those to Z-Wave broadcasts. Z-Wave status updates are converted back to ASCII or JSON. OEM inquiries welcome.
Long Description	A2Z-Link is a web-managed ASCII (or JSON) to Z-Wave Controller. It is designed to provide Z-Wave product support for other systems that are not Z-Wave compatible. The unit accepts ASCII or JSON commands and converts those to Z-Wave broadcasts. Z-Wave status updates are converted back to ASCII or JSON. OEM inquiries welcome. Main Features: - Includes ASCII to Z-Wave and JSON to Z-Wave protocols - Provides quick and easy Z-Wave support for non-Z-Wave compliant systems - Includes robust web management interface - Scalable with support for multiple Z-Wave networks (requires multiple A2Z-Link Modules) - Optional automation event feature - Optional mobile app available - Optional Insteon support available
Brand	HomeSeer
Product Identifier	A2Z-LINK
Hardware Platform	SW
Z-Wave Version	6.51.06
Library Type	CONTROLLER_STATIC
Device Type	Central Controller
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x000C
Product Type ID	0x0001
Product ID	0x0003
Frequency Plans
Categories	All Controllers, Computer Controller Interfaces
Countries / Regions	NA
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_ASSOCIATION Association 0x85 1 COMMAND_CLASS_SWITCH_MULTILEVEL Switch Multilevel 0x26 1 COMMAND_CLASS_ASSOCIATION_GROUP_INFORMATION Association Group Information V1 0x59 0 COMMAND_CLASS_SCENE_ACTUATOR_CONF Scene Actuator Conf 0x2C 1 COMMAND_CLASS_DOOR_LOCK Door Lock 0x62 1 COMMAND_CLASS_NO_OPERATION No Operation 0x00 1 COMMAND_CLASS_NODE_NAMING Node Naming 0x77 1 COMMAND_CLASS_THERMOSTAT_FAN_MODE Thermostat Fan Mode 0x44 1 COMMAND_CLASS_USER_CODE User Code 0x63 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION Multi-Channel Association V1 0x8E 0 COMMAND_CLASS_MULTI_CHANNEL Multi-Channel V1 0x60 0 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_CONTROLLER_REPLICATION Controller Replication 0x21 1 COMMAND_CLASS_CLOCK Clock 0x81 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_WAKE_UP Wake Up 0x84 1 COMMAND_CLASS_TIME Time 0x8A 1 COMMAND_CLASS_TIME_PARAMETERS Time Parameters 0x8B 1 COMMAND_CLASS_THERMOSTAT_SETBACK Thermostat Setback 0x47 1 COMMAND_CLASS_THERMOSTAT_MODE Thermostat Mode 0x40 1 COMMAND_CLASS_THERMOSTAT_FAN_STATE Thermostat Fan State 0x45 1 COMMAND_CLASS_SENSOR_MULTILEVEL Sensor Multilevel 0x31 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_INDICATOR Indicator 0x87 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_ZWAVEPLUS_INFO Z-Wave Plus Info 0x5E 1 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_BARRIER_OPERATOR Barrier Operator 0x66 1 COMMAND_CLASS_NOTIFICATION Notification V1 0x71 0 COMMAND_CLASS_THERMOSTAT_SETPOINT Thermostat Setpoint 0x43 1 COMMAND_CLASS_METER Meter 0x32 1 COMMAND_CLASS_DOOR_LOCK_LOGGING Door Lock Logging 0x4C 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD Firmware Update Meta-Data 0x7A 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_VERSION Version 0x86 1 COMMAND_CLASS_PROTECTION Protection 0x75 1 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1 COMMAND_CLASS_SCENE_CONTROLLER_CONF Scene Controller Conf 0x2D 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual A2-Link-manual.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 230 0 Z-Wave Plus Lifeline
Texts	ID Description Value 23 Controller Inclusion From the UI, select the Plugins menu, then the Z-Wave Plugin, then choose the Controller Management option. In the list of actions for the Z-Wave interface, choose ""Add/Include a Node"", and follow the on-screen prompts. 24 Controller Exclusion From the UI, select the Plugins menu, then the Z-Wave Plugin, then choose the Controller Management option. In the list of actions for the Z-Wave interface, choose ""Remove/Exclude a Node"", and follow the on-screen prompts. 3 Learn Mode (adding another controller) From the UI, select the Plugins menu, then the Z-Wave Plugin, then choose the Controller Management option. In the list of actions for the Z-Wave interface, choose ""Receive Network from Another Controller"", and follow the on-screen prompts. 5 Factory Reset Please use this procedure only as a last resort as existing nodes in the network will be orphaned and unable to be controlled. Access the Interfaces page from the UI. Click on the Z-Wave plug-in link on the interfaces page to be taken to the diagnostics page for the plug-in, then press the Factory Reset button at the top of the page.
Supports NWI	Yes
Supports Explorer Frames	Yes
