Product Recognition
Certification Number	ZC10-15050004

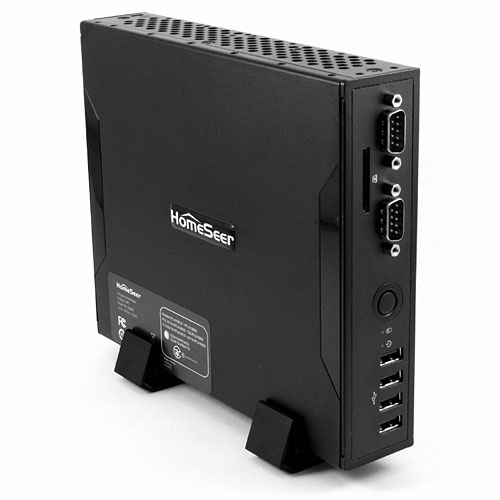

Name	HomeSeer HomeTroller S6
Short Description	HomeTroller S6 is our flagship home automation controller! The unit is designed to control light switches, thermostats, door locks, audio / video equipment, cameras, garage doors, water valves, energy monitors and much more.
Long Description	HomeTroller S6 is our flagship home automation controller! The unit is designed to control light switches, thermostats, door locks, audio / video equipment, cameras, garage doors, water valves, energy monitors and much more. Click here to review the complete list of supported technologies. Home owners can access HomeTroller S6 at home or via the cloud with just about any smartphone, tablet or table-top touchscreen. Our FREE standard cloud-based "myHomeSeer Remote" service provides easy remote access without storing your sensitive data in the cloud. With HomeSeer, your intelligence stays at home, ensuring better security and reliability. Main Features: - Controls Light Switches, Thermostats, Door Locks, Garage Doors, Water Valves, Energy Monitors, Environmental Sensors, Cameras and More! - Runs all HomeSeer Drivers (plug-ins) - Compatible with Apple and Andoid smartphones and tablets - Includes voice control and programming features - Can issue spoken messages for alerts, announcement and reminders - Available in standard and PRO versions
Brand	HomeSeer
Product Identifier	HT-S6
Hardware Platform	SW
Z-Wave Version	6.51.06
Library Type	CONTROLLER_STATIC
Device Type	Central Controller
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x000C
Product Type ID	0x0001
Product ID	0x0003
Frequency Plans
Categories	All Controllers, Gateway Controller
Countries / Regions	NA
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_ASSOCIATION_GROUP_INFORMATION Association Group Information V1 0x59 0 COMMAND_CLASS_SCENE_ACTUATOR_CONF Scene Actuator Conf 0x2C 1 COMMAND_CLASS_DOOR_LOCK Door Lock 0x62 1 COMMAND_CLASS_NO_OPERATION No Operation 0x00 1 COMMAND_CLASS_NODE_NAMING Node Naming 0x77 1 COMMAND_CLASS_THERMOSTAT_FAN_MODE_V4 Thermostat Fan Mode V4 0x44 4 COMMAND_CLASS_USER_CODE User Code 0x63 1 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_CONTROLLER_REPLICATION Controller Replication 0x21 1 COMMAND_CLASS_CLOCK Clock 0x81 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_TIME_PARAMETERS Time Parameters 0x8B 1 COMMAND_CLASS_THERMOSTAT_SETBACK Thermostat Setback 0x47 1 COMMAND_CLASS_THERMOSTAT_OPERATING_STATE Thermostat Operating State 0x42 1 COMMAND_CLASS_SENSOR_MULTILEVEL Sensor Multilevel 0x31 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_INDICATOR Indicator 0x87 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_SENSOR_MULTILEVEL_V7 Sensor Multilevel V7 0x31 7 COMMAND_CLASS_THERMOSTAT_FAN_STATE_V2 Thermostat Fan State V2 0x45 2 COMMAND_CLASS_THERMOSTAT_MODE_V2 Thermostat Mode V2 0x40 2 COMMAND_CLASS_THERMOSTAT_SETPOINT_V3 Thermostat Setpoint V3 0x43 3 COMMAND_CLASS_TIME_V2 Time V2 0x8A 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_BARRIER_OPERATOR Barrier Operator 0x66 1 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_NOTIFICATION_V5 Notification V5 0x71 5 COMMAND_CLASS_DOOR_LOCK_LOGGING Door Lock Logging 0x4C 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_SWITCH_COLOR Switch Color 0x33 1 COMMAND_CLASS_METER_PULSE Meter Pulse 0x35 1 COMMAND_CLASS_PROTECTION Protection 0x75 1 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1 COMMAND_CLASS_SCENE_CONTROLLER_CONF Scene Controller Conf 0x2D 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_METER_V4 Meter V4 0x32 4 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V2 Multi Channel Association V2 0x8E 2
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Z-Wave_Help_File.pdf
Features	Feature Values Controller Supports Multiple Z-Wave Interfaces Firmware Updatable Value Updatable by Consumer by Wire Z-Wave Scene Type Value Scene & Central Scene Controller Supports Multiple Networks Gateway Has Preferred Partners Supported Notification Types Value Smoke Alarm CO Alarm CO2 Alarm Heat Alarm Water Alarm Access Control Home Security Power Management System Emergency Alarm Clock Appliance Home Health Supported Meter Type Value Electric Energy Gas Water Sensors Value Motion/No Motion (Binary) Air Temperature Luminance Humidity Open/Closed (Binary) Smoke Density Heat Freeze Water Flow Carbon Dioxide Carbon Monoxide
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 230 0 Z-Wave Plus Lifeline
Texts	ID Description Value 23 Controller Inclusion From the UI, select the Plugins menu, then the Z-Wave Plugin, then choose the Controller Management option. In the list of actions for the Z-Wave interface, choose ""Add/Include a Node"", and follow the on-screen prompts. 24 Controller Exclusion From the UI, select the Plugins menu, then the Z-Wave Plugin, then choose the Controller Management option. In the list of actions for the Z-Wave interface, choose ""Remove/Exclude a Node"", and follow the on-screen prompts. 3 Learn Mode (adding another controller) From the UI, select the Plugins menu, then the Z-Wave Plugin, then choose the Controller Management option. In the list of actions for the Z-Wave interface, choose ""Receive Network from Another Controller"", and follow the on-screen prompts. 5 Factory Reset Please use this procedure only as a last resort as existing nodes in the network will be orphaned and unable to be controlled. Access the Interfaces page from the UI. Click on the Z-Wave plug-in link on the interfaces page to be taken to the diagnostics page for the plug-in, then press the Factory Reset button at the top of the page.
Supported / Controlled Meter Types	Meter Type Rate Type Description Electric meter Import Electric Meter Consumption Gas meter Import Gas Meter Consumption Water meter Import Water Meter Consumption
Supports NWI	Yes
Supports Explorer Frames	Yes
