Product Recognition | |
|---|
Certification Number | ZC10-18076186 |
|---|

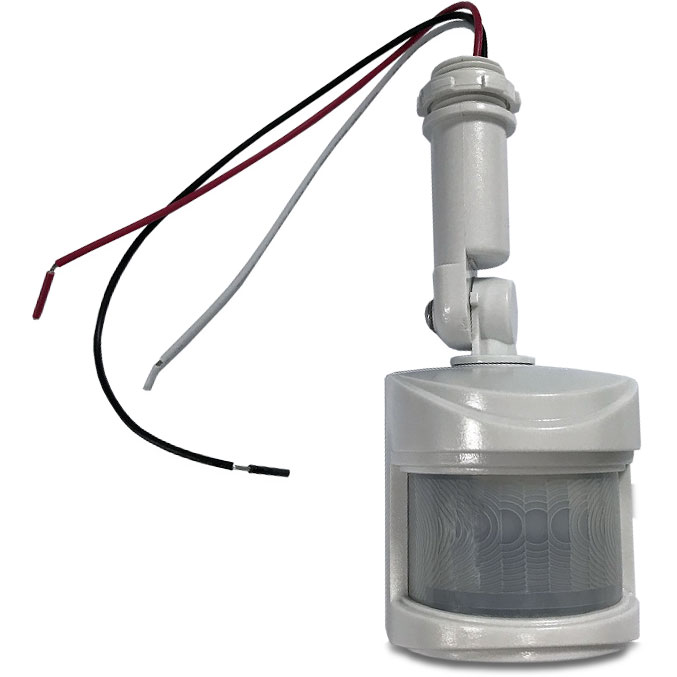

Name | HomeSeer HS-FLS100+ Z-Wave Plus Floodlight Sensor |
|---|
Short Description | HS-FLS100+ is a Z-Wave enabled outdoor motion sensor that's designed to control floodlights when motion is sensed. |
|---|
Long Description | HS-FLS100+ is a Z-Wave enabled outdoor motion sensor that may be used for a variety of applications.
• Use as a stand alone outdoor motion sensor and/or LUX sensor.
• Use as a replacement sensor for a motion-activated floodlight unit. In this configuration, it can control floodlight loads when motion is sensed or when commands are received from the central controller. |
|---|
Brand | HomeSeer |
|---|
Product Identifier | HS-FLS100+ |
|---|
OEM Version | HW: 1 FW: 1.02:00.00 |
|---|
Hardware Platform | SD3502 |
|---|
Z-Wave Version | 6.71.03 |
|---|
Library Type | SLAVE_ENHANCED |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x000C |
|---|
Product Type ID | 0x0201 |
|---|
Product ID | 0x000B |
|---|
User Icon | 0x0C07 |
|---|
Installer Icon | 0x0C07 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Sensors, All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SENSOR_BINARY | Sensor Binary | 0x30 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_SENSOR_MULTILEVEL_V5 | Sensor Multilevel V5 | 0x31 | 5 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Outdoor Use | | Sensors | Value |
|---|
Motion/No Motion (Binary) | Luminance |
| Supported Notification Types | Value |
|---|
Home Security | Luminance |
| Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Electric Load Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Z-Wave Plus Lifeline | 2 | 4 | 0 | PIR control |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
3 | Lux level report | Auto Report luminance interval: sets the interval of periodic lux level report to the controller. | 0 | 2 | 0 | 0 | 10 | From | To | Description |
|---|
0 | 1440 | unit is minutes |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | Z-Wave auto inclusion.
Or manual inclusion : put the Z-Wave controller into inclusion mode, press the Link button 3 times within 1.5 seconds to put the unit into inclusion mode. | 2 | Exclusion | Put the Z-Wave Controller into exclusion mode. Press the Link button 3 times within 1.5 seconds to put the unit into exclusion mode. | 5 | Factory Reset | The product reset is to operate only when the primary controller is missing or inoperable. Press the Link button 3 times within 1.5 seconds to put the unit into exclusion mode.Within 1 second of step 1, press the Link button again and hold until LED is off (about 5 seconds). |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Home Security | (Refer to parameters): State idle | Light sensor | (Refer to parameters): State idle | Light sensor | Light detection status: Light detected | Light sensor | Light color transition detected |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
General purpose | Illuminance |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
