Product Recognition | |
|---|
Certification Number | ZC10-18026017 |
|---|

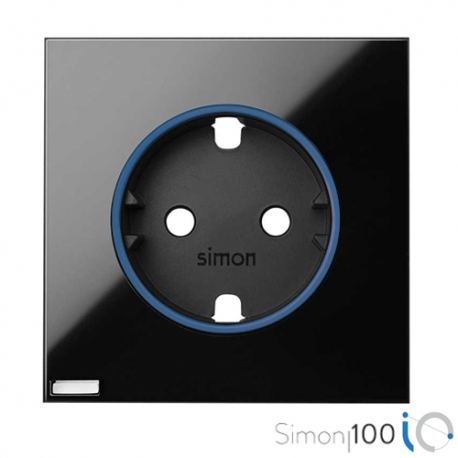

Name | HUB iO |
|---|
Short Description | Hub iO is not only a flush mounted socket. It is also a Z-Wave static controller designed to be the main controller of Z-Wave network.
It can work as Access point when internet is not available or as Client when user already has internet at home. |
|---|
Long Description | HUB iO is the Main controller of your Simon 100 iO Home.
It allows you manage your entire Z-Wave network and add new features to your life making it more confortable.
Use it through your Simon 100 APP in order to manage features and configurations of your switches and sockets, no matter if you are at home or not. |
|---|
Brand | Simon |
|---|
Product Identifier | 10003041-13X |
|---|
OEM Version | HW: 1 FW: 4.24:82.73:69.48 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.07 |
|---|
Library Type | CONTROLLER_STATIC |
|---|
Device Type | Central Controller |
|---|
Role Type | ROLE_TYPE_CONTROLLER_CENTRAL_STATIC |
|---|
Manufacturer ID | 0x0267 |
|---|
Product Type ID | 0x000A |
|---|
Product ID | 0x0000 |
|---|
User Icon | 0x0100 |
|---|
Installer Icon | 0x0100 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | All Controllers, Gateway Controller, Handheld Controller |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CRC_16_ENCAP | CRC16 Encapsulation | 0x56 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_CONFIGURATION_V2 | Configuration V2 | 0x70 | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_METER_V4 | Meter V4 | 0x32 | 4 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CRC_16_ENCAP | CRC16 Encapsulation | 0x56 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_SWITCH_MULTILEVEL_V3 | Switch Multilevel V3 | 0x26 | 3 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi-Channel V4 | 0x60 | 4 | COMMAND_CLASS_CONFIGURATION_V2 | Configuration V2 | 0x70 | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_METER_V4 | Meter V4 | 0x32 | 4 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Supported Meter Type | | Firmware Updatable | Value |
|---|
Updatable by Consumer via Internet |
| Gateway Has Preferred Partners | | Switch Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 3 | 0 | Z-Wave Plus Lifeline.
COMMAND_CLASS_BASIC_REPORT
It is sent to the associated nodes when the load changes state:
ON -> 0xFF // OFF -> 0x00
COMMAND_CLASS_METER_REPORT_V4
It is sent to the associated nodes when the power consumed varies more than 10%
“Electric meter”, “Consumed”, “Watts”, Size 4, Precision 1, Value (W)
COMMAND_CLASS_DEVICE_RESET_LOCALLY_NOTIFICATION
The associated nodes are sent when the device is deleted from the Z-Wave network
|
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
2 | Custom consumption limit | Limits the máximum load that can be powered by the socket of HUB iO. | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
1 | 3680 | Sets the power in Watts that is supported (once the load is over, it is disconnected). | 0 | 0 | Disables custom consumption limit |
| 3 | Beacon | Sets the LEDs lighting intensity. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
1 | 99 | Sets the intensity of the beacon LEDs. | 0 | 0 | Disables the beacon function. |
| 10 | Delay ON | Delays the load activation after an ON request. Values must be SET in HEX format | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Disables timing | 128 | 254 | Sets a timing with range of (1-127min) | 1 | 127 | Sets a timing with a range of (1-127sec) |
| 17 | PostReset State | Defines the load state when HUB iO is powered | 0 | 1 | 0 | 0 | 255 | From | To | Description |
|---|
0 | 0 | After a reset the load starts Off | 1 | 255 | After a reset the load recovers the last value |
| 11 | Activation Time | Sets the time that Load will be activated after it is switch ON. Values must be SET in HEX format | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Disables timing | 128 | 254 | Sets a timing with range of (1-127min) | 1 | 127 | Sets a timing with range of (1-127sec) |
| 1 | Association LED | Turns ON the Central LED | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Turns off the center LED | 1 | 255 | Turn on the center LED |
|
|
|---|
Texts | ID | Description | Value |
|---|
3 | Learn Mode (adding another controller) | If HUB iO is linked to APP Simon 100 --> using the APP according Simon 100 Guide instructions.
Otherwise pressing pushbutton for 2s<t<10s. | 23 | Controller Inclusion | Using the APP according Simon 100 Guide instructions.
There are 2 options:
1.- USING APP:
In order to perform this action go to MENU > iO > Installation Data > Advanced Settings > Replicate controller or Update HUB.
HUB iO will join to Learn mode in order to be added in other Z-Wave Controller.
NOTE:
(This option is only available if none device has been added to HUB iO network or if HUB iO is not the Main controller (SIS) of the network.)
2.- USING Local button
If your Simon 100 iO APP is not linked with Simon 100 HUB iO you can perform this action press left button during 3 seconds.
NOTE:
This option is only available if HUB iO is not linked with Simon 100 iO APP. | 24 | Controller Exclusion | Using the APP according Simon 100 Guide instructions.
There are 2 options:
1.- USING APP:
In order to perform this action go to MENU > iO > Installation Data > Advanced Settings > Replicate controller or Update HUB.
HUB iO will join to Learn mode in order to be added in other Z-Wave Controller.
NOTE:
(This option is only available if none device has been added to HUB iO network or if HUB iO is not the Main controller (SIS) of the network.)
2.- USING Local button
If your Simon 100 iO APP is not linked with Simon 100 HUB iO you can perform this action press left button during 3 seconds.
NOTE:
This option is only available if HUB iO is not linked with Simon 100 iO APP. | 5 | Factory Reset | Pressing pushbutton t>30s.
Or removing HUB iO using the APP.
If HUB iO is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If HUB iO is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable. |
|
|---|
Supported / Controlled Meter Types | Meter Type | Rate Type | Description |
|---|
Electric meter | Import | Electric Meter Consumption |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
