Product Recognition
Certification Number	ZC10-17015410

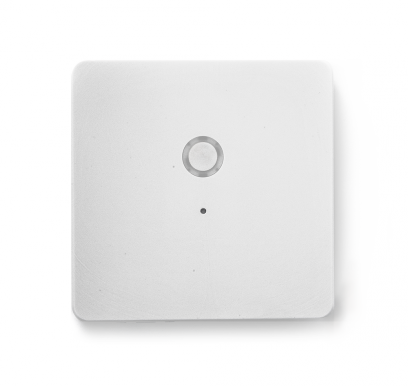

Name	Hub
Short Description	Command Center - Works with the App and the Cloud to provide control and monitoring of the system from anywhere in the world.
Long Description	Command Center of the system. Works together with the App to control the Sensor Network. ·Instant Plug and Play Setup - New Sensors set-up simply by turning them on. The Hub seeks them out and adds them to the Home Network ·Remote Firmware Upgrades - Hub receives automatic upgrades with new features and fixes from the Cloud with little or no user involvement ·Network Control - Works with most leading Home Automation network devices ·Z-Wave+ Certification ensures the highest level of Security Encryption in Wireless Communication ·Battery Back-up - Can run for 4 hours on 4 Ni-MH Rechargeable Batteries when power is out ·1 Year limited Warranty
Brand	Ubitech
Product Identifier	DMGW1
OEM Version	HW: 1 FW: 2.23
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	CONTROLLER_STATIC
Device Type	Central Controller
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x021F
Product Type ID	0x0001
Product ID	0x0001
User Icon	0x0100
Installer Icon	0x0100
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Controllers, Gateway Controller
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_NODE_NAMING Node Naming 0x77 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_CLOCK Clock 0x81 1 COMMAND_CLASS_APPLICATION_STATUS Application Status 0x22 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_CENTRAL_SCENE Central Scene 0x5B 1 COMMAND_CLASS_TIME_V2 Time V2 0x8A 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_SWITCH_MULTILEVEL_V3 Switch Multilevel V3 0x26 3 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1 COMMAND_CLASS_MULTI_CMD Multi-Command 0x8F 1
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 Firmware Update Meta-Data V4 0x7A 4 COMMAND_CLASS_SCENE_ACTUATOR_CONF Scene Actuator Conf 0x2C 1 COMMAND_CLASS_SENSOR_ALARM Sensor Alarm 0x9C 1 COMMAND_CLASS_NODE_NAMING Node Naming 0x77 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_THERMOSTAT_FAN_MODE_V4 Thermostat Fan Mode V4 0x44 4 COMMAND_CLASS_THERMOSTAT_OPERATING_STATE_V2 Thermostat Operating State V2 0x42 2 COMMAND_CLASS_USER_CODE User Code 0x63 1 COMMAND_CLASS_SWITCH_COLOR_V3 Switch Color V3 0x33 3 COMMAND_CLASS_SIMPLE_AV_CONTROL_V4 Simple AV Control V4 0x94 0 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_CONTROLLER_REPLICATION Controller Replication 0x21 1 COMMAND_CLASS_CLOCK Clock 0x81 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_SILENCE_ALARM Silence Alarm 0x9D 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_TIME_PARAMETERS Time Parameters 0x8B 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_HAIL Hail 0x82 1 COMMAND_CLASS_INDICATOR Indicator 0x87 1 COMMAND_CLASS_DOOR_LOCK_V2 Door Lock V2 0x62 2 COMMAND_CLASS_PROTECTION_V2 Protection V2 0x75 2 COMMAND_CLASS_SENSOR_BINARY_V2 Sensor Binary V2 0x30 2 COMMAND_CLASS_CENTRAL_SCENE Central Scene 0x5B 1 COMMAND_CLASS_THERMOSTAT_FAN_STATE_V2 Thermostat Fan State V2 0x45 2 COMMAND_CLASS_THERMOSTAT_MODE_V3 Thermostat Mode V3 0x40 3 COMMAND_CLASS_THERMOSTAT_SETPOINT_V3 Thermostat Setpoint V3 0x43 3 COMMAND_CLASS_TIME_V2 Time V2 0x8A 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_BARRIER_OPERATOR Barrier Operator 0x66 1 COMMAND_CLASS_SWITCH_MULTILEVEL_V3 Switch Multilevel V3 0x26 3 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_SENSOR_MULTILEVEL_V9 Sensor Multilevel V9 0x31 9 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_NOTIFICATION_V5 Notification V5 0x71 5 COMMAND_CLASS_DOOR_LOCK_LOGGING Door Lock Logging 0x4C 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_METER_PULSE Meter Pulse 0x35 1 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1 COMMAND_CLASS_SCENE_CONTROLLER_CONF Scene Controller Conf 0x2D 1 COMMAND_CLASS_METER_TBL_MONITOR_V2 Meter Table Monitor V2 0x3D 2 COMMAND_CLASS_METER_V4 Meter V4 0x32 4 COMMAND_CLASS_MULTI_CMD Multi-Command 0x8F 1 COMMAND_CLASS_SCHEDULE_ENTRY_LOCK_V3 Schedule Entry Lock V3 0x4E 3
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Z-Box End User Manual.pdf
Features	Feature Values Battery Quantity Value 4 Gateway Has Preferred Partners Firmware Updatable Value Updatable by Consumer via Internet Battery Type Value 1.2V AA NiMH Rechargeable batteries
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 3 0 Z-Wave Plus Lifeline
Texts	ID Description Value 6 Additional Special Features User can install 4 NiMH battery as power back up, in this case Z-Box can run 6 hours during power interruption. 23 Controller Inclusion The device management box shows the status of the controller. The “(Re-)Include Device” the controller into the Inclusion resp. The inclusion modes will time out after about 20 seconds but can always be terminated using the “Stop” buttons. 24 Controller Exclusion The device management box shows the status of the controller. The “Exclude Device” the controller into the Exclusion resp. The exclusion modes will time out after about 20 seconds but can always be terminated using the “Stop” buttons. 3 Learn Mode (adding another controller) Clicking the “Learn” button turns the controller in a function where it will accept inclusion requests from other controllers. The controller status dialog on the upper left hand side shows this status. The Learn mode will time out after about 20 seconds or when the device was included successfully. It is also possible to manually terminate the mode. 5 Factory Reset To reset the Network to the default settings, press and hold the Main button(on top of the Z-box) for 10 seconds. Release the button when the LED quickly flashes red indicating reset. Refer to the Dome App to reconnect the Z-box. If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
