Certification Number	ZC10-16085180

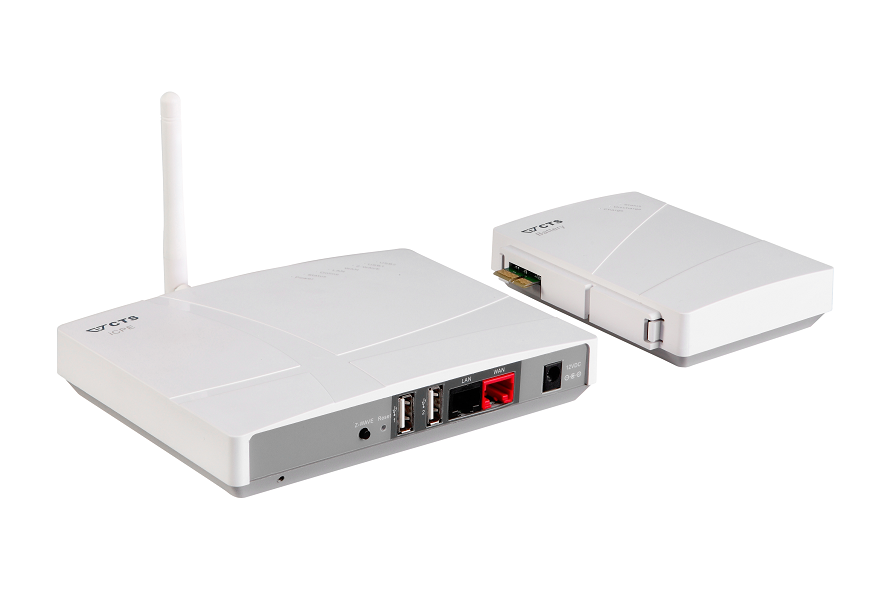

Name	iCPE
Short Description	The CTS-iCPE is an open, professional, secure and high-quality Gateway with full Z-Wave controller functionality supporting multi-service networks for carrier class IoT services.
Long Description	The CTS-iCPE is a Gateway Controller. It is based on a managed layer-2 switch with full Z-Wave controller functionality added. As such it is unique at launch. The CTS-iCPE is positioned as an open, secure and high quality product. It is meant to be used as a professional and operationally secure gateway for carrier class IoT services. This CTS-iCPE is ideally positioned to support open multi-service networks and providers. Typical services address eHealth/Homecare, Real estate, Individual metering, Sustainability/Eco systems, Security as well as Home automation and Smart home solutions. The CTS-iCPE operates with any and all Z-Wave sensors and actuators available. However, this will not be enough for creating a winning value proposition. The true value will be delivered to the market based on so-called open service platforms. Service Mediators using such open platforms have started to enter the market with scalable delivery of innovative applications and operational services to the end-users. A summary of the necessary layers towards full market solutions: • Gateway: Professional and secure CTS-iCPE • Secure Z-Wave sensors and actuators • Open multi-service solution platforms • Independent Communication operators • Easy integration for delivery from service specific operational market players (i.e. Security companies; eHealth solutions, Utility Co’s etc.) All basic functions for proper use of the CTS-iCPE are handled in the basic User Manual. More in-depth instructions for service platform owners and service mediators can be obtained at: Info@ctsystem.se
Brand	CTS
Product Identifier	iCPE
OEM Version	HW: 4 FW: 4.24:02.03:64.01:01.00
Hardware Platform	ZM5202
Z-Wave Version	6.51.07
Library Type	CONTROLLER_BRIDGE
Device Type	Central Controller
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x0285
Product Type ID	0x0201
Product ID	0x0001
User Icon	0x0100
Installer Icon	0x0100
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	All Controllers, Gateway Controller
Countries / Regions	European Union
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_ASSOCIATION_GROUP_INFORMATION Association Group Information V1 0x59 0 COMMAND_CLASS_NOTIFICATION_V7 Notification V7 0x71 7 COMMAND_CLASS_DOOR_LOCK Door Lock 0x62 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_THERMOSTAT_MODE Thermostat Mode 0x40 1 COMMAND_CLASS_SENSOR_MULTILEVEL Sensor Multilevel 0x31 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_ZWAVEPLUS_INFO Z-Wave Plus Info 0x5E 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_SWITCH_MULTILEVEL_V3 Switch Multilevel V3 0x26 3 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_THERMOSTAT_SETPOINT Thermostat Setpoint 0x43 1 COMMAND_CLASS_METER Meter 0x32 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_MULTI_CHANNEL_V3 Multi-Channel V3 0x60 3 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V2 Multi Channel Association V2 0x8E 2 COMMAND_CLASS_MULTI_CMD Multi-Command 0x8F 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual CTS-iCPE Public Manual Rev B1.pdf
Features	Feature Values Battery Type Value Li-ON, 3.7V/5800mAH Color Value White Communications Connections Value Ethernet (Wired) USB (Universal Serial Bus) Communications Protocol Value Z-Wave Z/IP Firmware Updatable Value Updatable by Professional/Technician Switch Load Capacity Watts Value 1000 Loads Controlled Value 2 Sensors Value Motion/No Motion (Binary) Air Temperature Luminance Moisture Humidity Open/Closed (Binary) Smoke Density Heat Freeze Vibration/Shock (Binary) Ultraviolet Index Water Flow Carbon Dioxide Carbon Monoxide Battery Quantity Value 1
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline
Texts	ID Description Value 24 Controller Exclusion There are two ways to exclude Z-Wave sensors. - The first is to click the ""Remove Node"" button on the WEB page. - The other way is to click the Z-Wave push button. The user can use the Z-Wave mode button on the front panel of the CTS-iCPE to include or exclude Z-Wave sensors. The default setting is in Normal mode. The mode is switched by pressing the button. When pressing the Z-Wave button once, it switches to the Include mode. When pressed again, it switches to the Exclude mode. Finally, during the Exclude mode, when the button is pressed again it will switch back to the Normal mode. 5 Factory Reset The user can click the ""Reset"" button on the WEB page to return the controller to factory settings. Note: All connections with included devices and all configurations and settings will be lost. It takes approximately 90 seconds to finish the process. 6 Additional Special Features The Z-Wave network configuration incorporates functions for backup, restoration and save. Z-Wave module firmware upgrade is supported. 23 Controller Inclusion There are two ways to include Z-Wave sensors. - The first is to click the ""Add Node"" button on the WEB page. - The other way is to click the Z-Wave push button. The user can use the Z-Wave mode button on the front panel of the CTS-iCPE to include or exclude Z-Wave sensors. The default setting is in Normal mode. The mode is switched by pressing the button: When pressing the Z-Wave button once, it switches to the Include mode. When pressed again, it switches to the Exclude mode. Finally, during the Exclude mode, when the button is pressed again it will switch back to the Normal mode. 3 Learn Mode (adding another controller) The user can click the ""Initiate"" button on the WEB page to accept inclusion, exclusion or replication requests from other controllers. The controller turns into “Learn Mode”. The Learn Mode will time out after 60 seconds. The Learn Mode stops when the controller is included, excluded or replicated successfully. The process of Learn Mode can be manually stopped using the “Abort” button. Pressing the “Abort” button during the communication process, will cause the Z-Wave system to restart, which approximately takes 150 seconds.
Supports NWI	Yes
Supports Explorer Frames	Yes
