Product Recognition
Certification Number	ZC10-16090001

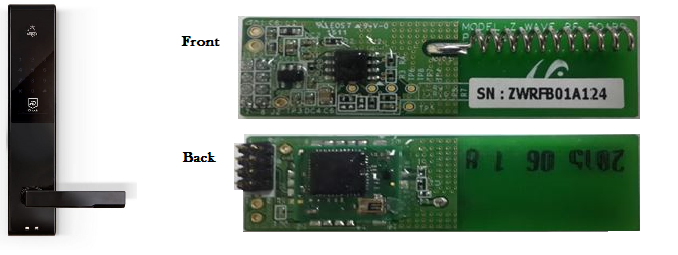

Name	ID Lock Z-Wave module
Short Description	Z-Wave Plus module compatible with ID Lock digital doorlock. www.idlock.no
Long Description	UART console communication module turns your ID Lock digital doorlock into a Z-Wave Plus enabled digital doorlock. It enables your ID Lock to operate in a Z-Wave network with numerous access control funtions and notifications.
Brand	ID Lock
Product Identifier	01A
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Door Lock Keypad
Manufacturer ID	0x0230
Product Type ID	0x0003
Product ID	0x0001
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Locks
Countries / Regions	European Union
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual IDL Operational Manual EN v1.2.pdf
Features	Feature Values Battery Quantity Value 4x or 8x Battery Type Value AA Door Lock Type Value Deadbolt Motor Attachment Firmware Updatable Value Updatable by Consumer by RF IP (Ingress Protection) Rated Outdoor Use Sensors Value Air Temperature Open/Closed (Binary)
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 Doorlock mode Doorlock operational behaviour 0 1 0 0 0 From To Description 3 3 Away mode and Automatic locking mode 0 0 Disabled Away mode and Manual locking mode 2 2 Away mode and Manual locking mode 1 1 Disabled Away mode and Automatic locking mode 10 Retrieve Registered User ID information Configuration GET for retriving UID information Retrival of registered UIDs on parameter number 10 to 59 Parameter number is representing UID index Ex. UID index 1 = parameter 10 UID index 50 = parameter 59 0 4 0 0 0 From To Description 10 59 RFID Card Index Number + 9 2 RFID Configuration Set and Report This parameter configures RFID cards to work with the door lock by setting the parameter to specific values. After setting an RFID card to the door lock, the result and configuration can be read. 0 2 0 0 0 From To Description 1 1 Begin RFID Card Registration 2 2 RFID Registration Failed 3 3 Successful RFID Card Registration - 2nd byte contains Index Number 5 5 RFID Card Registration Mode was not started 6 6 RFID Card Registration Mode In Progress 4 4 RFID Card Registration Mode Finished
Texts	ID Description Value 1 Inclusion Inclusion – (Puts your device in inclusion mode) • Push and hold button until all LEDs on keypad activates. (with ID Lock in an unlocked state) • Release button and press “8” on keypad. Inclusion mode starts immediately. LED indicator below logo signals this by flashing blue. 2 Exclusion Exclusion – (Puts your device in exclusion mode) • Push and hold button until all LEDs on keypad activates. (with ID Lock in an unlocked state) • Release button and press “8” on keypad. Exclusion mode starts immediately. LED indicator below logo signals this by flashing blue. 4 Device Wake-Up Activate by touching numpad with two fingers or handpalm 6 Additional Special Features Notification parameter in COMMAND_CLASS_NOTIFICATION_V4 Events: - Manual Unlock Operation (0x02) - Remote Unlock Operation (0x04) - Keypad Unlock Operation (0x06) - Unlock Request by Unknown User Code (0x014) - Forced Open Alarm (0x03) - Fire Alarm (0x0A) 5 Factory Reset Device reset – (This will reset RF interface module to factory default settings) Warning: Please do only proceed with the following reset procedure, if primary network controller is missing or otherwise inoperable. RESET Z-WAVE MODULE: Activate doorlock service menu, by holding inside push button for 5sec while door is in OPEN state. Outside touchpanel activates > Push ""0"" FACTORY RESET DOORLOCK FIRMWARE: 1. Push innside pushbutton continously for five Seconds after inserting batteries. 2. Receive reset sound 3. Receive confirmation sound
Supported Multilevel Sensors	Multilevel Sensor Type Air temperature 0x02
Supports NWI	Yes
Supports Explorer Frames	Yes
Is Flirs	Yes
