Product Recognition | |
|---|---|
Certification Number | ZC12-21080286 |

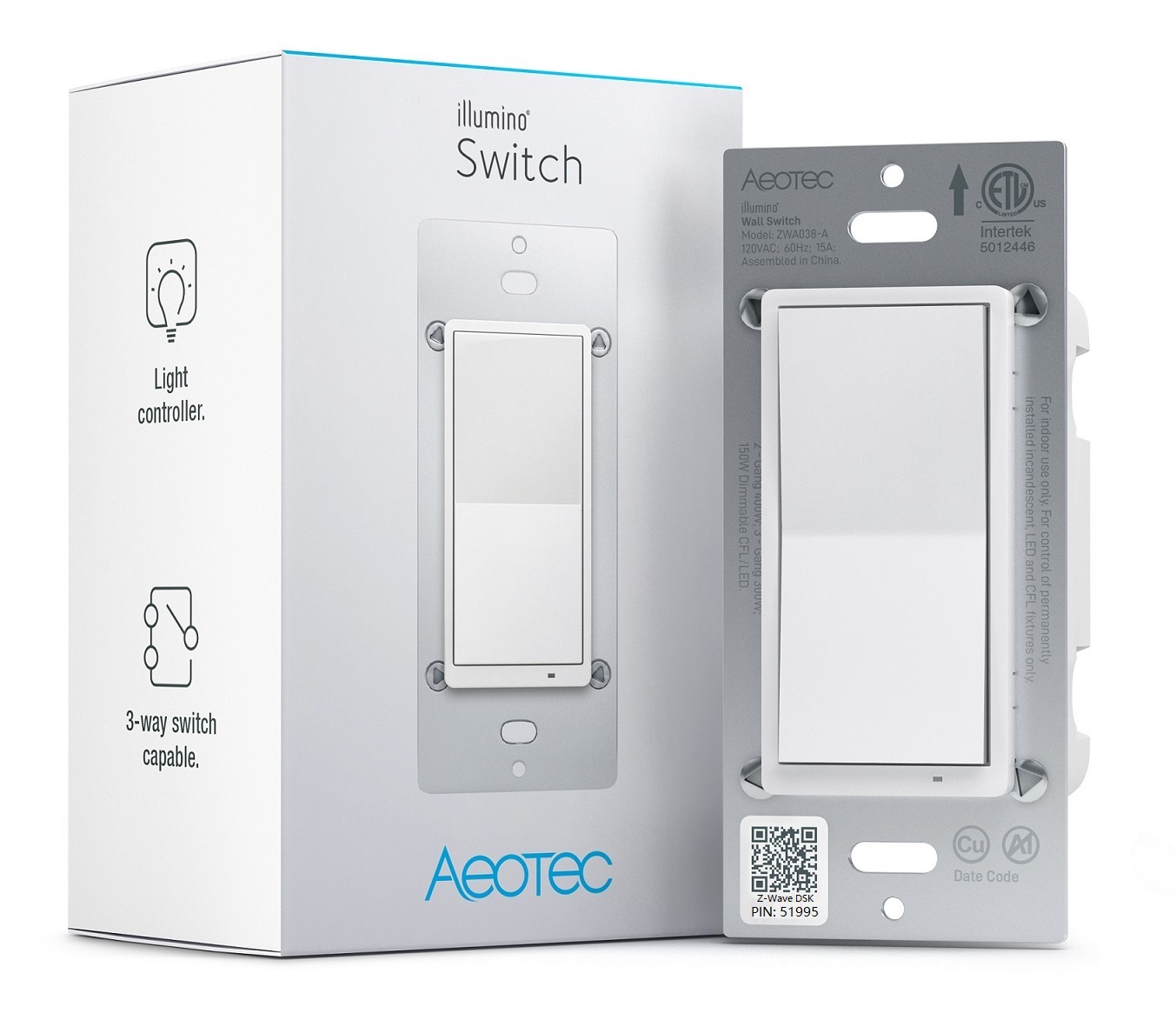

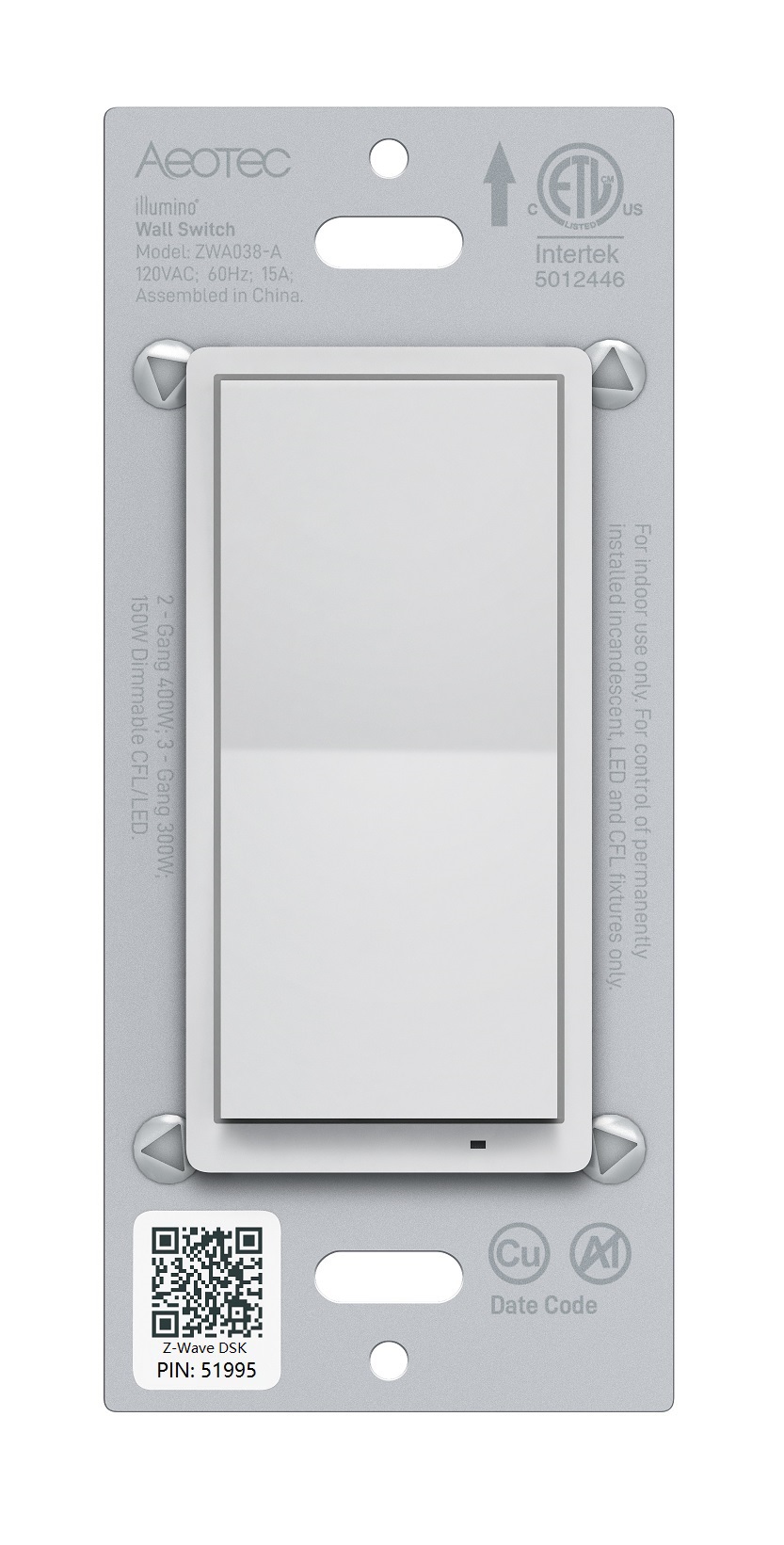

Name | illumino Wall Switch |
Short Description | Aeotec illumino Wall Switch is a Z-Wave™ Switch. |
Long Description | Aeotec illumino Wall Switch is a Z-Wave™ Switch specifically used to enable Z-Wave command and control (on/off) of any wall switches. In the event of power failure, non-volatile memory retains all programmed information relating to the unit’s operating status.
It can connect to external manual switches to control the load ON/OFF independently.
The illumino Wall Switch is also a security Z-Wave Plus™ device and supports Over The Air (OTA) feature for the products firmware upgrade. |
Brand | Aeotec |
Product Identifier | ZWA038-A |
Product Line | Line A |
OEM Version | HW: 1 FW: 1.02 |
Hardware Platform | ZGM130 |
Z-Wave Version | 7.13.9 |
Library Type | SLAVE_ENHANCED_232 |
Device Type | Binary Switch |
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
Manufacturer ID | 0x0371 |
Product Type ID | 0x0103 |
Product ID | 0x0026 |
User Icon | 0x0704 |
Installer Icon | 0x0700 |
Frequency Plans | US: 916.00MHz, 908.40MHz |
Categories | All Lighting Devices, On/Off Switches/Devices, Lighting Accessories, Fan Control |
Countries / Regions | United States of America |
Supported Command Classes | |
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
Documents | |
Features | |
Association Groups | |
Configuration Parameters | |
Texts | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
Supports SmartStart | Yes |
Radio Range Z-Wave (m) | 40 |
