Certification Number	ZC12-21080284
Name	illumino WallMote 7
Short Description	Aeotec WallMote 7 is an intelligent Z-Wave™ remote/ scene controller.

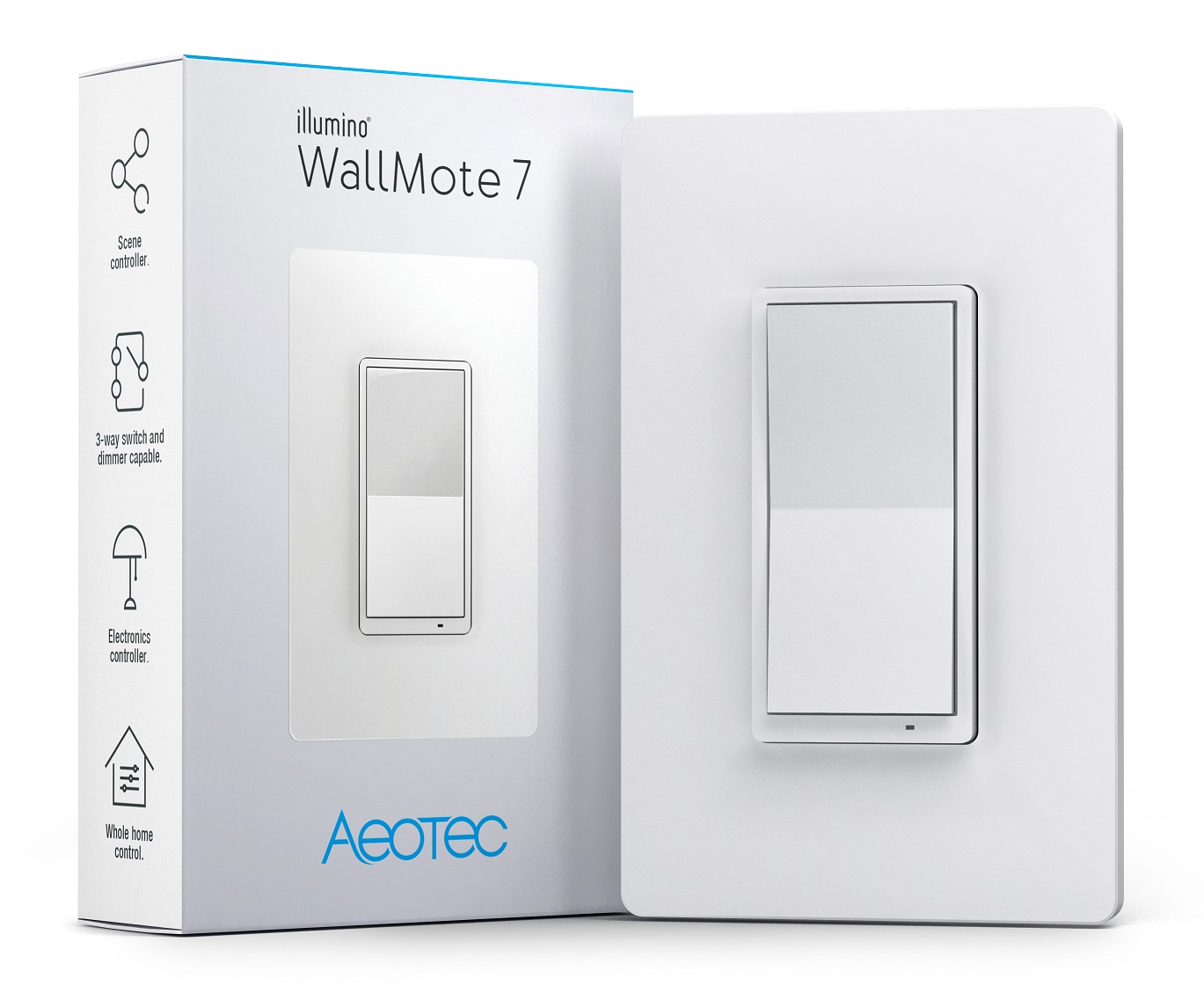

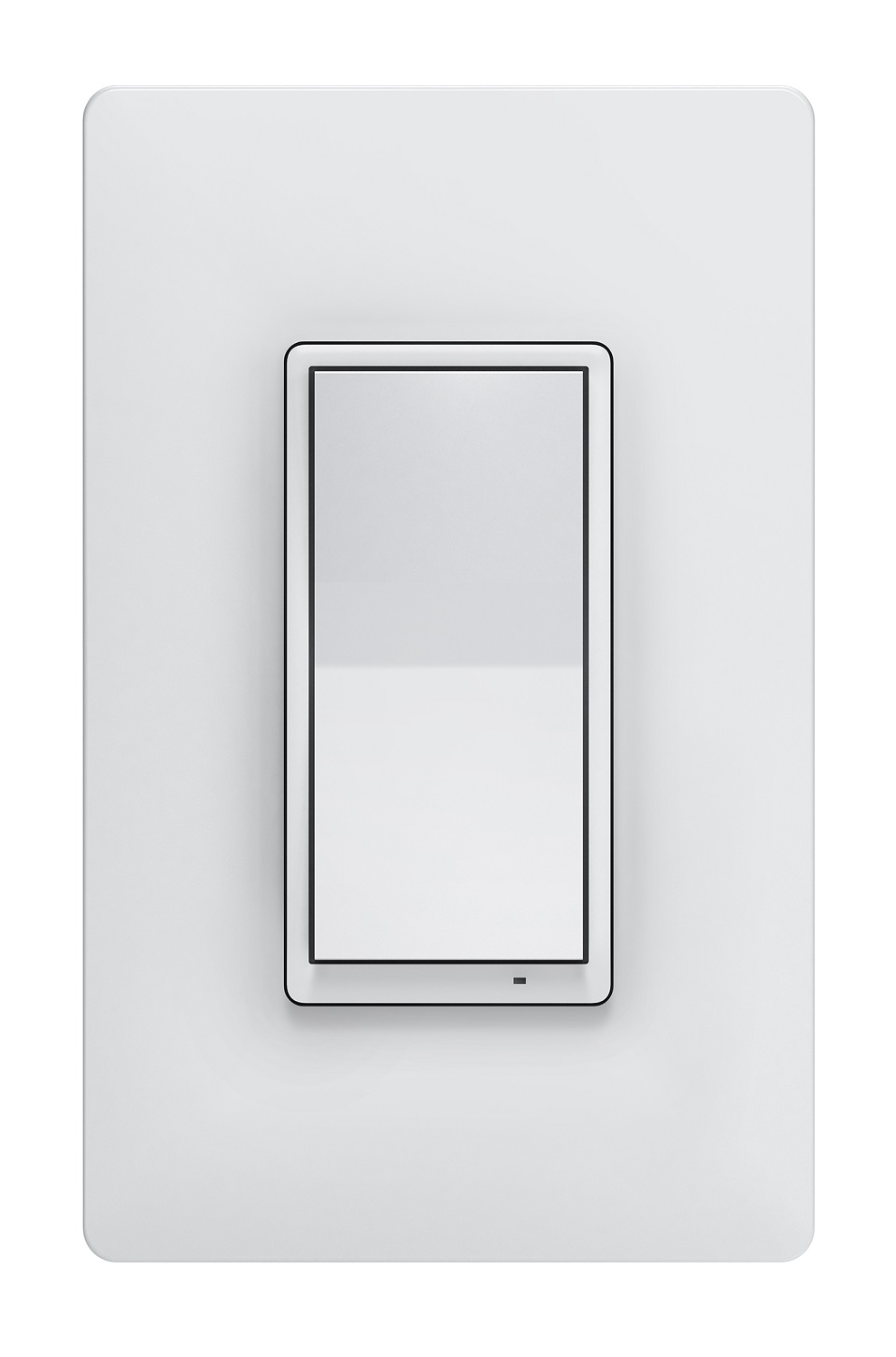

Long Description	Aeotec WallMote 7 is an intelligent Z-Wave™ remote/ scene controller that can be mounted on a wallbox. It has 2 push buttons that you can easily control the Z-Wave devices in your home network via tapping, long pressing the buttons. It has a RGB LED to indicate the button actions. The WallMote 7 is also a security Z-Wave Plus™ device and supports Over The Air (OTA) feature for the products firmware upgrade.
Brand	Aeotec
Product Identifier	ZWA022-A
Product Line	Line A
OEM Version	HW: 1 FW: 1.04
Hardware Platform	ZGM130
Z-Wave Version	7.13.9
Library Type	SLAVE_ENHANCED_232
Device Type	Central Scene Device
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x0371
Product Type ID	0x0102
Product ID	0x0016
User Icon	0x0A00
Installer Icon	0x0A00
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, All Controllers, Gateway Controller, Entertainment Controller, Handheld Controller, Motor Control, Fan Control
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_CONFIGURATION_V4 Configuration V4 0x70 4 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_ASSOCIATION_V3 Association V3 0 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V4 Multi-Channel Association V4 0 COMMAND_CLASS_INDICATOR_V3 Indicator V3 0x87 3 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_TRANSPORT_SERVICE_V2 Transport Service V2 0x55 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 Firmware Update Meta-Data V5 0x7A 5 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 Association Group Information V3 0x59 3 COMMAND_CLASS_SECURITY_2 Security S2 0x9F 1 COMMAND_CLASS_VERSION_V3 Version V3 0x86 3 COMMAND_CLASS_CENTRAL_SCENE_V3 Central Scene V3 0x5B 3 COMMAND_CLASS_SUPERVISION Supervision 0x6C 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
S2 Classes	S2_UNAUTHENTICATED, S2_AUTHENTICATED
Documents	Category Description File Manual_English Product Manual in English Engineering Spec - Aeotec WallMote 7_US.pdf Manual_Primary_Lang Product Manual Aeotec WallMote 7 manual.pdf
Features	Feature Values Battery Quantity Value 2 Z-Wave Scene Type Value Central Scene Battery Type Value CR2032 Firmware Updatable Value Updatable by Consumer by RF Color Value White
Association Groups	Group Number Maximum Nodes Supported End Point ID Group Name Profile Description 2 5 0 Top button set ON/OFF 0x2001 Issued Basic Set/ Switch Binary Set when Top button press. (The command class is determined by Parameter 2) 3 5 0 Top button multilevel set 0x2001 Issued Multilevel Switch Set when Top button press. 4 5 0 Buttom button set ON/OFF 0x2002 Issued Basic Set/ Switch Binary Set when Bottom button press. (The command class is determined by Parameter 2) 5 5 0 Bottom button multilevel set 0x2002 Issued Multilevel Switch Set when Top button press. 6 5 0 Top and Bottom button set ON/OFF 0x2003 Issued Basic Set/ Switch Binary Set when Bottom button press. (The command class is determined by Parameter 2) 7 5 0 Top/ Bottom button multilevel set 0x2003 Issued Multilevel Switch Set when Top button press. 1 5 0 Lifeline 0x0001 This is the Lifeline group
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values Flag ReInclude Flag Advanced 85 Upper indicator color Select the color when upper paddle pressed. 2 1 0 9 9 Warning: Undefined variable $field_object in /nas/content/live/zwaprodcatalog/wp-content/themes/hello-elementor-child/single-z-wave-product.php on line 98 From To Description 5 5 Cyan 3 3 Green 2 2 Blue 1 1 Red 4 4 Pink 0 0 Disable 6 6 Purple 7 7 Orange 8 8 Yellow 9 9 White 86 Lower indicator color Select the color when lower paddle pressed. 2 1 0 9 5 From To Description 7 7 Orange 9 9 White 8 8 Yellow 6 6 Purple 5 5 Cyan 4 4 Pink 3 3 Green 2 2 Blue 1 1 Red 0 0 Disable 87 Enable/ disable FLiRs Enable/ disable FLiRs 2 1 0 1 0 From To Description 1 1 Enable 0 0 Disable Yes Yes 84 Indicator Display Enable or disable the LED indicator. 2 1 0 1 1 From To Description 0 0 Disable 1 1 Enable 82 Communication failure LED Communication failure LED. 2 1 0 1 1 From To Description 0 0 Disable 1 1 Enable 81 Wake up LED Enable or disable the LED displaying when wake up the device. 2 1 0 1 1 From To Description 0 0 Disable 1 1 Enable 2 Definite Switch Group Control Select association group 2/4/6's reports type: basic or binary set. 2 1 0 1 0 From To Description 0 0 Basic Set 1 1 Binary Switch Set 4 Define custom brightness Setting the custom brightness level for parameter 3. 2 1 0 99 50 From To Description 0 99 0-99% brightness level 3 Define Dimmer Group Control Select the association group 3/5/7's behavior when double tap the paddle. 2 1 0 2 1 From To Description 0 0 Disable 1 1 2x Tap = toggle full 100% or full 0% 2 2 2x Tap = toggle custom brightness level or 0% (Parameter 4) 1 Define button output Enable or disable association group command and central scene command. 2 1 0 2 2 From To Description 0 0 Group Association only 1 1 Central Scene only 2 2 Group Association and Central Scene
Texts	ID Description Value 8 Where to find S2 DSK on product 1. Page 5 in the Engineering Spec manual. 2. Page 5 in the user manual. 1 Classic Inclusion 1. Turn your Z-Wave gateway/ controller into adding mode. 2. Tap once the top/ bottom button, then the device will enter pairing mode. 2 Classic Exclusion 1. Turn your Z-Wave gateway/ controller into removing mode. 2. Tap 6 times the top/ bottom button, then the device will enter unpairing mode. 5 Factory Reset Procedure Press and hold the top/buttom button for 20s 4 Wake-Up Procedure 7x tap the top/buttom button.
Supports NWI	Yes
Supports Explorer Frames	Yes
Supports SmartStart	Yes
