Product Recognition | |
|---|
Certification Number | ZC10-18046089 |
|---|

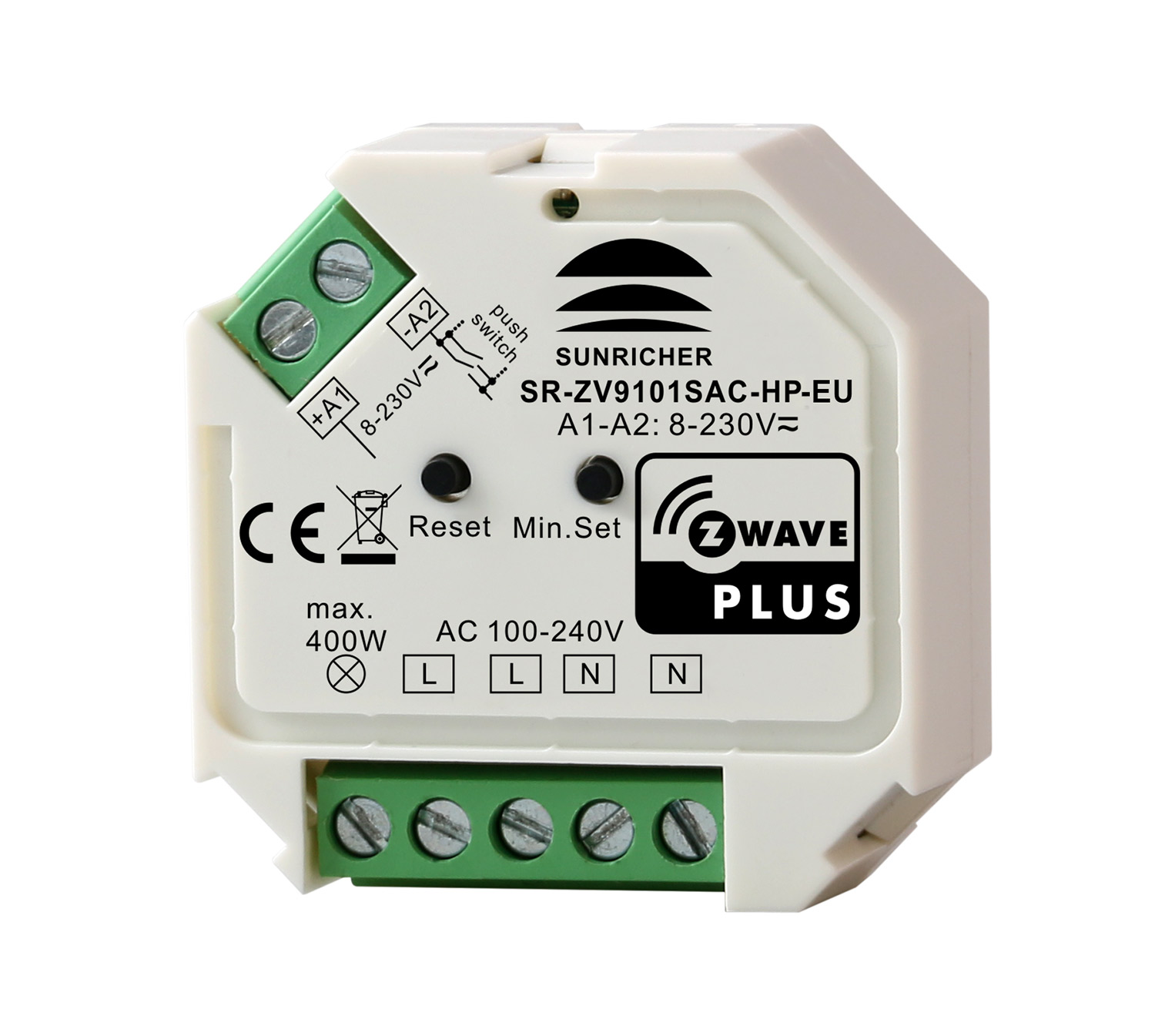

Name | In-wall Dimmer |
|---|
Short Description | The in-wall dimmer is a Z-Wave device that is used to switch ON/OFF and adjust light intensity of the connected light and can be controlled by other Z-Wave devices. |
|---|
Long Description | The in-wall dimmer is a Z-Wave device that is used to switch ON/OFF and adjust light intensity of the connected light and can be controlled by other Z-Wave devices. The Inwall Dimmer can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non- battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. |
|---|
Brand | Sunricher |
|---|
Product Identifier | SR-ZV9101SAC-HP-EU |
|---|
OEM Version | HW: 1 FW: 1.00 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.71.01 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Light Dimmer Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0330 |
|---|
Product Type ID | 0x0200 |
|---|
Product ID | 0xD005 |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0600 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_SCENE_ACTUATOR_CONF | Scene Actuator Conf | 0x2C | 1 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_SWITCH_MULTILEVEL_V4 | Switch Multilevel V4 | 0x26 | 4 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_SCENE_ACTIVATION | Scene Activation | 0x2B | 1 | COMMAND_CLASS_CONFIGURATION_V2 | Configuration V2 | 0x70 | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Supported Notification Types | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | 1. When factory reset the dimmer, send "Device Reset Locally Notification CC" to associated devices of this group to report factory reset information.
2. When load state changes, send "Basic Report CC" to associated devices of this group.
3. When a load malfunction is detected, send "Emergency shutoff status" to Lifeline. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
4 | Default fade time | Default fade time (unit is second, this value has the same function as Duration of Multilevel) | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 0 | Instantly | 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution. | 128 | 254 | 1 minute (0x80) to 127 minutes (0xFE) in 1 minute resolution. | 255 | 255 | Factory default duration. （1 second） |
| 2 | Saving load state before power failure | Saving load state before power failure | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
1 | 1 | turn on load | 2 | 2 | save load state before power failure | 0 | 0 | shutoff load |
| 3 | Enable/disable to send the basic report | Enable/disable to send the basic report to the Lifeline when the load state changed (When value set as 1, re-power on the dimmer, it will send Basic report automatically） | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 0 | Disable to send Basic report | 1 | 1 | Enable to send Basic report |
| 5 | Setting minimum brightness value | Setting minimum brightness value | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 50 | the bigger the value is, the higher the load’s minimum brightness is |
| 6 | Choose MOSFET driving type | Choose MOSFET driving type | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | trailing edge | 1 | 1 | leading edge |
| 7 | Enable/disable external switch to be added to and removed from a network | Enable/disable external switch to be added to and removed from a network (when enables this function, triple press the external switch within 1.5 seconds to be added to or removed from a network) | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 1 | enable | 0 | 0 | disable |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | 1. Set primary controller/gateway into inclusion mode (Please refer to your primary controllers manual on how to turn your controller into inclusion).
2. Power on the in-wall dimmer and set it into inclusion mode. There are two methods to set the in-wall dimmer into inclusion mode:
1)Repower on the dimmer, it will be set into inclusion mode automatically, and waiting to be included.
2)Triple press the action button on the dimmer, it will set the plug into inclusion mode.
The connected light will stay solid on for 3 seconds to indicate successful inclusion. | 5 | Factory Reset | Press and hold down the action button for over 10 seconds, the dimmer will be reset to factory defaults. | 2 | Exclusion | There are two exclusion methods:
Method 1: Exclusion from the primary controller/gateway as follows:
1. Set the primary controller/gateway into exclusion mode (Please refer to your primary controllers manual on how to set your controller into exclusion).
2. Triple press the action button, the dimmer will be set to exclusion mode, and waiting to be excluded, then the dimmer will be included to the network.
Method 2: Factory reset the dimmer will force the it to be excluded from a network.
(please refer to the part “Factory Reset” of this manual)
Note: Factory reset is not recommended for exclusion, please use this procedure only if the primary controller/gateway is missing or otherwise inoperable. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
System | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
