Certification Number	ZC10-14090004

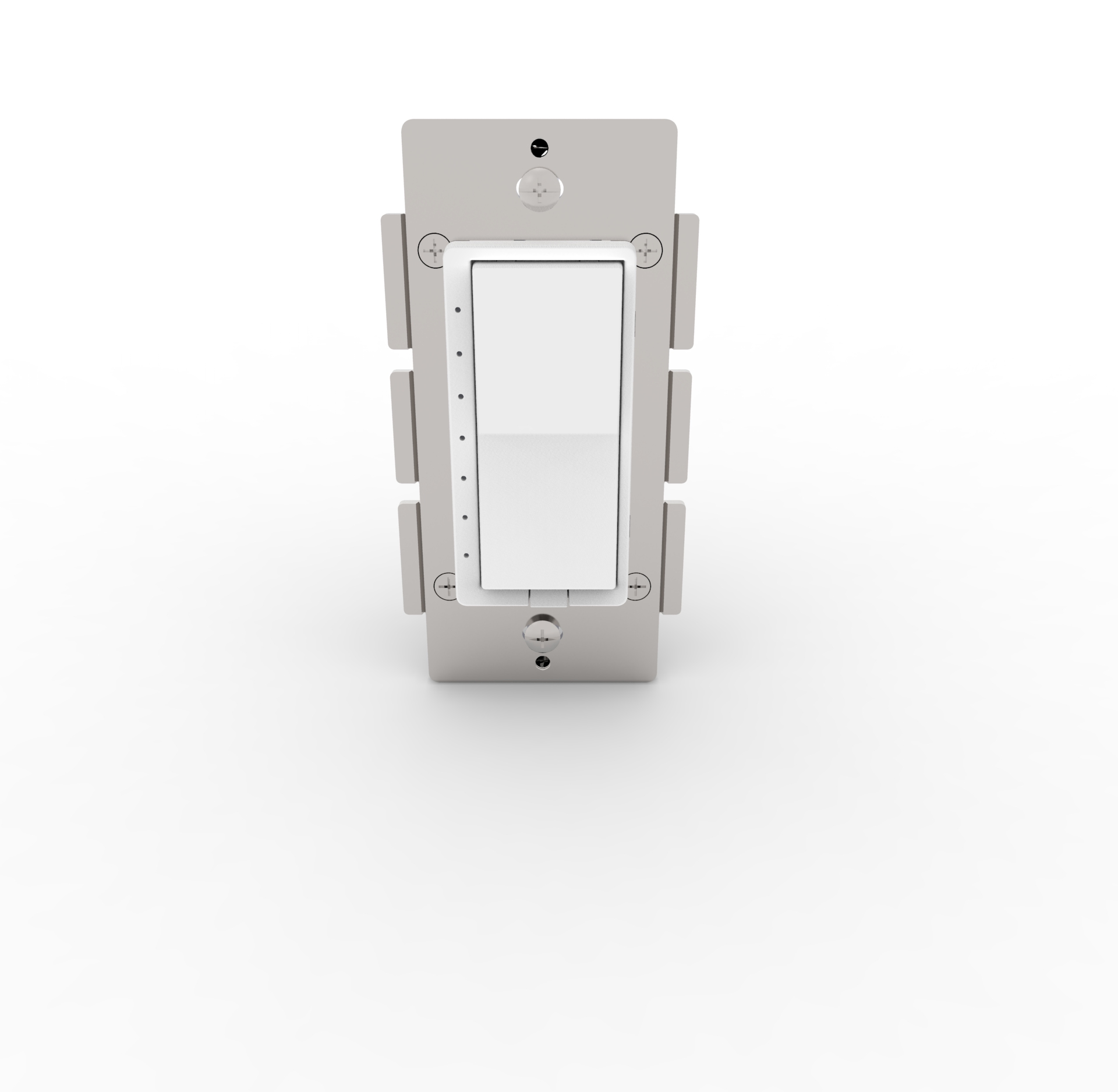

Name	In-Wall Dimmer Switch
Short Description	WD-100 In Wall Dimmer Switch - Replaces existing wall switch - Remotely or manually turns On, Off, or dim lights - Fits standard wall plates - Z-Wave Plus certified with 500 series chipset - Functions as a Z-Wave signal repeater
Long Description	- Works with incandescent and dimmable florescent (CFL) or LED lighting - ON/OFF status and location LED indicator - Fits into standard single or multiple gang junction box - Keypad can be replaced manually to match color with other wall switches - Over-The-Air firmware upgrade available with compatible gateway, Z-Wave static controller, or PC and software - Internal resettable fuse to protect from surge current - Manual reset capability
Brand	Dragon Tech Industrial, Ltd.
Product Identifier	WD-100
OEM Version	HW: 255
Hardware Platform	ZM5202
Z-Wave Version	6.51.02
Library Type	SLAVE_ENHANCED_232
Device Type	Light Dimmer Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0184
Product Type ID	0x4447
Product ID	0x3034
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, Dimming Lighting Devices
Countries / Regions	United States of America
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual WD100 UG 8.29.14.doc
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Lifeline association only supports the "manual reset" event.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 4 Orientation of ON/OFF rocker switch The orientation of the ON/OFF on the rocker switch can be inverted. 0 1 0 0 0 From To Description 0 0 The connected light will turn ON by pressing the top side of the rocker switch and turn OFF by pressing the bottom side. 1 1 The connected light will turn OFF by pressing the top side of the rocker switch and turn ON by pressing the bottom side. 9 Dimming increments Adjust the number of steps/levels the lighting dim levels will change from low to high or from high to low after time out duration specified in parameter 10 0 1 0 0 1 From To Description 1 99 Indicates the number of increments brightness can be adjusted from low to high and from high to low. 10 Time interval of brightness change Sets duration of each level set in parameter 9 as you move from low to high and high to low. The resolution is 10 milliseconds. For example, a default value of 3 means the timer runs out every 30 milliseconds. Using the combinations of parameters 9 and 10, you can create a very fast or very slow dim rate adjustment. 0 1 0 0 3 From To Description 1 255 Select time out duration to move to the next brightness level. Larger the number, slower the response rate to adust dim levels.
Texts	ID Description Value 2 Exclusion 1. Turn the connected appliance ON/OFF by tapping the switch. Tapping and releasing the upper part of the rocker turns the appliance ON. Tapping and releasing the lower part of the rocker turns the appliance OFF. 2. Delete(Exclude) the module to/from your Z-Wave network with your primary controller. Please refer to the instructions manual of your gateway or remote controller for details and procedures on how these actions can be done. 3. Normally, the sequence is as follows: when the exclusion process is prompted by your primary controller, single click and release the rocker switch. The controller should show that the action was successful. If the controller shows it was a fail, repeat the procedure. 1 Inclusion 1. Turn the connected lights ON/OFF by tapping the switch. Tapping and releasing the upper part of the rocker turns the appliance ON. Tapping and releasing the lower part of the rocker turns the appliance OFF. 2. Add(Include) the module to/from your Z-Wave network with your primary controller. Please refer to the instructions manual of your gateway or remote controller for details and procedures on how these actions can be done. 3. Normally, the sequence is as follows: when the inclusion process is prompted by your primary controller, single click and release the rocker switch to ON or OFF position. The controller should show that the action was successful. If the controller shows it was a fail, repeat the procedure. 5 Factory Reset Please use this procedure only in the event that the network primary controller is lost or otherwise inoperable. All Configuration Parameters can all be restored to their factory default settings by using your primary controller to delete/reset the device. To manually reset, tap the ON button twice quickly and then tap the OFF button twice quickly. Repeat the procedure to restore the settings to the factory default.
Supports NWI	Yes
Supports Explorer Frames	Yes
