Product Recognition
Certification Number	ZC12-21070274

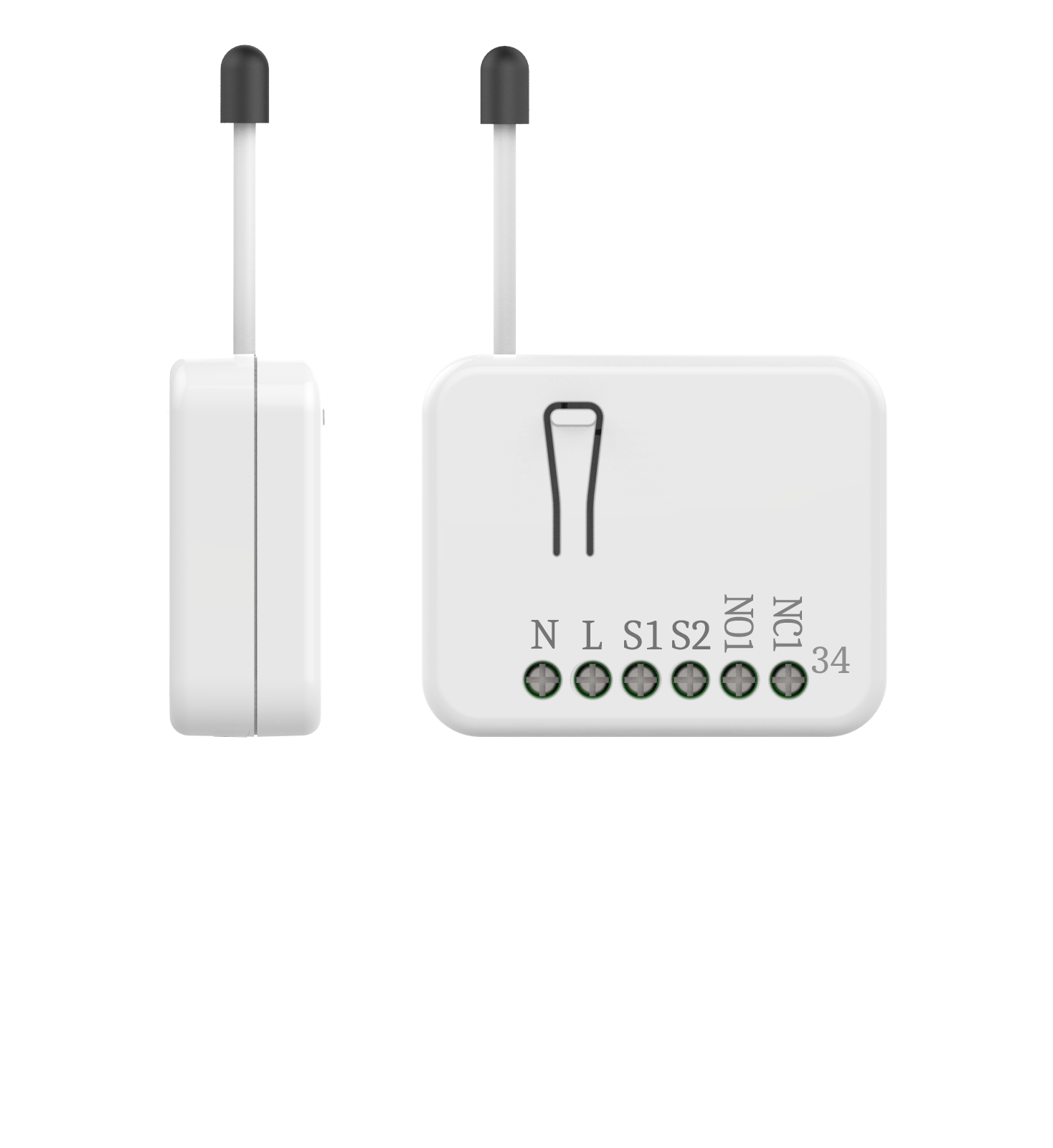

Name	In Wall Roller shutter Controller
Short Description	The in-wall Roller Shutter Controller is designed to switch rise/lower roller shutter connected to its terminals using radio waves, controllers and a push button directly connected to this Roller Controller.
Long Description	The in-wall Roller Shutter Controller is designed to switch rise/lower roller shutter connected to its terminals using radio waves, controllers and a push button directly connected to this Roller Controller. This in-wall Roller Shutter Controller is a Z-Wave Plus TM enabled wireless device fully compatible with any Z-Wave TM enabled networks. This device is a security enabled Z-Wave Plus product that uses encrypted Z-Wave Plus messages to communicate to other security enabled Z-Wave Plus products. Z-Wave TM enabled devices displaying the Z-Wave TM logo can also be used with this device regardless of the manufacturer. This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturer. Within the network it will act as repeater regardless of vender to increase reliability of the network. Slim design let the Controller can easily hide itself into the wall box and that will be good for the house decoration. This device must be used in conjunction with a Security Enabled Z-Wave Controller in order to fully utilize all functions. Its functionality and supported command classes is identical when included as a secure and non-secure device. The new smart relay calibration technology can reduce the inrush current caused by the load and let the module work perfectly with many kind of Roller Shutter. This in-wall Roller Shutter Controller is able to detect position of the Shutter by using the patterned power measuring method, so it can be remote controlled not only fully up or down, but also can be adjusted to ex. 30% or 50%. And when manual controlled by push button, the controller also can memorize the position and send the new shutter position to its controller (ex. IP-Gateway).
Brand	Philio
Product Identifier	PAN34-ANZ
Product Line	Philio Z-Wave Products
OEM Version	HW: 1 FW: 1.01
Hardware Platform	ZGM130
Z-Wave Version	7.15.1
Library Type	SLAVE_ENHANCED_232
Device Type	Window Covering DT
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x013C
Product Type ID	0x0001
Product ID	0x0080
User Icon	0x1A00
Installer Icon	0x1A00
Frequency Plans	ANZ: 919.80MHz, 921.40MHz
Categories	Window Covering
Countries / Regions	Chile, Australia, Brazil, Malaysia
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_CONFIGURATION_V4 Configuration V4 0x70 4 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_INDICATOR_V3 Indicator V3 0x87 3 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_TRANSPORT_SERVICE_V2 Transport Service V2 0x55 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_METER_V3 Meter V3 0x32 3 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 Firmware Update Meta-Data V5 0x7A 5 COMMAND_CLASS_SWITCH_MULTILEVEL_V4 Switch Multilevel V4 0x26 4 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 Association Group Information V3 0x59 3 COMMAND_CLASS_NOTIFICATION_V8 Notification V8 0x71 8 COMMAND_CLASS_BASIC_V2 Basic V2 0x20 2 COMMAND_CLASS_SECURITY_2 Security S2 0x9F 1 COMMAND_CLASS_VERSION_V3 Version V3 0x86 3 COMMAND_CLASS_WINDOW_COVERING Window Covering 0x6A 1 COMMAND_CLASS_SUPERVISION Supervision 0x6C 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
S2 Classes	S2_UNAUTHENTICATED, S2_AUTHENTICATED
Documents	Category Description File Manual_Primary_Lang Product Manual PAN34 manual-20210728.pdf
Features	Feature Values Color Value White Firmware Updatable Value Updatable by Consumer by RF Window Covering Control Features Value Position Aware Automatic Calibration Supports Open/Close Motion
Association Groups	Group Number Maximum Nodes Supported End Point ID Group Name Profile Description 1 5 0 Lifeline 0x0001 There is only one group called Lifeline，there is only 5 nodes for Group1 which sup-port MULTILEVEL_SWITCH_REPORT、METER_REPORT_COMMAND_V3、 NOTI-FICATION_REPORT and DEVICE_RESET_LOCALLY_NOTIFICATION.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 2 External switch mode It is used to define the external button mode. 3 1 1 2 2 From To Description 1 0 One Push button 2 0 Two Push button 3 Total moving time of curtain This is a way for setting the total moving time of curtain manually. 2 2 0 6000 0 From To Description 0 0 The time depends on Moving Range Calibration 1 6000 0.1s~600s 5 Watt differential Whenever the watt value varies over 5%, PAN34 will send the meter report to group 1 nodes. The default value is 1 (5%). 3 1 0 1 1 From To Description 0 0 It will not report Watt when change over 5% 1 0 It will report watt value when the differential is over 5% 4 Watt threshold The threshold is for PAN34 judging if the motor is running or not. The default value is 1 watts. 2 1 1 5 1 From To Description 1 5 The threshold is a judgment for motor running or not 6 Timer offset for motor start running This parameter is an offset to count for starting time of the motor. It will improve the inaccurate when moving to the middle position. The default value is 50. 2 2 0 255 50 From To Description 0 255 0s ~ 2.55s, 50 = 0.5s 1 Watt Meter Report Period If the setting is configured for 1hour (set value =720), the PAN34 will report its instant power consumption every 1 hour to the node of Group 1. The maximum interval to report its instant power consumption is 45 hours (5s*32767/3600=45hr). Default value is 1 hour. 2 2 0 32767 720 From To Description 0 0 Disable auto Report 1 32767 5s~45 hour
Texts	ID Description Value 8 Where to find S2 DSK on product 1. The product has a DSK string. Key in the first five digits to initiate the SmartStart process, or scan QR code. Ex: DSK: 18112-24021- 48001-62259-57092-27453-08187-47408 2. SmartStart enabled products can be added into a Z-Wave™ network by scanning the Z-Wave™ QR Code on the product, with a controller providing SmartStart inclusion. No further action is required and the SmartStart product will be added automatically to the closest network within 10 minutes of being switched on. Notice: The QR Code can be found on the device PAN34 or in the box. 2 Classic Exclusion 1. Put your Z-Wave controller into exclusion mode by following the instructions provided by the controller manufacturer. 2. Pressing INCLUDE_BUTTON three times within 2 seconds will enter exclusion mode. 3. Node ID has been excluded. 5 Factory Reset Procedure 1. Pressing INCLUDE_BUTTON three times within 2 seconds will enter inclusion mode. 2. Within 1 second, press On/Off button again for 5 seconds. 3. IDs are excluded. 1 Classic Inclusion 1. Put your Z-Wave controller into inclusion mode by following the instructions provided by the controller manufacturer. 2. Pressing INCLUDE_BUTTON three times within 2 seconds will enter inclusion mode.
Supported / Controlled Meter Types	Meter Type Rate Type Description Electric meter Import Electric Meter Consumption
Supported Notification Types	Notification Type Event / State Power Management (Refer to parameters): State idle Power Management Over-load status: Over-load detected
Supports NWI	Yes
Supports Explorer Frames	Yes
Supports SmartStart	Yes
