Product Recognition | |
|---|
Certification Number | ZC10-19086695 |
|---|

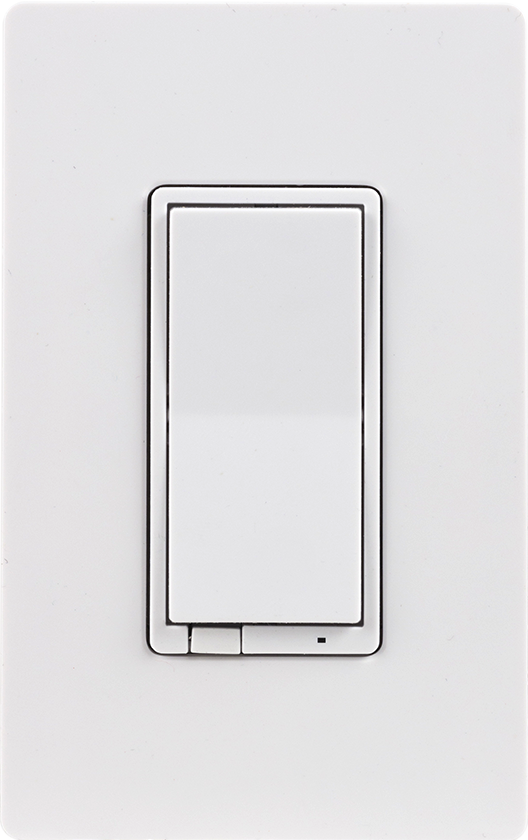

Name | In-Wall Smart Dimmer |
|---|
Short Description | Honeywell In-Wall Smart Dimmer with QuickFit and SimpleWire enhancements. |
|---|
Long Description | In-Wall Smart Dimmer with QuickFit and SimpleWire enhancements. Revolutionary QuickFit design features a housing depth that is up to 20 percent smaller than the previous Z-Wave models. This reduced size coupled with the elimination of heat taps provides a better fit in older style boxes and multi-gang configurations. SimpleWire technology allows line and load to automatically be configured with auto-sensing line-load terminals. All of this is coupled with Z-Wave S2 and Smart Start allows for effortless installation while being safer than ever! |
|---|
Brand | Honeywell |
|---|
Product Identifier | 39351/ZW3010 |
|---|
OEM Version | HW: 255 FW: 5.53 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.81.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Light Dimmer Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0039 |
|---|
Product Type ID | 0x4944 |
|---|
Product ID | 0x3235 |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0604 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SWITCH_MULTILEVEL_V4 | Switch Multilevel V4 | 0x26 | 4 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Manufacturer |
| Neutral Wire Required | | Z-Wave Scene Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Association Group 1 supports Lifeline, Multilevel Switch Report | 2 | 5 | 0 | Association Group 2 supports Basic Set and is controlled by pressing the ON or OFF button with the local load | 3 | 5 | 0 | Association Group 3 supports Basic Set and is controlled by double pressing the ON or OFF button |
|
|---|
Configuration Parameters | Parameter Number | Name | Format | Size | Min Value | Max Value | Default Value | Parameter Values | Description |
|---|
3 | LED indication configuration | 0 | 1 | 0 | 0 | 0 |
Warning: Undefined variable $field_object in /nas/content/live/zwaprodcatalog/wp-content/themes/hello-elementor-child/single-z-wave-product.php on line 98
From | To | Description |
|---|
0 | 0 | The device is ON, LED is OFF; the device is OFF, LED is ON | 1 | 1 | The device is ON, LED is ON; the device is OFF, LED is OFF | 2 | 2 | LED always OFF | 3 | 3 | LED always ON |
| | 6 | Dim Up/Down Rate | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Dim up/down the light to the specified level quickly by command except value O and FF | 1 | 1 | Dim up/down the light to the specified level slowly by command except value O and FF |
| | 31 | Maximum Brightness Threshold | 0 | 1 | 0 | 0 | 99 | From | To | Description |
|---|
1 | 99 | Set the maximum brightness threshold when manually or remotely controlled |
| Set the maximum brightness threshold when manually or remotely controlled |
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | 1. Follow the instructions for your Z-Wave certified controller to add a device to the Z-Wave network.
2. Once the controller is ready to add your device, press and release the top or bottom of the wireless smart dimmer (rocker) to add it in the network.
If prompted by the controller to enter the S2 security code, refer to the QR code/security number on the back of the box, or the QR code label on the product. | 2 | Exclusion | 1. Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network.
2. Once the controller is ready to remove your device, press and release the top or bottom of the wireless smart dimmer (rocker) to remove it from the network. | 5 | Factory Reset | Quickly press ON (top) button 3 times, then, immediately press the OFF (bottom) button 3 times. The LED will flash 5 times when completed successfully.
Note: This should only be used in the event your network’s primary controller is missing or otherwise inoperable. | 6 | Additional Special Features | Button Press Functions
Cycle LED= Press 3 up then 1 down to cycle through LED status
Switch Mode = Press 5 up then 5 down if done successfully the LED will blink 5 times
Min Threshold = Press 4 down then 1 up, if done successfully the device will turn to 1% and the LED will start to blink signaling the device is in setup mode. Press and hold up or down to adjust the device to the desired minimum threshold.
Max Threshold = Press 4 up then 1 down, if done successfully the device will turn to 99% and the LED will start to blink signaling the device is in setup mode. Press and hold down or up to adjust the device to the desired maximum threshold. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
