Product Recognition | |
|---|
Certification Number | ZC10-19126826 |
|---|

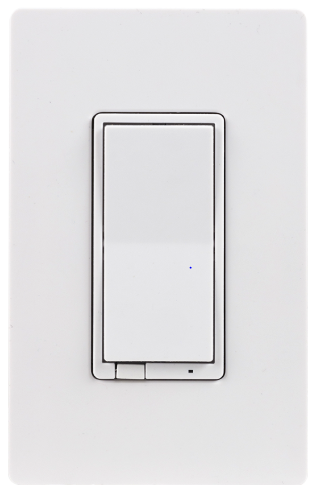

Name | In-Wall Smart Dimmer |
|---|
Short Description | In-Wall Smart Dimmer with QuickFit and SimpleWire enhancements. |
|---|
Long Description | In-Wall Smart Dimmer with QuickFit and SimpleWire enhancements. Revolutionary QuickFit design features a housing depth that is up to 20 percent smaller than the previous Z-Wave models. This reduced size coupled with the elimination of heat taps provides a better fit in older style boxes and multi-gang configurations. SimpleWire technology allows line and load to automatically be configured with auto-sensing line-load terminals. All of this is coupled with Z-Wave S2 and Smart Start allows for effortless installation while being safer than ever! |
|---|
Brand | Resideo |
|---|
Product Identifier | 39458/ZW3010 |
|---|
Product Line | Smart Control |
|---|
OEM Version | HW: 255 FW: 5.54 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.81.04 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Light Dimmer Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x041B |
|---|
Product Type ID | 0x4944 |
|---|
Product ID | 0x3038 |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0604 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Hospitality, All Lighting Devices, Dimming Lighting Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SWITCH_MULTILEVEL_V4 | Switch Multilevel V4 | 0x26 | 4 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Neutral Wire Required | | Z-Wave Scene Type | | Firmware Updatable | Value |
|---|
Updatable by Manufacturer |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 5 | 0 | Lifeline | Supports Device Reset Locally and receives unsolicited status updates. | 3 | 5 | 0 | Double Press | Association Group 3 supports BasicSet and is controlled by double pressing the button. | 2 | 5 | 0 | Single Press | Association Group 2 supports BasicSet and is controlled by single pressing the button. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
3 | LED indication configuration | LED indication configuration | 1 | 1 | 0 | 3 | 0 | From | To | Description |
|---|
3 | 3 | LED always ON | 2 | 2 | LED always OFF | 1 | 1 | The device is ON, LED is ON; The device is OFF, LED is OFF | 0 | 0 | The device is ON, LED is OFF; the device is OFF, LED is ON |
| 6 | Dim up/down rate | Dim up/down rate | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Dim up/down the light to the specified level quickly by command except value 0 and FF | 1 | 1 | Dim up/down the light to the specified level slowly by command except value 0 and FF |
| 31 | Maximum Brightness Threshold | Maximum Brightness level | 1 | 1 | 1 | 99 | 99 | From | To | Description |
|---|
1 | 99 | 1%-99% | 99 | 99 | 99% |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | This dimmer is SmartStart enabled. If your controller supports SmartStart inclusion, this dimmer can be added into the Z-Wave network by following the instructions for your controller or hub and scanning the Z-Wave QR Code on the front or on the package when instructed. No further action is required, and the dimmer will be added automatically within 10 minutes of being powered up while in range Z-Wave network. | 2 | Classic Exclusion | Press on 2 times and off 2 times. LED will flash 5 times if exclusion was successful. | 1 | Classic Inclusion | This dimmer is SmartStart enabled. If your controller supports SmartStart inclusion, this dimmer can be added into the Z-Wave network by following the instructions for your controller or hub and scanning the Z-Wave QR Code on the front or on the package when instructed. No further action is required, and the dimmer will be added automatically within 10 minutes of being powered up while in range Z-Wave network. | 5 | Factory Reset Procedure | Quickly press ON button 3 times then immediately press the Off button 3 times. The LED will flash ON/OFF 5 times when completed successfully. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
