| Product Recognition | |
|---|
| Certification Number | ZC10-16105269 |
|---|

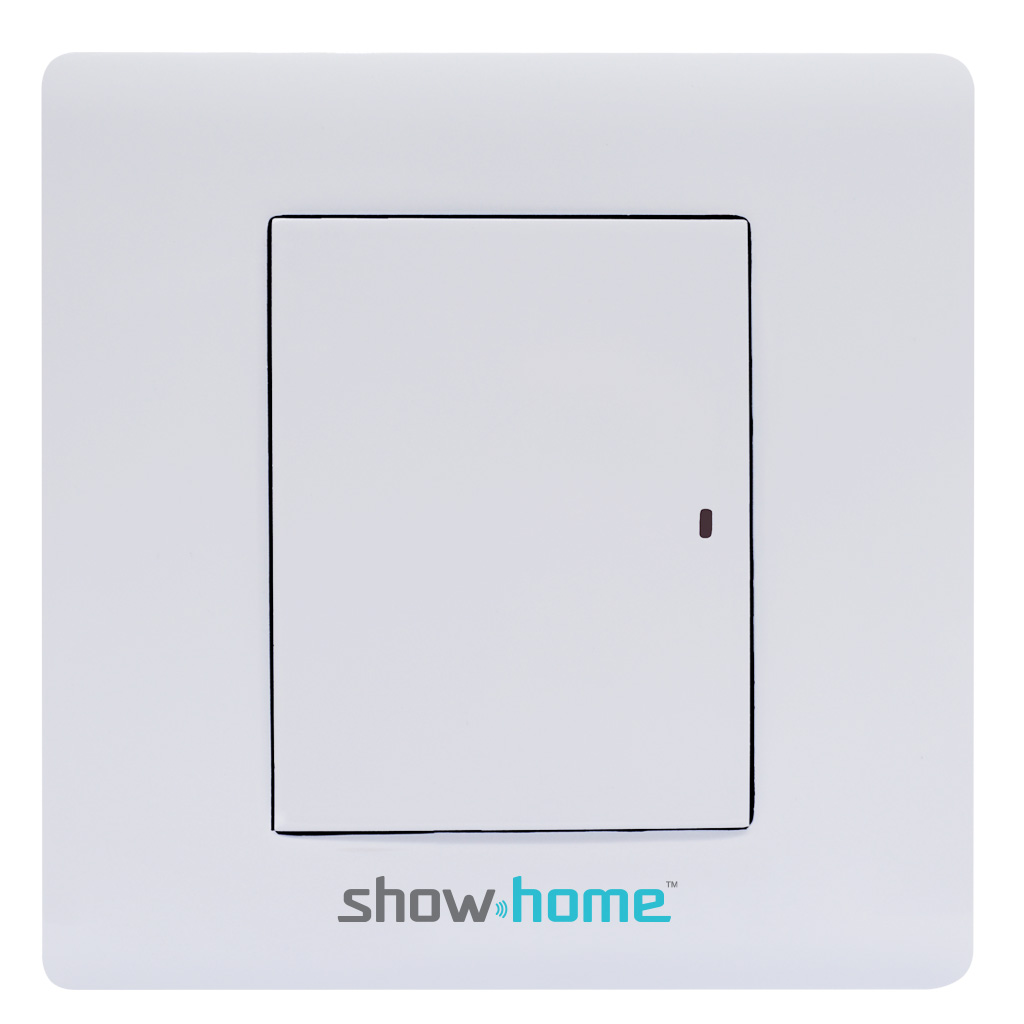

| Name | In-Wall Smart Dimmer |
|---|
| Short Description | In-Wall Smart Dimmer |
|---|
| Long Description | This In-wall type device is controlled by Z-Wave controller through Z-Wave gateway for internet of thing service (loT). It can be configured in Z-Wave sensor network, if Z-Wave certified controller features remote access, you can dim lights at home from your mobile phone, and manual dim light by pushing the front button . |
|---|
| Brand | show home |
|---|
| Product Identifier | ZW671 |
|---|
| OEM Version | HW: 2 FW: 20.15 |
|---|
| Hardware Platform | ZM5202 |
|---|
| Z-Wave Version | 6.51.06 |
|---|
| Library Type | SLAVE_ROUTING |
|---|
| Device Type | Light Dimmer Switch |
|---|
| Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
| Manufacturer ID | 0x015D |
|---|
| Product Type ID | 0x0212 |
|---|
| Product ID | 0x272C |
|---|
| User Icon | 0x0600 |
|---|
| Installer Icon | 0x0601 |
|---|
| Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
| Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
| Countries / Regions | European Union |
|---|
| Documents | |
|---|
| Features | | Feature | Values |
|---|
| Color | | | Electric Load Type | | Value |
|---|
| Incandescent | | Dimmable LED |
| | Switch Load Capacity Watts | | | Neutral Wire Required | | | Switch Type | |
|
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
| Texts | | ID | Description | Value |
|---|
| 1 | Inclusion | 1. Follow the instructions for your Z-Wave certified controller to include a device to the Z-Wave network.
2. Once the controller is ready to include your device, triple click front Button to include it in the network. | | 2 | Exclusion | 1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network.
2. Once the controller is ready to Exclude your device, triple click front Button to exclude it from the network. | | 5 | Factory Reset | 1. Exclude the device from Z-Wave network to reset it to factory default.
2. Please use this procedure only in the event that the network primary controller is missing or otherwise inoperable. |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
