Certification Number | ZC10-17015389 |
|---|

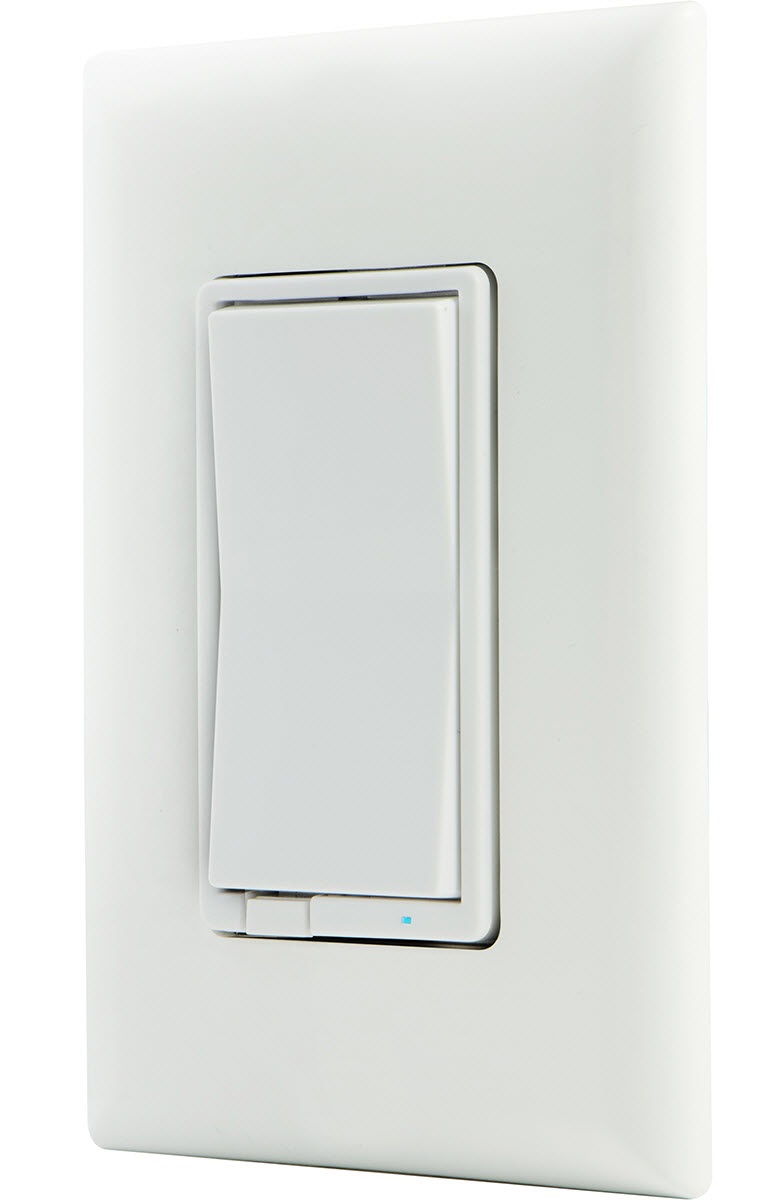

Name | In-Wall Smart Dimmer |
|---|
Short Description | Transform any home into a smart home with the GE In-Wall Smart Dimmer. |
|---|
Long Description | Transform any home into a smart home with the GE In-Wall Smart Dimmer. The In-Wall Smart Dimmer can easily replace any standard in-wall switch and remotely controls a light in your home. Your home will be equipped with ultimate flexibility with the GE Z-Wave Smart Dimmer, capable of being used by itself or with up to four add-on switches. Screw terminal installation provides improved space efficiency when replacing existing switches and the integrated LED indicator light allows you to easily locate the switch in a dark room. The GE Z-Wave In-Wall Smart Dimmer is compatible with any Z-Wave certified gateway, providing access to many popular home automation systems. Take control of your home lighting with GE Z-Wave Smart Lighting Controls! |
|---|
Brand | GE |
|---|
Product Identifier | 14294/ZW3005 |
|---|
OEM Version | HW: 255 FW: 5.26 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.08 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Light Dimmer Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0063 |
|---|
Product Type ID | 0x4944 |
|---|
Product ID | 0x3038 |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0600 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SCENE_ACTUATOR_CONF | Scene Actuator Conf | 0x2C | 1 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_ALL | Switch All | 0x27 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_CRC_16_ENCAP | CRC16 Encapsulation | 0x56 | 1 | COMMAND_CLASS_SWITCH_MULTILEVEL_V2 | Switch Multilevel V2 | 0x26 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SCENE_ACTIVATION | Scene Activation | 0x2B | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Neutral Wire Required | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline, Multilevel Switch Report | 2 | 5 | 0 | Support Basic Set and is controlled with the local load | 3 | 5 | 0 | Supports Basic Set and is controlled by double pressing the On or Off button |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
4 | Invert Switch | If the switch is accidentally installed upside down with “On” at the bottom and “Off” at the top, the default On/Off rocker settings can be reversed by changing parameter 4’s value to “1”. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Default | 1 | 1 | Invert Switch |
| 7 | Dim Rate Adjustments | Dim Rate Adjustments when receiving Z-Wave dim command | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 99 | number of steps or levels |
| 9 | Dim Rate Adjustments | Dime Rate Adjustments when manually controlled dimming | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 99 | number of steps or levels |
| 10 | Dim Rate Adjustments | Dim Rate Adjustments when manually controlling dimming | 0 | 2 | 0 | 0 | 3 | From | To | Description |
|---|
1 | 255 | timing of steps |
| 11 | Dim Rate Adjustments | Dim Rate Adjustments when receiving an All-On or All-Off command | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 99 | number of steps or levels |
| 8 | Dim Rate Adjustments | Dim Rate Adjustments when receiving a Z-Wave dim command | 0 | 2 | 0 | 0 | 3 | From | To | Description |
|---|
1 | 255 | timing of steps |
| 3 | LED Light | When shipped from the factory, the LED is set to turn ON when the connected light is turned OFF. This is the default setting and can be changed if your primary controller supports the node configuration function. To make the LED turn ON when the light is turned ON, change parameter 3’s value to “1”. To turn the LED OFF at all times, change parameter 3’s value to 2. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
1 | 1 | LED ON when load is ON | 2 | 2 | LED always OFF | 0 | 0 | Default |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | 1. Follow the instructions for your Z-Wave certified controller to
include a device to the Z-Wave network.
2. Once the controller is ready to add your device,
press and release the top or bottom of the wireless smart
switch (rocker) to add it in the network.
Please reference the controller’s manual for instructions. | 2 | Exclusion | 1. Follow the instructions for your Z-Wave certified controller to
remove a device from the Z-Wave network.
2. Once the controller is ready to Exclude your device, press
and release the top or bottom of the wireless smart dimmer
(rocker) to remove it from the network. | 5 | Factory Reset | Quickly press ON (Top) button three (3) times then immediately
press the OFF (Bottom) button three (3) times. The LED will flash
ON/OFF 5 times when completed successfully.
NOTE: This should only be used in the event your network’s
primary controller is missing or otherwise inoperable. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
