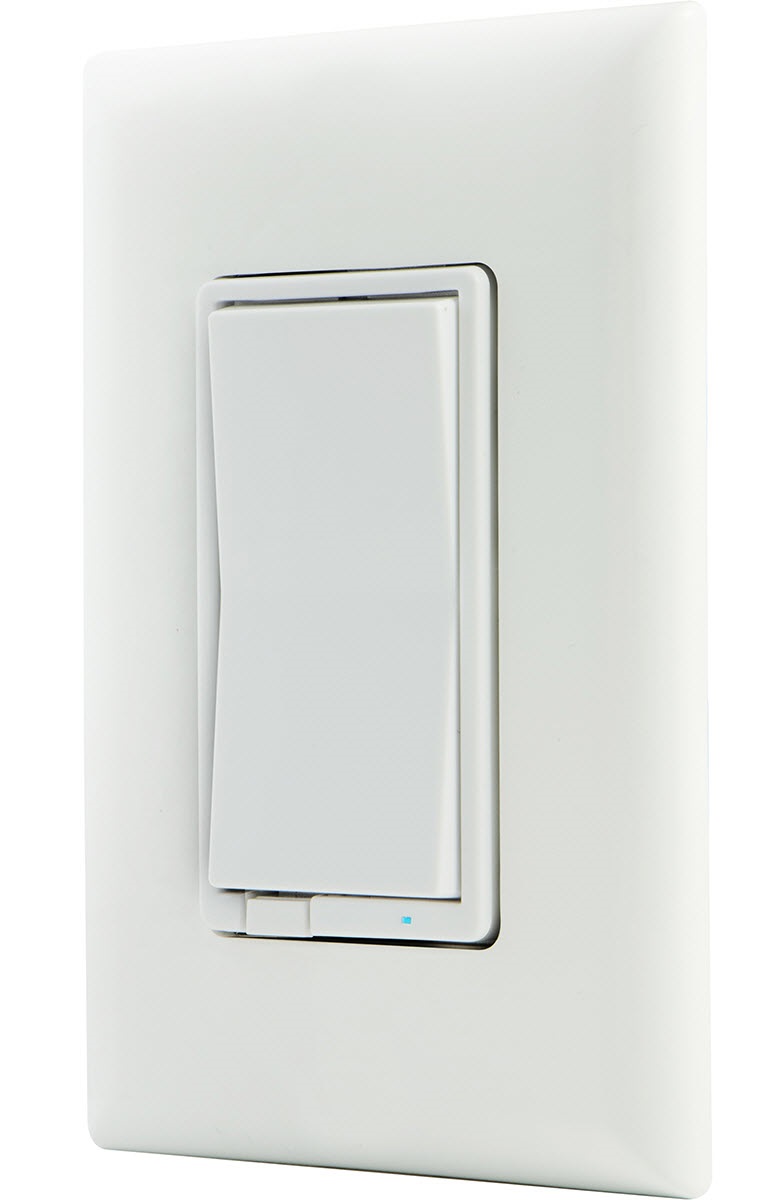

Name	In-Wall Smart Dimmer
Short Description	Transform any home into a smart home with the Jasco In-Wall Smart Dimmer.
Long Description	Transform any home into a smart home with the Jasco In-Wall Smart Dimmer. The In-Wall Smart Dimmer can easily replace any standard in-wall switch and remotely controls a light in your home. Your home will be equipped with ultimate flexibility with the Jasco Z-Wave Smart Dimmer, capable of being used by itself or with up to four add-on switches. Screw terminal installation provides improved space efficiency when replacing existing switches and the integrated LED indicator light allows you to easily locate the switch in a dark room. The Jasco Z-Wave In-Wall Smart Dimmer is compatible with any Z-Wave certified gateway, providing access to many popular home automation systems. Take control of your home lighting with Jasco Z-Wave Smart Lighting Controls!
Brand	Jasco Products Company
Product Identifier	14321/ZW3005
OEM Version	HW: 255 FW: 5.26
Hardware Platform	ZM5202
Z-Wave Version	6.51.08
Library Type	SLAVE_ENHANCED_232
Device Type	Light Dimmer Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0063
Product Type ID	0x4944
Product ID	0x3135
User Icon	0x0600
Installer Icon	0x0600
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, Dimming Lighting Devices
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_SCENE_ACTUATOR_CONF Scene Actuator Conf 0x2C 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SWITCH_MULTILEVEL_V2 Switch Multilevel V2 0x26 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Binder1.pdf
Features	Feature Values Firmware Updatable Value Updatable by Consumer by RF Neutral Wire Required
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 3 5 0 Supports Basic Set and is controlled by double pressing the On or Off button 1 5 0 Z-Wave Plus Lifeline, Multilevel Switch Report 2 5 0 Support Basic Set and is controlled with the local load
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 3 LED Light When shipped from the factory, the LED is set to turn ON when the connected light is turned OFF. This is the default setting and can be changed if your primary controller supports the node configuration function. To make the LED turn ON when the light is turned ON, change parameter 3’s value to “1”. To turn the LED OFF at all times, change parameter 3’s value to 2. 0 1 0 0 0 From To Description 2 2 LED always OFF 0 0 Default 1 1 LED ON when load is ON 4 Invert Switch If the switch is accidentally installed upside down with “On” at the bottom and “Off” at the top, the default On/Off rocker settings can be reversed by changing parameter 4’s value to “1”. 0 1 0 0 0 From To Description 0 0 Default 1 1 Invert Switch 7 Dim Rate Adjustments Dim Rate Adjustments when receiving Z-Wave dim command 0 1 0 0 1 From To Description 1 99 number of steps or levels 8 Dim Rate Adjustments Dim Rate Adjustments when receiving a Z-Wave dim command 0 2 0 0 3 From To Description 1 255 timing of steps 9 Dim Rate Adjustments Dime Rate Adjustments when manually controlled dimming 0 1 0 0 1 From To Description 1 99 number of steps or levels 10 Dim Rate Adjustments Dim Rate Adjustments when manually controlling dimming 0 2 0 0 3 From To Description 1 255 timing of steps 11 Dim Rate Adjustments Dim Rate Adjustments when receiving an All-On or All-Off command 0 1 0 0 1 From To Description 1 99 number of steps or levels
Texts	ID Description Value 1 Inclusion 1. Follow the instructions for your Z-Wave certified controller to include a device to the Z-Wave network. 2. Once the controller is ready to add your device, press and release the top or bottom of the wireless smart switch (rocker) to add it in the network. Please reference the controller’s manual for instructions. 2 Exclusion 1. Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network. 2. Once the controller is ready to Exclude your device, press and release the top or bottom of the wireless smart dimmer (rocker) to remove it from the network. 5 Factory Reset Quickly press ON (Top) button three (3) times then immediately press the OFF (Bottom) button three (3) times. The LED will flash ON/OFF 5 times when completed successfully. NOTE: This should only be used in the event your network’s primary controller is missing or otherwise inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
