Product Recognition
Certification Number	ZC10-15030005

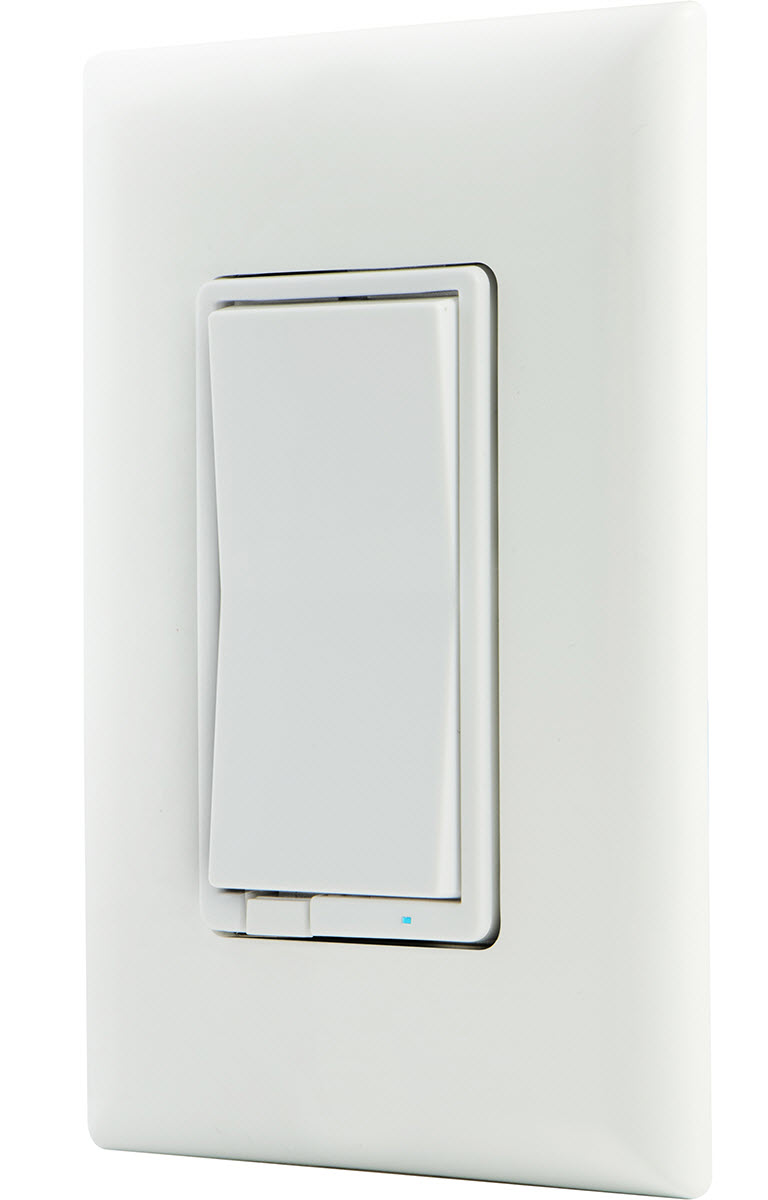

Name	In-Wall Smart Dimmer
Short Description	The Jasco Z-Wave Wireless Lighting Control Dimmer Switch enables wireless control of on/off and dim functions of hard-wired Dimmable LED/CFL and Incandescent lighting.
Long Description	Transform any home into a smart home with the Jasco Z-Wave Wireless Lighting Control Dimmer Switch. The Jasco Z-Wave Wireless Lighting Control Dimmer Switch enables wireless control of on/off and dim functions of hard-wired dimmable LED/CFL and incandescent lighting. The dimmer switch replaces your current light switch, uses your existing wiring, and provides Z-Wave wireless and in-wall control of overhead lighting. Use the dimmer feature to customize the lighting output and create the perfect ambiance for any room. Providing ultimate flexibility, the Jasco Z-Wave Wireless Lighting Control Dimmer Switch allows you to operate the switch by itself or easily integrate the switch with two-way, three-way or four-way wiring configurations by adding the Jasco Auxiliary switch for Z-Wave. Two-way wiring configuration turns the light or appliance on/off from one location. Three-way wiring configuration turns the light or appliance on/off from two separate locations. Four-way wiring configuration turns the light or appliance on/off from three separate locations. The Jasco Auxiliary Switch for Z-Wave is required for three-way or four-way installations. The dimmer switch includes an LED indicator light to easily locate the switch in a dark room. Take control of your home lighting with Jasco Z-Wave Wireless Lighting Controls!
Brand	Jasco Products Company
Product Identifier	14321 (ZW3005)
OEM Version	HW: 255
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Light Dimmer Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0063
Product Type ID	0x4944
Product ID	0x3135
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, Dimming Lighting Devices
Countries / Regions	United States of America
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual 14321 QSG-UL.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 7 Dim Rate Adjustments When receiving a Z-Wave Dim Command Both the number of steps (or levels) that the dimmer will change and the timing of the steps can be modified to suit personal preferences. The timing of the steps can be adjusted in 10 millisecond intervals. As an example, the default setting for parameter 8 is “3”. This means that the lighting level will change every 30 milliseconds when the Dim Command is received. A value of 255 would mean that the level would change every 2.55 seconds. Combined, the two parameters allow dim rate adjustments from 10 milliseconds to 4.2 minutes to go from maximum-to-minimum or minimum-to-maximum brightness levels. 0 1 0 0 1 From To Description 1 99 number of steps or levels 9 Dim Rate Adjustments When manually controlling dimming Both the number of steps (or levels) that the dimmer will change and the timing of the steps can be modified to suit personal preferences. The timing of the steps can be adjusted in 10 millisecond intervals. As an example, the default setting for parameter 8 is “3”. This means that the lighting level will change every 30 milliseconds when the Dim Command is received. A value of 255 would mean that the level would change every 2.55 seconds. Combined, the two parameters allow dim rate adjustments from 10 milliseconds to 4.2 minutes to go from maximum-to-minimum or minimum-to-maximum brightness levels. 0 1 0 0 1 From To Description 1 99 number of steps or levels 10 Dim Rate Adjustments When manually controlling dimming Both the number of steps (or levels) that the dimmer will change and the timing of the steps can be modified to suit personal preferences. The timing of the steps can be adjusted in 10 millisecond intervals. As an example, the default setting for parameter 8 is “3”. This means that the lighting level will change every 30 milliseconds when the Dim Command is received. A value of 255 would mean that the level would change every 2.55 seconds. Combined, the two parameters allow dim rate adjustments from 10 milliseconds to 4.2 minutes to go from maximum-to-minimum or minimum-to-maximum brightness levels. 0 2 0 0 3 From To Description 1 255 timing of the steps 11 Dim Rate Adjustments When receiving an All-On or All-Off command Both the number of steps (or levels) that the dimmer will change and the timing of the steps can be modified to suit personal preferences. The timing of the steps can be adjusted in 10 millisecond intervals. As an example, the default setting for parameter 8 is “3”. This means that the lighting level will change every 30 milliseconds when the Dim Command is received. A value of 255 would mean that the level would change every 2.55 seconds. Combined, the two parameters allow dim rate adjustments from 10 milliseconds to 4.2 minutes to go from maximum-to-minimum or minimum-to-maximum brightness levels. 0 1 0 0 1 From To Description 1 99 number of steps or levels 8 Dim Rate Adjustments When receiving a Z-Wave Dim Command Both the number of steps (or levels) that the dimmer will change and the timing of the steps can be modified to suit personal preferences. The timing of the steps can be adjusted in 10 millisecond intervals. As an example, the default setting for parameter 8 is “3”. This means that the lighting level will change every 30 milliseconds when the Dim Command is received. A value of 255 would mean that the level would change every 2.55 seconds. Combined, the two parameters allow dim rate adjustments from 10 milliseconds to 4.2 minutes to go from maximum-to-minimum or minimum-to-maximum brightness levels. 0 2 0 0 3 From To Description 1 255 timing of the steps 3 LED When shipped from the factory, the LED is set to turn ON when the connected light is turned OFF. This allows the LED to indicate the switch’s location in a dark room. To make the LED turn ON when the light is turned ON, change parameter 3’s value to 1, To turn the LED OFF at all times, change parameter 3’s value to 2. 0 1 0 0 0 From To Description 1 1 To make the LED turn ON when the light is turned ON, change parameter 3’s value to 1 2 2 To turn the LED OFF at all times, change parameter 3’s value to 2 4 Invert Switch If the switch is accidentally installed upside down with “On” at the bottom and “Off” at the top, the default On/Off rocker settings can be reversed by changing parameter 4’s value to “1”. 0 1 0 0 0 From To Description 1 1 The default On/Off rocker orientation can be reversed by changing parameter 4’s value to “1”.
Texts	ID Description Value 2 Exclusion 1. Follow the instructions for your Z-wave certified controller to exclude a device from the Z-wave network. 2. Once the controller is ready to Exclude your device, press and release the top or bottom of the wireless smart switch(rocker) to exclude it from the network. 1 Inclusion 1. Follow the instructions for your Z-wave certified controller to include a device to the Z-wave network. 2. Once the controller is ready to include your device, press and release the top or bottom of the wireless smart switch(rocker) to include it in the network. 3. Once your controller has confirmed that the device has been included, refresh the Z-wave network to optimize performance. 5 Factory Reset 1. Quickly press ON (Top) button three (3) times then immediately press the OFF (Bottom) button three (3) times. The LED will flash ON/OFF 5 times when completed successfully. Note: This should only be used in the event your networks primary controller is missing or otherwise inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
