Product Recognition
Certification Number	ZC10-16125338

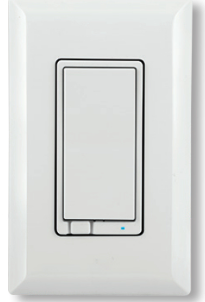

Name	In-Wall Smart Fan Control
Short Description	Transform any home into a smart home with the GE Z-Wave Smart Fan Control.
Long Description	Transform any home into a smart home with the GE Z-Wave Smart Fan Control. The in-wall fan control easily replaces any standard in-wall switch remotely controls a ceiling fan in your home and features a three-speed control system. Your home will be equipped with ultimate flexibility with the GE Z-Wave Smart Fan Control, capable of being used by itself or with up to four GE add-on switches. Screw terminal installation provides improved space efficiency when replacing existing switches and the integrated LED indicator light allows you to easily locate the switch in a dark room. The GE Z-Wave Smart Fan Control is compatible with any Z-Wave certified gateway, providing access to many popular home automation systems. Take control of your home lighting with GE Z-Wave Smart Lighting Controls!
Brand	GE
Product Identifier	14287/ZW4002
OEM Version	HW: 255 FW: 5.20
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Fan Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0063
Product Type ID	0x4944
Product ID	0x3131
User Icon	0x0400
Installer Icon	0x0400
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, On/Off Switches/Devices, Motor Control, Fan Control
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_SWITCH_MULTILEVEL Switch Multilevel 0x26 1 COMMAND_CLASS_SCENE_ACTUATOR_CONF Scene Actuator Conf 0x2C 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Binder1.pdf
Features	Feature Values Firmware Updatable Value Updatable by Consumer by RF Neutral Wire Required
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline 2 5 0 Supports Basic Set and is controlled with the local load 3 5 0 Supports Basic Set and is controlled by double pressing the On or Off button
Texts	ID Description Value 2 Exclusion 1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network. 2. Once the controller is ready to Exclude your device, press and release the top or bottom of the wireless smart switch (rocker) to exclude it from the network. 1 Inclusion 1. Follow the instructions for your Z-Wave certified controller to include a device to the Z-Wave network. 2. Once the controller is ready to include your device, press and release the top or bottom of the smart fan control switch (rocker) to include it in the network. 3. Once your controller has confirmed the device has been included, refresh the Z-Wave network to optimize performance. 5 Factory Reset 1. Quickly press ON (Top) button three (3) times then immediately press the OFF (Bottom) button three (3) times. The LED will flash ON/OFF 5 times when completed successfully. Note: This should only be used in the event your network’s primary controller is missing or otherwise inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
