Product Recognition
Certification Number	ZC10-15060022

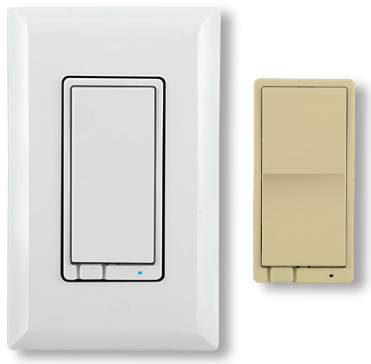

Name	In-Wall Smart Fan Control
Short Description	Transform any home into a smart home with the Jasco Z-Wave Smart Fan Control The in-wall fan control replaces your ceiling fan switch and features three-speed control.
Long Description	Transform any home into a smart home with the Jasco Z-Wave Smart Fan Control. The in-wall fan control easily replaces any standard in-wall switch remotely controls a ceiling fan in your home and features a three-speed control system. Your home will be equipped with ultimate flexibility with the Jasco Z-Wave Smart Fan Control, capable of being used by itself or with up to four GR add-on switches. Screw terminal installation provides improved space efficiency when replacing existing switches and the integrated LED indicator light allows you to easily locate the switch in a dark room. The Jasco Z-Wave Smart Fan Control is compatible with any Z-Wave certified gateway, providing access to many popular home automation systems. Take control of your home lighting with Jasco Z-Wave Smart Lighting Controls! Z-Wave is the world’s largest ecosystem of interoperable smart home products. Z-Wave lighting controls provide an easy-to-install and affordable system to control lighting and small appliances in your home. Add GE Z-Wave lighting controls to a Z-Wave certified gateway to access and control your home from anywhere in the world using your smartphone, tablet or computer as a home automation command center. Never worry if you accidentally left the lights on because you can turn them off remotely or program your lights to go on/off at specific times. Create customized lighting scenes for any occasion such as a “go to sleep” scene or a “movie night” scene. Give the illusion that someone is home by programming the lights to turn on/off while you are away—perfect for deterring crime and adding additional security!"
Brand	Jasco Products Company
Product Identifier	14314
OEM Version	HW: 255
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Fan Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0063
Product Type ID	0x4944
Product ID	0x3138
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, Fan Control
Countries / Regions	United States of America
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual 14314-1 QSG.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 3 LED Light When shipped from the factory, the LED is set to turn ON when the connected light is turned OFF. This is the default setting and can be changed if your primary controller supports the node configuration function. 0 1 0 0 0 From To Description 1 1 LED on when on 2 2 LED always off 0 0 Default
Texts	ID Description Value 1 Inclusion Linking your device 1. Follow the instructions for your Z-wave certified controller to include a device to the Z-wave network. 2. Once the controller is ready to include your device, press and release the top or bottom of the wireless smart switch(rocker) to include it in the network. Note: Your controller may need to be within 10 feet of the device to be included. 3. Once your controller has confirmed that the device has been included, refresh the Z-wave network to optimize performance. Please reference the controller’s manual for instructions. 2 Exclusion Note: To exclude and reset the device, follow the instructions provided by your Z-Wave controller. 5 Factory Reset Quickly press ON (Top) button three (3) times and then immediately press the OFF (Bottom) button three (3) times. The LED will flash ON/OFF 5 times when completed successfully. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
