| Certification Number | ZC10-16065122 |
|---|

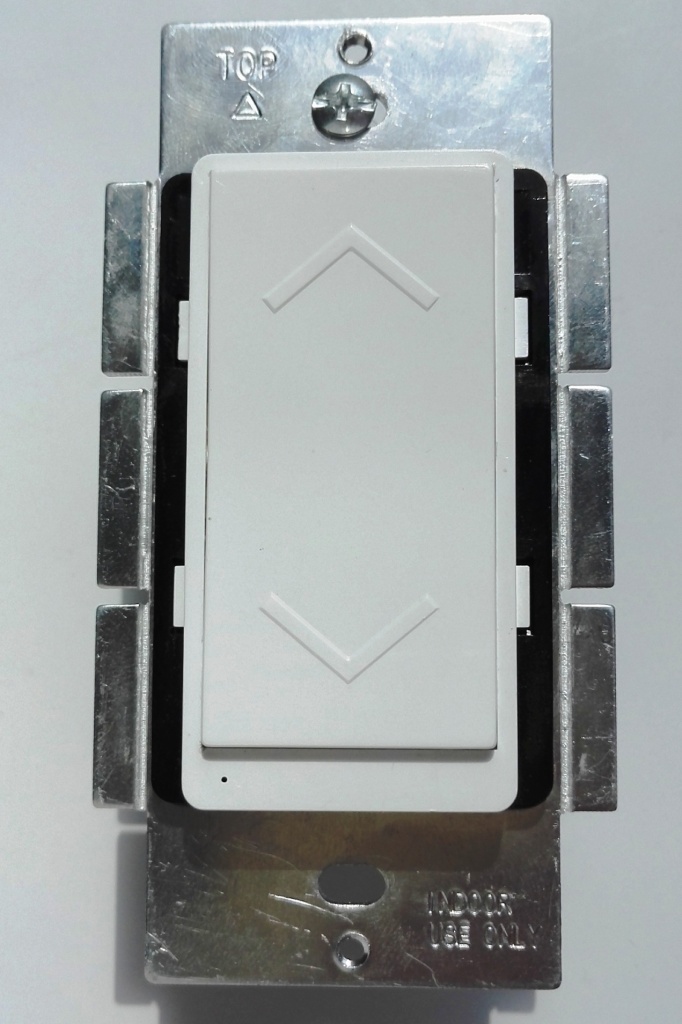

| Name | In-wall Smart Meter Dimmer Switch |
|---|
| Short Description | Wireless Home Automation Control Device,In-wall Smart Meter Dimmer Switch,with Measures energy usage of the wired load. |
|---|
| Long Description | The ZW500DM Dimmer Switch is a perfect wireless manual and remote on /off/
dim brightness control replacement of regular switch, controlling incandescent,
dimmable LED and CFL. This ZW500DM dimmer switch is fully compatible with
other Z-Wave certified devices, provides programmable function creating a perfect ambiance such as scenes,association,schedule event,etc. Also it can be added to most Z-Wave compliant controllers. This ZW500DM dimmer works with ZW3K 3-Way Auxiliary Switch that reducing energy consumption, enhancing the value of technology of your home, condominiums and apartment. The ZW500DM Smart Meter Dimmer Switch enables you to measure the energy usage of your appliance. When added to a Z-Wave network, the ZW500DM reports real time data to your gateway or controller. It can also display actual consumption (in W) and the accumulated power used (in kWh) in the user interface of the gateway/remote. Please use the gateway installation manual for specific instructions on measuring the power. |
|---|
| Brand | Enerwave Green Automation |
|---|
| Product Identifier | ZW500DM |
|---|
| OEM Version | HW: 1 FW: 5.10 |
|---|
| Hardware Platform | ZM5202 |
|---|
| Z-Wave Version | 6.51.07 |
|---|
| Library Type | SLAVE_ROUTING |
|---|
| Device Type | Light Dimmer Switch |
|---|
| Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
| Manufacturer ID | 0x011A |
|---|
| Product Type ID | 0x0111 |
|---|
| Product ID | 0x0201 |
|---|
| User Icon | 0x0600 |
|---|
| Installer Icon | 0x0600 |
|---|
| Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
| Categories | Energy Meters, All Lighting Devices, Dimming Lighting Devices |
|---|
| Countries / Regions | United States of America |
|---|
| Documents | |
|---|
| Features | | Feature | Values |
|---|
| Supported Meter Type | | | Switch Type | | Value |
|---|
| Decorator Paddle Push |
|
|
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 1 | 0 | Lifeline: Send device reset locally notification | | 2 | 5 | 0 | StatusReport: Send basic report | | 3 | 5 | 0 | PowerReport: Send meter power report |
|
|---|
| Configuration Parameters | | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
| 1 | LEDdirect | synchronization of load power and LED indicator | 0 | 1 | 0 | 0 | 0 | | From | To | Description |
|---|
| 0 | 0 | Power on, LED off | | 1 | 1 | Power on, LED on |
|
|
|---|
| Texts | | ID | Description | Value |
|---|
| 1 | Inclusion | When the primary controller is in the adding mode, flicks the paddle 3 times in the
1.5 second. The primary controller will verify the adding, assign a node ID number
for the module . | | 2 | Exclusion | When the primary controller is in the removing mode, flicks the paddle 3 times in
the 1.5 second. The primary controller will verify the removing, remove the module
from the current Z-Wave network, and the LED will blink when the module is on
power | | 5 | Factory Reset | Flicks the program button 3 times in the 1.5 second then press once and hold for
2 second.the device will send a device reset locally notification to controller. Then
clear all of information for the network, and restore factory defaults, and reset the
module. Use this procedure only in the event that the network primary
controller is missing or otherwise inoperable. |
|
|---|
| Supported / Controlled Meter Types | | Meter Type | Rate Type | Description |
|---|
| Electric meter | Import | Electric Meter Consumption |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
