Product Recognition
Certification Number	ZC10-16075131

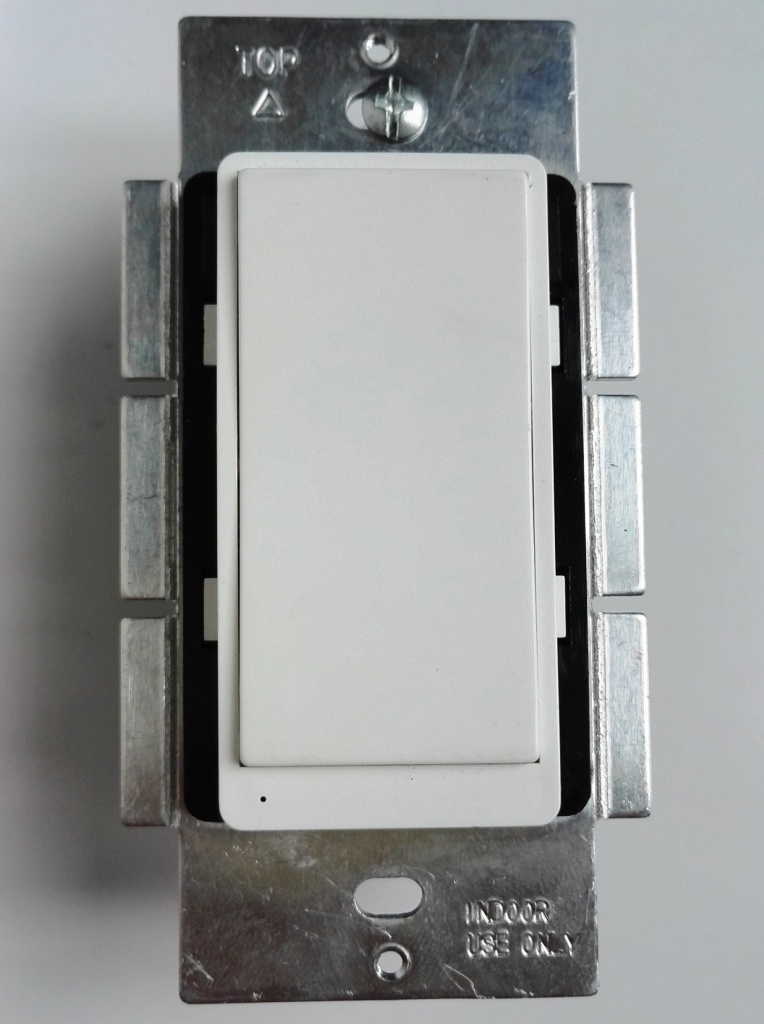

Name	In-wall Smart Meter ON/OFF Switch
Short Description	In-wall Smart Meter ON/OFF Switch, with energy measure.
Long Description	The ZW15SM ON/OFF Switch is a perfect wireless manual and remote on/off control replacement of a regular wall switch, controlling incandescent, LED, ballast loads and more. This ZW15SM ON/OFF switch is fully compatible with other Z-Wave certified devices from other manufacturers and/or other applications providers and can be added to any Z-Wave network. As part of any Z-Wave network, each device can be remotely controlled by commands sent from Z-Wave controllers in real time, but each Z-Wave powered device also acts as wireless repeater transmitting RF signals from one to another, thus extending the range of RF signal all over the system. The ZW15SM Smart Meter Switch enables you to measure the energy usage of your appliance. The ZW15SM reports real time data to your gateway or controller. It can also display actual consumption (in W) and the accumulated power used (in kWh) in the user interface of the gateway. Please use the gateway installation manual for specific instructions on measuring the power.
Brand	Enerwave Green Automation
Product Identifier	ZW15SM
OEM Version	HW: 1 FW: 5.10
Hardware Platform	ZM5202
Z-Wave Version	6.51.07
Library Type	SLAVE_ROUTING
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x011A
Product Type ID	0x0111
Product ID	0x0102
User Icon	0x0700
Installer Icon	0x0700
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Energy Meters, All Lighting Devices, On/Off Switches/Devices
Countries / Regions	United States of America
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual ZW15SM-CC 2016 5 29.pdf
Features	Feature Values Electric Load Type Value Incandescent Fluorescent LED Inductive (e.g. Motor) Switch Load Capacity Current Value 15A Resistive Load Switch Load Capacity Volt-Ampere Value 1200VA Ballast Load Switch Load Capacity Watts Value 1000W Incandescent, 1800W Resistive Loads Supported Meter Type Value Electric Energy Switch Type Value Decorator Paddle Push
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Lifeline: Send device reset locally notification 2 5 0 StatusReport: Send basic report 3 5 0 PowerReport: Send meter power report 4 5 0 AssGroupSet: Send Basic set command
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 LEDdirect synchronization of load power and LED indicator 0 1 0 0 0 From To Description 0 0 Power on, LED off 1 1 Power on, LED on
Texts	ID Description Value 1 Inclusion When the primary controller is in the adding mode, press the paddle once and hold for 4 seconds. The primary controller will verify the adding, assign a node ID number for the module . 2 Exclusion When the primary controller is in the removing mode, press the paddle once and hold for 4 seconds. The primary controller will verify the removing, remove the module from the current Z-Wave network, and the LED will blink when the module is on power. 5 Factory Reset Press once and hold for 10 seconds, the device will send a device reset locally notification to controller. Then clear all of information for the network, and restore factory defaults, and reset the module. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
Supported / Controlled Meter Types	Meter Type Rate Type Description Electric meter Import Electric Meter Consumption
Supports NWI	Yes
Supports Explorer Frames	Yes
