Product Recognition | |
|---|---|
Certification Number | ZC10-16055066 |

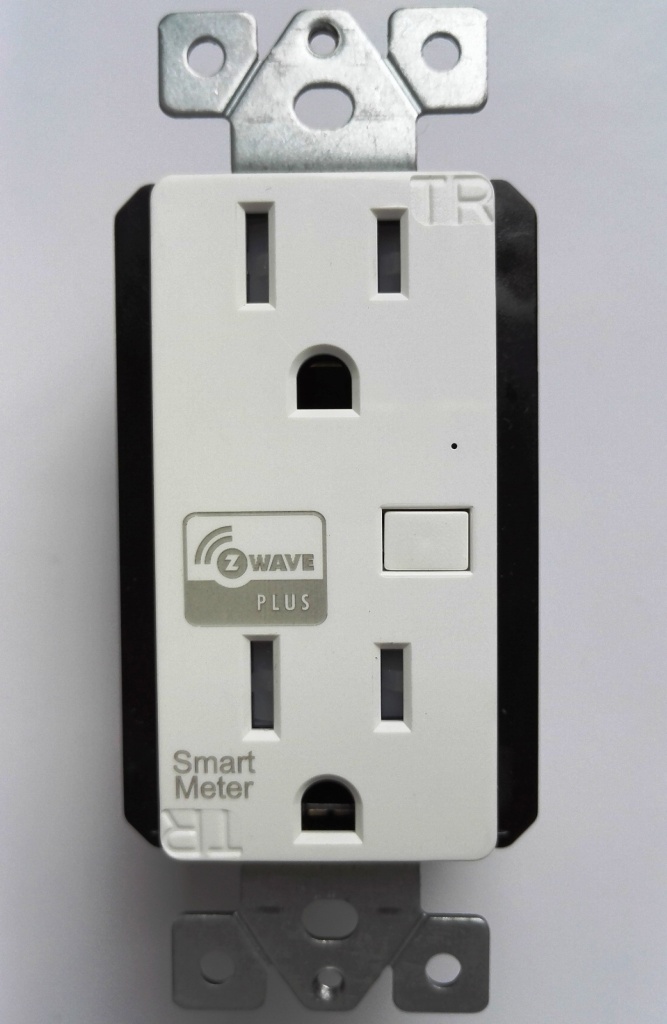

Name | IN-Wall Smart Meter TR Duplex Receptacle |
Short Description | IN-Wall Smart Meter TR Duplex Receptacle |
Long Description | The ZW15RM TR Duplex Receptacle is a perfect wireless manual and remote on/off control replacement of regular receptacles, controlling table and floor lamps, small appliances, etc. It provides two different type outlets. One outlet with Z-Wave mark has programmable functions such as scenes, association, schedule event, etc. It is fully interoperable with other Z-Wave certified device from other manufacturers and/or other applications. It can report wattage energy usage or kWh energy usage to a Z-Wave gateway.It has a Blue LED on the face cover indicates the status of the controlled outlet and/or act as a night light. The other outlet with Tamper-Resistant feature provides constant power, helps you and your families prevent electrical injuries. |
Brand | Enerwave Green Automation |
Product Identifier | ZW15RM |
OEM Version | HW: 1 FW: 5.10 |
Hardware Platform | ZM5202 |
Z-Wave Version | 6.51.07 |
Library Type | SLAVE_ROUTING |
Device Type | On/Off Power Switch |
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
Manufacturer ID | 0x011A |
Product Type ID | 0x0111 |
Product ID | 0x0105 |
User Icon | 0x0700 |
Installer Icon | 0x0700 |
Frequency Plans | US: 916.00MHz, 908.40MHz |
Categories | Energy Meters, All Lighting Devices, On/Off Switches/Devices |
Countries / Regions | United States of America |
Documents | |
Features | |
Association Groups | |
Configuration Parameters | |
Texts | |
Supported / Controlled Meter Types | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
