Product Recognition
Certification Number	ZC10-16125342

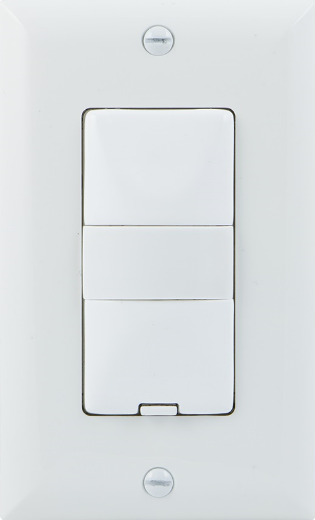

Name	In-Wall Smart Motion Dimmer
Short Description	Wirelessly schedule, control and motion activate lights and other devices.
Long Description	Transform any home into a smart home with the GE In-Wall Smart Motion Dimmer. This Z-Wave device replaces you current light switch using your existing wiring and provides Z-Wave wireless control of overhead lighting. The dimmer enables wireless control of On/Off functions of incandescent, LED, xenon, halogen and fluorescent lighting. Not only does it act as a dimmer but the GE In-Wall Smart Motion Dimmer has a built in PIR sensor which can control the local load and be set in occupancy or vacancy mode.
Brand	Jasco Products Company
Product Identifier	26933
OEM Version	HW: 255 FW: 5.50
Hardware Platform	ZM5101
Z-Wave Version	6.51.08
Library Type	SLAVE_ENHANCED_232
Device Type	Light Dimmer Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0063
Product Type ID	0x494D
Product ID	0x3034
User Icon	0x0600
Installer Icon	0x0600
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Sensors, All Lighting Devices, Dimming Lighting Devices
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_SCENE_ACTUATOR_CONF Scene Actuator Conf 0x2C 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SWITCH_MULTILEVEL_V2 Switch Multilevel V2 0x26 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_NOTIFICATION_V4 Notification V4 0x71 4
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual 26933 EnFrSp QSG v1.3 and Parameters.pdf
Features	Feature Values Firmware Updatable Value Updatable by Consumer by RF Neutral Wire Required Sensors Value Motion/No Motion (Binary)
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 2 5 0 Supports Basic Set and is controlled by pressing On/Off button with local load 3 5 0 Supports Basic Set and is controlled by pressing On/Off button with local load 1 5 0 Z-Wave Plus Lifeline, Multi-Level Report
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 17 Switch Level 0=Disabled 1=Level 1 99=Level 99(full brightness) 0 1 0 0 0 From To Description 0 0 Disabled (Default) 1 99 Brightness Level 2 Change brightness of associated light bulb(s) 0xFF = last dimming level 0 1 0 0 255 From To Description 0 99 Brightness levels 255 255 Default 3 Operation Mode 1=Manual 2=Vacancy 3= Occupancy 0 1 0 0 3 From To Description 1 1 Manual 2 2 Vacancy 3 3 Occupancy 5 Invert Switch In a 3-way configuration, invert the connected Add-On Switch buttons 0=Disabled 1=Enable 0 1 0 0 0 From To Description 0 0 Disabled 1 1 Enabled 6 Enable/Disable Motion Sensor 0=Disabled 1=Enable 0 1 0 0 1 From To Description 0 0 Disabled 1 1 Enable 7 Adjust steps/levels with Remote Adjust steps/levels with Remote 0 1 0 0 1 From To Description 1 1 Default 2 99 Steps/Levels 8 Adjust timing of steps/levels with Remote Adjust timing of steps/levels with Remote 0 2 0 0 3 From To Description 1 2 Steps/Levels 3 3 Default 4 255 Steps/Levels 9 Adjust steps/levels Adjust steps/levels 0 1 0 0 1 From To Description 2 99 Steps/Levels 1 1 Default 10 Adjust timing of steps/levels Adjust timing of steps/levels 0 2 0 0 3 From To Description 4 255 Steps/Levels 1 2 Steps/Levels 3 3 Default 11 Adjust Steps/levels with “ALL ON/OFF” command Adjust Steps/levels with “ALL ON/OFF” command 0 1 0 0 1 From To Description 1 1 Default 2 99 Steps/Levels
Texts	ID Description Value 1 Inclusion 1. Follow the instructions for your Z-Wave certified controller to add the smart dimmer to the Z-Wave network. 2. Once the controller is ready to add your smart dimmer, press and release the top or bottom button on the smart dimmer to include it in the network. 2 Exclusion 1. Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network. 2. Once the controller is ready to remove your device, press and release the top button on the smart dimmer to remove it from the network. 5 Factory Reset Press and release the top button ten times within 5 seconds. The LED will flash 3 times quickly confirming change. Note: This should only be used in the event your network’s primary controller is missing or otherwise inoperable
Supported Multilevel Sensors	Multilevel Sensor Type 0x02
Supports NWI	Yes
Supports Explorer Frames	Yes
