Certification Number | ZC10-16125356 |
|---|

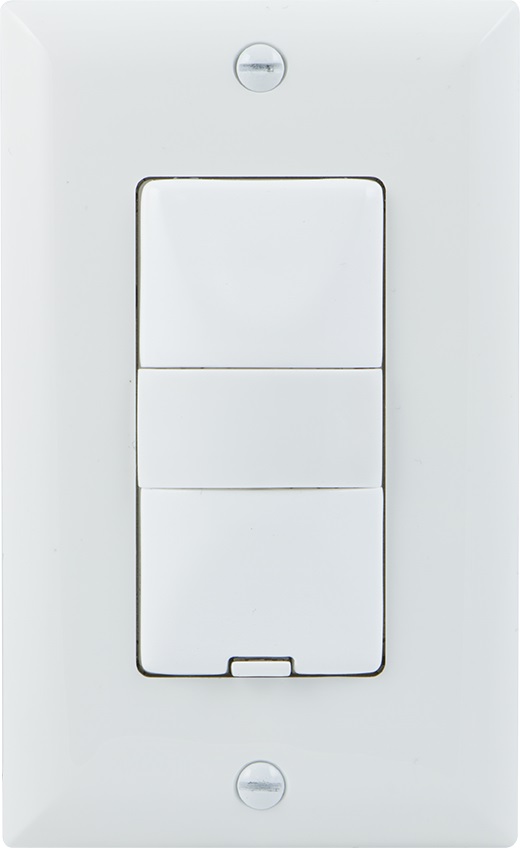

Name | In-Wall Smart Motion Switch |
|---|
Short Description | Transform any home into a smart home with the GE In-Wall Smart Motion Switch. |
|---|
Long Description | Transform any home into a smart home with the Jasco In-Wall Smart Motion Switch. This Z-Wave device replaces you current light switch using your existing wiring and provides Z-Wave wireless control of overhead lighting. The switch enables wireless control of On/OFF functions of incandescent, LED, xenon, halogen and fluorescent lighting. Not only does it act as a switch but the Jasco In-Wall Smart Motion Switch has a built in PIR sensor which can control the local and be set in occupancy or vacancy mode. |
|---|
Brand | Jasco Products Company |
|---|
Product Identifier | 24770/ZW4006 |
|---|
OEM Version | HW: 255 FW: 5.56 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.51.06 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0063 |
|---|
Product Type ID | 0x494D |
|---|
Product ID | 0x3031 |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0700 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Sensors, All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SCENE_ACTUATOR_CONF | Scene Actuator Conf | 0x2C | 1 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_SWITCH_ALL | Switch All | 0x27 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_CRC_16_ENCAP | CRC16 Encapsulation | 0x56 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi-Channel V4 | 0x60 | 4 | COMMAND_CLASS_SCENE_ACTIVATION | Scene Activation | 0x2B | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Neutral Wire Required | | Sensors | Value |
|---|
Motion/No Motion (Binary) |
| Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
3 | 5 | 0 | Supports Basic Set and is controlled by pressing the On or Off buttons. | 1 | 5 | 0 | Z-Wave Plus Lifeline | 2 | 5 | 0 | Supports Basic Set and is controlled with the local load. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
2 | Change brightness of associated light bulb(s) | 0xFF = last dimming level | 0 | 1 | 0 | 0 | 255 | From | To | Description |
|---|
0 | 99 | Dim Level | 255 | 255 | Default |
| 3 | Operation Mode | 1 – Manual 2 – Vacancy 3 – Occupancy | 0 | 1 | 0 | 0 | 3 | From | To | Description |
|---|
1 | 1 | Manual | 3 | 3 | Occupancy | 2 | 2 | Vacancy |
| 4 | Enable/Disable Association Mode | 0 – disabled 1 – enabled 5 devices max: Group 1 – 5 devices lifeline Group 2 – 5 lighting devices Group 3 – 5 lighting devices | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 0 | Disabled | 1 | 1 | Enabled |
| 5 | Invert Switch | In a 3-way configuration, invert the connected Add-On Switch buttons 0 – disabled 1 – enabled | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Disabled | 1 | 1 | Enabled |
| 6 | Enable/Disable Motion Sensor | 0 – disabled 1 – enabled | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 0 | Disable | 1 | 1 | Enable |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | 1. Follow the instructions for your Z-Wave certified
controller to include the smart switch to the
Z-Wave network.
2. Once the controller is ready to include your smart
switch, press and release the top or bottom button
on the smart switch to include it in the network. | 2 | Exclusion | 1. Follow the instructions for your Z-Wave certified
controller to exclude a device from the Z-Wave
network.
2. Once the controller is ready to exclude your device,
press and release the top or bottom button on the
smart switch to exclude it from the network. | 5 | Factory Reset | Press and release the top button ten times.
Note: This should only be used in the event your
network’s primary controller is missing or otherwise
inoperable. |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
0x02 |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
