Product Recognition
Certification Number	ZC10-16105294

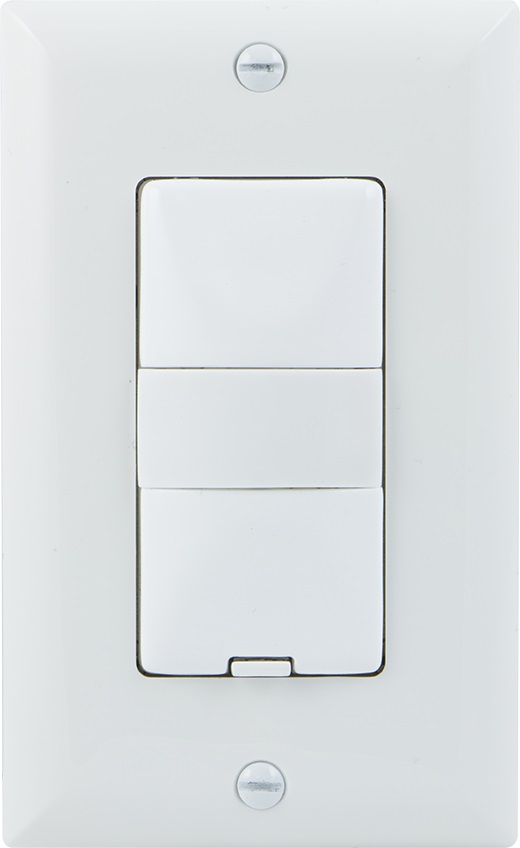

Name	In-Wall Smart Motion Switch
Short Description	Transform any home into a smart home with the GE In-Wall Smart Motion Switch.
Long Description	Transform any home into a smart home with the GE In-Wall Smart Motion Switch. This Z-Wave device replaces you current light switch using your existing wiring and provides Z-Wave wireless control of overhead lighting. The switch enables wireless control of On/OFF functions of incandescent, LED, xenon, halogen and fluorescent lighting. Not only does it act as a switch but the GE In-Wall Smart Motion Switch has a built in PIR sensor which can control the local and be set in occupancy or vacancy mode.
Brand	GE
Product Identifier	26931/ZW4006
OEM Version	HW: 255 FW: 5.56
Hardware Platform	ZM5101
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0063
Product Type ID	0x494D
Product ID	0x3032
User Icon	0x0700
Installer Icon	0x0700
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Sensors, All Lighting Devices, On/Off Switches/Devices, Security Add-Ons
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_SCENE_ACTUATOR_CONF Scene Actuator Conf 0x2C 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_NOTIFICATION_V4 Notification V4 0x71 4
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual 26931 EnFrSp QSG v1.3 and Parameters.pdf
Features	Feature Values Firmware Updatable Value Updatable by Consumer by RF Sensors Value Motion/No Motion (Binary) Neutral Wire Required
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 2 5 0 Supports Basic Set and is controlled with the local load. 3 5 0 Supports Basic Set and is controlled by pressing the On or Off buttons. 1 5 0 Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 5 Invert Switch In a 3-way configuration, invert the connected Add-On Switch buttons 0 – disabled 1 – enabled 0 1 0 0 0 From To Description 0 0 Disabled 1 1 Enabled 3 Operation Mode 1 – Manual 2 – Vacancy 3 – Occupancy 0 1 0 0 3 From To Description 1 1 Manual 3 3 Occupancy 2 2 Vacancy 2 Change brightness of associated light bulb(s) 0xFF = last dimming level 0 1 0 0 255 From To Description 0 99 Dim Level 255 255 Default 4 Enable/Disable Association Mode 0 – disabled 1 – enabled 5 devices max: Group 1 – 5 devices lifeline Group 2 – 5 lighting devices Group 3 – 5 lighting devices 0 1 0 0 1 From To Description 0 0 Disabled 1 1 Enabled 6 Enable/Disable Motion Sensor 0 – disabled 1 – enabled 0 1 0 0 1 From To Description 0 0 Disable 1 1 Enable
Texts	ID Description Value 1 Inclusion 1. Follow the instructions for your Z-Wave certified controller to include the smart switch to the Z-Wave network. 2. Once the controller is ready to include your smart switch, press and release the top or bottom button on the smart switch to include it in the network. 2 Exclusion 1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network. 2. Once the controller is ready to exclude your device, press and release the top or bottom button on the smart switch to exclude it from the network. 5 Factory Reset Press and release the top button ten times. Note: This should only be used in the event your network’s primary controller is missing or otherwise inoperable.
Supported Multilevel Sensors	Multilevel Sensor Type 0x02
Supports NWI	Yes
Supports Explorer Frames	Yes
