Product Recognition | |
|---|
Certification Number | ZC10-17115843 |
|---|

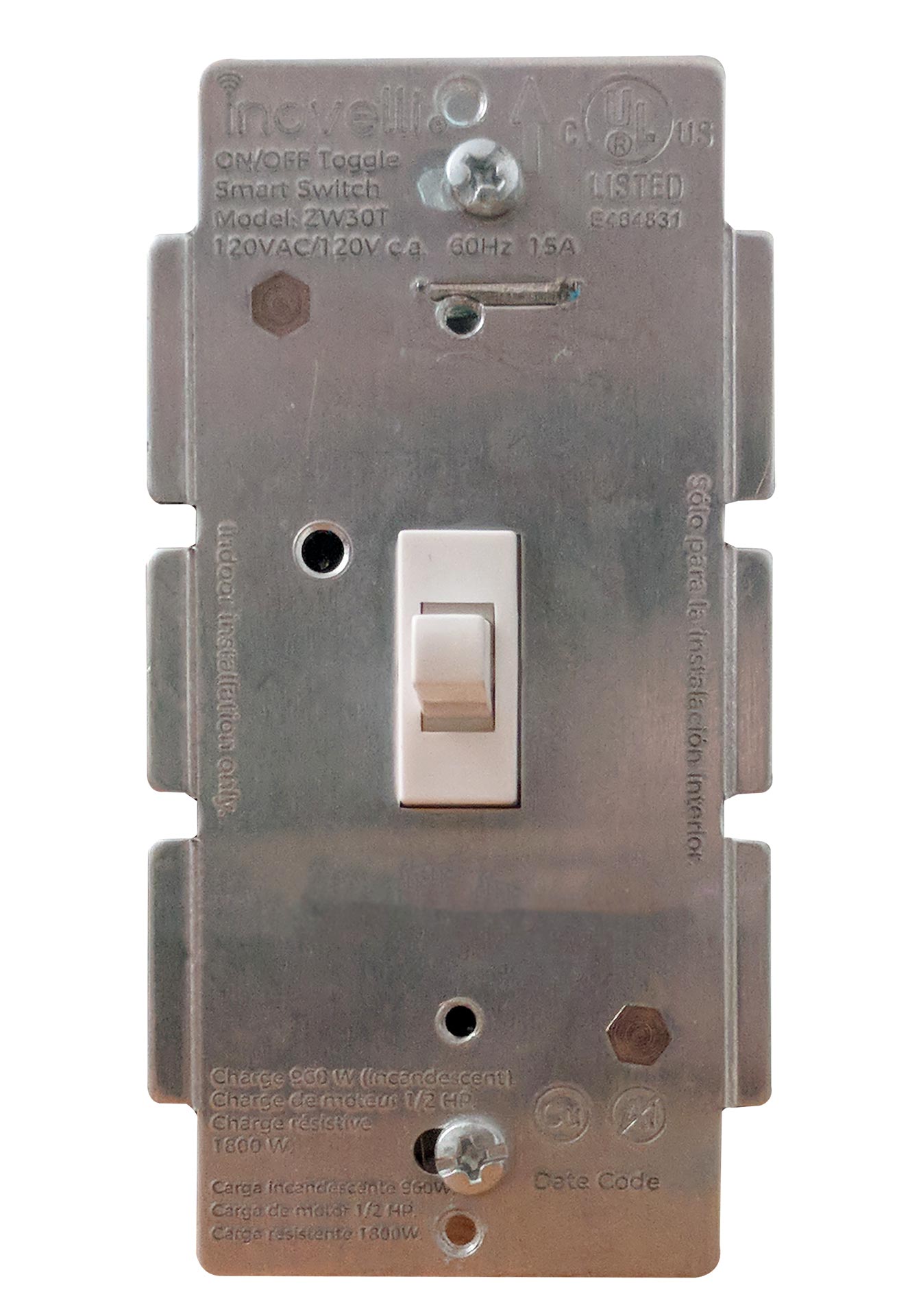

Name | In-wall Smart Switch |
|---|
Short Description | In-Wall On/Off Switch (Toggle Button) that does not require an auxiliary switch for 3-Way solutions and is Z-Wave Plus. |
|---|
Long Description | Inovelli's Indoor In-Wall Smart Switch (On/Off) has the ability to turn on and off lights from anywhere in the world. In addition the switch acts as a Z-Wave signal repeater, which amplifies your Z-Wave signal, growing the capabilities of your network.
Simplifying lives, one smart home product at a time... that's Inovelli. |
|---|
Brand | Inovelli |
|---|
Product Identifier | NZW30T |
|---|
OEM Version | HW: 1 FW: 20.16 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.07 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0312 |
|---|
Product Type ID | 0x0112 |
|---|
Product ID | 0x251C |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0702 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_ALL | Switch All | 0x27 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Z-Wave Scene Type | | Electric Load Type | | Switch Load Capacity Volt-Ampere | | Switch Load Capacity Watts | | Neutral Wire Required | | Color | | Switch Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
4 | Invert Switch | This will invert the switch so that pressing down will turn on the switch and up will turn off the switch | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Default (Up = On / Down = Off) | 1 | 1 | Up = Off / Down = On |
| 3 | LED Setting | Invert/Disable Blue LED | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
2 | 2 | Disable LED | 1 | 1 | Switch On/LED Off | 0 | 0 | Default (Switch On/LED On) |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Exclusion | Toggle Up 6 times within 2 seconds. | 1 | Inclusion | Primary inclusion method is via, ""Auto-Inclusion"". Start the inclusion process on your HUB/Gateway and then flip your circuit breaker back on so power is restored to your switch. You will have 30 seconds before the device times out. The backup method is toggling the switch UP 6 times within 2 seconds. | 5 | Factory Reset | Please use your controller to remove the device from the network. To factory reset, hold up the toggle button (A) for five (5) seconds when powered on. However, please only use this method if your controller is missing or inoperable. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
