Product Recognition | |
|---|
Certification Number | ZC10-17115842 |
|---|

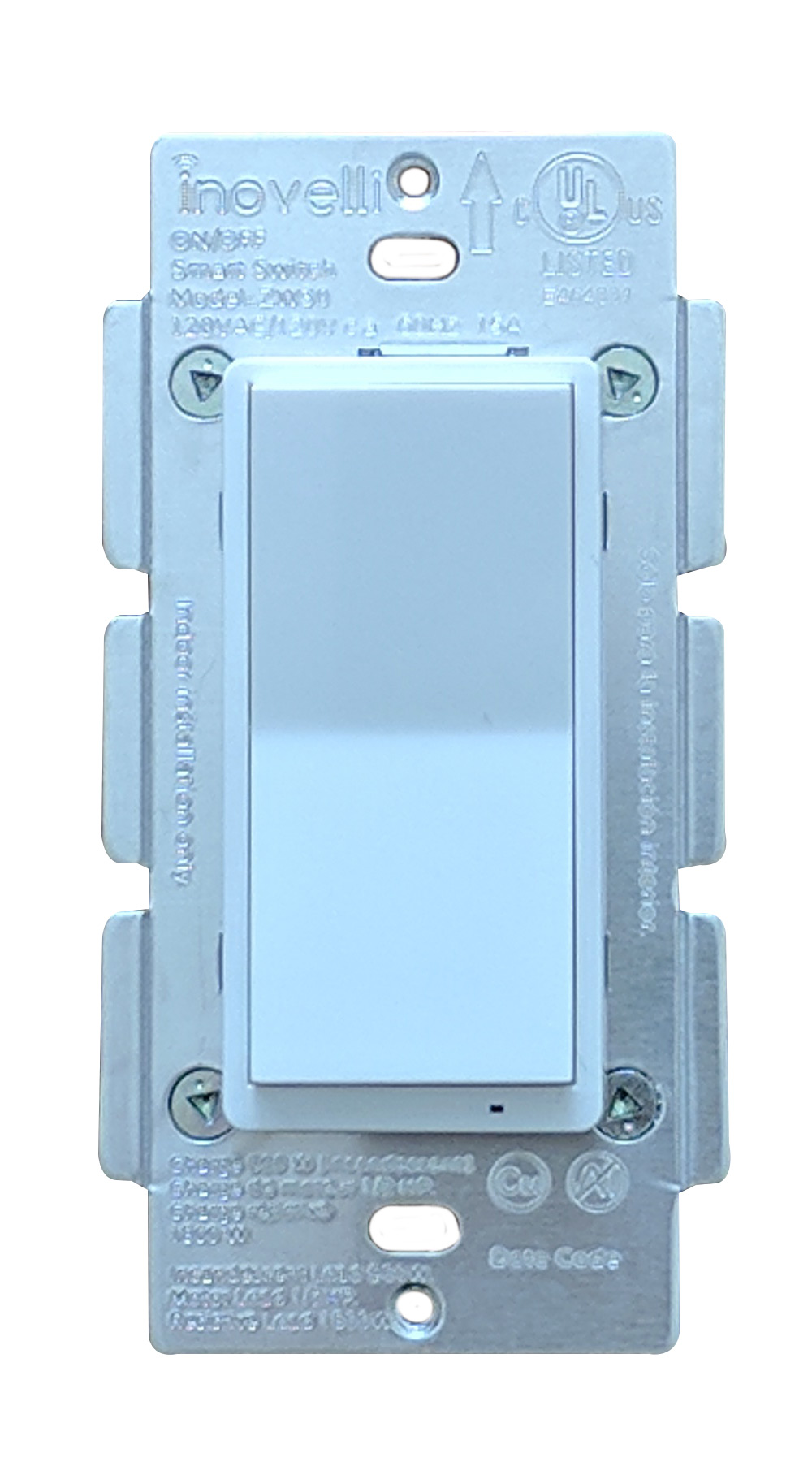

Name | In-wall Smart Switch |
|---|
Short Description | In-Wall Z-Wave Plus Smart Switch (On/Off) with Scene Capabilities. |
|---|
Long Description | Inovelli's In-Wall Smart Switch (On/Off) not only has the ability to turn on and off appliances, lights, and more from anywhere in the world, but it acts as a Z-Wave signal repeater, which amplifies your Z-Wave signal, growing the capabilities of your network.
In addition, it has scene control enabled, which allows you to double tap the switch to activate a Z-Wave scene. An example would be a bedtime scene, which turns off all lights, locks the door(s) and sets the temperature to 68 degrees.
Simplifying lives, one smart home product at a time... that's Inovelli. |
|---|
Brand | Inovelli |
|---|
Product Identifier | NZW30 |
|---|
OEM Version | HW: 1 FW: 20.15 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.06 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0312 |
|---|
Product Type ID | 0x0111 |
|---|
Product ID | 0x1E1C |
|---|
User Icon | 0x1D00 |
|---|
Installer Icon | 0x1D00 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_ALL | Switch All | 0x27 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Z-Wave Scene Type | | Switch Load Capacity Volt-Ampere | | Switch Load Capacity Watts | | Neutral Wire Required | | Outdoor Use | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
Texts | ID | Description | Value |
|---|
5 | Factory Reset | Please use your controller to remove the device from the network. To factory reset, hold the UP button for five (5) seconds when powered on. However, please only use this method if your controller is missing or inoperable. | 1 | Inclusion | Primary inclusion method is via, ""Auto-Inclusion"". Start the inclusion process on your HUB/Gateway and then turn the circuit breaker back on to your switch to restore power. You will have 30 seconds before the device times out. The backup method is pressing the Top button on the switch 6 times within 2 seconds. | 2 | Exclusion | Tap the UP/Top button on the switch 6 times within 2 seconds. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
