Product Recognition | |
|---|
Certification Number | ZC10-19056463 |
|---|

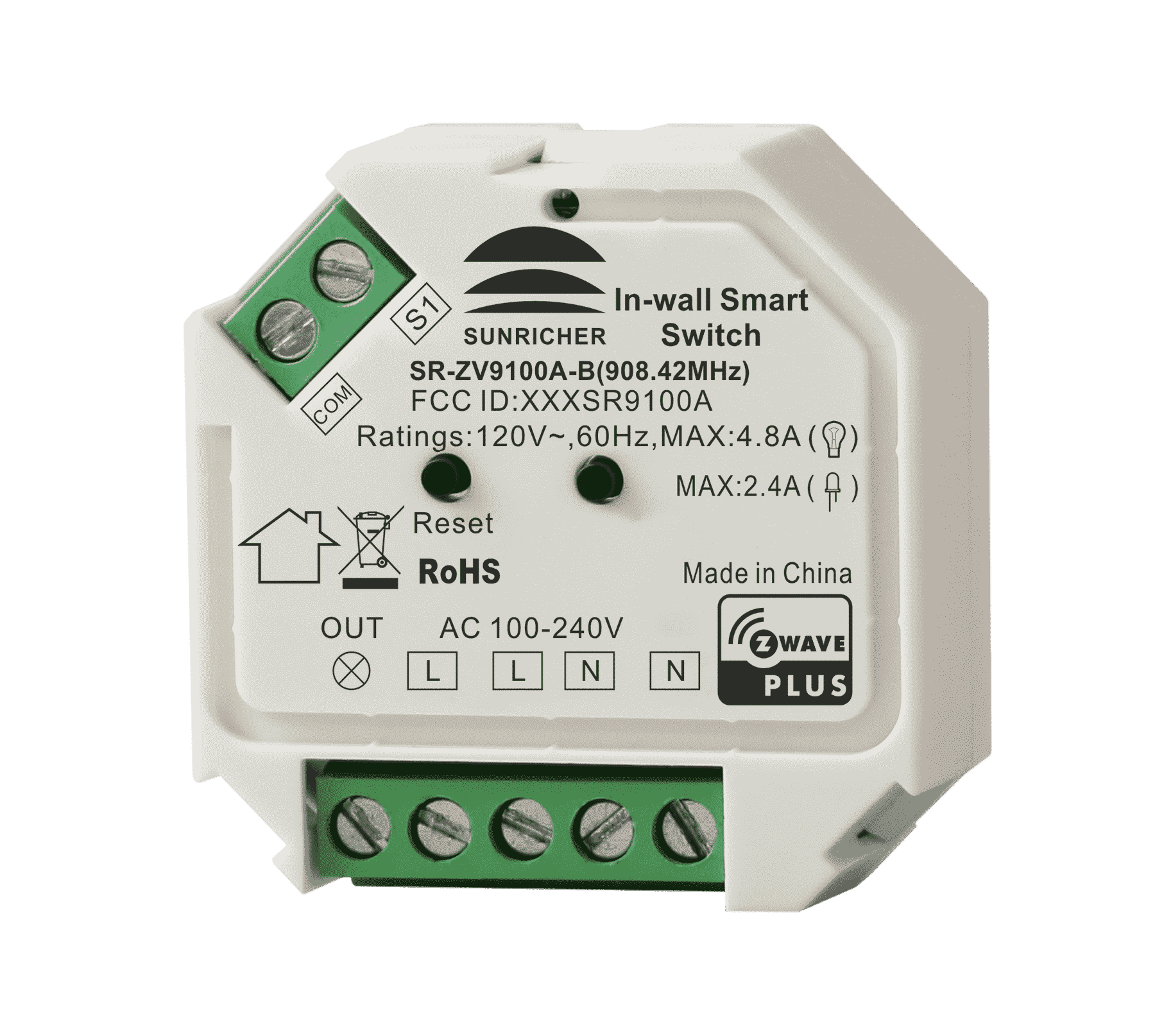

Name | In-Wall Smart Switch |
|---|
Short Description | The in-wall smart switch is a Z-Wave device designed to work with various types of light sources. It may be connected to two-wire or three-wire configuration so it can operate with or without neutral lead. The switch can switch ON/OFF connected light source either through Z-Wave devices or through the wall switch connected directly to it. |
|---|
Long Description | The in-wall smart switch is a Z-Wave device designed to work with various types of light sources. It may be connected to two-wire or three-wire configuration so it can operate with or without neutral lead. The switch can switch ON/OFF connected light source either through Z-Wave devices or through the wall switch connected directly to it.
The switch can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. |
|---|
Brand | Sunricher |
|---|
Product Identifier | SR-ZV9100A-B |
|---|
OEM Version | HW: 1 FW: 1.00 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.71.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0330 |
|---|
Product Type ID | 0x0201 |
|---|
Product ID | 0xD00F |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0700 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_SCENE_ACTUATOR_CONF | Scene Actuator Conf | 0x2C | 1 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_SCENE_ACTIVATION | Scene Activation | 0x2B | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Supported Notification Types | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | 1. When press and hold down “Reset” button for 10S to reset
the switch, send "Device Reset Locally Notification CC" to
associated devices of this group to report factory reset
information.
2. When load state changes, send "Basic Report CC" to
associated devices of this group.
3. When over temperature is detected, send “Emergency
shutoff status" to Lifeline. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
2 | Saving load state before power failure | Saving load state before power failure | 0 | 1 | 0 | 0 | 2 | From | To | Description |
|---|
0 | 0 | shutoff load | 1 | 1 | turn on load | 2 | 2 | save load state before power failure |
| 3 | Enable/disable to send the basic report | Enable/disable to send the basic report to the Lifeline when the load state changed (When value set as 1, re-power on the dimmer, it will send Basic report automatically） | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 0 | Disable to send Basic report | 1 | 1 | Enable to send Basic report |
| 5 | External switch type | External switch type | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Push button switch | 1 | 1 | normal on/off switch | 2 | 2 | 3-way switch |
| 4 | Enable/disable external switch to be added to and removed from a network | Enable/disable external switch to be added to and removed from a network (when enables this function, triple press the external switch within 1.5 seconds to be added to or removed from a network) | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 0 | disable | 1 | 1 | enable |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | 1. Set primary controller/gateway into inclusion mode (Please refer to your primary controller’s manual on how to turn your controller into inclusion).
2. Power on the in-wall switch and set it into inclusion mode. There are two methods to set the in-wall switch into inclusion mode:
1)Repower on the switch, it will be set into inclusion mode automatically, and waiting to be included.
2)Triple press the action button on the switch, it will set the switch into inclusion mode. | 2 | Exclusion | There are two exclusion methods:
Method 1: Exclusion from the primary controller/gateway as follows:
1. Set the primary controller/gateway into exclusion mode (Please refer to your primary controllers manual on how to set your controller into exclusion).
2. Triple press the action button, the switch will be set to exclusion mode, and waiting to be excluded, then the switch will be excluded from the network.
Method 2: Factory reset the switch will force it to be excluded from a network. (please refer to the part “Factory Reset” of this manual)
Note: Factory reset is not recommended for exclusion, please use this procedure only if the primary controller/gateway is missing or otherwise inoperable. | 5 | Factory Reset | Press and hold down the action button for over 10 seconds, the dimmer will be reset to factory defaults. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
System | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
